The reality is that HPT works well when the right tooling, strategy, and machine setup align. When they don't, it fails predictably and expensively.
This guide is written for CNC machinists, tool and die shops, mold makers, and precision manufacturers in automotive and aerospace. It covers how HPT works, how to select inserts, which cutting strategies apply in which conditions, and — critically — when HPT is not the right answer.
Key Takeaways
- HPT turns hardened steel (45–70 HRC) using CBN, ceramic, or coated carbide inserts on a CNC lathe instead of grinding
- Insert selection depends on hardness, cut type (continuous vs. interrupted), and required surface finish
- One-cut strategies maximize cycle time efficiency
- Two-cut strategies prioritize surface quality and process security
- Machine rigidity and workpiece preparation in the soft state determine whether HPT succeeds or fails
- HPT doesn't replace grinding universally; cylindricity and roundness tolerances can still favor grinding
What Is Hard Part Turning?
Hard part turning is a single-point CNC turning process applied to workpieces already hardened to 45 HRC or above. Most production HPT falls in the 55–65 HRC range, where the goal is to achieve surface finish and dimensional accuracy comparable to grinding — directly from the lathe, without a secondary operation.
What HPT Can Achieve
According to Danobat/Hembrug's precision turning specifications, finish hard turning can reach:
- Dimensional tolerances of 2 µm or less
- Roundness of 0.5 µm or less
- Surface finish of Ra 0.1–0.4 µm
These numbers put HPT firmly in grinding territory for many features. Common automotive applications include transmission gears, input/output shafts, crown wheels, CV-joints, pinions, and valve seats — parts where multiple features need tight tolerances in a single setup.
How HPT Differs from Conventional Turning and Grinding
| Process | Material Condition | Primary Tool | Geometric Flexibility |
|---|---|---|---|
| Conventional turning | Soft (pre-hardened) | Carbide inserts | High |
| Hard part turning | Hardened (45–70 HRC) | CBN, ceramic, coated carbide | High |
| Grinding | Any (usually post-hardening) | Abrasive wheel | Limited without custom dressing |
HPT shares the setup and programming logic of conventional turning but demands specific tooling, machine stability, and strategy. Grinding remains the better choice for extreme cylindricity and roundness requirements. It requires dedicated equipment, custom wheel dressing for complex contours, and higher per-part cost. HPT closes that gap for most precision features: it handles complex contours without wheel redressing, fits into an existing turning cell, and hits grinding-class tolerances on the right geometry — provided the machine, tooling, and setup are dialed in.
Cutting Tool Selection for Hard Part Turning
Insert material is the single most important variable in HPT. Applying the wrong grade doesn't just reduce tool life — it causes immediate edge failure.
The Three Insert Material Categories
Coated carbide covers the lower end of the hardness spectrum, roughly 40–50 HRC. Sandvik lists grades like GC4305 for continuous cuts at lower speeds and GC4315 for light intermittent cuts in this range. Above 50 HRC, carbide loses its edge integrity too quickly to be practical.
Ceramic inserts (mixed Al₂O₃ or whisker-reinforced) perform well from roughly 50–60 HRC on continuous cuts. They offer high heat and wear resistance, but they're brittle — interrupted cuts, keyways, scale, or an unstable workholding setup will shorten ceramic tool life dramatically.
For interrupted conditions, CBN and PCBN tools consistently outperform ceramics in both tool life and surface finish. Ceramics are a liability anywhere the cut isn't clean and continuous.
CBN (cubic boron nitride) is the standard choice above 55 HRC and for most through-hardened and case-hardened steels. It's the workhorse of HPT. Because CBN dominates HPT applications, grade selection within the CBN family deserves its own attention.

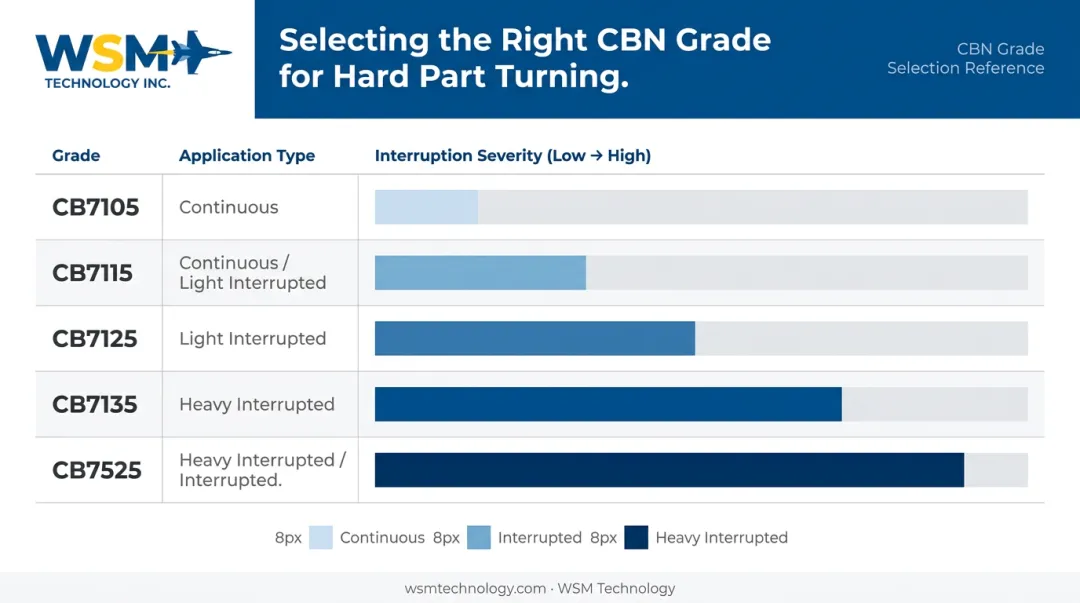

Selecting the Right CBN Grade
CBN grades aren't interchangeable. The key variables are CBN content, grain size, and ceramic binder ratio — which together determine how a grade handles heat, abrasion, and mechanical shock.
Sandvik's grade lineup illustrates the logic well:
| Grade | Application |
|---|---|
| CB7105 | Continuous cuts, highest speeds, stable conditions |
| CB7115 | Continuous to light interrupted cuts, high feeds or depths |
| CB7125 | Light to medium interrupted cuts |
| CB7135 | Heavy interrupted cuts, including unchamfered edges |
| CB7525 | High CBN content, heavy interrupted cuts at low-to-medium speeds |
High CBN content with less ceramic binder handles abrasive, high-carbon steels. Higher ceramic binder (lower CBN content) suits lower-carbon steels. Match grade toughness to interruption severity — don't use a continuous-cut grade on a slotted or splined shaft.
Insert Geometry and Edge Preparation
Negative rake inserts with negative rake toolholders are the standard for HPT. They reinforce the cutting edge under the high pressures generated in hardened steel.
Wiper geometry is a major productivity lever. According to Sandvik, wiper inserts can produce twice the surface finish quality at the same feed rate, or maintain the same finish at twice the feed rate. That means either better quality at existing parameters or shorter cycle time — whichever matters more. Wipers are more sensitive to rigidity and setup quality, so they reward a stable machine.
Edge preparation directly affects whether a CBN insert survives the first pass or chips out. A sharp edge can't withstand the high cutting forces in hardened steel — lightly honed edges are the first choice. Sandvik's S-land (chamfer plus hone) is the standard recommendation for chipping resistance; T-land (chamfer only) reduces cutting forces and tightens tolerances. A sharper edge may be appropriate for internal boring where clamping is limited and rigidity is reduced.
Chipformers on CBN inserts solve a common HPT problem: long, unbroken chips that wrap around the workpiece and damage the surface finish. Tungaloy's HS-style CBN chipbreaker was developed specifically for reliable chip control during hard part turning at elevated parameters.

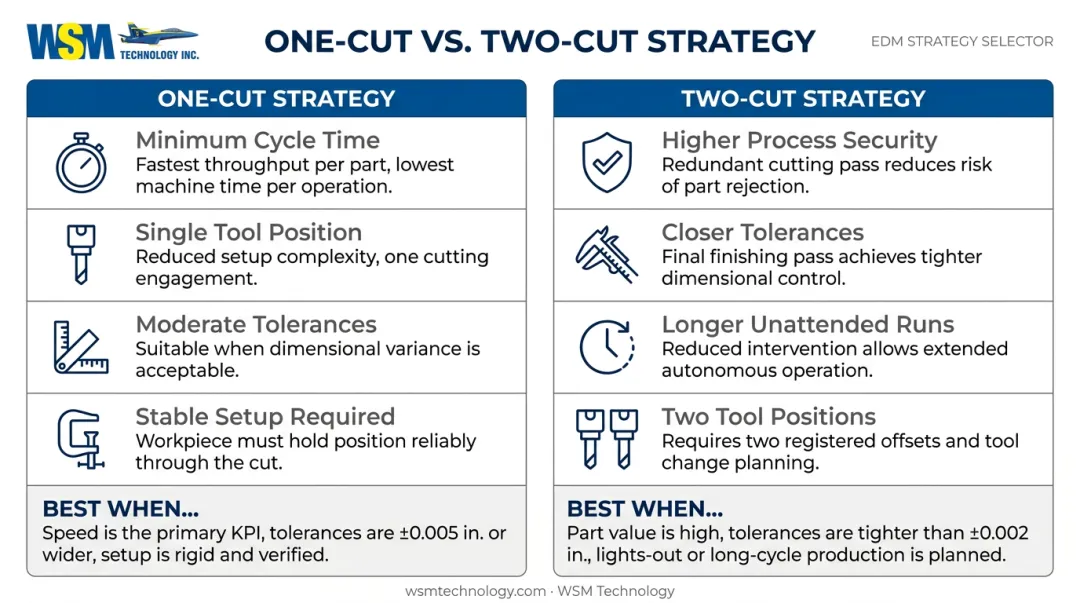

Hard Part Turning Strategies: One-Cut vs. Two-Cut
Strategy selection in HPT comes down to a trade-off between cycle time and process security. There are two approaches, and neither is universally better.
The One-Cut Strategy
A single pass removes material and achieves the final dimension and surface finish simultaneously. This works for both external and internal operations when:
- The setup is stable and well-damped
- Dimensional tolerances are moderate
- Cycle time is the priority
The primary advantages are minimum cycle time and a single tool position. For internal boring, keep tool overhang within 1× the bar diameter — exceeding this introduces vibration that defeats the purpose of the one-cut approach.
The Two-Cut Strategy
A roughing pass followed by a dedicated finishing pass. Both typically use wiper geometry inserts, but with different profiles:
- Roughing insert (S-type with larger nose radius, ~1.2 mm): clears stock and handles edge stress
- Finishing insert (chamfered T-type): achieves final surface quality and dimensional tolerance
The two-cut approach provides higher process security, supports closer tolerances, and enables longer unattended runs between tool changes. It requires two tool positions and one additional tool change — a modest trade-off for predictable tool life and repeatable dimensional output across long production runs.
When to Use Each
| Condition | Recommended Strategy |
|---|---|
| Stable setup, moderate tolerances | One-cut |
| High surface quality required | Two-cut |
| Excess stock from soft-stage machining | Two-cut |
| Unattended overnight or lights-out machining | Two-cut |
| Short run, tightest cycle time | One-cut |
Toolpath, Wear Signals, and Cutting Parameters
Entry and exit matter. Always roll into and out of the cut with a programmed radius movement — abrupt entry or exit concentrates force on the cutting edge at the worst possible moment. Chamfers and radii added to the workpiece during soft machining protect the edge at these transition points.
Wear patterns tell you what to adjust. According to Sandvik's hard part turning process guide:
- Crater wear (visible on the rake face) → reduce cutting speed, increase feed
- Flank wear (progressive, predictable) → increase both cutting speed and feed
Those speed adjustments aren't just about wear rate — running cutting speed too low can cause insert breakage rather than smooth, predictable wear.
The process relies on heat concentration in the chip. Sandvik's data puts heat distribution at 80% into the chip, 10% into the workpiece, and 10% into the insert. Without sufficient cutting speed, the heat doesn't transfer properly, and the insert takes the mechanical shock without the thermal softening effect that makes HPT work.
Machine Setup and Workpiece Preparation
The best insert grade and cutting strategy fail on an unstable machine. Setup quality is non-negotiable in HPT.
Machine Rigidity
HPT generates elevated cutting forces. The machine needs:
- A stable base structure with strong vibration-damping characteristics
- High-precision spindle with minimal runout
- Guideways and spindle bearings capable of resisting push-back pressure at hard-turning loads
Machine age matters less than machine condition. An older, well-maintained machine with no vibration can outperform a newer unstable setup. Purpose-built hard turning systems like Hembrug machines are specifically engineered for this — fully hydrostatic slide and spindle bearings, granite machine bases, and dynamic stiffness maintained at the tool tip under HPT loads.
WSM Technology carries Hembrug hard turning machines and Schaublin turning lathes, both suited to the rigidity demands of HPT. Their demonstration center in Rootstown, Ohio allows shops to run test cuts and validate processes on actual hard turning equipment before committing to a machine investment.
Workpiece Support and Clamping
- Unsupported workpieces (one end only): 2:1 length-to-diameter ratio is acceptable
- Tailstock support extends this ratio for longer parts
- Workholding runout is magnified in HPT — even minor inconsistencies in part seating create unpredictable cutting conditions
Stable jaws, consistent part seating, and correct clamp torque are process requirements, not optional details.

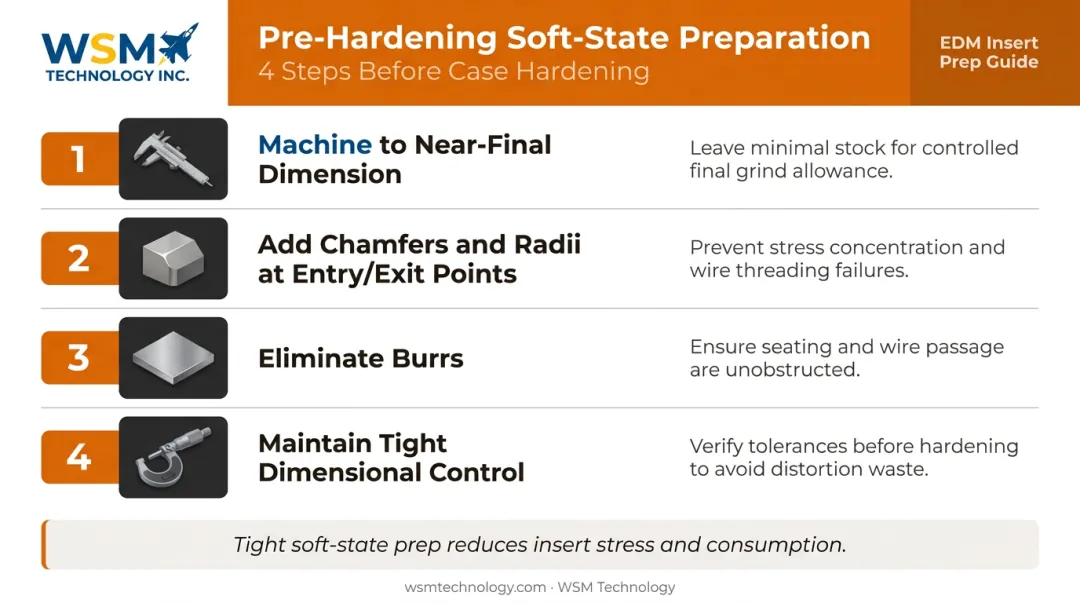

Workpiece Preparation in the Soft State
This is the most frequently overlooked factor in HPT success. Before hardening:
- Machine as close to final dimension as possible — leave only minimal stock for HPT finishing
- Add chamfers and radii at all entry and exit points (protects the cutting edge at tool engagement)
- Eliminate burrs
- Maintain tight dimensional control
Tight soft-state preparation directly reduces cutting forces and insert stress during HPT. Shops that skip this step pay for it in insert consumption.
Coolant Strategy
HPT is typically performed dry. CBN and ceramic inserts tolerate high cutting temperatures, and the process depends on heat transferring into the chip. Intermittent coolant application — the most common mistake — causes thermal shock and insert cracking.
If coolant is required (for workpiece thermal stability or surface integrity requirements), it must be applied as a continuous, uninterrupted flow from the start of the cut.
When Hard Part Turning May Not Be the Right Choice
HPT is a high-performance process, not a universal replacement for grinding. Recognizing its limits is as important as knowing its strengths.
Grinding may still be necessary when:
- Extreme cylindricity, roundness, or very fine tolerances across multiple interdependent surfaces are required simultaneously
- Lead or spiral patterns on shafts are unacceptable — grinding controls these better than single-point turning
- Modern Machine Shop notes that grinding remains preferred where hard turning cannot meet the size, roundness, cylindricity, or lead-pattern requirement
HPT should not be forced when:
- The machine has poor rigidity, excessive vibration, or unreliable workholding — these conditions produce insert failure, surface integrity issues, and dimensional drift, not usable parts
- Severely interrupted cuts on high-carbon, through-hardened steels push into the upper hardness range — insert breakage risk climbs sharply when interruption severity and material hardness combine
The right choice depends on part geometry, material hardness, required tolerances, available machine capability, and production volume. Shops that default to HPT purely for cost reasons — without checking whether their equipment can deliver stable conditions — often conclude HPT "doesn't work." Usually, the problem is the machine, not the process.
Before committing to an HPT strategy on existing equipment, an honest assessment of machine stability pays off. WSM Technology's team in Rootstown can start that conversation and, where appropriate, run test cuts to validate whether a process is achievable before any capital decision is made.
Frequently Asked Questions
What is hard turning?
Hard turning is a CNC turning process performed on materials hardened to 45 HRC or above — typically 55–65 HRC — using specialized inserts such as CBN or ceramic instead of conventional carbide tooling. The goal is to achieve grinding-comparable surface finishes and tight tolerances directly from the lathe.
What are carbide turning inserts used for?
Carbide inserts handle conventional turning of softer materials, generally below 45 HRC. In HPT, coated carbide grades work in the 40–50 HRC range. Above that, CBN or ceramic inserts are required — carbide lacks the heat resistance to hold a usable edge in fully hardened steels.
What is the rough turning process in hard part turning?
Rough turning removes bulk material before finishing operations. In a two-cut HPT strategy, the roughing pass prioritizes material removal and edge strength using a larger nose radius insert. The finishing pass then achieves final surface quality and dimensional tolerance with a chamfered wiper insert.
Can hard part turning replace grinding entirely?
HPT can replace grinding for many features, particularly on parts with complex geometries, tapers, or contours where custom wheel dressing would be required. However, grinding remains necessary when extreme cylindricity, roundness, or very fine tolerances across multiple surfaces must be held simultaneously.
What HRC hardness range is suitable for hard part turning?
HPT is performed on materials from 45 to 70 HRC. Insert selection scales with hardness: coated carbide up to approximately 50 HRC, ceramic from 50–60 HRC on continuous cuts, and CBN above 55 HRC for most hardened and case-hardened steels.
