This guide covers everything you need to make an informed decision: what hard turning is, how it works, which cutting tools it requires, where it beats grinding (and where it doesn't), and which industries rely on it most.
Key Takeaways
- Hard turning applies to workpieces at 45 HRC or above, beyond the range of conventional carbide turning
- CBN inserts are the standard tool choice for hard turning above 55 HRC
- Machine rigidity and spindle precision are non-negotiable — not every lathe qualifies
- Hard turning can achieve surface finishes of Ra 0.1–0.4 µm under the right conditions
- Grinding still holds an edge for mirror finishes and extreme roundness requirements
What Is Hard Turning?
Hard turning is a single-point CNC turning process applied specifically to workpieces with a Rockwell hardness of 45 HRC or above — materials that would destroy conventional carbide tooling in seconds. In practice, most hard turning work falls in the 58–68 HRC range, covering through-hardened and case-hardened steels.
How It Emerged as a Viable Process
The process gained traction in the early 1990s, when trade publications described PCBN hard turning as a finishing alternative to grinding for hardened steel parts. Two developments made it possible: improvements in cubic boron nitride (CBN) cutting tool materials and CNC lathes redesigned to handle the high radial forces and interrupted cuts that hardened steel demands.
Before CBN tooling matured, machining hardened steel after heat treatment meant routing every part to a grinding department. Hard turning gave shops a direct path from lathe to finished dimensions — without the detour.

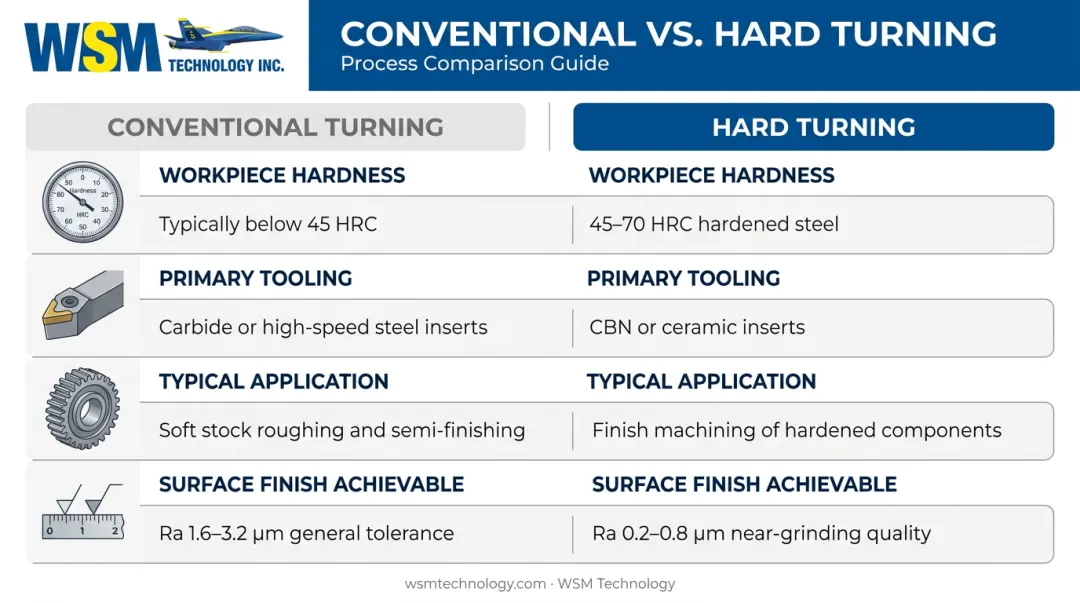

Hard Turning vs. Conventional Turning
The distinction matters because it changes everything about tooling, machine selection, and cutting strategy:
| Factor | Conventional Turning | Hard Turning |
|---|---|---|
| Workpiece hardness | Annealed / soft metal | 45–68 HRC post-heat treatment |
| Primary tooling | Carbide inserts | CBN or ceramic inserts |
| Typical application | Roughing, semi-finishing | Finishing to final dimensions |
| Surface finish achievable | Varies by material | Ra 0.1–0.4 µm under optimal conditions |
Hard turning is specifically designed to achieve tight dimensional tolerances and surface finishes — Ra values that previously required a dedicated grinding operation — allowing shops to consolidate onto a single CNC lathe.
How Hard Turning Works on a CNC Lathe
The workpiece arrives already heat-treated to its final hardness. It's secured in the chuck or collet, and the CNC program drives a single-point cutting tool along the surface to remove material to final dimensions. The concept is straightforward — the execution is where precision requirements bite.
Machine Rigidity Is the Gating Factor
Hardened materials resist cutting forces aggressively. Any flex or chatter in the machine translates directly into surface finish degradation and dimensional error. This is why specialized hard turning machines specify spindle runout of 0.1 µm or less and use hydrostatic guideways for dynamic stiffness. Not every lathe qualifies — machine selection is as critical as tool selection.
One-Cut vs. Two-Cut Strategy
Sandvik recommends choosing between two approaches based on the application:
- One-cut strategy — Single tool position, faster cycle time, suited for parts with moderate tolerance requirements and attended operation
- Two-cut strategy — Roughing pass plus finishing pass, delivers superior roundness and surface finish, preferred for tight-tolerance parts and unattended production runs
Use the two-cut approach when roundness and finish requirements push toward the upper end of what hard turning can achieve.
Heat: Asset and Liability
Cutting forces generate significant heat at the tool-workpiece interface. At the right cutting speed, this heat actually helps — it thermally softens the chip being removed while leaving the parent material unaffected. Too low a cutting speed generates insufficient heat and can contribute to insert breakage.
The default approach is dry machining. Sandvik and Iscar both recommend against using coolant with CBN inserts in most hard turning applications. If coolant is needed for thermal stability, it must be applied continuously: intermittent coolant causes thermal cycling that cracks inserts.
CNC Control's Role
Modern CNC lathes with in-process gauging and adaptive control can monitor dimensional output in real time and adjust tool offsets to compensate for thermal drift and tool wear. In precision hard turning production, that closed-loop feedback is what keeps the 50th part as accurate as the first.
Cutting Tools and Machine Requirements for Hard Turning
The Three Insert Tiers
Matching insert material to workpiece hardness is the single most important tooling decision in hard turning:
- Carbide inserts — Suitable in the 45–50 HRC transition zone where some harder carbide grades may work; limited tool life above this range
- Ceramic inserts — Kennametal's KYHK15B, for example, targets hardened steel above 45 HRC, particularly case-hardened mild steels
- CBN (cubic boron nitride) inserts — The standard choice above 55 HRC; second only to diamond in hardness and purpose-built for through-hardened and case-hardened steels
For most true hard turning work — bearings, gears, shafts, dies — CBN is the practical answer.
Selecting the Right CBN Grade
CBN inserts come in two broad compositions, each suited to different conditions:
- High-CBN-content grades (~90% CBN) — Better impact resistance; suited for interrupted cuts and abrasive materials
- Low-CBN-content grades (~60–70% CBN with ceramic binder) — Better thermochemical wear resistance; preferred for continuous cuts on less abrasive steels
Choosing the wrong grade accelerates wear and inflates cost-per-part. Matching grade to material and cut type before you order is the move that protects both tool life and margin.
Machine Requirements
A lathe intended for hard turning must have:
- Rigid base structure and robust turret construction
- High-precision spindle bearings with minimal runout
- Strong vibration damping characteristics throughout the machine structure
- Integrated tool holders with minimum overhang to reduce vibration transmission
Tool holder and insert geometry also matter: edge preparation (honed or chamfered edges), chip breaker design, and nose radius all influence surface finish, cutting forces, and tool life.

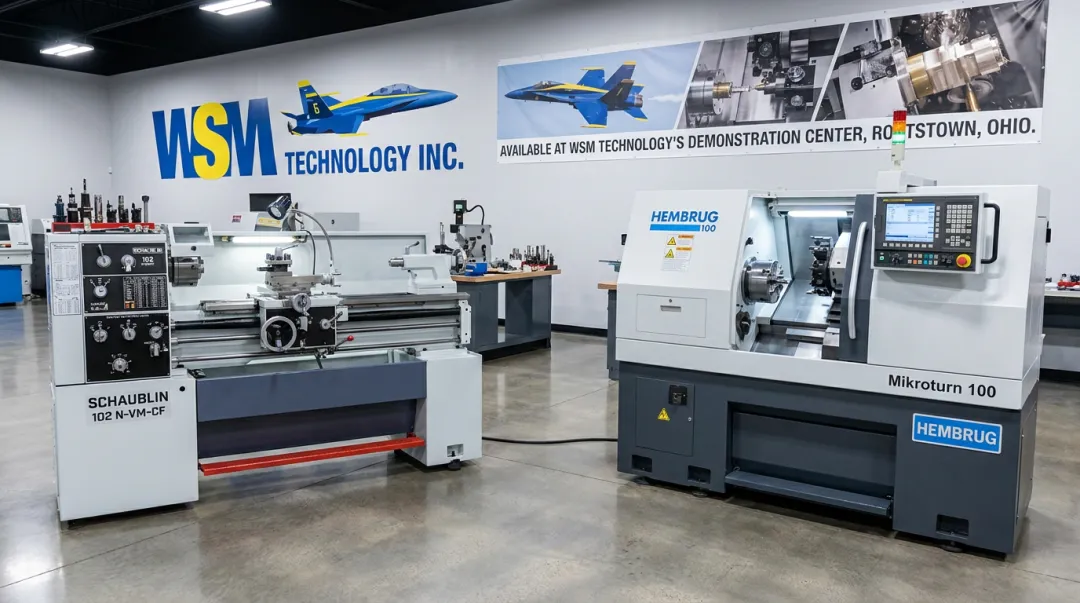

Selecting a machine that meets these requirements is where the equipment conversation begins. WSM Technology represents two lines worth considering: the Schaublin lathe, a Swiss-precision turning machine with over 100 years of engineering heritage and 250,000+ installed lathes with Schaublin-made spindles, and Hembrug hard turning machines, equipment built specifically for hardened workpiece applications.
Shops in Northern Ohio, Western Pennsylvania, and West Virginia can evaluate both at WSM's Demonstration Center in Rootstown, Ohio — including test cuts on actual materials before committing to a purchase.
Key Advantages of Hard Turning Over Conventional Machining
Cost and Throughput
Historical industry benchmarks from CTE put hard turning's material removal rate at 3–4x higher than conventional grinding, with energy consumption roughly 5x lower. Those numbers are dated, but the efficiency gap hasn't closed — hard turning remains faster for most rotational geometries.
The bigger cost driver for most shops is setup consolidation. Hard turning can combine ID, OD, taper turning, and grooving on one CNC turning center, eliminating multiple setups and the logistics of moving parts between operations. Machine tool investment can drop significantly when a dedicated grinding machine is removed from the equation.
There's a genuine tradeoff: CBN tooling runs 2–3x higher in cost-per-part than grinding wheel consumables. Total economics favor hard turning when setup time savings, throughput gains, and eliminated machine cost are factored together — not on tooling cost alone.
Flexibility
Because hard turning uses standard CNC lathe platforms, shops with existing turning capacity can add the capability through targeted training and tooling investment — no new machine required. Key flexibility advantages include:
- Switching between part types requires a tool change and program call, not a grinding wheel dress cycle
- Machining ID and OD features in a single clamping maintains concentricity and perpendicularity without re-fixturing
- Existing CNC turning programs and operators transfer directly to hard turning work
Environmental and Operational Benefits
Hard turning typically runs dry or with minimal quantity lubrication:
- No coolant sludge disposal (grinding generates significant sludge waste)
- Chips are dry and recyclable
- Lower consumable management overhead compared to grinding wheel maintenance and redressing
Hard Turning vs. Grinding: Making the Right Choice
Neither process wins across the board. The choice depends on what your part actually requires.

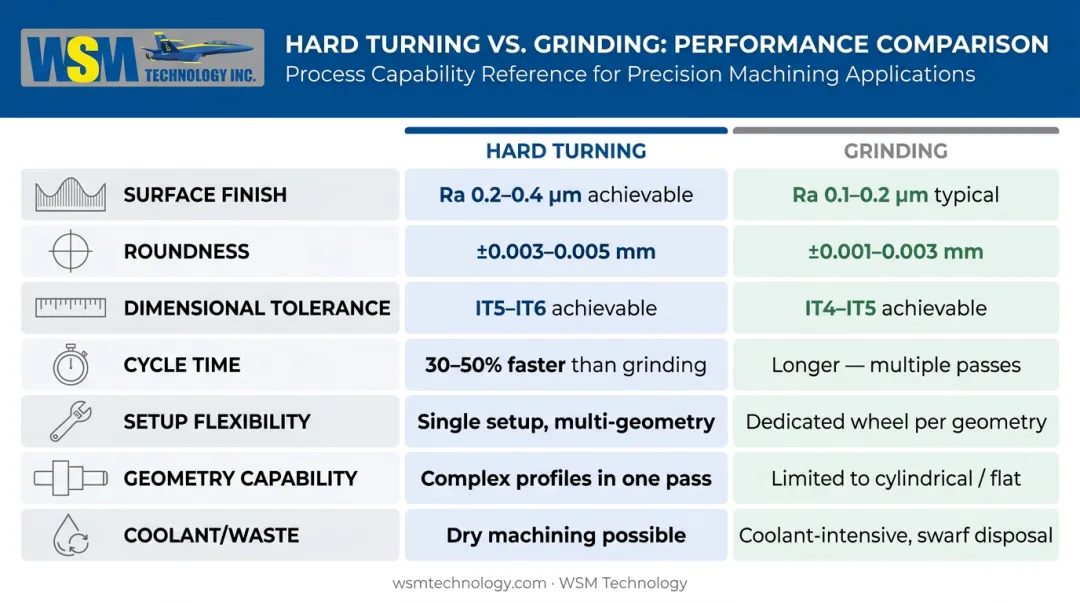

Direct Comparison
| Factor | Hard Turning | Grinding |
|---|---|---|
| Surface finish | Ra 0.1–0.4 µm achievable; practical range Rz 0.8–7.0 µm | Preferred for mirror finishes Rz 0.3–0.8 µm |
| Roundness | Typically 0.5–12 µm range | Better for extreme roundness/cylindricity |
| Dimensional tolerance | ±0.0002 in achievable on dialed-in systems | Slight advantage at micron-level extremes |
| Cycle time | Generally faster for most geometries | Slower; wheel dressing adds overhead |
| Setup flexibility | High — tool change + program call | Lower — wheel dressing, truing cycles |
| Geometry capability | ID, OD, tapers, grooves in one chucking | Strongest for OD cylindrical work |
| Coolant/waste | Typically dry, minimal waste | Significant coolant and sludge management |
The table above covers performance and process factors, but the real decision comes down to your specific application. Here's where each process earns the edge.
When Hard Turning Is the Better Choice
- Rotational geometries: shafts, bearing races, gears, bushings
- Small-to-medium production runs where setup time matters
- Shops with existing CNC lathes looking to eliminate outsourced grinding
- Applications requiring quick changeover between different part types
- When concentricity between ID and OD features is critical (single-clamping advantage)
Grinding, on the other hand, holds its ground in a specific set of conditions that hard turning can't fully replicate.
When Grinding Remains Preferable
- Mirror-like surface finishes below what hard turning can reliably achieve (Rz below 0.8 µm)
- Applications with extreme roundness or cylindricity requirements
- Very complex non-rotational geometries
- Materials where thermal influence from turning would cause rejection at micron-level tolerances
Industries, Applications, and Common Challenges
Where Hard Turning Is Most Used
Hard turning is most prevalent in four sectors — all of which fall squarely within WSM Technology's customer base:
- Automotive — Gears, shafts, bearing races, transmission components, injection pump parts; steels like 5120 and 9310 are common
- Mold and die — Hardened punch and die components from tool steels such as D2, M2, M4, CPM 3V; shops have achieved ±0.0002 in tolerances while eliminating ID/OD grinding entirely
- General tooling and precision mechanics — Round tooling for sheet-metal forming and similar applications up to 64 HRC
- Aerospace — High-strength structural components and precision tooling requiring tight tolerances on hardened materials
Each of these industries demands consistent, repeatable results on hardened materials — which makes understanding hard turning's failure points just as important as knowing where it succeeds.
Addressing the Main Challenges
Three issues come up most often in production hard turning, each with well-established fixes:
Tool Wear from Abrasive Hardened Materials
- Select the CBN grade matched to your workpiece material and interruption level
- Optimize depth of cut and feed rate — inconsistent depth of cut significantly reduces CBN tool life
- Use Seco-reported finishing parameters as a baseline: 220 m/min cutting speed, 0.25 mm/rev feed, 0.15 mm depth of cut
Heat-Induced Surface Damage
- Default to dry machining with CBN or ceramic inserts
- If coolant is required, apply it continuously — never intermittently
- Maintain consistent cutting parameters throughout the operation
Maintaining Tolerances Over a Production Run
- Use in-process gauging to detect dimensional drift early
- Implement adaptive CNC control that adjusts tool offsets in response to wear and thermal effects
- Track CpK/PpK data to verify process capability, not just individual part measurements
Frequently Asked Questions
What does 'hard turning' mean?
Hard turning is a single-point CNC turning operation performed specifically on workpieces with a Rockwell hardness of 45 HRC or above. It enables precision finishing of hardened steel parts — including tight tolerances and fine surface finishes — without requiring a separate grinding operation.
What hardness level is required for hard turning?
The standard threshold is 45 HRC minimum, with most practical hard turning work falling in the 58–68 HRC range. Below 45 HRC, conventional turning with carbide tooling is generally sufficient and more economical.
What type of cutting tool is used for hard turning?
CBN inserts are the standard choice for most production hard turning, particularly steels above 55 HRC, due to their hardness and thermal resistance. Ceramic inserts work for mid-range hardened steels above 45 HRC, while carbide handles the 45–50 HRC transition zone.
Can any CNC lathe perform hard turning?
No. The machine must have sufficient rigidity, vibration damping, and spindle precision to handle the high cutting forces without deflecting or chattering. Machines designed for hard turning specify spindle runout in the sub-micron range — a standard that many general-purpose lathes don't meet.
Is hard turning a replacement for grinding?
For many applications — particularly rotational geometries in small-to-medium batches — yes. But grinding remains the better choice for ultra-fine mirror finishes (Rz below 0.8 µm) and applications with the most extreme roundness or cylindricity requirements.
What industries benefit most from hard turning?
The primary sectors are automotive, mold and die, aerospace, and general precision tooling. Typical components include bearing races, transmission shafts, hardened punches and dies, and precision round tooling — most commonly in tool steels and alloy steels at 58–68 HRC.
