This article cuts through the assumptions. You'll get a factual side-by-side comparison of both processes, clear situational guidance on when each one wins, and enough real-world context to make a defensible process decision for your specific parts.
Key Takeaways
- Hard turning machines hardened ferrous workpieces (45–68 HRC) using CBN or ceramic inserts on a CNC lathe, without requiring a dedicated grinding machine.
- Grinding consistently delivers tighter roundness, lower Ra, and no-lead surfaces that single-point turning cannot reliably replicate.
- Hard turning is typically more cost-effective for small-to-medium batch sizes; grinding becomes more economical at very high volumes.
- Interrupted cuts (keyways, splines) and difficult materials (ceramics, carbides) remain grinding's territory.
- The right choice depends on your application: tolerances, geometry, volume, and customer specifications all factor in.

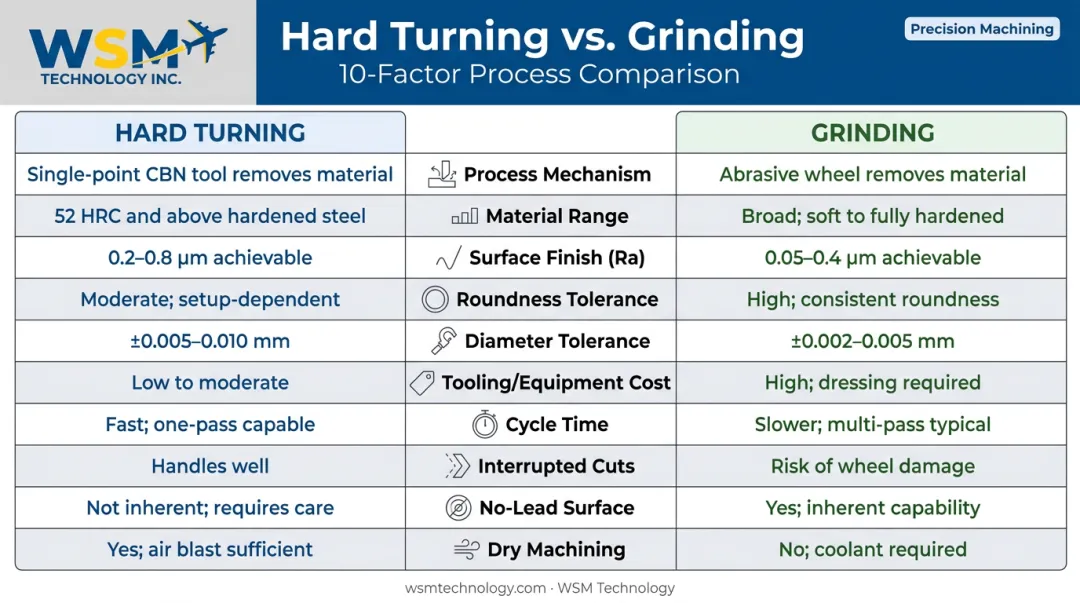

Hard Turning vs. Grinding: Quick Comparison
The table below maps both processes across the factors that matter most in precision work — tolerances, surface finish, tooling cost, and capability limits. Use it as a quick reference before the detailed breakdown that follows.
| Factor | Hard Turning | Grinding |
|---|---|---|
| Process mechanism | Single-point CBN/ceramic insert on CNC lathe | Abrasive wheel with multiple cutting edges |
| Material range | Hardened steels and cast irons, 45–68 HRC | Steels, ceramics, carbides, superalloys |
| Surface finish (Ra) | 0.1–0.3 µm under optimal conditions | Down to 0.10 µm (4 µin) consistently |
| Roundness tolerance | Competitive for many applications | 0.25–2.5 µm — the benchmark for ultra-fine |
| Diameter tolerance | Good for most precision work | <±1 µm to ±10 µm depending on application |
| Tooling/equipment cost | Lower capital — uses existing CNC lathes | Higher capital; dedicated grinding machines required |
| Cycle time | Faster material removal, quicker setup | Slower per part, but highly stable at volume |
| Interrupted cuts | Risky for ceramics; chamfered CBN can handle some | Handles without issue |
| No-lead surface | Cannot guarantee — spiral feed marks present | Plunge grinding eliminates machine lead |
| Dry machining | Yes — CBN tolerates high cutting temperatures | Generally requires coolant |
What Is Hard Turning?
Hard turning is the machining of ferrous workpieces with hardness above 45 HRC using a geometrically defined single-point cutting tool — typically PCBN or ceramic — on a CNC turning center. ISCAR positions PCBN inserts for hard part turning across a range of 50 to 70 HRC, while ceramic grades cover 45 to 60 HRC. Kennametal's KYHK15B ceramic grade targets hardened steel above 45 HRC specifically.
The core operational appeal is integration. Hard turning fits into existing CNC turning workflows without dedicated grinding machinery, which means faster setups, shorter cycle times between operations, and less part handling. For shops running high-mix production — where changeovers happen frequently — that flexibility matters.
Surface Integrity and the White Layer Risk
Hard turning produces a uniform feed mark pattern, and under optimal conditions (sharp tool, stable setup, correct cutting parameters), PCBN can achieve Ra values of 0.1 to 0.3 µm. That's competitive with many grinding applications.
The complication lies in subsurface integrity. Hard turning induces a plastically deformed zone in the near-surface layer, and with a worn tool, excessive heat generates a white layer — a brittle, untempered martensite structure that research links directly to shortened rolling contact fatigue life. NIST research confirms white layer depth correlates strongly with flank wear and cutting speed.
The practical implication: tool condition monitoring isn't optional in hard turning. A worn insert doesn't just affect surface finish; it affects component performance.
Dry Machining Advantage
CBN also eliminates the need for coolant in most applications. ISCAR notes that CBN generally doesn't require coolant because it tolerates high cutting temperatures. This reduces coolant handling costs, environmental impact, and consumable spend — a measurable win for shops pursuing lean or green manufacturing goals.
Where Hard Turning Fits
Hard turning works best as a final finishing step after heat treatment, replacing the grind step when tolerances allow. Common applications include:
- Bearing races and rings
- Hardened steel shafts with rotational geometries
- Automotive drivetrain components
- Gear and pinion finishing (PCBN grades are specifically referenced for pinion applications by Seco)
- Mold components where grinding access is difficult
For shops targeting these applications, equipment selection matters. WSM Technology's Hembrug hard turning machines are purpose-built for this work: specialized equipment designed for the hardness ranges and tolerance demands of precision finishing in hardened steels.

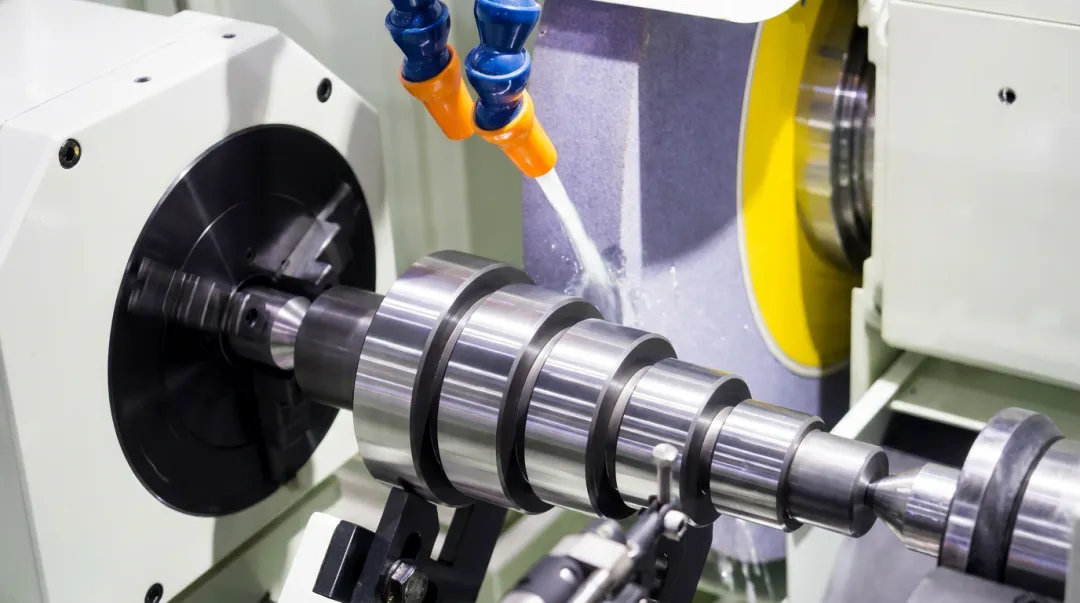

What Is Grinding?
Grinding removes material through abrasive wheel contact, where abrasive grains act as cutting edges, removing material through rubbing, plowing, and chip formation. Unlike hard turning's single defined cutting edge, a grinding wheel presents many abrasive grains across its surface — giving it a different cutting mechanism and a distinct tolerance capability profile.
That difference in mechanism is exactly why grinding dominates final finishing for critical tolerances: it consistently delivers surface finish, size, and roundness specifications that hard turning cannot reliably match. UNITED GRINDING's cylindrical grinding machines achieve Ra as low as 0.10 µm (4 µin), diameter tolerances from less than ±1 µm, and roundness within 0.25 to 2.5 µm.
The No-Lead Surface Requirement
For rotary shaft seal applications, grinding is the specified process, not merely the preferred one. SAE 930534 requires shaft surfaces for radial lip seals to achieve 0.25 to 0.50 µm Ra with no machine lead and recommends plunge grinding. Parker's Rotary Seal Design Guide specifies Ra 0.20 to 0.43 µm with defined Rz and RPM values. AHP confirms that spiral or helical machining marks — exactly what a single-point turning operation leaves — create leak paths and abrade the seal lip.
Hard turning cannot meet this requirement. The spiral feed mark pattern from a single-point tool is inherent to the process.
Difficult Materials
With ceramics, carbides, and superalloys, grinding is often the only practical option at production scale. 3M documents that grinding tungsten carbide, ceramics, and superalloys requires diamond or cBN superabrasive wheels — hard turning inserts wear rapidly on these materials, introducing size variation and unplanned downtime that makes the process unviable at production scale.
Interrupted Cuts
Parts with keyways, splines, or other surface interruptions present a specific challenge for hard turning. ISCAR states ceramic inserts are not recommended for interrupted machining, and research on CBN in interrupted hard turning confirms that tools require chamfered edges specifically to resist chipping under the shock loading. A grinding wheel, by contrast, conforms to the surface and re-engages after interruptions without the concentrated shock loading that damages a single-point tool.
Where Grinding Fits
Grinding is the standard final finishing step for:
- Bearing rings, raceways, and rollers — Norton's Technical Solutions for Grinding in the Bearing Market documents grinding as a defined stage in bearing ring manufacturing
- Precision shafts for hydraulic and sealing applications requiring no-lead surfaces
- Aerospace and turbine components
- Parts with keyways, splines, or interrupted geometry
- Any application where a customer-specified "ground finish" is contractually mandated
WSM Technology's Danobat lineup — cylindrical, OD/ID, vertical, and centerless grinders — alongside Overbeck external/internal grinders, covers the full range of these grinding configurations for precision manufacturers across Northern Ohio, Western Pennsylvania, and West Virginia.
Hard Turning vs. Grinding: Which Process Wins?
Neither process wins universally. The decision comes down to five factors: required surface finish, material type, part geometry, production volume, and whether a ground finish is contractually required.
Surface Finish and Tolerance Reality
Hard turning can approach grinding quality under optimal conditions. But "optimal conditions" is doing a lot of work in that sentence. The moment tool wear advances, Ra degrades and white layer risk increases. Grinding delivers consistent results across longer production runs without that sensitivity to tool condition.
For applications where roundness, Ra, and no-lead surface requirements are specified at the micron level, grinding is the reliable choice. Hard turning becomes competitive when:
- Ra requirements are 0.3 µm or above
- Roundness tolerances permit the feed mark pattern
- No seal interface is involved
- The part geometry is purely rotational

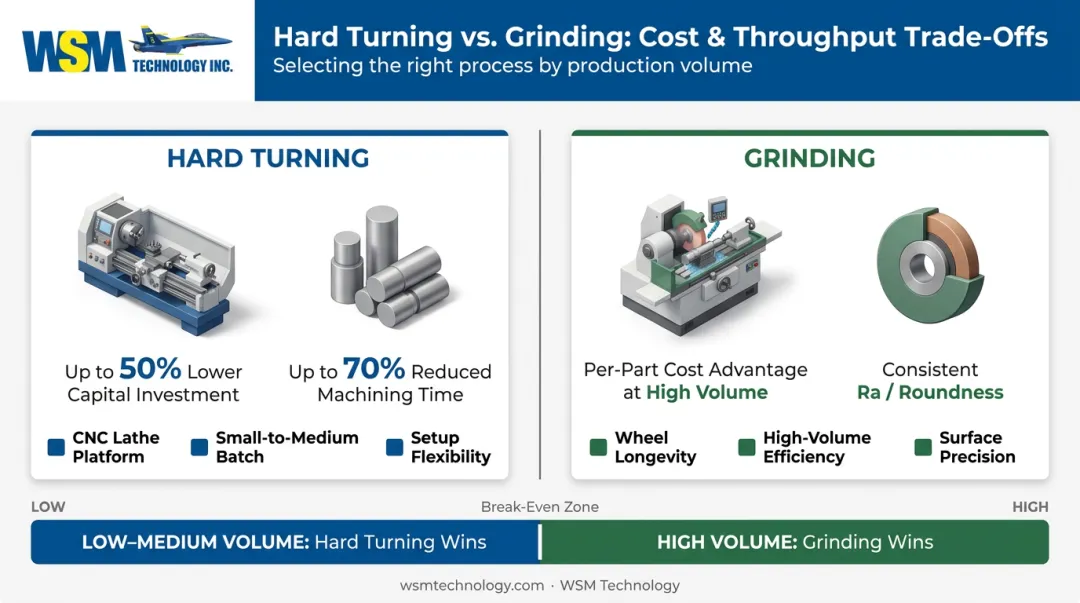

Cost and Throughput
EMAG notes that hard turning can reduce capital investment by up to 50% compared with grinding, and Production Machining confirms the immediate cost advantage of reduced capital versus dedicated grinding equipment. Sandvik states hard part turning can reduce machining time and costs by 70% or more compared with grinding in applicable scenarios (though this applies specifically where hard turning is a genuine substitute, not where grinding is the only viable process).
Those savings narrow at very high volumes. Grinding wheels offer exceptional longevity per part, while CBN inserts require periodic replacement — and at scale, that replacement frequency affects cost per part meaningfully.
General guidance on where each process wins economically:
- Hard turning: favored for small-to-medium batch sizes, high-mix environments, shops using existing CNC lathes, and applications where setup flexibility matters
- Grinding: favored for very high volumes, applications demanding consistent Ra and roundness, and any part requiring a no-lead surface
Situational Recommendations
Choose hard turning when:
- Workpiece is hardened steel or cast iron with rotational geometry
- Tolerances permit Ra 0.3 µm or above and roundness is not at the micron level
- No customer grinding specification exists
- Batch sizes are small to medium
- Rapid setup and dry machining are priorities
Choose grinding when:
- Ultra-fine surface finish or no-lead surface is required
- Material is ceramic, carbide, or superalloy
- Part has interrupted geometry (keyways, splines)
- Customer specifications contractually mandate a ground finish
The Hybrid Approach
Combined turning-grinding machines (which rough-turn and finish-grind in a single setup) are gaining traction in precision manufacturing and mold/die sectors. The advantage is reduced part handling and lower thermal distortion risk from multiple setups. WSM Technology's portfolio includes a "Turning/Grinding" capability category, and their technical team can advise on which hybrid configuration fits a given application.
Real-World Context: How Shops Make the Call
Consider a precision component manufacturer producing hardened steel shafts for an automotive application. The shop runs a dedicated cylindrical grinder for final finishing, but throughput demands are increasing and floor space is constrained. The question: can hard turning replace the grind step?

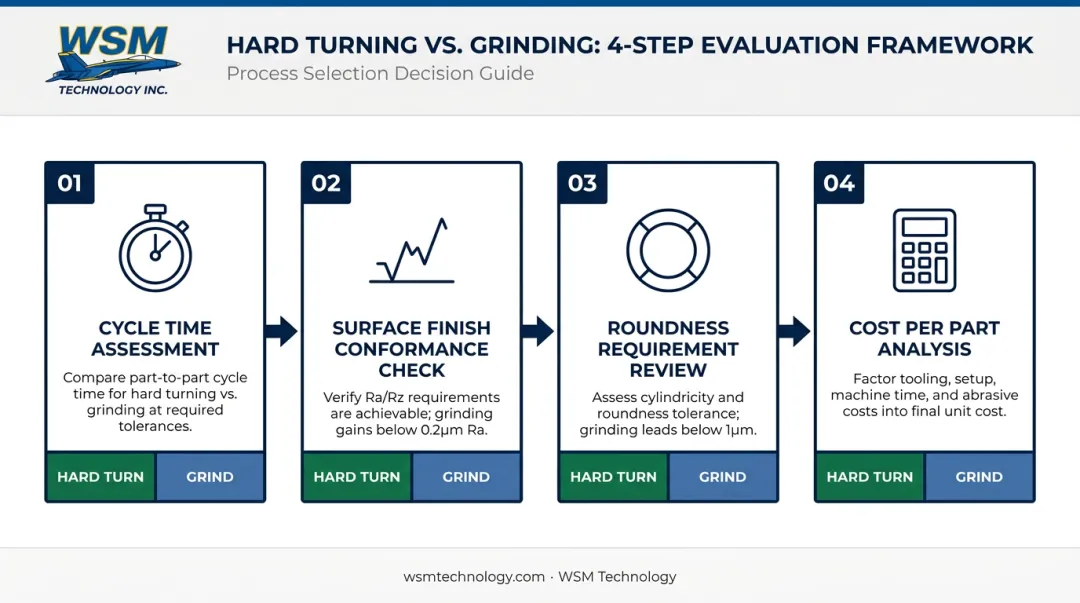

The evaluation process typically centers on four metrics:
- Cycle time — Hard turning is faster per part, but how much faster depends on the material removal required
- Surface finish conformance — Does the application have a no-lead spec or a customer-mandated ground finish? If yes, the evaluation ends there
- Roundness requirement — If the tolerance is at the sub-micron level, grinding stays
- Cost per part — CBN insert cost versus grinding wheel cost at the production volume in question
For shaft seal applications, the answer is typically grinding. The no-lead requirement from SAE and Parker specifications eliminates hard turning as an option regardless of Ra capability.
For bearing races and other rotational components without seal interfaces, hard turning merits serious evaluation — particularly when cycle time reduction and floor space are driving the decision.
WSM Technology's Demonstration Center in Rootstown, Ohio is built around this evaluation framework. Test cuts and time studies on actual customer workpieces — using Hembrug hard turning machines and Danobat grinding equipment — generate real cycle time, surface finish, and roundness data against those four metrics before any capital commitment.
Contact WSM Technology at (330) 962-8308 or sales@wsmtechnology.com to discuss your specific application and arrange a test cut or time study.
Frequently Asked Questions
What is the difference between turning and grinding?
Turning uses a single-point cutting tool to remove material from a rotating workpiece; grinding uses an abrasive wheel where many abrasive grains act as cutting edges. Both can achieve precision finishes, but through fundamentally different mechanisms: turning is faster and more geometry-flexible, while grinding delivers tighter roundness and lower Ra more consistently.
What is the difference between hard turning and turning?
Standard turning works on soft or semi-hard materials. Hard turning is specifically designed for workpieces at 45 HRC and above, using specialized CBN or ceramic inserts that withstand the cutting forces and temperatures involved. Hard turning functions as a finishing process, comparable in application scope to grinding rather than roughing.
What materials are best suited for hard turning?
Hardened steels such as AISI 52100 and 4340, along with hardened cast irons, are the most suitable materials for hard turning. Ceramics, carbides, and highly brittle materials are better processed by grinding with diamond or cBN wheels, where insert wear and size variation would make hard turning uneconomical.
When does grinding outperform hard turning?
Grinding is the stronger choice in several situations:
- Ultra-fine surface finish requirements
- No-lead shaft specifications for seal applications
- Parts with interrupted geometry (keyways, splines)
- Ceramic or carbide workpieces
- Applications where a customer or industry specification contractually requires a ground finish
Can hard turning completely replace grinding?
No. Hard turning is a viable alternative for rotational hardened steel components with appropriate tolerances. Grinding remains necessary for the tightest roundness tolerances, no-lead surfaces, difficult materials, and customer-mandated finishes in aerospace, automotive, and medical supply chains.
What is a "white layer" and why does it matter in hard turning?
A white layer is a brittle, untempered martensite layer that forms at the workpiece surface during hard turning with a worn tool, caused by excessive heat generation. It reduces fatigue life — particularly rolling contact fatigue — making tool condition monitoring essential in any hard turning operation.
