Introduction
In precision manufacturing, the spindle is where tolerances are won or lost. When grinding turbine components, finishing mold cavities, or producing semiconductor substrates, the bearing system at the heart of your spindle determines whether you hold a tenth of a micron or miss it entirely.
Conventional rolling element spindles work well across a broad range of applications. But they have a fundamental limitation: metal rolling on metal transmits vibration, wears progressively, and introduces thermal drift that compounds over a production run. For manufacturers targeting sub-micron accuracy, that's not good enough.
Hydrostatic spindles solve this differently. A continuously pressurized oil film keeps the shaft fully separated from the housing at all speeds — including standstill — delivering damping, stiffness, and runout consistency that rolling element designs cannot match.
This guide covers what engineers and shop managers need to evaluate hydrostatic spindle technology: operating principles, bearing type comparisons, performance advantages, target applications, infrastructure requirements, and maintenance priorities. It's written for precision manufacturing professionals making real capital investment decisions.
Key Takeaways
- Hydrostatic spindles use externally pressurized oil to maintain a full fluid film at all speeds, including zero RPM
- Published bearing clearances in machine-tool applications cluster around 17.5 to 30 µm
- Hydroviscous damping variants reduce natural vibrations by up to 65% compared to conventional designs
- Fluid contamination and pressure loss are the two dominant failure modes; particles as small as 4 µm can damage the film
- Hydraulic power, filtration, and thermal management infrastructure must be planned before installation
What Are Hydrostatic Spindles and How Do They Work?
A hydrostatic spindle is a bearing system in which an externally pressurized fluid — almost always oil — is continuously pumped into precision-machined pockets in the spindle housing. That pressurized film fully separates the rotating shaft from the housing walls. There is no metal-to-metal contact under normal operating conditions.
This separates it from a conventional bearing at a fundamental level. A rolling element bearing relies on physical contact between balls or rollers and their races. A hydrostatic bearing replaces that contact entirely with a self-adjusting fluid cushion.
Fluid Film Mechanics
The self-regulating behavior of a hydrostatic bearing is what makes it valuable for precision work:
- The pump maintains a set oil pressure in each bearing pocket
- When an external load increases, it compresses the film slightly, raising local pressure
- That pressure increase restores the film to equilibrium without any active control system
- The result is high stiffness and damping across a wide load range
According to JTEKT's engineering research on grinding spindle hydrostatic bearings, the land clearance around the bearing pocket typically sits at 20 to 30 µm, with supply pressures around 1.5 MPa in grinding machine applications. Research published in MDPI's hydrostatic spindle study uses clearances of 17.5 to 20 µm at supply pressures between 1.0 and 3.0 MPa depending on the design.
Hydrostatic vs. Hydrodynamic Operating Principle
These two terms describe fundamentally different approaches to fluid-film bearing design:
| Feature | Hydrostatic | Hydrodynamic |
|---|---|---|
| Film source | External pump | Shaft rotation |
| Load support at standstill | Yes | No |
| Load support at low RPM | Full | Partial or none |
| Startup risk | None | Requires secondary support or minimum speed |
In a hydrodynamic bearing, the pressure wedge that lifts the shaft only develops when the shaft spins fast enough to drag oil into the converging gap. At startup and low speeds, the shaft rests on or near the housing surface. A hydrostatic bearing maintains full film pressure from the moment the pump is running, which makes it the right choice when consistent stiffness across the full speed range matters.
Key Internal Components

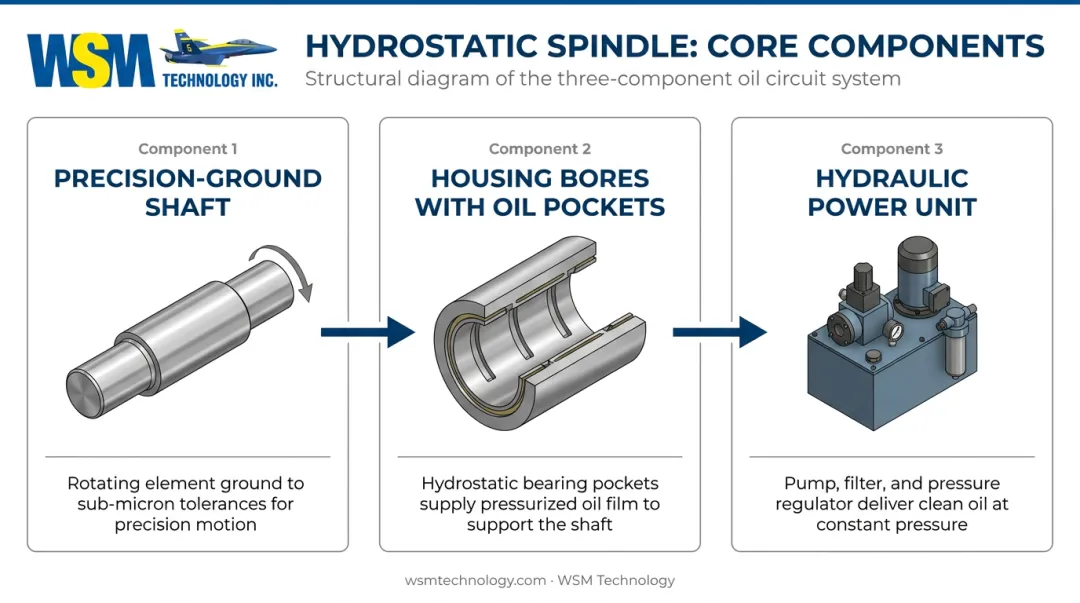

Three physical systems work together in a hydrostatic spindle:
- The precision-ground shaft — the rotating element, with critical OD surfaces finished to micron-level accuracy
- The housing bores (glide elements) — machined with oil distribution pockets that form the bearing geometry
- The hydraulic power unit — the external pump, filter, pressure regulator, and oil recirculation/cooling circuit that supplies pressurized fluid continuously
Many designs allow bearing preload adjustment through oil pressure settings. Lower pressure suits high-speed finishing; higher pressure adds stiffness for heavy roughing passes. This tunability gives operators flexibility that fixed rolling element designs simply cannot match.
Hydrostatic vs. Other Spindle Bearing Types
Spindle bearing selection is always a tradeoff. Most CNC machining centers run on rolling element bearings because they're cost-effective, fast, and well-understood. Hydrostatic designs occupy a specialized segment where the demands for damping, longevity, and precision outweigh the added system complexity.
Rolling Element (Angular Contact / Roller Bearings)
The most common spindle bearing type by far. Rolling element designs offer:
- Low friction and excellent high-speed capability — NSK's ultra-high-speed angular contact spindle bearings can exceed 3 million dmn
- Good static stiffness for most machining applications
- Relatively low initial cost and simple maintenance
Their weakness is damping. Metal-to-metal contact between rolling elements and races transmits vibration rather than absorbing it. Over time, bearings fatigue and require replacement — an unavoidable maintenance cost that increases as accuracy requirements tighten.
Air Bearing Spindles
Air bearings replace oil with compressed air, creating the lowest-friction, highest-rotational-accuracy spindle available. They excel in diamond turning, laser machining, and other ultra-light-duty precision applications where micron-level runout matters but cutting forces are minimal.
Load capacity is where air bearings fall short. Liquid-film designs deliver substantially higher stiffness, and air bearings simply aren't suited for grinding or milling where real cutting forces come into play:
- Stiffness: Significantly lower than hydrostatic or rolling element designs
- Load capacity: Too limited for production grinding or milling applications
- Best fit: Diamond turning, laser machining, and inspection spindles
Side-by-Side Comparison

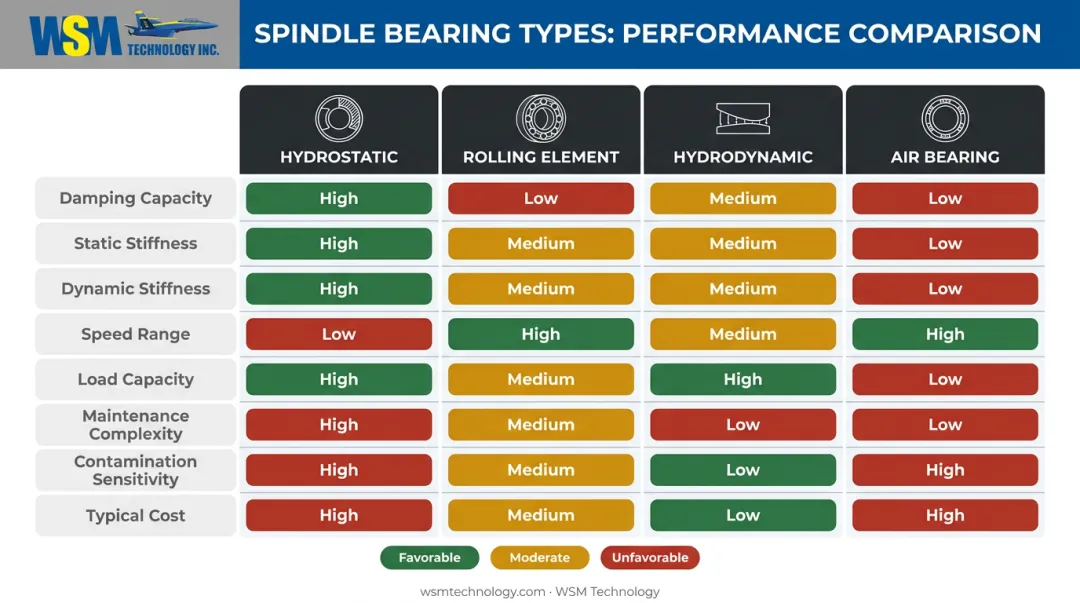

| Characteristic | Hydrostatic | Rolling Element | Hydrodynamic | Air Bearing |
|---|---|---|---|---|
| Damping Capacity | High | Low | Medium | Low |
| Static Stiffness | High | High | Medium | Low |
| Dynamic Stiffness | High | Medium | Medium | Low |
| Speed Range | Medium | High | Medium | Very High |
| Load Capacity | High | Medium-High | Medium | Low |
| Maintenance Complexity | Medium-High | Low-Medium | Medium | Low-Medium |
| Contamination Sensitivity | High | Medium | Medium | Low |
| Typical Cost | High | Low-Medium | Medium | High |
Hydrostatic designs lead in damping and load capacity — the two properties that matter most in precision grinding and heavy-duty milling. Rolling element designs hold the edge on maximum RPM and upfront cost. Air bearings deliver unmatched rotational accuracy, but only where cutting forces are negligible.
Key Advantages of Hydrostatic Spindles
The case for hydrostatic spindles comes down to four outcomes: surface finish, dimensional accuracy, spindle longevity, and consistency across a production run.
Near-Zero Mechanical Wear
No metal-to-metal contact means no progressive bearing fatigue under normal operating conditions. OEM manufacturers like ZOLLERN describe hydrostatic spindles as having effectively unlimited service life when properly maintained, with runout capability below 0.1 µm. Danobat's MikroTurnGrind similarly guarantees hydrostatic main spindle runout of 0.1 µm — performance grounded directly in the physics of non-contact bearing operation.
For high-volume grinding applications, eliminating scheduled bearing replacement is a real cost advantage over rolling element alternatives — and that's before accounting for the dynamic performance benefits that come next.
High Damping and Vibration Suppression
The viscous oil film does something rolling element bearings fundamentally cannot: it absorbs dynamic cutting forces rather than transmitting them into the workpiece.
Why this matters in practice:
- Reduced chatter and surface waviness on ground surfaces
- More consistent material removal across the cut
- Extended tool and grinding wheel life
Dynamic stiffness — the spindle's ability to resist deflection under dynamic loads, not just static ones — is the key metric here. Research published in CIRP Annals confirms that low system damping is a primary driver of chatter vibration in metal cutting, particularly with long-overhang setups. Modern Machine Shop reports that hydroviscous spindle damping — a hybrid approach adding a hydrostatic damping element to a ball-bearing spindle — reduces natural vibrations by as much as 65% compared to conventional designs.
Thermal Stability
The continuously circulating oil acts as both the bearing medium and a coolant. As oil passes through the bearing zone, it carries frictional heat away to an external chiller or heat exchanger.
Thermal error is the largest single source of inaccuracy in precision spindle systems. A Precision Engineering study on hydrostatic spindles found that thermal error accounts for approximately 70% of total spindle positioning error.
The same research showed that holding oil temperature to ±0.1°C reduced radial and axial thermal drift to less than 0.10 µm over 25 hours — the kind of dimensional stability that long production runs of tight-tolerance components demand.
Consistent Accuracy Across Speed Range
Because the oil film is externally maintained, radial runout and bearing stiffness remain relatively constant from near-zero RPM through the spindle's rated speed. This is a direct advantage over hydrodynamic designs, which only develop a full film above their minimum operating speed.
For variable-speed precision grinding — where the operator may slow the spindle for finishing passes or speed it up for stock removal — hydrostatic technology delivers consistent accuracy throughout that range rather than sacrificing it at the low end.
Primary Applications Across Industries
Hydrostatic spindles appear wherever tolerances, surface finish requirements, or tool life demands exceed what conventional rolling element spindles can reliably deliver. The most common machine types include precision cylindrical grinders, internal grinding machines, surface grinders, jig borers, and high-accuracy turning/grinding centers.
Key industry segments:

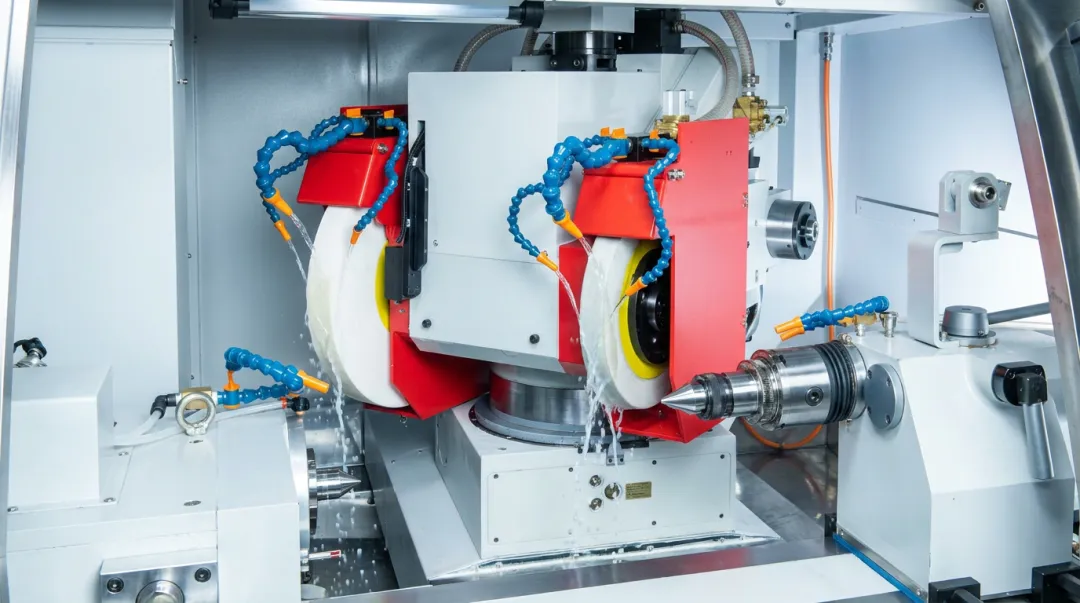

- Automotive — Crankshaft and camshaft grinding, fuel injection components, EV motor shafts, and spool valves. Fives' Landis LT2He uses hydrostatic grinding spindles specifically for crankshaft and camshaft applications.
- Semiconductor/Electronics — Ultra-flat substrate grinding and precision disc turning. Silicon wafer grinding machines for 450 mm wafers have used water hydrostatic bearings in both worktable and wheel spindle assemblies.
- Mold and Die — Fine-finishing of cavity surfaces, core pins, and battery die components for e-mobility applications.
- Aerospace — Bearing races and precision shaft grinding where profile tolerances are non-negotiable.
- Medical Devices — Orthopedic implant surfaces and micro-feature machining requiring consistent sub-micron accuracy.
For manufacturers in Northern Ohio, Western Pennsylvania, and West Virginia — the regions WSM Technology serves — these sectors represent active precision manufacturing operations. Spindle technology choices directly affect competitiveness on tolerance-critical work.
The broader market context: the grinding machine market is valued at approximately $6.88 billion in 2025 and projected to reach $11.42 billion by 2034 according to industry market research reports. Sub-micron accuracy requirements are a primary growth driver — which is why hydrostatic spindle adoption continues to expand across these high-value applications.
WSM Technology's demonstration center in Rootstown, Ohio lets regional manufacturers run test cuts on precision grinding equipment — including machines built around hydrostatic spindle technology — before committing to capital investment.
System Requirements and Integration Considerations
Hydrostatic spindles don't operate independently — they require dedicated infrastructure. Three systems must be in place before the spindle can operate:
1. Hydraulic Power Unit A dedicated pump must supply clean, temperature-controlled oil at the spindle manufacturer's specified pressure and flow rate continuously during operation. Pressure requirements vary by design — published machine-tool examples range from 1.0 to 3.0 MPa in research applications, with some experimental setups optimized at 5 MPa.
2. High-Precision Filtration Contamination is the leading cause of premature hydrostatic spindle failure. The bearing oil film may be only 17.5 to 30 µm thick — meaning particles as small as 4 µm can cause abrasive damage to bearing surfaces. The STLE identifies ISO 4406 as the standard for hydraulic fluid cleanliness; maintaining the manufacturer's specified cleanliness code is mandatory, not optional.
3. Thermal Management An oil chiller or heat exchanger must control fluid temperature within the OEM's specified range. As oil temperature rises, viscosity drops — reducing film stiffness and load capacity. Without tight temperature control, thermal expansion of the fluid causes film stiffness to degrade progressively, and sub-micron accuracy targets become unachievable over a full shift.
Fluid Selection and Compatibility
The lubricating oil must meet the manufacturer's viscosity grade specification. Viscosity directly determines film stiffness, damping coefficient, and heat generation. Spindle oils are available in ISO VG grades including 2, 10, and 22 — the correct grade depends on the spindle design.
Common integration mistakes:
- Using an incorrect viscosity grade because the right product wasn't available
- Allowing fluid degradation between oil changes
- Neglecting seal and material compatibility checks during machine selection
Retrofitting an existing machine adds another layer of complexity. The evaluation must cover housing bore dimensions, drive interface compatibility, and floor space for hydraulic plumbing and the power unit — before any purchase decision is made. WSM Technology's application engineering team can help manufacturers in Northern Ohio, Western Pennsylvania, and West Virginia work through these requirements systematically.
Common Failure Modes and Maintenance Best Practices
Hydrostatic spindles fail differently than rolling element designs — and often faster when something goes wrong. Understanding the failure modes shapes an effective maintenance program.
Two Dominant Failure Modes
Fluid contamination is the leading cause of hydrostatic spindle failure. Particles entering the oil film cause the shaft OD to contact the housing ID — exactly the condition the system is designed to prevent — resulting in accelerated surface wear and scoring on both the shaft and housing bores. According to Modern Machine Shop, approximately 70% of machine tool spindle failures trace back to contamination or crashes as primary causes.
Pressure or flow loss is the other dominant failure path. Pump failure, a blocked filter, or a broken supply line removes the film that supports the shaft. Unlike a rolling element spindle that degrades gradually, a hydrostatic spindle without oil pressure drops the shaft onto the housing immediately. As Northland Tool's spindle repair documentation notes, this type of failure typically damages both bearing surfaces and shaft mating surfaces — and rebuilding requires restoring both.

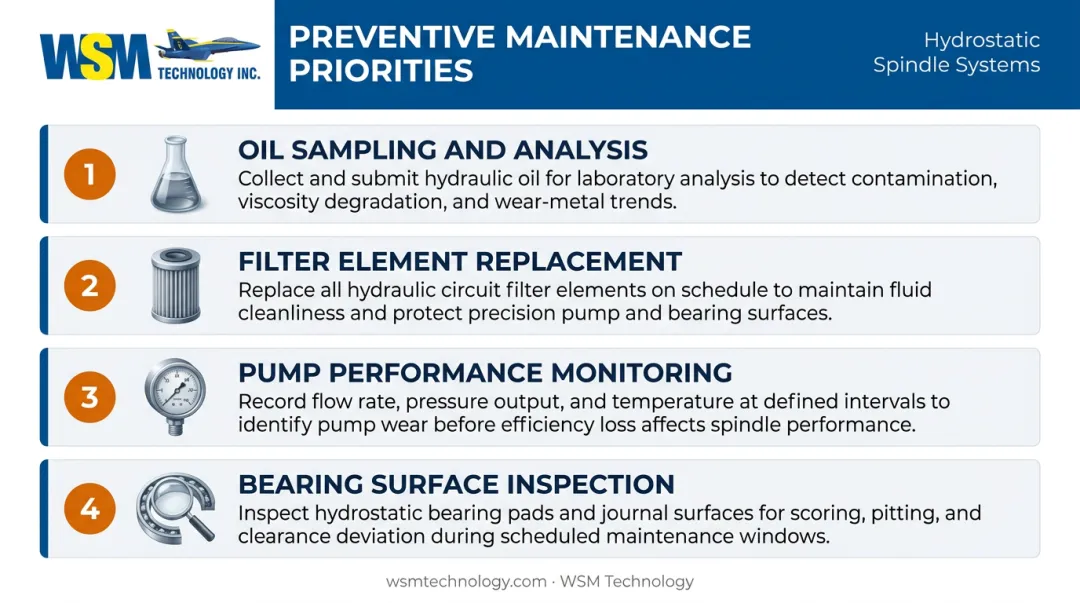

Preventive Maintenance Priorities
- Oil sampling and analysis — Check particulate count and viscosity at regular intervals; track trends rather than single data points
- Filter element replacement — Follow OEM intervals; a clogged filter is a pressure-loss event waiting to happen
- Pump performance monitoring — Verify output pressure and flow rate against baseline specifications
- Bearing surface inspection — Periodic checks for scoring or dimensional change on shaft and housing surfaces
Early Warning Signs
Catching problems before failure is far less costly than emergency repair. Watch for:
- Degrading surface finish on ground or machined parts — often the first detectable symptom
- Changes in audible spindle tone or vibration signature
- Rising oil temperature at the chiller or heat exchanger outlet
- Abnormal pressure readings at the pump or inlet manifold
Monthly vibration analysis — as recommended by Modern Machine Shop for precision spindle monitoring — provides the trend data needed to schedule maintenance proactively, before a warning sign becomes a failure event.
Frequently Asked Questions
What is the difference between hydrostatic and hydrodynamic spindles?
Hydrostatic spindles use an external pump to maintain oil film pressure at all speeds, including standstill. Hydrodynamic spindles rely on shaft rotation to generate the pressure wedge, meaning they only fully support the shaft above a minimum operating speed with no meaningful load capacity at rest or slow speeds.
How does a hydrostatic bearing work?
A pump forces pressurized oil into precision-machined pockets in the bearing housing, creating a fluid film that completely separates the rotating shaft from the housing walls. The film pressure self-adjusts to balance applied loads, delivering high stiffness and vibration damping with no metal-to-metal contact.
What are the different types of spindles?
The four main spindle bearing types are rolling element (angular contact ball or roller bearings), hydrostatic, hydrodynamic, and air bearing. Each offers a different combination of speed capability, stiffness, damping, load capacity, and cost suited to different machining requirements.
What fluids are used in hydrostatic spindles?
Most hydrostatic spindles use specially formulated mineral or synthetic spindle oils in a viscosity grade specified by the OEM; common ISO VG grades include 2, 10, and 22. Using the correct viscosity is critical because it directly determines film stiffness, damping, and heat generation — wrong fluid selection is a leading cause of premature spindle failure.
Is a hydrostatic spindle quieter than a conventional machine spindle?
Hydrostatic spindles operate very quietly because the fluid film absorbs vibration rather than transmitting it. The primary noise during machining comes from cutting forces, not the spindle bearing itself, provided it is properly maintained and supplied with clean, correctly pressurized oil.
Can hydrostatic spindle preload be adjusted?
On some designs, yes. Adjusting the oil supply pressure changes the bearing preload, allowing operators to tune stiffness characteristics for different operations — higher preload for heavy roughing, reduced preload for high-speed finishing passes. This adjustability is an advantage rolling element spindles with fixed preload cannot offer.
