Micro hole drilling is one of the most technically demanding processes in precision manufacturing, and the gap between "knowing you need it" and "doing it correctly" is wider than most shops expect.
This guide covers the primary machine types, how EDM hole drilling works, critical operating factors, and how to choose the right technology. Whether you run a mold shop, an aerospace supplier, or a precision components facility, the goal is the same: leave with a clear decision framework rather than a list of marketing claims.
The most costly mistake shops make is choosing the wrong technology for the application. That's exactly where this guide starts.
Key Takeaways
- Micro hole drilling generally covers holes under 3 mm in diameter, with some applications reaching below 100 µm
- EDM hole drilling imposes no hardness limitation — hardened tool steels, titanium, and superalloys are all fair game
- Spindle precision, low runout, and dielectric or coolant systems matter as much as the drill or electrode itself
- Chip evacuation, pecking strategy, and coolant choice all determine tool life at micro scales
- Technology selection must match material, diameter, L/D ratio, and required surface finish — no single process fits every application
What Is a Micro Hole Drilling Machine?
The Definition — and Why It Matters
Most drilling specialists use 3 mm as the threshold for micro drilling, a definition consistent with sources like Sandvik Coromant and Walter/MSC. Some technical literature tightens the definition further to under 1 mm. In electronics, microvias are defined as 150 µm or less. Medical device applications can require holes as small as 5 µm.
That spread across three orders of magnitude explains why this category covers several distinct machine types, not a single technology.
Why Micro Drilling Is Fundamentally Different
The physics change below 3 mm. Key failure modes that are minor nuisances at larger diameters become workpiece-destroying events at micro scale:
- Tool deflection — At small diameters, even slight lateral forces bend the tool before it cuts
- Chip packing — Flutes fill with chips faster than they can evacuate, generating heat and torque spikes
- Thermal failure — The ratio of tool volume to heat load means a dull tool fails suddenly, not gradually
- Runout sensitivity — Spindle or toolholder runout that's acceptable at 10 mm becomes catastrophic at 0.5 mm
Spindle runout, vibration, and coolant or dielectric pressure don't just affect surface finish . They determine whether the operation succeeds at all.

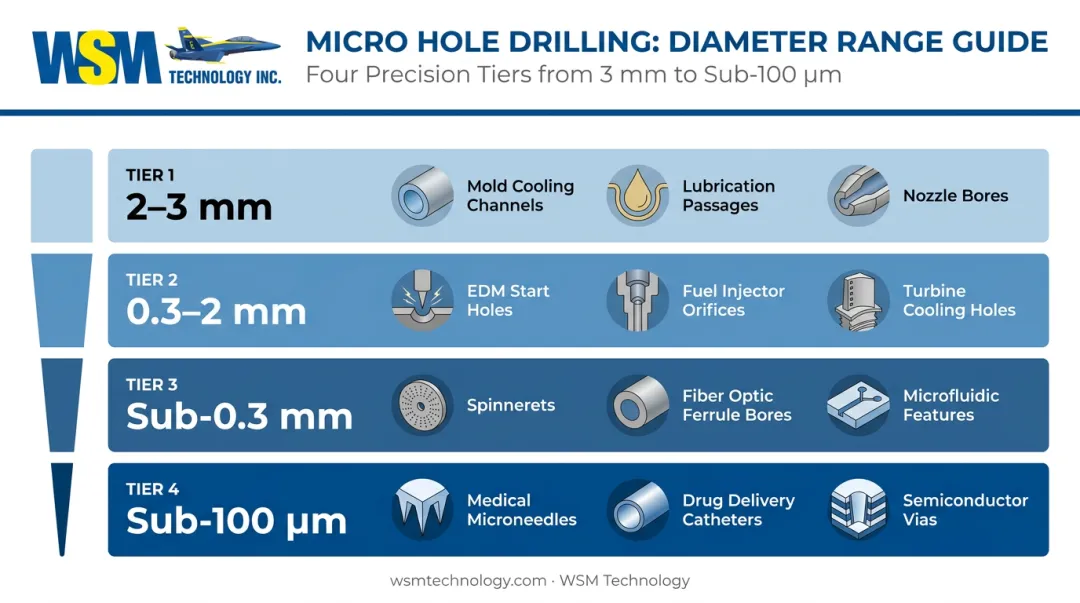

The Scale Spectrum in Practice
The range of applications covered by "micro hole drilling" is broader than most shops realize:
- 2–3 mm: Mold cooling channels, lubrication passages, nozzle bores
- 0.3–2 mm: EDM start holes, fuel injector orifices, turbine cooling holes
- Sub-0.3 mm: Spinnerets, fiber optic ferrule bores, microfluidic features
- Sub-100 µm: Medical microneedles, drug delivery catheters, semiconductor vias
Each tier in that spectrum demands different machine architecture, tooling strategy, and process controls — which is why the sections that follow break down each technology category separately.
Types of Micro Hole Drilling Machines
Four primary technologies cover the full range of micro hole drilling applications. The right choice depends on material, required diameter, depth-to-diameter ratio, and surface finish tolerance.
EDM Hole Drilling (Hole Popping)
EDM hole drilling uses a rotating tubular electrode — typically brass or copper — that advances toward the workpiece while controlled electrical discharges erode material. Pressurized dielectric fluid flows through the hollow electrode to flush debris and cool the work zone continuously.
The defining advantage is that material hardness is irrelevant. EDM drills hardened tool steel, titanium, Inconel, tungsten, and other superalloys as readily as softer metals — with no mechanical cutting force, no tool deflection, and no risk of the drill wandering off location on a hardened surface.
Electrode diameter governs hole size. According to Canadian Metalworking, small-hole EDM can produce holes from 11 µm to 0.120", with tube-style electrodes as small as 0.003". Sarix documentation lists micro EDM drilling from 10 µm to 4.0 mm.
The one hard limitation: the workpiece must be electrically conductive. Non-conductive materials like ceramics, glass, and plastics are outside EDM's scope.
Both manual and CNC EDM hole drillers exist. CNC versions offer programmable multi-hole patterns, automatic electrode advance, and repeatable positioning accuracy — essential for production applications.
Mechanical CNC Micro Drills
Solid carbide twist drills on high-precision CNC machining centers handle the majority of micro drilling in softer or non-hardened materials. Carbide holds clear advantages over high-speed steel for micro work:
- Higher rigidity and better edge retention at small diameters
- Compatibility with internal coolant channels
- Support for performance coatings like TiAlN
- Longer tool life under stable CNC conditions
HSS tools remain relevant where toughness matters — unstable fixturing, small batches, interrupted cuts. For stable production runs, solid carbide delivers higher cutting values and superior wear resistance. Guhring's carbide micro drill range covers 0.10–3.0 mm; their HSS-PM range starts at 0.05 mm.
The critical machine requirement is a high-precision spindle with minimal runout. Tool deflection at micro diameters amplifies runout errors dramatically — a toolholder that introduces even marginal positioning error can break a 0.5 mm drill before it completes a single hole. Hand-clamped precision toolholders are generally preferred over automatic toolchange systems for the smallest diameters.
Laser and Other Methods
Laser drilling — particularly UV and femtosecond lasers — handles materials that neither EDM nor carbide drills can process: glass, sapphire, silicon, ceramics, and thin polymer films. IPG Photonics reports hole diameters as small as a few microns via laser; Orbray has documented femtosecond laser drilling of 0.5 µm holes in silica glass.
The trade-off versus EDM: laser drilling is typically faster and requires no hard tooling, but EDM offers superior hole size and positional accuracy when tolerances are tightest. Modern Machine Shop notes that laser is less expensive where precision requirements allow it, while EDM micro drilling remains the standard when dimensional accuracy is non-negotiable.
For deep-hole work — fuel injector bores, hydraulic components — the comparison shifts to a different mechanical method. Gun drills historically dominated this space, and while modern solid carbide drills with internal coolant have replaced them in most applications, gun drilling remains relevant for the deepest, longest bores.
How EDM Micro Hole Drilling Works

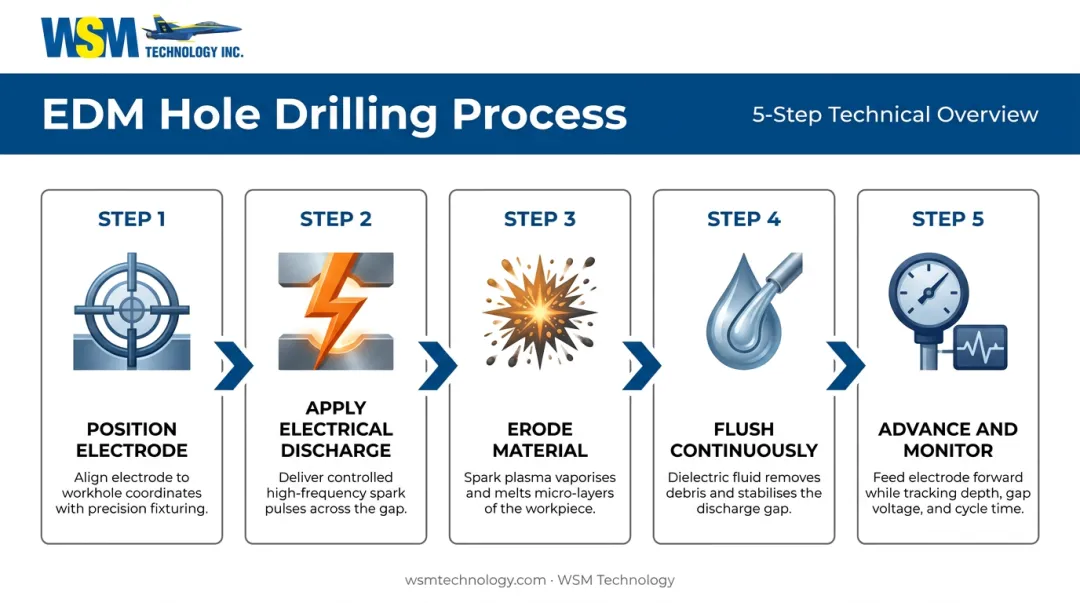

The Process Step by Step
- Position the electrode — The machine positions a hollow brass or copper tubular electrode over the target location using CNC axis control
- Apply electrical discharge — A controlled electrical current is applied between the rotating electrode and the conductive workpiece
- Erode material — Each spark removes a microscopic amount of material without mechanical contact
- Flush continuously — Pressurized dielectric fluid flows through the hollow electrode core, carrying eroded debris away from the cut zone in real time
- Advance and monitor — The electrode advances incrementally; the machine monitors spark conditions and adjusts parameters to maintain stable erosion
Electrode Selection
The electrode is the only "tooling" in EDM hole drilling, and its diameter directly determines hole diameter. There's no separate cutting geometry to specify — just diameter, material, and wall thickness.
Key electrode variables to account for:
- Material: Brass or copper — brass is more common for general work; copper offers higher conductivity for finer applications
- Diameter: Sets the finished hole diameter directly; no offset geometry to program
- Wall thickness: Affects flushing efficiency and electrode rigidity at depth
- Wear rate: Must be factored into programming for deep holes with high L/D ratios — otherwise the electrode wears shorter than the required depth before completion
Dielectric Fluid's Dual Role
Dielectric fluid does two things at once: it flushes eroded debris out of the work zone through the hollow electrode, and it provides electrical insulation between sparks to maintain controlled discharge conditions.
Dielectric quality directly affects hole quality. Contaminated fluid causes unstable sparking, uneven material removal, and re-cast layer buildup on the hole wall. Sarix's documentation specifies a 75-liter dielectric unit accommodating either deionized water or oil, depending on the application. Filtration matters — particularly with small-diameter electrodes where debris particles can disrupt spark gap conditions if not removed effectively.

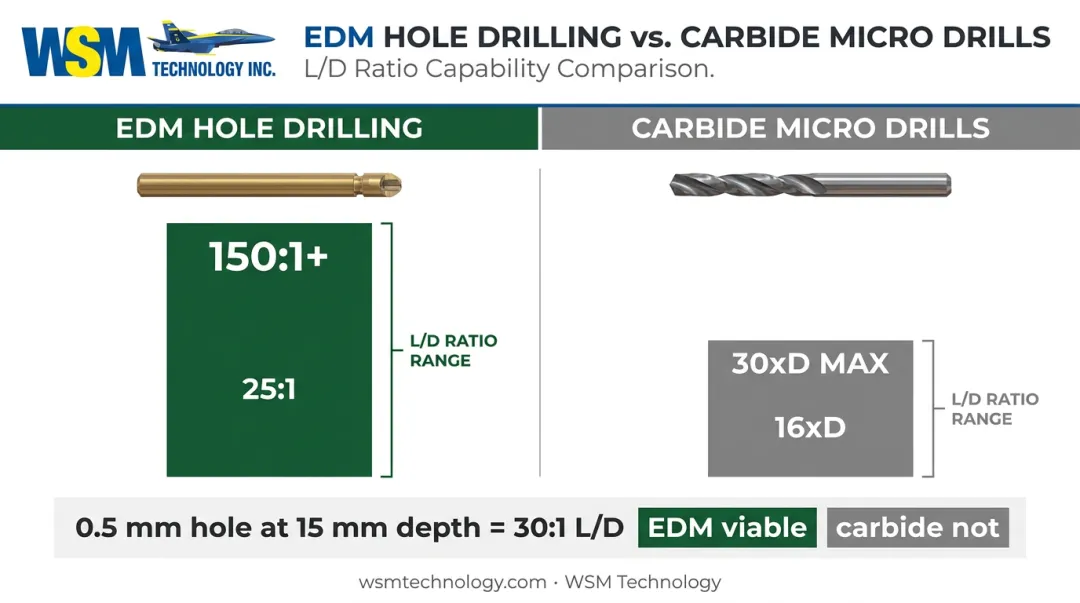

L/D Ratio: EDM's Defining Advantage
Depth-to-diameter ratio is where EDM hole drilling separates itself from every mechanical alternative. Canadian Metalworking reports that tube-style electrodes achieve L/D ratios of 25:1 to 50:1. Sarix's published data shows 0.10 mm holes drilled to 15–20 mm depth — an L/D of 150:1 or greater.
Compare that to carbide micro drills: Sandvik's CoroDrill 862 covers up to 16xD, and OSG's ADO-MICRO line reaches 30xD at the extended end. For a 0.5 mm hole in hardened steel requiring 15 mm depth, a mechanical drill is not a viable option. EDM is.
The Sarix Micro EDM Platform
That combination of extreme L/D capability and tight diameter tolerances is exactly what the Sarix Micro EDM — available through WSM Technology — is designed to deliver at production scale. Sarix, a Swiss manufacturer established in 1993 in Losone, Ticino, documents positioning precision of ±2.0 µm on their SX-series machines and ±5.0 µm on the MACHline, with axis resolution of 0.1 µm.
That level of precision matters in applications like aerospace fuel systems, textile spinnerets, and micro molding cavities where hole location and diameter tolerance are measured in single-digit microns.
Key Applications and Industries
Micro hole drilling appears across a surprisingly wide range of industries, each with distinct requirements:
| Industry | Application | Why Precision Matters |
|---|---|---|
| Aerospace | Turbine blade cooling holes, fuel injector nozzles | Hole geometry controls cooling efficiency; size affects combustion |
| Automotive | Fuel injector orifices (under 145 µm in 1 mm alloy steel) | Flow rate and spray pattern depend on hole accuracy |
| Medical | Drug delivery catheters, microneedles, microfluidic devices | Hole size determines dosing and flow characteristics |
| Textile | Spinnerets and fiber extrusion nozzles | Fiber diameter depends on nozzle hole geometry |
| Mold & Die | Venting holes, wire EDM start holes, cooling channels | Covered in detail below |
| Precision Instruments | Watch jewel bearings, fiber optic ferrule bores | Tolerance ranges measured in single microns |
Mold and Die: The Most Common Application
For mold and die shops — WSM Technology's primary customer base — micro hole drilling shows up in three specific contexts:
Venting: Gas must escape injection mold cavities during the fill cycle. Without adequate venting, trapped air causes burn marks, short shots, and structural defects in the part.
Vent holes must be small enough to prevent plastic intrusion but large enough for gas to escape — and they need to be drilled in fully hardened tool steel. That material requirement makes EDM the practical choice over mechanical drilling.
Wire EDM start holes: Wire EDM requires a pre-drilled through-hole to thread the wire before cutting begins. The hole must be precisely located, often in hardened material — where EDM eliminates the risk of tool deflection or positional error that mechanical drilling would introduce.
Broken tool extraction: When a drill or tap breaks off in a hardened workpiece, EDM hole drilling is often the only way to remove it without scrapping the part. The EDM electrode erodes the broken tool material without touching or damaging the surrounding workpiece — a capability that can salvage an expensive mold or die.
Critical Operating Factors for Micro Hole Drilling
Machine and Spindle Requirements
Performance starts with the machine. For mechanical micro drilling, a high-precision spindle with minimal runout is the non-negotiable baseline. Sandvik Coromant directly links excessive runout to chipping and sudden drill breakage — failure that happens at the start of a cut, not at the end of tool life. Vibration dampening, thermal stability, and a rigid machine structure prevent the deflection that breaks micro tools before the program completes.
For CNC EDM hole drillers, the equivalent requirement is servo accuracy and Z-axis resolution. A machine with coarse axis resolution cannot maintain consistent electrode advance rates, leading to erratic spark conditions and inconsistent hole depth.
Tooling and Electrode Selection
For mechanical drilling:
- Carbide over HSS whenever the application is stable — higher rigidity, better edge retention, and longer tool life
- HSS when conditions are unstable or the run is short enough that carbide's brittleness is a liability
- Internal coolant channels are critical for holes deeper than about 5xD
- Coatings (TiAlN, diamond, specialized PVD) extend tool life measurably but don't compensate for wrong speeds and feeds
For EDM:
- Electrode diameter selection is the primary decision — it determines hole diameter
- Brass is the most common electrode material; copper offers different wear characteristics for specific applications
- Account for electrode wear in depth programming, especially for high L/D applications
Pecking Strategy and Chip Evacuation
Chip management is the highest-risk variable in mechanical micro drilling. Two approaches exist:
- Full-retract pecking: The drill fully exits the hole on each peck, allowing chips to clear completely and coolant to access the tip. Slower, but the most reliable strategy for small diameters
- Chip-break pecking: Shorter retract distances break the chip without full evacuation. Faster, but chip packing risk increases sharply at micro diameters
OSG's documentation recommends step drilling (using a pilot hole first) for materials with poor chip evacuation and requires pilot holes for depths beyond 12xD. For EDM, chip evacuation isn't a concern — dielectric flushing handles debris — but inadequate flushing pressure leads to re-cast layer buildup and unstable spark conditions.
Coolant Selection and Delivery
High-pressure coolant above 1,000 psi can break miniature-diameter tooling when the drill tip enters a coolant-filled hole — the hydraulic pressure spike overpowers the tool. Harvey Performance notes this specifically as a risk for small-diameter work, making mist or minimum-quantity lubrication (MQL) often preferable for the smallest diameters.
Coolant filtration matters more than most shops expect. OSG's ADO-MICRO documentation requires a precision filter rated at 3–5 µm and recommends coolant pressure of 3 MPa or more — with the note to adjust if flow is unsatisfactory. A clogged or undersized filter starves the drill tip of coolant exactly when it's needed most.
Wear Monitoring and Tool Life
At micro scales, tool failure is sudden. A carbide micro drill doesn't signal wear through oversized holes — it snaps mid-cut without warning. Electrodes wear to a point where target depth simply can't be reached, with no gradual degradation to catch beforehand.
Two practical rules follow from this:
- Follow manufacturer replacement intervals — at these diameters, running past the recommended interval isn't a calculated risk, it's a broken tool waiting to happen
- Don't recondition in-house — only the original tool manufacturer can restore micro drill geometry and coating to specification; shop-floor reconditioning is not a viable option at sub-1mm diameters

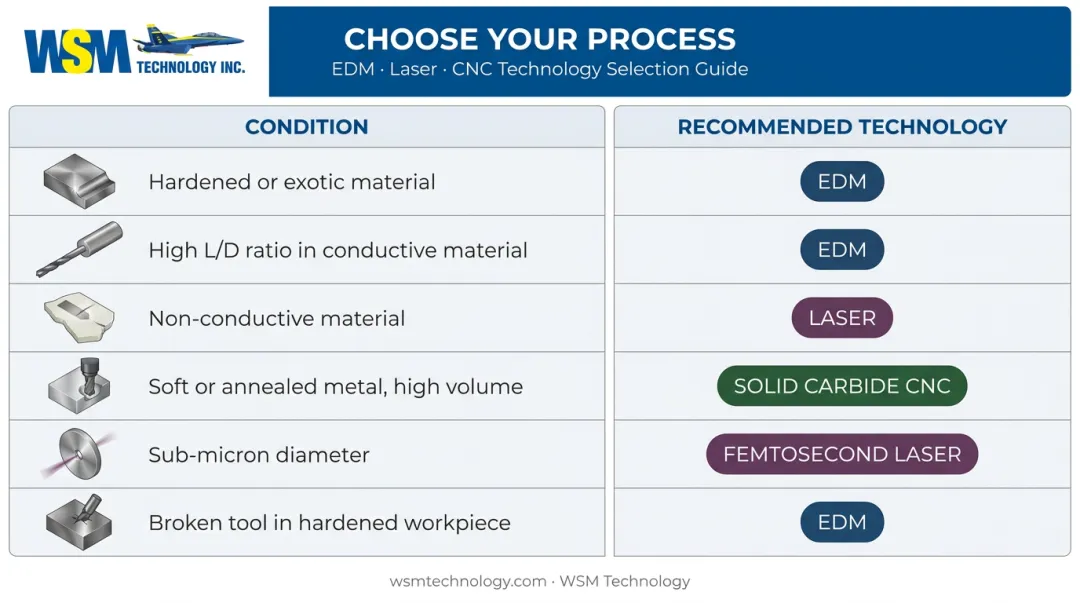

How to Choose the Right Micro Hole Drilling Machine
Decision Logic by Application
Use this framework as a starting point:
| Condition | Technology |
|---|---|
| Hardened or exotic material, any diameter | EDM hole drilling |
| High L/D ratio in any conductive material | EDM hole drilling |
| Non-conductive material (ceramic, glass, polymer) | Laser |
| Soft or annealed metal, moderate L/D, high volume | Solid carbide CNC micro drilling |
| Sub-micron diameter requirements | Femtosecond laser |
| Broken tool in hardened workpiece | EDM hole drilling |
The clearest decision trigger is material hardness combined with L/D ratio. If both are elevated, EDM is the answer. If the material is soft and the aspect ratio is modest, mechanical drilling at high volume may be more efficient.
The Value of Test Cuts Before Purchasing
Specifications on paper don't capture how a machine performs on your specific material with your specific hole geometry. Surface finish, hole location accuracy, and cycle time all vary by workpiece and application — and paper specs don't reveal that variance.
WSM Technology offers test cuts and machine demonstrations at their Rootstown, Ohio demonstration center. Manufacturers across Ohio, Pennsylvania, West Virginia, Michigan, Indiana, and Kentucky can bring their actual workpiece material and intended hole geometry to evaluate Sarix Micro EDM and other equipment before committing to a purchase. A real test cut on your material is the only way to confirm cycle time, finish quality, and hole location accuracy before you sign anything.
Total Cost of Ownership
Acquisition price is a fraction of the real cost. The full picture includes:
- EDM electrodes are consumed with each job; carbide drills wear and eventually break — budget for both
- Dielectric fluid, filters, and resin tanks are recurring EDM operating costs that add up at volume
- Micro EDM operators need more specialized training than standard CNC — factor in ramp-up time
- Even well-built machines like Sarix require scheduled maintenance; know the intervals before you commit
- Downtime on a production micro drilling machine is expensive — local service response time matters as much as the machine itself
Ask any equipment supplier about OEM parts availability and typical service lead times. For WSM Technology, Sarix machine purchases include installation and training — and their team has direct application engineering experience to support initial setup and ongoing process optimization.
Frequently Asked Questions
What is considered a micro hole in machining?
The industry standard definition is any hole smaller than 3 mm in diameter, though this varies by sector. Electronics applications define microvias at 150 µm or less; medical devices can require holes down to 5 µm. Where your required diameter falls within that range determines which drilling method applies.
What materials can be drilled with an EDM micro hole machine?
EDM works on any electrically conductive material regardless of hardness — hardened tool steels, titanium, Inconel, stainless steel, tungsten, copper, and aluminum are all common workpiece materials. It cannot process non-conductive materials like plastics, ceramics, or glass, which require laser methods instead.
How small a hole can a micro hole drilling machine produce?
EDM hole drillers using tubular electrodes can produce holes as small as approximately 0.003"–0.006" (roughly 0.08–0.15 mm) in diameter. Specialized femtosecond laser systems reach sub-micron diameters in non-conductive materials. The Sarix platform covers micro EDM drilling from 10 µm.
What is the difference between EDM and mechanical micro drilling?
EDM uses electrical spark erosion with no cutting force, imposing no hardness limitation but requiring a conductive workpiece. Mechanical micro drilling uses physical carbide or HSS drills, works on a wider material range including non-conductive metals, but is limited by tool deflection and breakage risk in very hard materials or high L/D applications.
What depth-to-diameter ratio can EDM micro hole drilling achieve?
EDM consistently achieves L/D ratios of 25:1 to 50:1 using tube-style electrodes, with Sarix documentation showing ratios far exceeding that for the smallest electrode diameters. Carbide micro drills top out around 16–30xD depending on the tool series — a significant gap when deep, narrow holes are required.
How do I know which type of micro hole drilling machine is right for my shop?
The core decision variables are workpiece material conductivity, required hole diameter and depth ratio, surface finish specification, and production volume. Start with those parameters and apply the decision framework in the selection section above. Before committing to a purchase, request test cuts on your actual material from a dealer who can demonstrate the machine in your specific application context.
