Key Takeaways
- Molds shape liquid material in a cavity; dies cut or form solid material under pressure — both demand precision machining to hold tolerances
- Choosing the right process — CNC milling, sinker EDM, wire EDM, or high-speed machining — directly determines part accuracy and cycle time
- High-speed machining (20,000–40,000 RPM) now allows direct hard milling of steels up to 66 HRC, reducing EDM dependency
- Your material selection (P20, H13, D2, or aluminum) locks in your machining strategy before the first cut is made
- Skilled tool and die makers are still in high demand: the BLS projects ~34,200 annual job openings through 2034
What Are Molds and Dies?
A mold is a hollowed-out cavity tool that shapes liquid or semi-liquid material — plastic, aluminum, zinc — which then solidifies into the finished part. Injection molding, blow molding, and die casting all rely on molds. The cavity dictates every dimension, surface texture, and parting line of the final product.
A die works differently. It shapes solid material — typically sheet metal or bar stock — through cutting, stamping, forming, or forging under high pressure. Blanking dies, progressive dies, and forging dies all fall into this category.
For machining purposes, molds must form a sealed cavity with no undercuts the material can lock into — while dies must withstand repeated impact loads without deforming. That distinction shapes every toolpath decision downstream.
Why Tooling Economics Depend on Machining Accuracy
Every mold and die is custom-engineered for one part. That upfront investment must be recovered across thousands — or millions — of production cycles. SPI mold classifications reflect this directly:

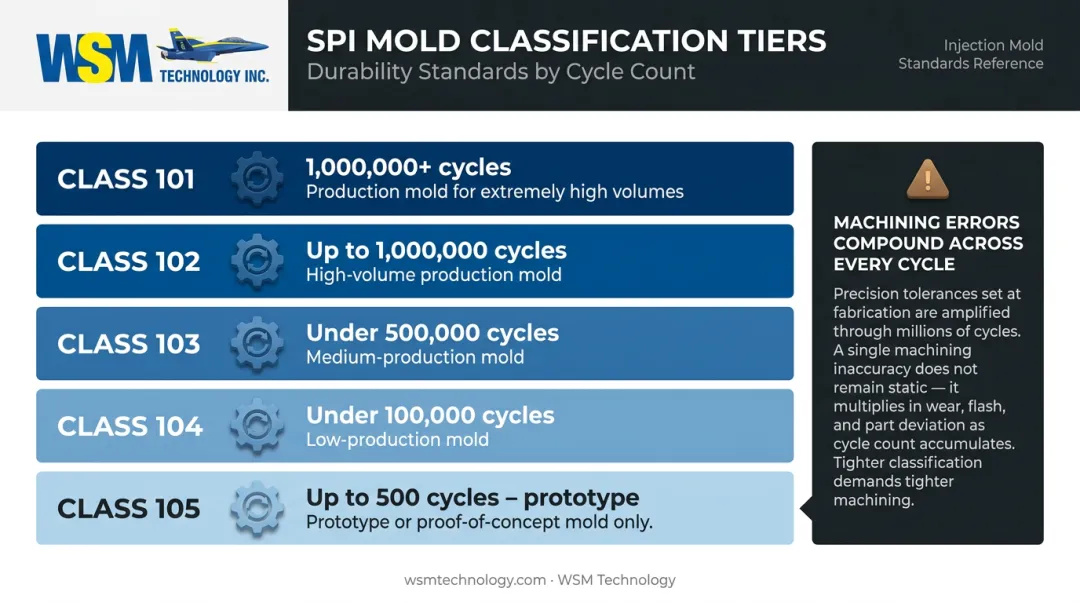

| SPI Class | Expected Tool Life |
|---|---|
| Class 101 | 1,000,000+ cycles |
| Class 102 | Up to 1,000,000 cycles |
| Class 103 | Under 500,000 cycles |
| Class 104 | Under 100,000 cycles |
| Class 105 | Up to 500 cycles (prototype) |
A dimensional error machined into a Class 101 tool doesn't produce one bad part — it produces a bad part across every cycle until someone catches it. And once material is removed from a mold, putting it back is rarely an option. That's why machining accuracy isn't a quality checkbox — it's the variable that determines whether a tool pays for itself or bleeds cost across its entire service life.

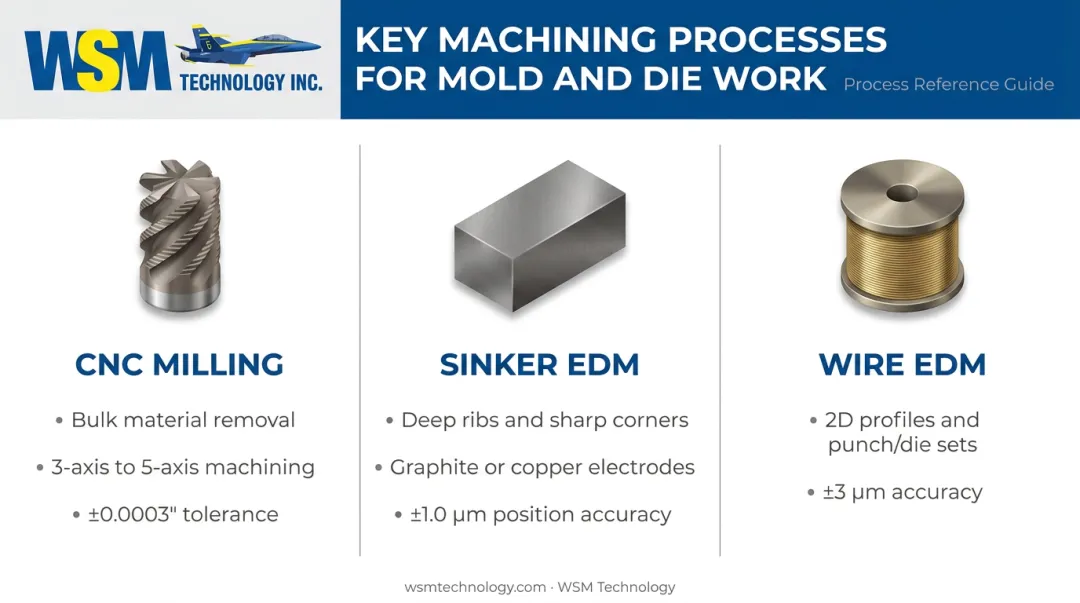

Key Machining Processes for Mold and Die Manufacturing
No single process handles everything in mold and die work. Complex tooling typically moves through CNC milling, EDM, and grinding — each contributing what the others can't.
CNC Milling: 3-Axis Through 5-Axis
CNC milling removes the bulk of material in mold cavity and die block work. 3-axis machines handle straightforward prismatic forms; 4-axis adds rotary indexing for features on multiple faces. 5-axis simultaneous machining is where complex contoured mold surfaces become practical.
With 5-axis, a ball nose cutter can maintain a consistent contact angle across compound curves in a single setup. That eliminates repositioning errors that accumulate across multiple 3-axis setups and produces more consistent surface finish — critical when you're machining a Class 101 injection mold cavity that will run a million cycles.
Published hard-milling data from Makino shows automated milling of complex molds in 64 HRC steel holding ±0.0003" tolerance with 0.0002" repeatability. That level of accuracy only holds when machine rigidity, thermal control, and toolpath strategy all work together.
Sinker EDM (Die-Sinking EDM)
When a mold cavity has deep ribs, sharp internal corners, or textured surfaces that no cutting tool can physically reach, sinker EDM takes over. A shaped electrode (graphite or copper) is brought close to the workpiece, and controlled electrical discharges erode the material spark by spark.
Graphite vs. copper electrodes: Each has a legitimate role:
- Roughing and complex forms: graphite completes burns 28–171% faster than copper (1 hr 54 min vs. 4 hr 29 min average), per MoldMaking Technology test data
- Mirror-finish cavities on small areas: copper is preferred, achieving approximately 2 µin Ra on cavities under 2 sq in (Makino)
High-precision sinker EDM machines achieve position accuracy down to ±1.0 µm with best-case surface finishes of 0.05 µm Ra, making them the go-to choice for core/cavity inserts and textured mold surfaces in hardened steel.
WSM Technology represents Mitsubishi EDM — including their sinker EDM line — for mold shops in Northern Ohio, Western Pennsylvania, and West Virginia. Their team includes John Riegler, who spent 15+ years operating sinker EDM machines in a production mold shop, so the application advice that comes with equipment is grounded in actual floor experience.
Wire EDM
Wire EDM uses a continuously fed wire electrode to cut precise 2D profiles through conductive workpieces. In mold and die work, its primary applications are:
- Cutting punch and die sets with complex profiles
- Producing trim dies and blanking dies
- Machining graphite electrodes for subsequent sinker EDM work
- Cutting fragile or thin sections in hardened tool steel where cutting forces would cause deflection or damage
Because wire EDM generates virtually no cutting forces, it handles thin sections in D2 or H13 that would deflect under a milling cutter. Sodick wire EDM machines achieve accuracy down to ±3 µm with surface finishes as fine as 0.36 µm Ra, and the Mitsubishi MV Series catalog documents corner accuracy of ±1 µm using CM3 technology.
Together, these three processes cover the full range of mold and die work — from bulk material removal to geometry that only electrical discharge can reach.
Why High-Speed Machining Is Transforming the Mold and Die Industry
High-speed machining (HSM) in mold work means running spindles at 20,000–40,000 RPM with light depths of cut and high feed rates. The physics change at those speeds: cutting forces drop, heat transfers more into the chip than the workpiece, and tool deflection decreases.
The payoff for mold shops is direct: hard milling (machining hardened steel directly, rather than machining soft, heat treating, then finishing with EDM). Modern Machine Shop documents a die-cast die machined from 60 HRC material at 40,000 RPM, and MoldMaking Technology reports successful hard milling of materials up to 66 HRC. Industry case data from Makino shows Build-A-Mold cutting cycle times in half using HSM equipment.
CAM Strategy Makes or Breaks HSM
Machine RPM alone doesn't deliver HSM's benefits. The toolpath strategy has to match:
- Trochoidal milling maintains constant tool engagement through curved toolpaths, preventing the sudden loading that breaks small cutters in hard steel
- Adaptive milling — can reduce roughing times by up to 80% by dynamically adjusting depth of cut based on remaining material
- Scallop-controlled finishing passes — set the surface quality directly, reducing or eliminating polishing time
The machine, tooling, toolholder, and CAM strategy must be optimized as a system. A 40,000 RPM spindle running an improperly tuned toolpath in a thermally unstable machine won't hold ±0.0003" — it will drift.
That's where equipment selection becomes part of the equation. JINGDIAO high-speed 3-axis and 5-axis machining centers, available through WSM Technology, are built for the spindle performance and thermal stability that extended mold runs demand.
For shops evaluating whether HSM fits their material and part mix, WSM offers test cuts and time studies at their Rootstown, Ohio Demonstration Center.
Best Practices for Mold and Die Machining
Workholding and Setup Consistency
Mold components rarely finish on one machine. A core insert might be rough-milled, heat treated, finish-milled, sinker EDM'd, and ground — each operation on a different machine. Without a consistent datum strategy, positional errors compound.
Standardized zero-point clamping or palletized setups maintain the same reference throughout the process chain. The alternative — re-establishing datums manually at each operation — introduces cumulative errors that only show up when the mold is assembled and the parting line doesn't close.

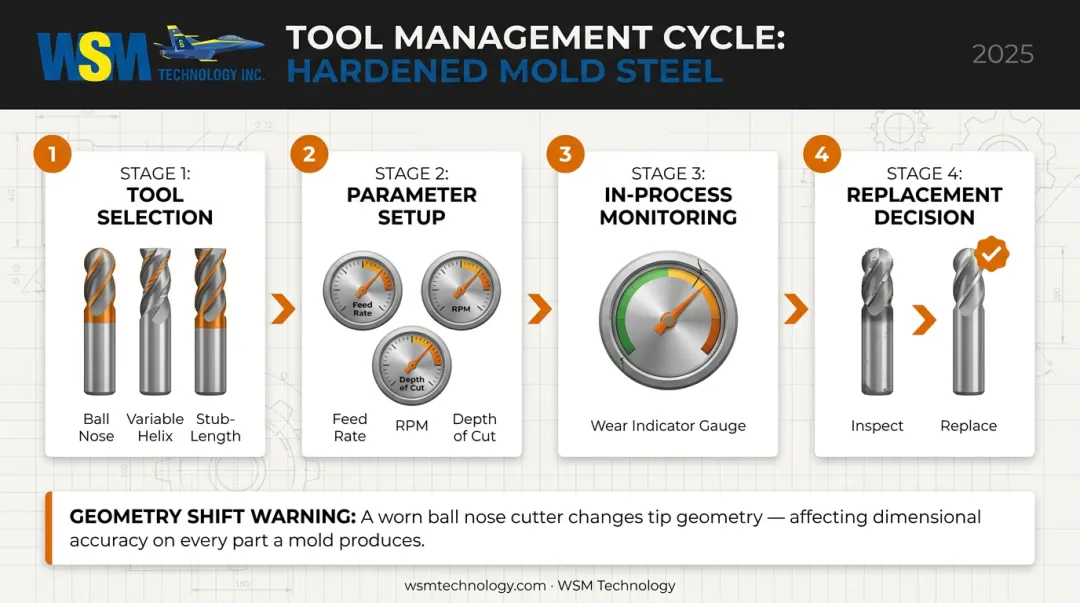

Tool Selection and Wear Management
Tooling for hardened mold steel follows different rules than general machining. Carbide end mills and ball nose cutters behave very differently at 50 HRC than they do on soft stock:
- Ball nose cutters for contoured cavity surfaces — scallop height, not surface speed, drives finish quality
- Variable helix end mills resist chatter at the long overhangs mold cavities require
- Stub-length tooling whenever reach allows — every inch of additional length multiplies deflection
Tool wear in a mold cavity doesn't just degrade surface finish — it changes geometry. A worn ball nose cutter running a finishing pass on a Class 101 core insert shifts the geometry of every part that mold produces. Define replacement intervals and hold to them — a worn tool caught early costs far less than a scrapped cavity.
Cutting Parameter Optimization
Feed rates, speeds, and depths of cut must be set for the specific material hardness, tool diameter, and machine rigidity — not pulled from a generic speeds-and-feeds chart. P20 at 30 HRC machines very differently from H13 at 50 HRC, and what works on a 40-taper horizontal doesn't translate directly to a high-speed 5-axis with an HSK spindle.
Test cuts before committing to a production run consistently save time. WSM Technology's Rootstown, OH Demonstration Center runs test cuts and time studies for shops evaluating a new material grade, machine, or tooling strategy — a low-risk way to validate the process before it touches a production mold.
Tolerance Management and Inspection
Mold and die machining targets ±0.0001″ to ±0.0005″ on critical features. At those levels, thermal expansion becomes a real variable — a 12-inch steel mold block expands roughly 0.0007″ for every 10°F change in temperature.
Best practices include:
- On-machine probing to measure features in-cycle and compensate without removing the part
- CMM verification as a final check on critical dimensions before assembly
- Thermal stabilization time — allowing the machine and workpiece to equalize temperature before final finishing passes
In-cycle probing for mould and die work, as documented by Renishaw, enables automatic compensation for thermal growth of machine axes — the difference between holding tolerance through a 12-hour unattended run and drifting outside it.

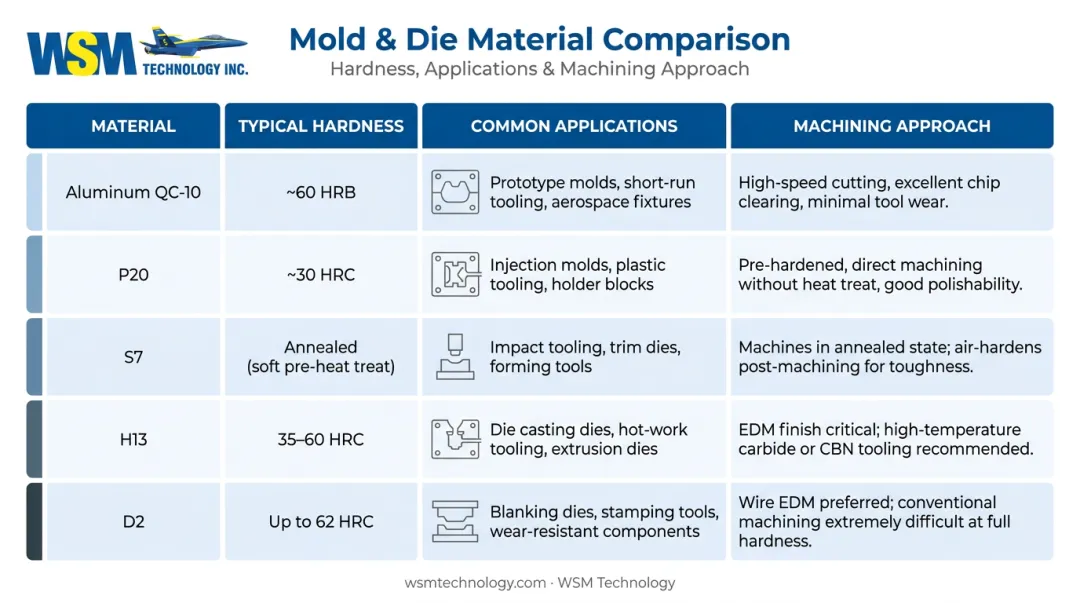

Materials Used in Mold and Die Machining
Material choice determines whether the cavity is milled conventionally, hard-milled, or finished with EDM — and it affects every cutting parameter along the way.
| Material | Typical Hardness | Common Applications | Machining Approach |
|---|---|---|---|
| P20 pre-hardened steel | ~30 HRC / 300 HB | General injection molds | Conventional milling; no heat treat required |
| H13 hot-work tool steel | 35–42 HRC (50–60 HRC after HT) | Die casting dies, high-temp molds | Pre-HT roughing, then hard milling or EDM |
| D2 cold-work tool steel | Up to 60–62 HRC | Blanking dies, wear components | EDM primary; hard milling possible |
| S7 shock-resistant steel | Annealed ~75% of W1 machinability | Punches, forming dies | Conventional milling in annealed state |
| Aluminum (QC-10) | — | Prototype and short-run molds | 8–10x faster than steel; 20–30% lower finishing costs |
Surface Treatments and Their Dimensional Impact
Nitriding and PVD coatings are applied after machining to improve surface hardness and corrosion resistance. Both have dimensional effects that must be planned for:
- PVD coatings (such as Oerlikon BALINIT) are a few thousandths of a millimeter thick, minimal overall, but non-trivial on sub-micron tolerance features
- Nitriding causes measurable dimensional growth; research on 42CrMo4 steel recorded an average increase of 0.032 mm
- Cavities must be machined with post-treatment growth accounted for in the tolerance stack
Copper-beryllium inserts (such as Materion MoldMAX HH) offer thermal conductivity 4–6x higher than P20, making them the go-to choice where rapid heat extraction from a specific mold zone is needed. CuBe alloys carry documented health hazards from inhalation of particles or dust; proper handling protocols are mandatory.
Challenges and Future Outlook for the Mold and Die Industry
The global die and mold market is substantial. Verified Market Research values it at USD $42.23 billion in 2023, projecting growth to USD $63.21 billion by 2031 at a 6.8% CAGR. That growth, however, doesn't resolve the structural pressures facing North American mold shops.
The key pressures:
- Persistent price competition from offshore production, with AMBA noting a 25% tariff on Chinese-made molds currently in place and calls for 50%
- Rising material and labor costs with limited ability to pass increases through to mold buyers
- Skilled workforce shortage — BLS projects machinist and tool and die maker employment to decline 2% from 2024 to 2034, while still generating ~34,200 openings per year as the workforce ages out
These pressures have accelerated adoption of technologies that offset rising costs and shrinking labor pools:
Technologies closing the gap:
- Lights-out machining — Makino's MGS case documents automated hard milling of 64 HRC molds for up to 20 hours per day, with one operator managing multiple machines
- Conformal cooling inserts via additive manufacturing — produce cooling channels that follow part geometry rather than straight-drilled lines, reducing cycle times and improving part dimensions
- 5-axis HSM — reducing setup counts and enabling hard milling that previously required EDM-only approaches
On the workforce side, tool and die makers aren't disappearing — the role has shifted. Manual file-and-fit skills matter less than they once did; programming complex 5-axis toolpaths, validating CMM data, and troubleshooting EDM burn strategies now define the job.
Shops that pair equipment upgrades with hands-on training consistently outperform offshore competitors on quality and lead time. Those are still the two areas where domestic toolmakers hold a real advantage — and investing in both is how they keep it.
Frequently Asked Questions
What is a die and a mold?
A mold is a cavity tool that shapes liquid or molten material (plastic, aluminum, zinc) which solidifies into the final part. A die is a solid-state tool that cuts, stamps, or forms solid materials under pressure — both are precision-machined tooling for consistent high-volume production, but they operate on fundamentally different material states.
Why is high-speed machining being used by the die and mold making industry?
High-speed machining reduces cycle times on complex 3D mold cavities, enables direct hard milling of hardened steels up to 66 HRC (reducing EDM dependency), and produces superior surface finishes that cut polishing time. For shops competing on lead time, HSM's ability to compress the roughing-to-finish workflow is a meaningful cost advantage.
Do tool and die makers still exist?
Yes — and demand is growing relative to supply. While automation and CNC have transformed the role, skilled practitioners who can program, set up, and validate precision mold and die operations remain critical. With the workforce aging and ~34,200 annual job openings projected by BLS, shops with experienced tool and die talent have a real competitive edge.
What is the difference between wire EDM and sinker EDM in mold making?
Wire EDM cuts 2D profiles and through-features using a traveling wire electrode, making it ideal for punch and die sets, trim dies, and electrode blanks. Sinker EDM uses a shaped electrode to erode 3D cavities, ribs, and recesses into hardened mold steel where no cutting tool can reach. Most mold shops use both.
What tolerances are achievable in mold and die machining?
CNC milling of hardened mold steel achieves ±0.0003"–0.0005" on features with proper machine rigidity and thermal management. Wire EDM reaches ±0.0001" or better on critical profiles. Achieving these consistently requires matched machine quality, tooling, fixturing, and in-process measurement — not just machine capability on paper.
What materials are most commonly used for injection molds?
The three most common choices, each suited to a different application:
- P20: General-purpose production molds; machines easily with no heat treatment required
- H13: High-temperature or high-cycle applications such as die casting and hot runner molds
- Aluminum (QC-10): Prototype and short-run work; machines 8–10x faster than steel at lower tooling cost
