Automotive and aerospace manufacturers depend on it daily. Camshafts, crankshafts, drive shafts, and precision pins all pass through some form of plunge grinding before they reach assembly. As part geometries grow more complex, and tolerance requirements tighten, shops need to know exactly when this process applies and when it doesn't.
That's the gap this guide fills. Too many engineers use "grinding" as a blanket term without understanding how plunge grinding mechanically differs from traverse grinding, which leads to poor process selection or tolerance expectations the machine simply can't hit. Below, we break down what plunge grinding actually is, how it works step-by-step, and where it fits into a real production workflow.
Key Takeaways
- Plunge grinding (in-feed grinding) feeds the wheel straight into a fixed part section instead of traversing its length.
- It excels on parts with multiple diameters, shoulders, or complex radii, common in shafts and tooling.
- Shops choose centerless grinders for three-point support or cylindrical grinders for chuck/tailstock work, based on part geometry.
- The process delivers dimensional accuracy and concentricity that turning or milling can't match.
What Is Plunge Grinding?
Plunge grinding is a precision grinding method where the grinding wheel is fed radially, or "plunged," into a stationary section of a rotating workpiece. Material is removed and a specific diameter, shoulder, or contour is shaped in place. The part doesn't move along the wheel's length; the wheel moves into the part.
The process exists because through-feed grinding has a hard limit: it needs the entire workpiece to pass uniformly through the wheels. That works fine for straight bar stock. It fails completely on parts with shoulders, grooves, or multiple diameters, exactly the geometry common in shafts and tooling components.
Plunge grinding is not:
- Through-feed/traverse grinding, which moves the part past the wheel for full-length grinding
- Rough turning, which cuts material away rather than abrading it
Even with modern CNC turning advances, manufacturers keep plunge grinding in the process chain because it holds tighter tolerances and produces superior surface finishes on hardened, finish-critical surfaces. STUDER's cylindrical grinding overview confirms this distinction: radial wheel infeed defines plunge grinding, while axial movement defines traverse grinding.

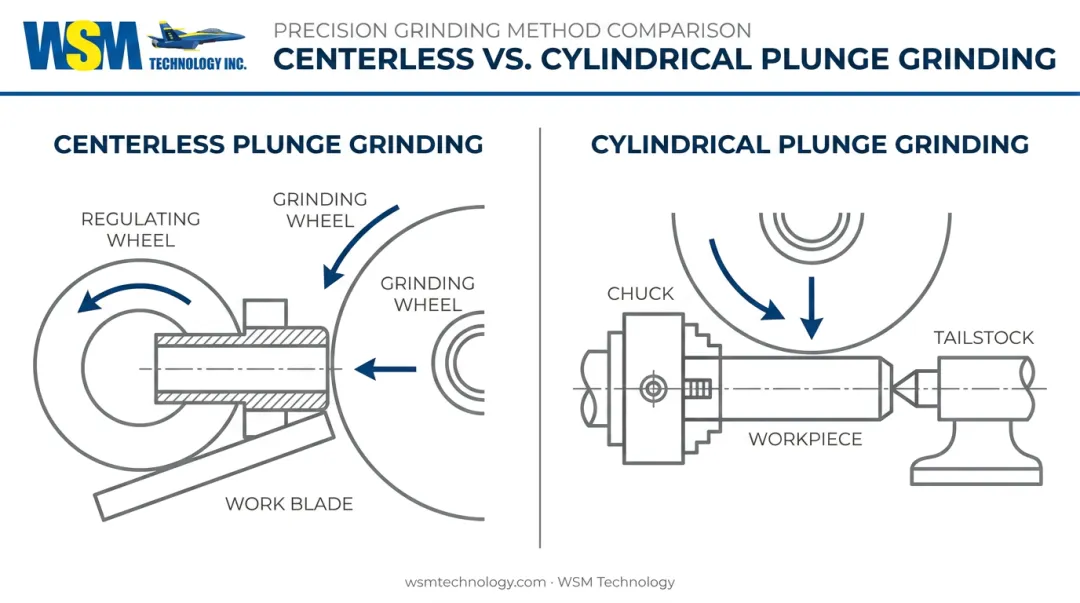

Two Setups, Different Applications
Shops typically choose between two configurations:
- Centerless plunge (in-feed) grinding: Uses a three-point support system (a regulating wheel, a work blade, and the grinding wheel). No centers or chuck required.
- Cylindrical plunge grinding: The part is held between a chuck and tailstock, with both wheel and workpiece rotating.
Part geometry and batch volume usually dictate the choice. High-volume, simpler round parts often favor centerless setups; parts needing tighter fixturing or asymmetrical features often go cylindrical.
How Does Plunge Grinding Work?

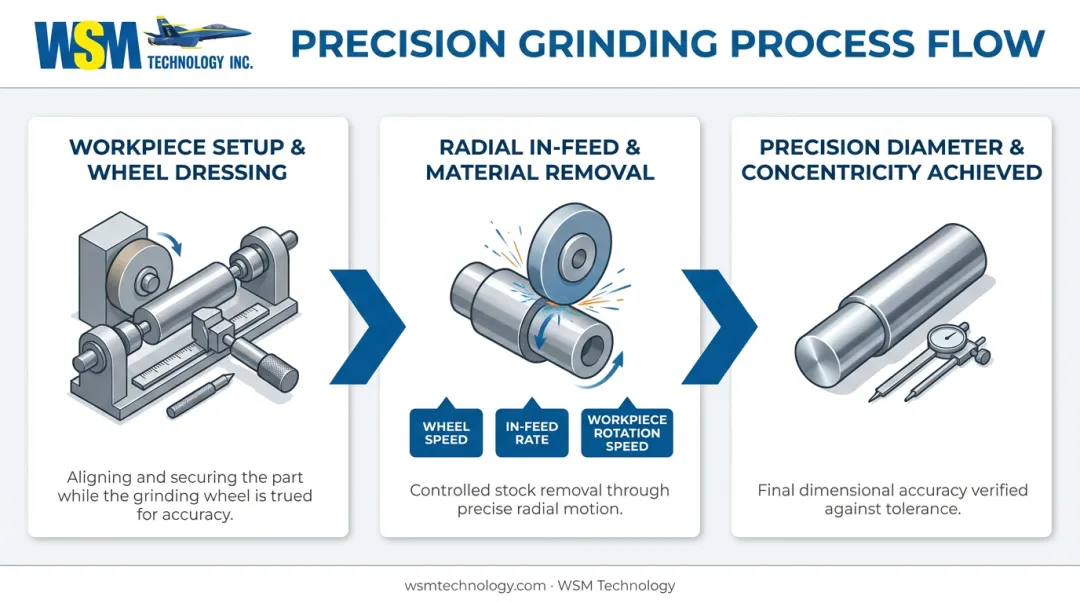

The process follows a defined sequence: positioning, plunging, controlled material removal, and part release. Each stage directly affects the final tolerance and finish.
Initiation
The cycle begins once the workpiece is loaded and secured, either seated in the three-point centerless arrangement or clamped in a chuck/tailstock. On modern CNC grinders, this stage is largely automated, with programmed cycles controlling wheel approach speed and position.
Manual setup and wheel dressing still require a skilled technician's touch. One thing to watch: incorrect wheel balancing or workpiece support at this stage is the leading cause of chatter marks and dimensional inconsistency later in the cycle.
Dressing the wheel to the correct profile, typically every few hundred parts, restores cutting efficiency and prevents subtle geometry errors from creeping into the batch.
Core Operation
Here's the working principle in plain terms: the grinding wheel feeds radially into the rotating workpiece at a fixed axial location, removing material via abrasive contact until the target diameter or contour is reached.
Unlike through-feed grinding, which works the entire length uniformly, plunge grinding concentrates contact on one localized section. This lets shops grind shoulders, grooves, or multiple diameters in a single pass rather than repositioning the part repeatedly.
Three variables drive the outcome:
- Wheel speed — affects surface finish and heat generation
- In-feed rate — controls cycle time and how aggressively material comes off
- Workpiece rotation speed — impacts roundness and finish consistency
Push any of these too hard, and you risk heat damage or dimensional drift instead of a clean, finished surface.
Output / Result
The end result is a precisely dimensioned, concentric, round surface, often finished to final size in the same operation. Ground shafts, pins, and journals typically move directly into assembly or further finishing, such as coating or heat treatment, with no additional sizing needed.
So how accurate is this, really? Machine-specific data gives a clear picture. Glebar's in-feed/through-feed centerless grinder achieves diameter accuracy and roundness of 0.00005 in, or 1.3 microns. That's tighter than most turning or milling operations can consistently deliver, which is exactly why grinding remains the last step before assembly on tolerance-critical parts.
Plunge Grinding vs. Traverse (Through-Feed) Grinding
The fundamental difference comes down to what moves. Traverse grinding passes the workpiece continuously along the length of the wheel for full-length, uniform grinding. Plunge grinding holds the part in place and feeds the wheel into a specific section instead.
| Factor | Plunge Grinding | Traverse Grinding |
|---|---|---|
| Motion | Wheel feeds into stationary section | Part moves along wheel length |
| Best suited for | Multiple diameters, shoulders, complex profiles | Long, simple cylindrical parts (bar stock) |
| Setup complexity | Single automated pass for complex geometry | Multiple passes or fixture changes for stepped parts |
| Typical parts | Camshafts, crankshafts, pins | Rod stock, tubing, simple shafts |
Choose traverse grinding when:
- The part is a straightforward, uninterrupted cylinder
- Throughput and cycle time matter more than complex geometry
Choose plunge grinding when:
- The part has a shoulder, groove, or varying diameter
- One setup needs to handle multiple diameters without repositioning
Where Is Plunge Grinding Used?
Plunge grinding typically shows up as a finishing operation, positioned after turning or milling in the production sequence. It brings critical diameters and journals to final tolerance right before assembly.
Common applications include:
- Automotive drive shafts, camshafts, and crankshafts
- Aerospace pins and precision tooling components
- Mold and die precision mechanics parts requiring tight concentricity
Fives' Landis LT2He grinder is a direct example: it's built specifically for crankshaft and camshaft grinding, offering vector and plunge strategies with single or twin wheelheads. That's the kind of dedicated machine mold, die, and automotive shops rely on for these exact part types.
Beyond dedicated machines like the Landis LT2He, many shops build plunge grinding capability by pairing it with precision CNC turning and milling upstream. Getting that pre-grind stage right pays off downstream: WSM Technology's Schaublin lathes help hold tighter pre-grind tolerances, reducing rework and shortening grinding time.

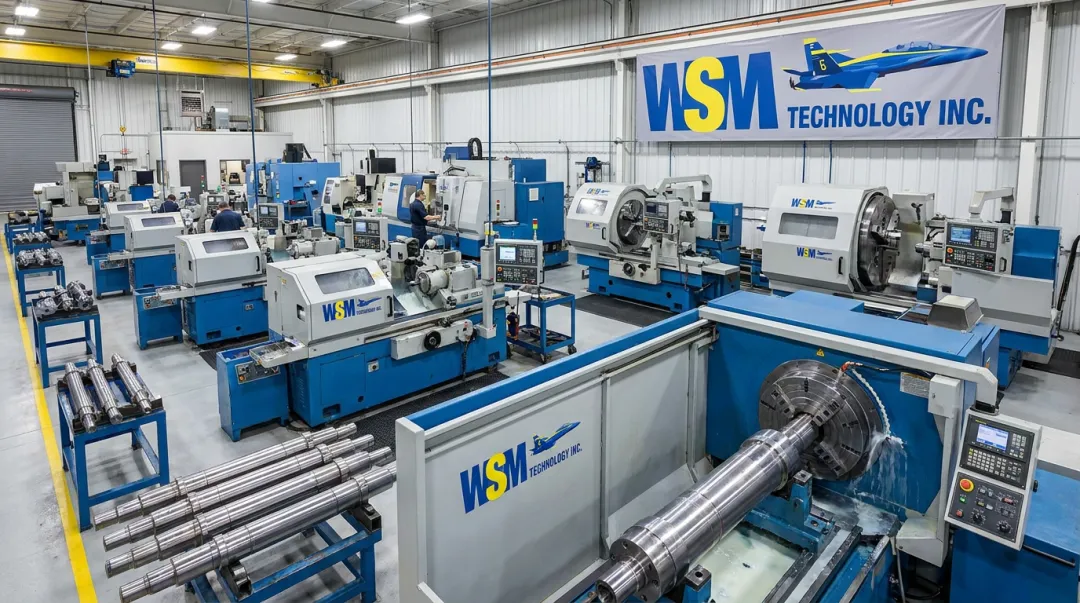

WSM also supplies the grinders themselves, covering both centerless and chuck-based setups:
- Danobat centerless, cylindrical, and OD/ID grinders for high-volume shaft work
- Overbeck external/internal grinders for precision bore and OD work
This range lets shops match the machine to part geometry and batch volume, instead of forcing every job through a single setup.
Conclusion
Plunge grinding earns its keep by holding tight tolerances on complex, multi-diameter parts in a single automated pass. That's what separates it from traverse grinding and from standard turning operations that can't reach the same concentricity on hardened surfaces.
Choosing the right process means evaluating your part geometry and volume needs against what each machine setup can actually deliver. If you're weighing centerless versus cylindrical plunge grinding, or trying to reduce rework by tightening pre-grind tolerances upstream, talk to an experienced application engineer. WSM Technology's team, working out of their Rootstown, Ohio demonstration center, can help you match the right equipment to your part before you commit.
Frequently Asked Questions
What is the difference between traverse grinding and plunge grinding?
Traverse grinding moves the workpiece along the length of the wheel for full-length grinding. Plunge grinding holds the part stationary and feeds the wheel into one specific section instead.
What is plunge grinding used for?
It's used on complex, multi-diameter parts like camshafts, crankshafts, drive shafts, and precision pins across automotive and aerospace manufacturing. It's the go-to method whenever a part has shoulders or varying diameters.
How accurate is cylindrical grinding?
Machine-specific results show accuracy down to the low single-digit micron range. High-precision centerless grinders can hold diameter and roundness tolerances as tight as 0.00005 in (1.3 microns), a level standard turning rarely matches.
Can plunge grinding be done on a standard cylindrical grinder?
Yes. Cylindrical grinders with chuck and tailstock setups perform plunge grinding routinely, feeding the wheel radially into the rotating part. This is distinct from centerless plunge setups, which use a three-point support system instead.
What types of parts are not suited for plunge grinding?
Parts with interrupted surfaces, slots, or keyways are generally poor candidates for plunge or centerless grinding. The interruptions disrupt the continuous contact the process depends on for accuracy.
Does plunge grinding remove a lot of material?
No. Plunge grinding is typically a finishing operation, removing small, precise amounts of material rather than bulk stock. Heavy material removal is usually handled earlier by turning or milling.
