These components combine two brutal challenges at once: intricate, twisted blade curvature and materials that fight back against cutting tools. Aluminum compressor wheels demand different strategies than Inconel turbine wheels rated for extreme exhaust heat.
This guide walks through wheel design differences, the machining challenges shops face, the process steps and technologies involved, and what equipment you need to produce these parts reliably.
Key Takeaways
- Turbine and compressor wheels need multi-axis CNC milling, often with EDM, for tight tolerances and complex blade profiles
- Material choice (Inconel, titanium, aluminum) drives cutting strategy, tool wear, and EDM requirements
- Balancing and dimensional accuracy aren't optional; small deviations cause vibration and shorten part life
- Aerospace, automotive, and turbocharger shops benefit from milling and EDM capability under one roof
Understanding Turbine and Compressor Wheels
A turbine wheel converts fluid or exhaust gas energy into rotational force. A compressor wheel does the opposite: it uses rotational force to compress incoming air. Both depend on precisely shaped blades to do their job efficiently.
Garrett's documented anatomy of a turbocharger compressor wheel identifies key structural features that machinists need to understand: the nose, inducer, exducer, hub, blade roots, main blades, and splitter blades. The inducer pulls in and accelerates incoming air; the exducer is where compressed air exits the wheel.
Common structural elements across most designs include:
- Blades or vanes (main and splitter blades in many compressor designs)
- A central hub connecting blades to the shaft
- A bore for shaft mounting
- Balance planes for dynamic balancing
Radial and axial designs differ significantly in geometry. Diesel turbochargers typically pair a radial-inflow turbine with a radial-outflow compressor in a compact back-to-back arrangement.
Aerospace engines, by contrast, often use axial compressors, where air flows parallel to the rotation axis through multiple rows of airfoil cascades. These architectural differences directly affect fixturing, tool access, and machining sequence.

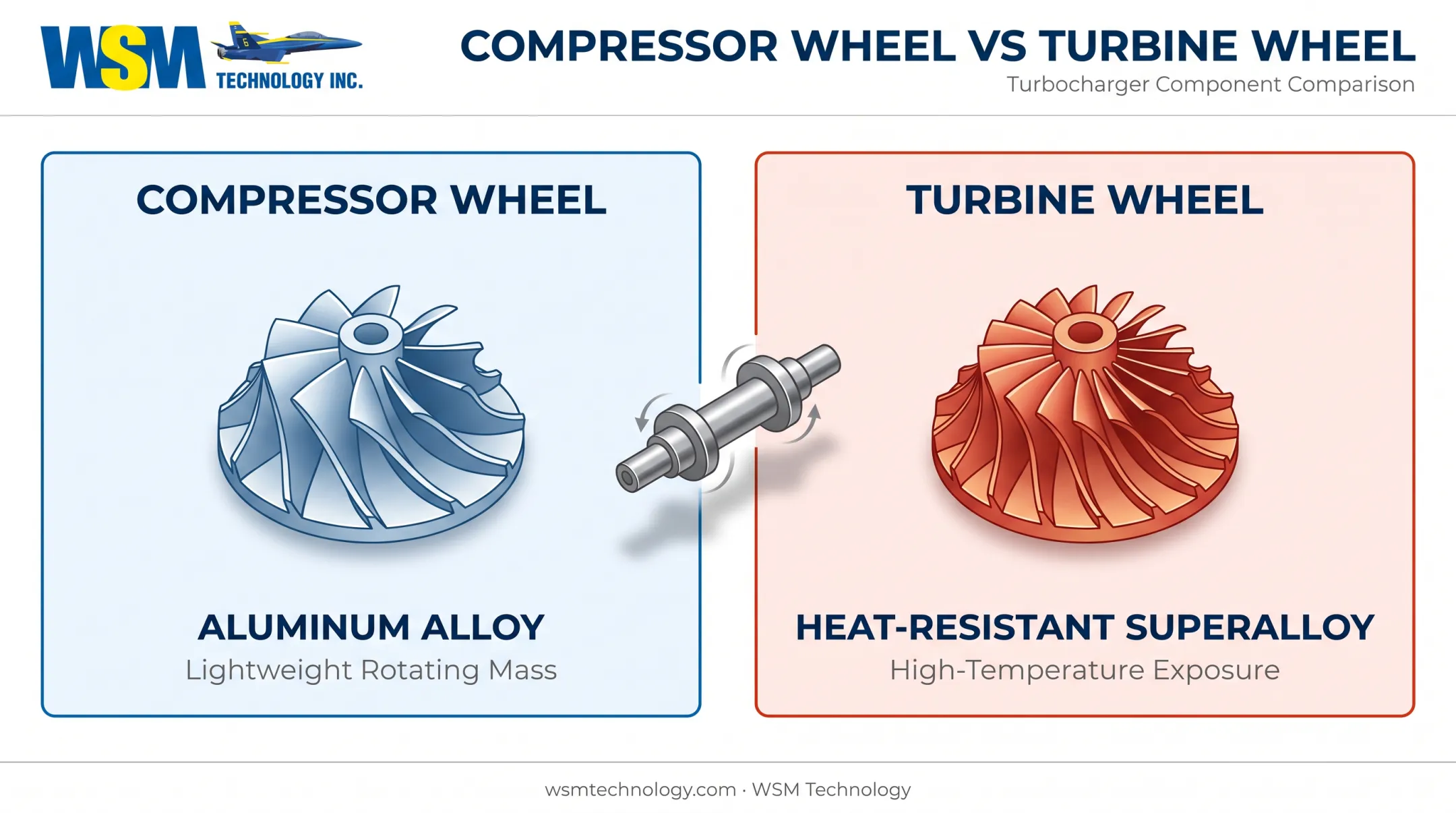

Turbine Wheel vs Compressor Wheel: Key Differences
Compressor wheels and turbine wheels look similar at a glance but serve opposite functions, and that shapes how each is built.
Geometry and size:
- Compressor wheels tend to have fewer, more open blades to optimize airflow intake
- Turbine wheels typically carry more blades to capture as much exhaust energy as possible
- Exact blade counts vary by application — there's no universal number, so always work from the OEM drawing
Material differences:
- Compressor wheels are commonly aluminum alloys, chosen for light rotating mass
- Turbine wheels use heat-resistant alloys to survive extreme exhaust temperatures
- Some high-performance compressor applications call for titanium or C355, depending on the load profile
Honeywell, for example, introduced a Mar-M nickel alloy turbine wheel to raise temperature capability and improve aerodynamics. These material differences translate directly to machining strategy: aluminum machines fast and forgives more; superalloys demand rigidity, low speeds, and careful heat management.
Common Applications
- Automotive/diesel turbochargers: Compact radial architecture, high production volumes, aluminum compressor wheels paired with heat-resistant turbine wheels
- Aerospace jet engines: Axial compressor and turbine stages, tighter aerospace-grade tolerances, frequent use of titanium and nickel superalloys
- Industrial gas turbines: Larger components, nickel-base superalloy blades under sustained high thermal and mechanical loading
Each application drives its own tolerance stack and material spec. A turbocharger shop and an aerospace supplier rarely run the same process plan, even if both are "machining a turbine wheel."
Key Machining Challenges for Turbine and Compressor Wheels
Complex Blade Geometry Demands Multi-Axis Control
Turbine and compressor blades are rarely flat or simple curves. They're twisted, ruled surfaces that change contour continuously along their length. Conventional 3-axis machining can't maintain consistent tool contact across that kind of geometry. You need simultaneous multi-axis control to keep the cutter oriented correctly as the surface changes.
Superalloys and Titanium Fight Back
Sandvik Coromant classifies nickel, iron, and cobalt-based superalloys along with titanium as difficult-to-machine materials, particularly in their aged condition. Milling them often requires high machine rigidity and high power and torque at low RPM, with notch wear and edge chipping as common failure modes.
Titanium adds another wrinkle: low thermal conductivity. Heat generated during cutting doesn't dissipate into the workpiece; it stays concentrated at the tool edge. A finish-turning study on Ti-6Al-4V found tool life varied by more than 5x between insert types under identical conditions, purely based on coating and geometry choices.
Practical implications for shops:
- Coolant strategy matters (except with ceramic inserts, which are prone to thermal shock)
- Cutting speed must be limited to manage heat buildup
- Tool selection drives whether tool life stays predictable or turns into constant surprises
Tight Tolerances and Balance Requirements
Even minor deviations in blade thickness or bore concentricity translate into vibration once the wheel is spinning at operating speed. ASME research going back decades confirms that surface smoothness and profile tolerance directly affect aerodynamic and thermodynamic performance. A 2023 gas-turbine blade study reported a profile tolerance range as tight as -0.1 mm to 0.1 mm for critical sections (a useful benchmark, though every application has its own spec).
Thin Walls and Blade-Edge Fragility
Blade edges are thin by design, which makes them prone to distortion or chatter under cutting force. This requires:
- Stable, rigid fixturing tailored to the wheel geometry
- Controlled, consistent cutting forces
- Careful sequencing between roughing and finishing to avoid inducing stress before final cuts
When those controls slip, scrap risk climbs fast. Modern Machine Shop has documented high reject rates in aircraft blade machining and polishing, sometimes ending in scrapped parts. In small-to-mid volume shops, setup errors, tooling mismatches, and weak fixturing on hard alloys leave far less margin than softer materials allow.
Machining Process and Technologies Used

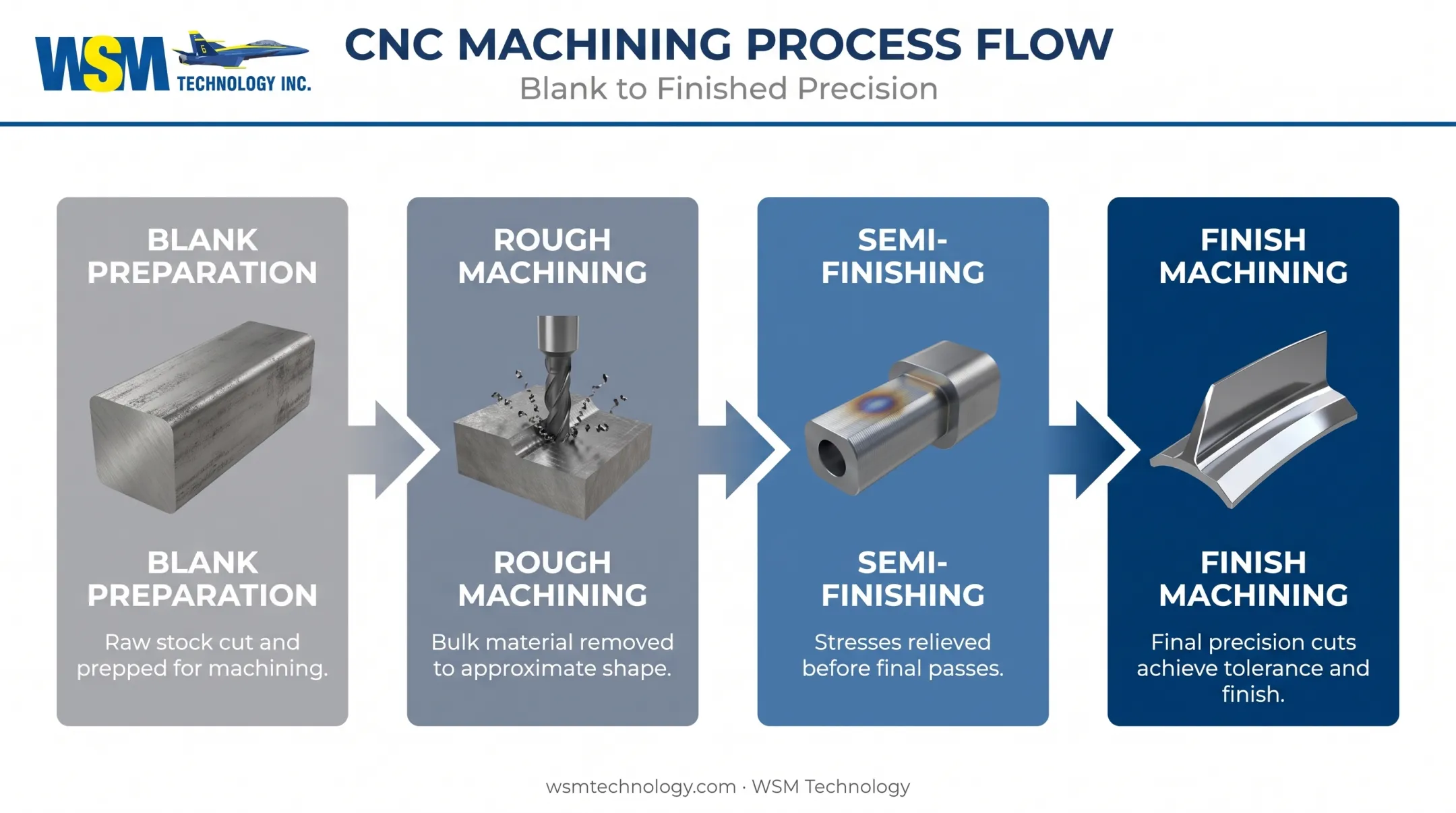

From Blank to Finished Wheel
The typical workflow moves through four stages:
- Blank preparation : forged, cast, or billet stock, chosen based on volume and material
- Rough machining : establishes base geometry and removes bulk material
- Semi-finishing : relieves internal stress before final cuts, critical for thin-wall stability
- Finish machining : produces the final blade profile to spec

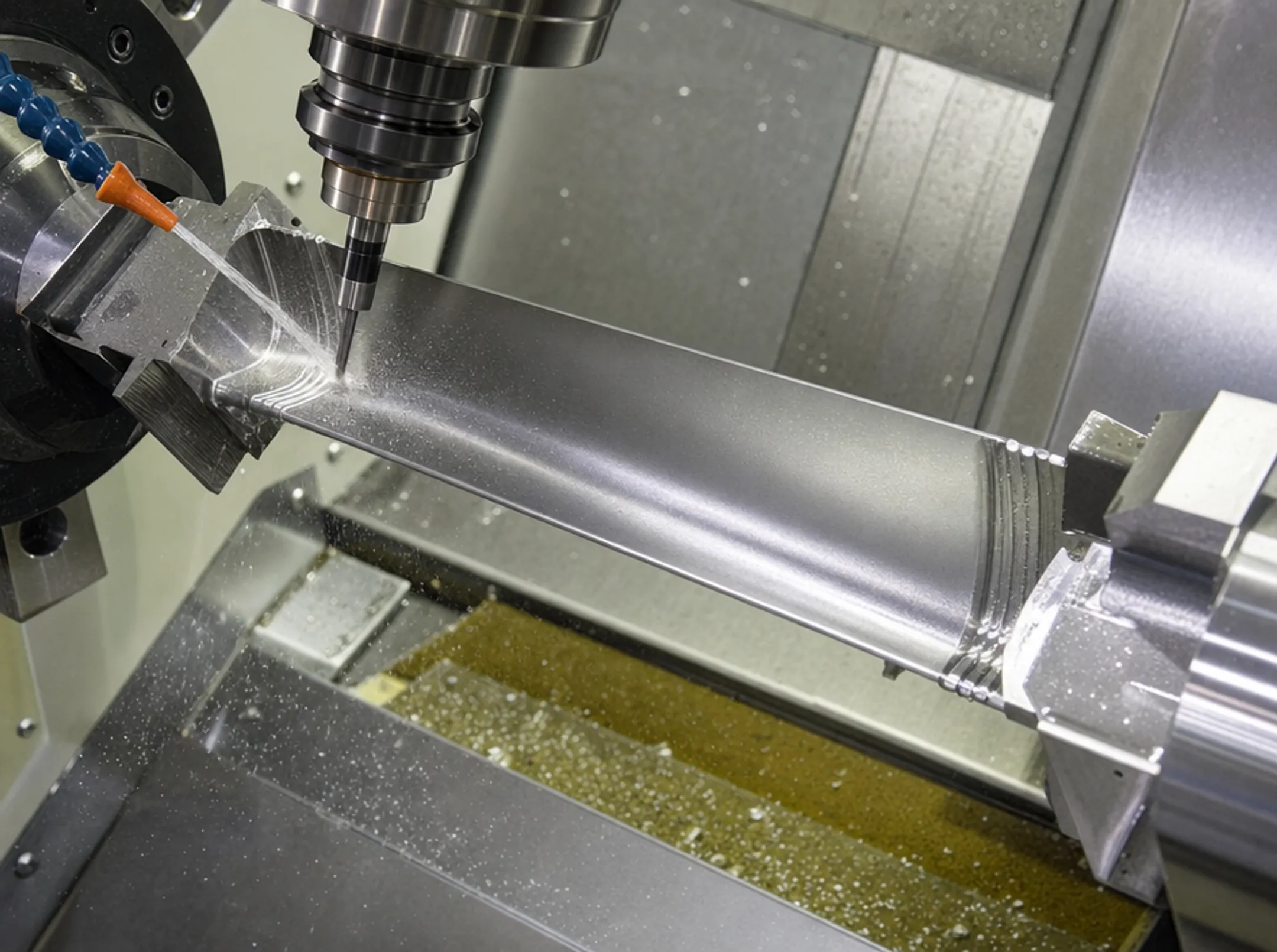

5-Axis Milling: Flank vs. Point Milling
Five-axis milling drives blade contour production. Two approaches dominate:
- Flank milling: Cutter side follows the blade's ruled surface and machines the full contour in one pass
- Point milling: Ball-tip makes many passes; slower, with simpler path math and freer tool orientation
Concepts NREC notes flank milling can deliver shorter cutting time and better surface finish on suitable ruled surfaces. Accuracy falls as blade twist and tool size increase, so tool paths need careful calculation. Most shops blend both: flank milling where the surface allows it, point milling where twist or access needs more flexibility.

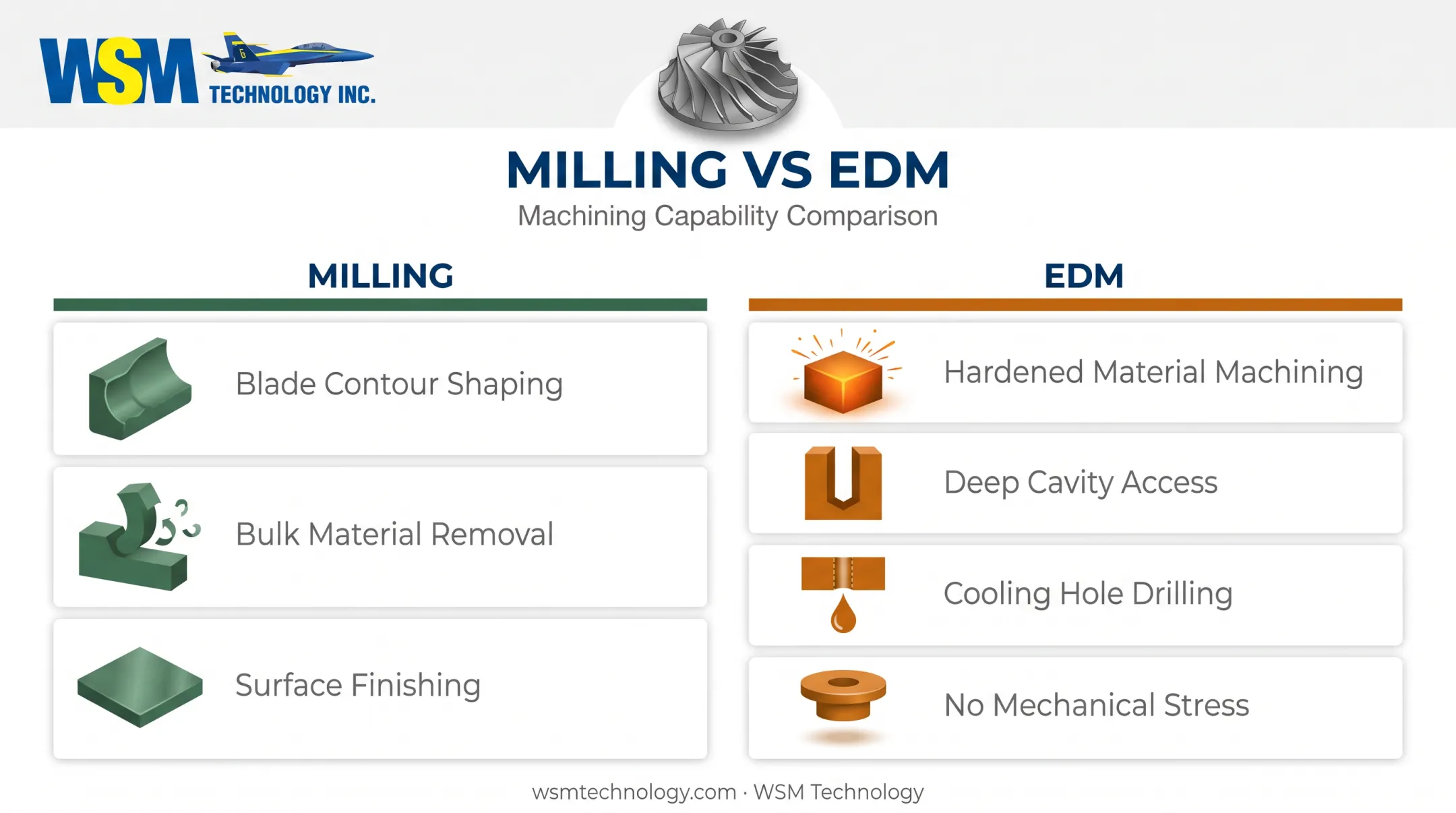

Where EDM Fills the Gap
Milling can't reach everything. Sinker EDM and Micro EDM become necessary for:
- Deep cavities, pockets, and internal geometries milling tools can't reach
- Hardened materials where conventional cutting risks heavy tool wear
- Fine features such as cooling holes in thin blade sections
EDM drilling is a documented method for cooling holes in Inconel 718 turbine blades without adding mechanical stress.
EDM strength areas:
- Machines conductive material regardless of hardness
- Handles small-hole and fast-hole drilling for cooling passages
- Avoids cutting forces that can distort thin blade sections
Final Inspection
Before a wheel ships, it must clear:
- CMM measurement to verify profile against drawing tolerances
- Balance verification to confirm no vibration risk at operating speed
- Surface finish checks so roughness does not hurt aerodynamic performance

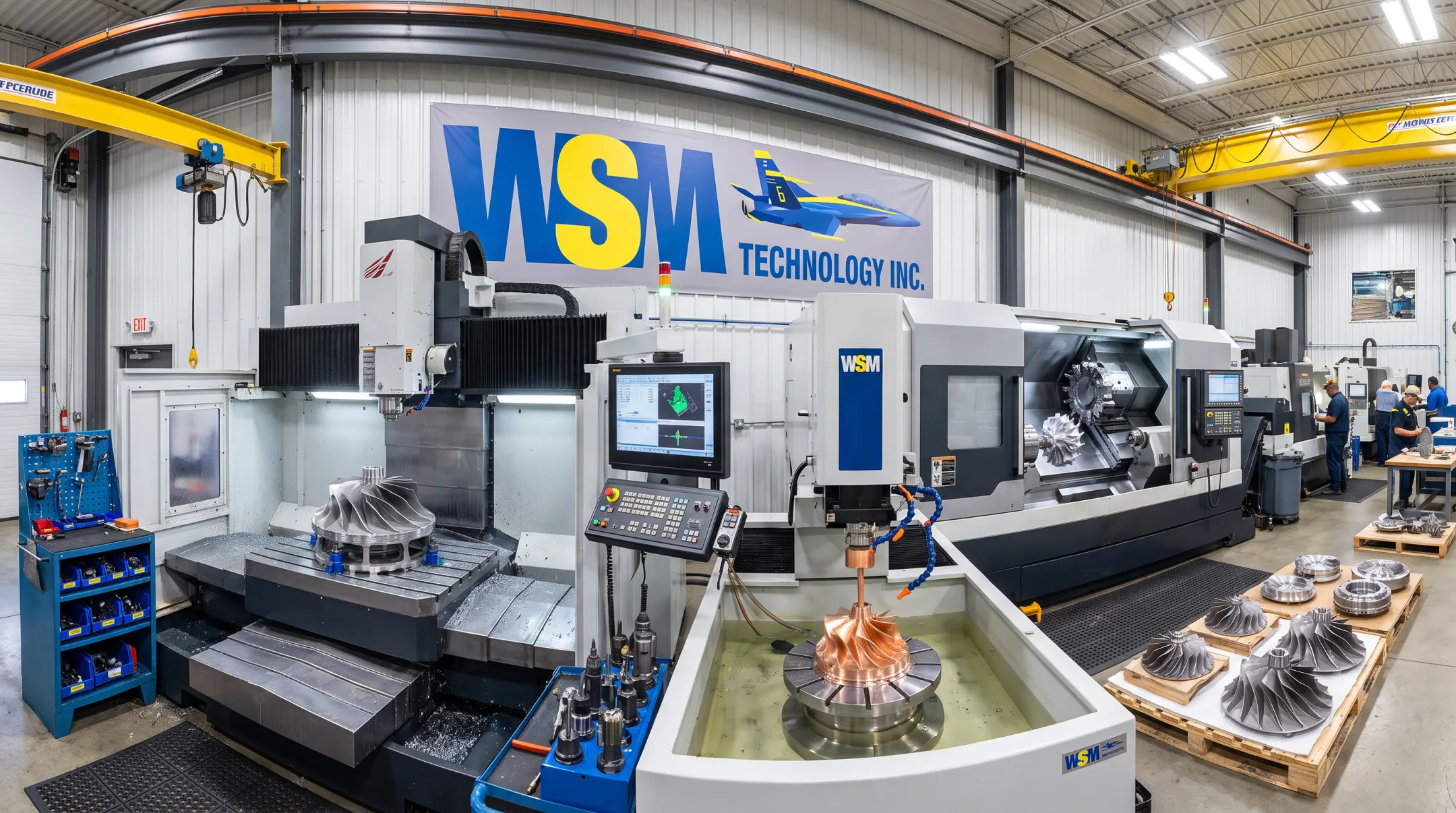

Selecting the Right Machines for Turbine and Compressor Wheel Production
Producing these wheels reliably means having milling, EDM, and turning capability working together, not scattered across multiple vendors. Blade contours need multi-axis milling. Hardened or hard-to-reach features need EDM. Hub and bore work often calls for precision CNC turning.
WSM Technology supplies this full range through its represented brands:
- Milling — ROKU-ROKU ANDROID II: ±1-micron actual machining accuracy and a 60,000 RPM spindle for high-precision blade work
- Milling — ROMI D1000: 40 × 24 × 25-inch work envelope and 10,000 RPM spindle for larger wheel geometries or higher-volume runs
- Sinker EDM — OPS Ingersoll: Gantry sinker platforms built for stable, accurate hard-material metal removal
- Micro EDM — Sarix: Fine-feature work and micro-hole drilling on tight wheel details
- CNC Turning — ROMI GL 400M: Hub and bore turning with an 8-inch A2-8 spindle, driven-tool turret, and 10-inch hydraulic chuck
Validate the process before you buy. WSM's Demonstration Center in Rootstown, Ohio lets shops run test cuts and time studies on their own materials, so you can confirm a machine handles your wheel geometry and alloy before it reaches the floor.
Frequently Asked Questions
What is a turbine wheel?
A turbine wheel is a bladed rotating component that converts fluid or exhaust gas energy into mechanical rotational power. It's the driving half of a turbocharger or the core rotating stage in a gas turbine.
What is the difference between a turbine wheel and an impeller?
A turbine wheel extracts energy from a moving fluid or exhaust gas to create rotation. An impeller (often used interchangeably with "compressor wheel") does the opposite: it adds energy to a fluid to move or pressurize it.
What is the difference in size between a compressor wheel and a turbine wheel?
Compressor wheels are generally smaller and lighter with fewer, more open blades. Turbine wheels tend to be larger with more blades to capture exhaust energy, though exact sizing depends heavily on the specific application.
What materials are turbine and compressor wheels typically made from?
Compressor wheels are commonly aluminum alloy for lower rotating mass. Turbine wheels typically use heat-resistant superalloys like Inconel or Mar-M alloys due to constant exposure to high exhaust temperatures.
Can EDM be used for turbine wheel machining?
Yes. EDM is often used for hardened alloys, cooling holes, or intricate internal features where conventional milling would cause excessive tool wear or simply can't reach the geometry.
How important is balancing in turbine and compressor wheel manufacturing?
Balancing is critical. Even small imbalances cause vibration at high rotational speeds, accelerating wear and cutting efficiency, so precise balancing is required for safe, reliable service life.
