Introduction
Aluminum shows up on almost every quote sheet in mold shops, aerospace suppliers, and automotive tier shops. It's light, machinable, and increasingly common in vehicle production.
But when the job calls for wire EDM instead of milling, machinists start asking the same question: does aluminum's high thermal conductivity work against the process?
The concerns are real. Shops report faster wire wear, aluminum oxide debris clogging the cut, and dielectric fluid that needs changing more often than it does with steel.
This guide answers whether wire EDM works on aluminum, what thicknesses are realistic, which parameters matter, and how the right equipment (and the right partner) changes the outcome.
Key Takeaways
- Wire EDM cuts aluminum reliably, though thermal conductivity requires adjusted settings versus steel
- Any conductive material qualifies for wire EDM; aluminum only changes flushing and wire choice
- Cutting thickness depends on machine power, wire diameter, and flushing — not a fixed number
- Pulse settings, filtration, and wire choice control surface finish and cycle time on aluminum
Can You Wire EDM Aluminum? Understanding the Basics
Yes. Wire EDM cuts any electrically conductive material, and aluminum qualifies without question. The process erodes metal through controlled electrical discharges between the wire and the workpiece, vaporizing material rather than cutting it mechanically.
No cutting force means no clamping stress and no burrs, which is exactly why aluminum parts with thin walls or delicate features often end up on an EDM rather than a mill.
Why Aluminum Behaves Differently Than Steel

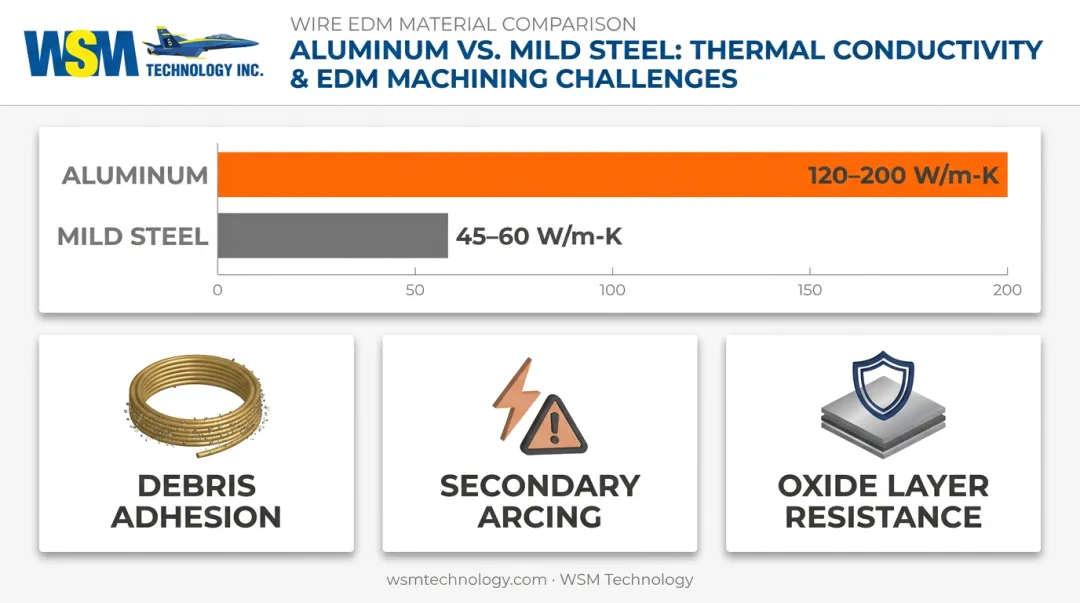

Aluminum's thermal conductivity creates the real challenge. Aluminum alloys run 120-200 W/m-K, compared to 45-60 W/m-K for mild steel, according to Canadian Metalworking's analysis of low-conductivity EDM materials. That heat dissipates fast instead of concentrating at the spark gap, which can reduce erosion efficiency if your settings are copied straight from a steel job.
Two other issues compound this:
- Debris adhesion: aluminum oxide particles stick to the wire electrode, interfering with conductivity and causing inconsistent sparking
- Secondary arcing: packed debris in corners and small cavities can trigger arcing, especially without aggressive flushing
- Oxide layer resistance: aluminum's natural oxide coating has a higher melting point than the base metal, requiring extra energy to break through before erosion begins
None of this makes aluminum a bad EDM candidate. It just means the machine needs an aluminum-specific technology table, not a steel one repurposed on the fly.
That specialization matters more each year as aluminum's footprint grows. Content in North American vehicles is projected to reach 556 lb per vehicle by 2030, according to the Aluminum Association's automotive market data. Shops that master aluminum EDM parameters now are positioning themselves for where the material demand is headed.
What Materials Can Be Machined with Wire EDM?
Wire EDM works on anything that conducts electricity. That includes:
- Tool steels (hardened and pre-hard)
- Aluminum and aluminum alloys
- Titanium
- Copper and brass
- Carbide
- Nickel alloys like Inconel
Non-conductive materials — ceramics, plastics, most composites — are off the table entirely. EDM depends on a conductive path between the wire and grounded workpiece to complete the discharge circuit. No conductivity, no spark, no cut.
Where does aluminum fit in that lineup? Easier to cut than hardened tool steel or carbide, but harder to dial in than most people expect. Its lower melting point and softness mean it erodes fast, but that same softness makes fine surface finish trickier to nail. The real challenge is aluminum's tendency to smear, oxidize, and generate more debris volume per cut than a comparable steel pass produces.
How Thick of Aluminum Can You Cut with Wire EDM?
There's no single "maximum thickness" answer for aluminum wire EDM. Capability comes down to three factors working together:
- Generator power determines how efficiently the machine can sustain discharge energy through the cut
- Wire diameter limits how much current it can carry, though thinner wire allows tighter geometry
- Flushing capability dictates how fast debris clears before it causes secondary arcing
Published machine envelopes vary widely by OEM. Some Mitsubishi MV-series configurations list maximum workpiece heights around 215 mm to 305 mm, while larger submerged systems reach up to 32 inches on certain models. These are machine envelopes, not guaranteed aluminum-cutting depths — actual results still depend on alloy, geometry, and required finish.
Why Thicker Sections Need Multiple Passes
Meeting a machine's rated envelope doesn't guarantee a clean cut on thicker aluminum, which is why thicker sections generally need a slower feed rate and a rough cut followed by one or more skim passes. This is standard wire EDM practice regardless of material, but it matters more on aluminum. High cutting speed doesn't guarantee a clean finish because the material's softness works against surface quality even when the cut moves quickly.

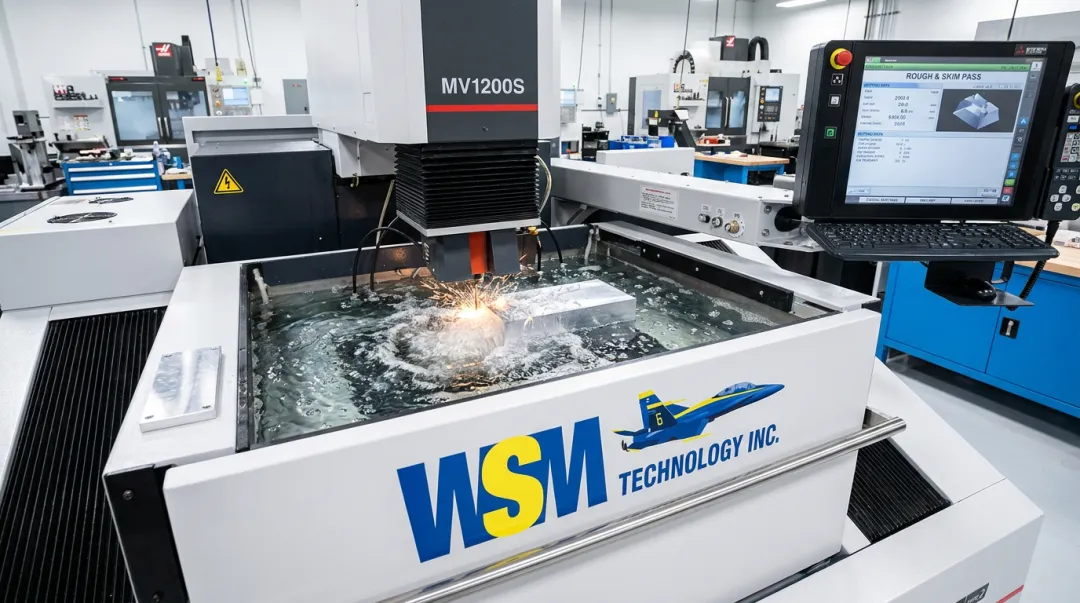

Modern high-precision machines, including the Mitsubishi MV1200S and MV2400 that WSM Technology carries, use submerged wire EDM technology and linear shaft motors. This combination holds accuracy through rough-and-skim sequences across a wide range of stock thicknesses.
Best Practices & Technical Tips for Wire EDM Aluminum Cutting
Getting consistent results on aluminum means adjusting several variables at once, not just tweaking one setting.
Electrical Parameters, Flushing & Filtration
- Raise no-load voltage amplitude and reduce pulse width to limit debris adhesion on the wire
- Balance top-and-bottom dielectric flow so flushing is even across the entire cut height, not concentrated at one end
- Watch for localized debris buildup in corners — that's where secondary arcing starts
Fine filtration matters more on aluminum jobs than steel jobs. Aluminum generates a higher debris volume, and that debris needs to leave the dielectric fluid fast to keep spark performance stable.
For wire, standard brass (60/40 copper-zinc) handles most aluminum cutting without issue. Specialized coated or thinner brass wire, such as 0.20mm options, can help on tighter geometries or when the standard wire struggles to maintain a clean discharge.
Managing the Oxide Layer
Aluminum forms a natural oxide layer that's electrically insulating. If that layer interferes with wire contact or restarting a cut, you need clean bare-metal grounding and stable, aluminum-specific parameter tuning, not a steel recipe applied by default.
The alloy you're cutting matters, too. Various aluminum grades respond differently to the same settings. That's why starting with a test cut on your specific alloy beats guessing. It's a service WSM Technology runs through its Demonstration Center in Rootstown, Ohio, letting shops validate settings before committing a job to the machine.
Applications and Advantages of Wire EDM for Aluminum Parts
Wire EDM earns its place in an aluminum workflow when the part's geometry, wall thickness, or tolerance requirements outweigh the extra consumable and cycle-time cost.
Where It Delivers the Most Value

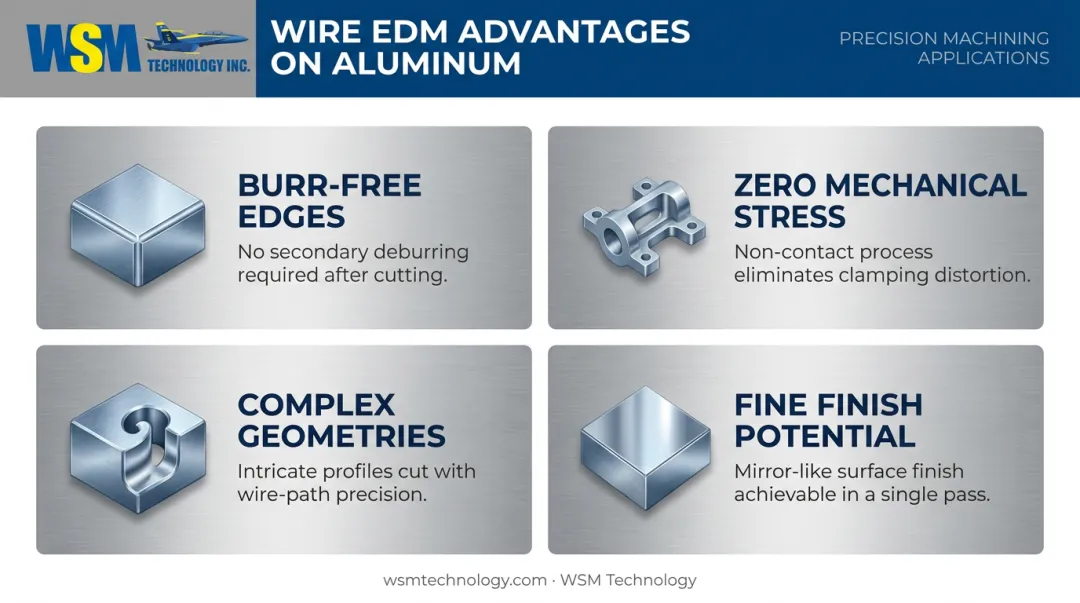

Four scenarios come up again and again in shops running aluminum jobs:
- Burr-free edges: no mechanical shearing means no secondary deburring step
- Zero mechanical stress: thin-walled or delicate aluminum sections hold shape without clamping distortion
- Complex geometries: internal contours and tight profiles that milling tools can't access cleanly
- Fine finish potential: skim passes can reduce or eliminate secondary polishing on mold cavities
Industries Relying on This Process
Three sectors send us the most aluminum EDM work:
- Aerospace and automotive: tight-tolerance components where lightweight aluminum parts need precision without added mechanical stress
- Mold and die tooling: cavity details and inserts that benefit from burr-free, force-free machining
- Prototype development: quick iteration on lightweight part geometries before committing to production tooling
EDM and Milling Working Together
Most shops don't choose one process exclusively. Milling handles bulk material removal efficiently, clearing the bulk of the material before EDM ever engages the part. Wire EDM then takes over for the intricate, thin-walled, or delicate features milling struggles to finish cleanly. Used together, they cover more ground than either process alone.
As an official Mitsubishi/MC Machinery EDM dealer serving Northern Ohio, Western Pennsylvania, and West Virginia, WSM Technology helps shops work through this exact decision. Local training, time studies, and test cuts let teams see how wire EDM performs on their specific aluminum parts before scaling up.
Frequently Asked Questions
Can you wire EDM aluminum?
Yes. Aluminum is electrically conductive, which makes it a fully viable wire EDM material. Its thermal conductivity and oxide layer require adjusted parameters compared to steel.
What materials can be machined with wire EDM?
Wire EDM handles any electrically conductive material, including tool steels, aluminum, titanium, copper, brass, carbide, and nickel alloys like Inconel. Non-conductive materials like ceramics and plastics can't be cut this way.
How thick of material can you cut with wire EDM?
Thickness capability depends on machine generator power, wire diameter, and flushing efficiency rather than one fixed number. Modern machines handle a broad range of stock sizes, with some submerged systems reaching up to 32 inches.
What is the best wire for cutting aluminum with wire EDM?
Standard brass wire works well for most aluminum cutting jobs. Specialized coated or thinner brass wires, such as 0.20mm options, help with tighter geometries or more difficult cuts.
Does wire EDM leave a recast layer on aluminum parts?
Some recast layer does form on aluminum, but it's typically manageable and varies by alloy and settings. Both aluminum and steel form thermally altered surfaces during EDM.
Is wire EDM more expensive than CNC machining for aluminum parts?
It depends on part complexity. Wire EDM tends to cost more for simple, open geometries but becomes the more practical choice for thin-walled or intricate features where milling falls short.
