Many capable precision shops learn this the hard way. They quote their first aerospace job expecting familiar tenths-level tolerances, then discover the specification stack is far heavier than anything they've handled: exotic materials, surface integrity testing beyond Ra, and documentation requirements that follow the part for decades.
This article breaks down what actually separates aerospace grinding from standard precision work, and where complementary processes like EDM and milling fit into a shop's broader aerospace strategy.
Key Takeaways
- Aerospace grinding demands control over residual stress, microstructure, hardness, and burn — not just Ra
- Inconel, titanium, and ceramic matrix composites need distinct wheel, coolant, and dressing strategies
- Full traceability of wheel lots, dress settings, and calibration data is baseline, not optional
- EDM and precision milling often complement or replace grinding on hard, delicate geometries
What Makes Aerospace Grinding Different From Standard Precision Grinding
On paper, aerospace grinding can look identical to standard precision work: tight OD tolerances, fine surface finishes, familiar-looking blueprints. The difference lives underneath the numbers.
A turbine blade root or airfoil profile often requires positioning accuracy measured in single-digit micrometers, with metrology systems built specifically to verify it. That level of scrutiny doesn't exist in most commodity grinding work, where a part passing a caliper check and a quick Ra reading is often good enough.
Three Pillars That Separate Aerospace Grinding
- Difficult, heat-sensitive materials: Inconel, titanium, and CMCs behave nothing like standard tool steel under an abrasive wheel
- Surface integrity requirements: residual stress, microstructure, and hardness gradients matter as much as dimensional accuracy
- Documentation and traceability: every wheel, dress cycle, and gauge touch gets recorded and retained
Shops that build process discipline around these three pillars tend to land steadier, more profitable work. The global aerospace parts manufacturing market is projected to grow from $1,042.8 billion in 2026 to $1,426.9 billion by 2033, a 5.4% compound annual growth rate. Tier 1 primes are increasingly selective about who they qualify into that supply chain.
None of this happens in a vacuum. FAA rules under 14 CFR 21.137 require production approval holders to control supplier conformance, while EASA Part 21 imposes similar vendor-assessment obligations across Europe.
AS9100 sets the quality management baseline beneath both. A shop doesn't need to memorize every regulation, but it does need to understand that these frameworks shape what a customer expects before a quote even lands on their desk.
AMS, NADCAP & the Documentation Stack
Two acronyms confuse a lot of shops entering aerospace work: AMS and NADCAP. They're not interchangeable.
AMS specifications define material properties and process results — what the finished part must achieve. NADCAP is an industry-managed accreditation program that audits whether a facility can reliably deliver certain special processes.
Here's the part that surprises people: grinding itself isn't automatically excluded from NADCAP. Conventional machining, which includes grinding, has been part of NADCAP's accreditation scope since a task group launched it in 2010.
Whether your shop needs that specific accreditation depends on what the customer's purchase order specifies.

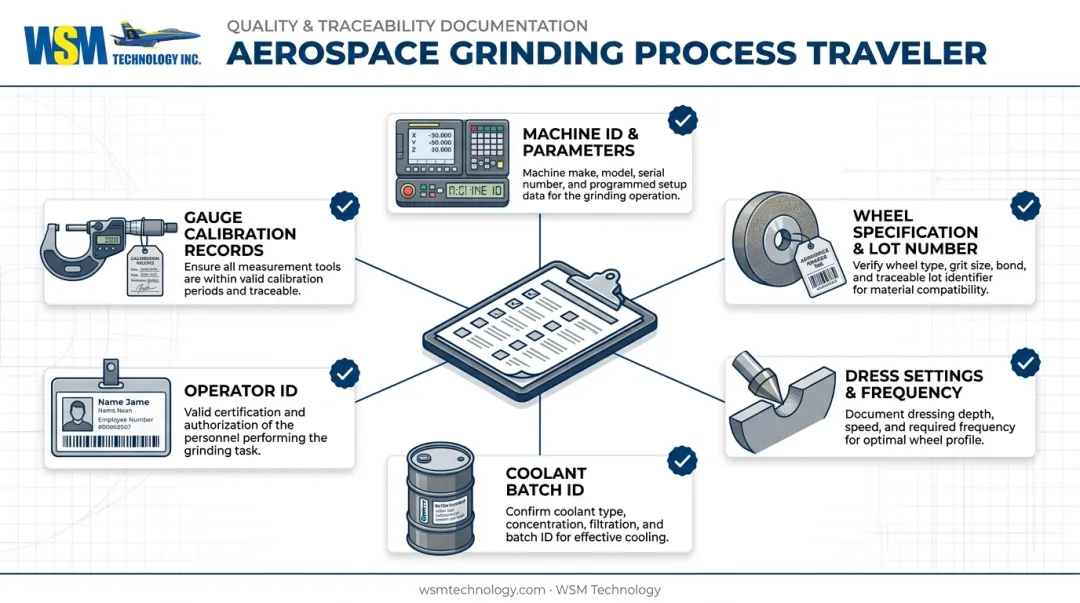

What Belongs in Every Process Traveler
A per-job traveler should include:
- Machine ID and grinding parameters used
- Wheel specification and lot number
- Dress settings and dress frequency
- Coolant batch identification
- Operator ID
- Calibration records for every gauge that touched the part
How Long You Keep It
Retention periods vary by contract, but they're rarely short. Lockheed Martin's RMS/Sikorsky supplier manual, for example, requires 40 years of retention for flight-safety-part records and radiographs, 10 years for non-flight-safety parts, and 5 years for off-the-shelf industry-standard components.
FAI documentation retention is typically set by the purchase order, so read that contract line closely before you assume a default period applies.

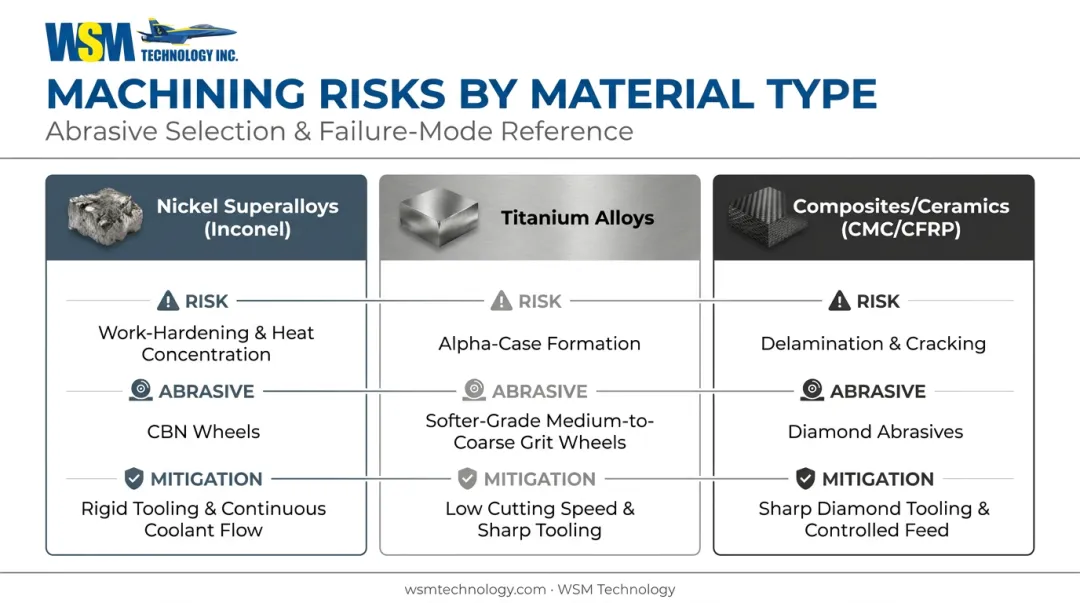

The Toughest Materials in Aerospace Grinding
Material choice drives everything downstream: wheel selection, dressing frequency, coolant strategy. Parameters dialed in for standard steel will cause thermal damage on aerospace alloys almost immediately if you don't adjust deliberately.
Nickel-Based Superalloys (Inconel, Waspaloy, Udimet)
Inconel and its cousins have low thermal conductivity, so heat concentrates right at the grinding contact zone instead of dissipating through the part. CBN wheels are the preferred abrasive here because they stay chemically inert against nickel and iron and hold up thermally far better than conventional alumina or diamond, which can suffer chemical wear against nickel.
The work-hardening problem compounds this. Once the abrasive dulls even slightly, the surface hardens rapidly, demanding frequent, precision dressing to keep cutting efficient.
Grinding fir-tree roots on Inconel 718 turbine blades illustrates the challenge well. Creep-feed profile grinding on these features generates real thermal nonuniformity across the root geometry, with peak temperatures running noticeably hotter than the valley regions during the same pass.
Titanium Alloys
Titanium's biggest risk is alpha-case formation: a hard, brittle, oxygen-contaminated surface layer that forms once the material exceeds a critical temperature threshold during grinding. It's not a cosmetic issue.
Research on titanium alloy fatigue behavior found that a mere 2-micrometer alpha-case layer cut low-cycle fatigue life by roughly 50%, and a 10-micrometer layer reduced it by about 90%. That's why conservative parameters and high-volume coolant delivery aren't optional on titanium jobs.
Titanium also smears and loads conventional wheels because of its chemical reactivity. Softer-grade bonds with medium-to-coarse grit keep the wheel "open" and self-dressing, preventing the glazing that leads to heat buildup.
Composites & Ceramics (CMCs, CFRP, Thermal Barrier Coatings)
Composite and ceramic materials fail differently than metals. Delamination and fiber pull-out are the dominant risks in CFRP, which is why diamond abrasives with shear-oriented cutting geometries are standard practice.
Ceramic matrix composites raise the stakes further: even diamond wheels experience heavy wear against hard SiC matrices, and visible cracking can still occur regardless of abrasive choice. Multi-stage, low-force grinding passes are the safest approach, but every parameter set needs validation against the specific coating or fiber architecture in play.
Surface Integrity: Why Ra Isn't Enough
A part can pass every Ra check and still carry hidden damage that shortens its service life. Surface integrity covers four factors that profilometry alone will never catch.
1. Residual stress state
Compressive residual stress extends fatigue life. Tensile stress, typically the result of aggressive grinding, accelerates crack initiation.
The sensitivity here is significant. One 2025 study on Inconel 718 found that just a 7.4% increase in maximum principal residual stress reduced low-cycle fatigue life by 39.4%, according to research published in the International Journal of Fatigue. Ground nickel-superalloy surfaces commonly trend tensile unless the process is specifically controlled to avoid it.
2. Microstructural alteration and grinding burn
Thermal damage can occur in a thin surface layer with zero visible external sign. In hardened steels, this shows up as re-tempering or, in more severe cases, rapid re-hardening into a brittle "white layer," a metallurgical change that standard visual inspection simply won't reveal.
3. Burn detection via nital etch
Nital etch inspection uses a nitric acid solution to reveal heat-affected areas through visible contrast changes. Many aerospace specifications require it, whether on 100% of parts or a sampled lot basis depending on the governing standard and customer flow-down. SAE AMS2649 specifically governs etch inspection for high-strength steel parts rated at 180,000 psi tensile strength or higher.
4. Microhardness gradient
Cross-sectional microhardness testing reveals a thermal damage profile from surface to core, distinguishing softened temper-burn zones from re-hardened layers underneath. This is subsurface evidence that visual inspection and Ra measurement both miss entirely.
Where Grinding Reaches Its Limits — Complementary EDM & Milling Solutions
Grinding isn't always the right tool. On extremely hard materials or delicate micro-geometries, the risk of microcracking or burn pushes some shops toward non-contact alternatives.

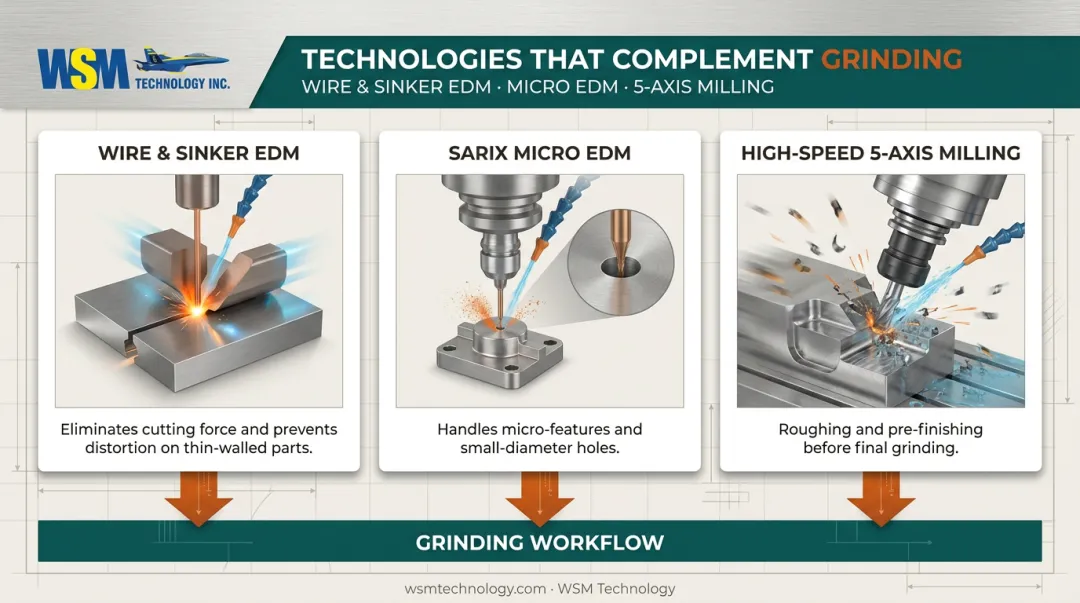

Three technologies fill the gaps where grinding falls short:
- Wire and sinker EDM removes material via spark erosion instead of abrasive contact, eliminating cutting force on the part. This prevents distortion on thin-walled or heat-sensitive aerospace geometries where light grinding pressure would otherwise cause damage.
- Sarix Micro EDM handles micro-features too small or fragile for a conventional grinding wheel, such as small-diameter holes or fine internal geometries common in aerospace fuel systems and cooling designs.
- High-speed 5-axis milling, such as the JINGDIAO platforms WSM Technology carries, often serves as a roughing or pre-finishing step, removing bulk stock before final grinding to cut cycle time and wheel wear.
On the wire EDM side, WSM Technology's Mitsubishi/MC Machinery line, including the MV1200S submerged wire EDM with linear shaft motors and chiller-supported thermal management, exemplifies equipment built for this role. The dielectric bath itself provides thermal protection that grinding can't replicate.
Before committing capital to any of these, run comparative test cuts or time studies. WSM Technology's Demonstration Center in Rootstown, Ohio, exists for exactly this purpose: evaluating EDM and milling options against an existing grinding workflow before you buy anything.
Choosing the Right Manufacturing Partner for Aerospace-Grade Precision Work
Aerospace qualification cycles are long, and process validation is strict. That makes turnkey support (installation, training, and local applications engineering) far more valuable here than in commodity work, where a machine showing up on a truck is often good enough.
A few things worth checking before you pick a partner:
- Local service and parts access: Downtime on a qualified production line is expensive, and waiting on parts shipped from across the country compounds the problem.
- Cross-process expertise: A partner who understands grinding, EDM, milling, and turning together can help you plan the full process chain, not just sell you one machine.
- Hands-on evaluation options: A demonstration center where you can run real test cuts beats a spec sheet every time.
WSM Technology, based in Rootstown, Ohio, checks these boxes for shops across Northern Ohio, Western Pennsylvania, and West Virginia. The company stocks immediate OEM replacement parts and represents Danobat, Hembrug, and Overbeck grinding lines alongside Mitsubishi EDM and JINGDIAO milling equipment.
For a shop planning an aerospace program, the smartest move is consulting application engineers early, before locking in equipment. That way, grinding, EDM, and milling get planned as one connected process rather than three separate purchases.
Frequently Asked Questions
What is grinding in engineering?
Grinding is an abrasive machining process that uses a rotating wheel to remove material and achieve precise dimensions and surface finish. It's commonly applied to hardened materials that resist conventional cutting tools.
What's the difference between milling and grinding?
Milling uses rotating multi-point cutting tools with defined edges to remove material, typically for roughing or shaping. Grinding uses abrasive grains for finer tolerances and finishes, usually as a finishing step performed after milling.
What makes aerospace grinding different from standard precision grinding?
Difficult materials, surface integrity requirements beyond Ra, and heavy documentation obligations separate aerospace grinding from general precision work. The tolerances can look similar on paper, but the underlying process control is far more demanding.
What is nital etch inspection and why is it required in aerospace grinding?
Nital etch is an acid-based test that reveals grinding burn by producing visible contrast changes in heat-affected areas. Aerospace specifications require it because grinding burn often leaves no visible sign otherwise.
Do I need NADCAP certification to perform aerospace grinding work?
NADCAP typically applies to specific processes like heat treat, chemical processing, and nital etch. Conventional grinding can also fall under its scope depending on the contract, so confirm requirements with your customer before quoting.
What grinding wheel is best for Inconel and other nickel superalloys?
CBN wheels are widely preferred for superalloys because of their thermal stability and resistance to glazing. Seeded-gel or ceramic alumina wheels are common conventional alternatives when CBN isn't available.
