Skip maintenance, and the risks stack up fast: increased runout, tool pull-out during cuts, spindle crashes, unplanned downtime, and scrapped parts. None of these are cheap.
This guide covers why HSK maintenance matters, the different maintenance approaches available, warning signs to watch for, and a practical schedule you can put to work today.
TL;DR
- HSK spindles need tighter maintenance than steep-taper systems due to dual taper/flange contact
- Routine cleaning and inspection prevent most costly spindle and tool holder failures
- Watch for runout changes, unusual noise, or clamping force loss as early warnings
- A structured daily/weekly/monthly schedule protects spindle life and part accuracy
- OEM procedures matter more with HSK—generic intervals don't fit every model
Why Maintenance of HSK Spindles Is Important
Consistent maintenance protects both precision output and your production schedule.
Impact on Performance

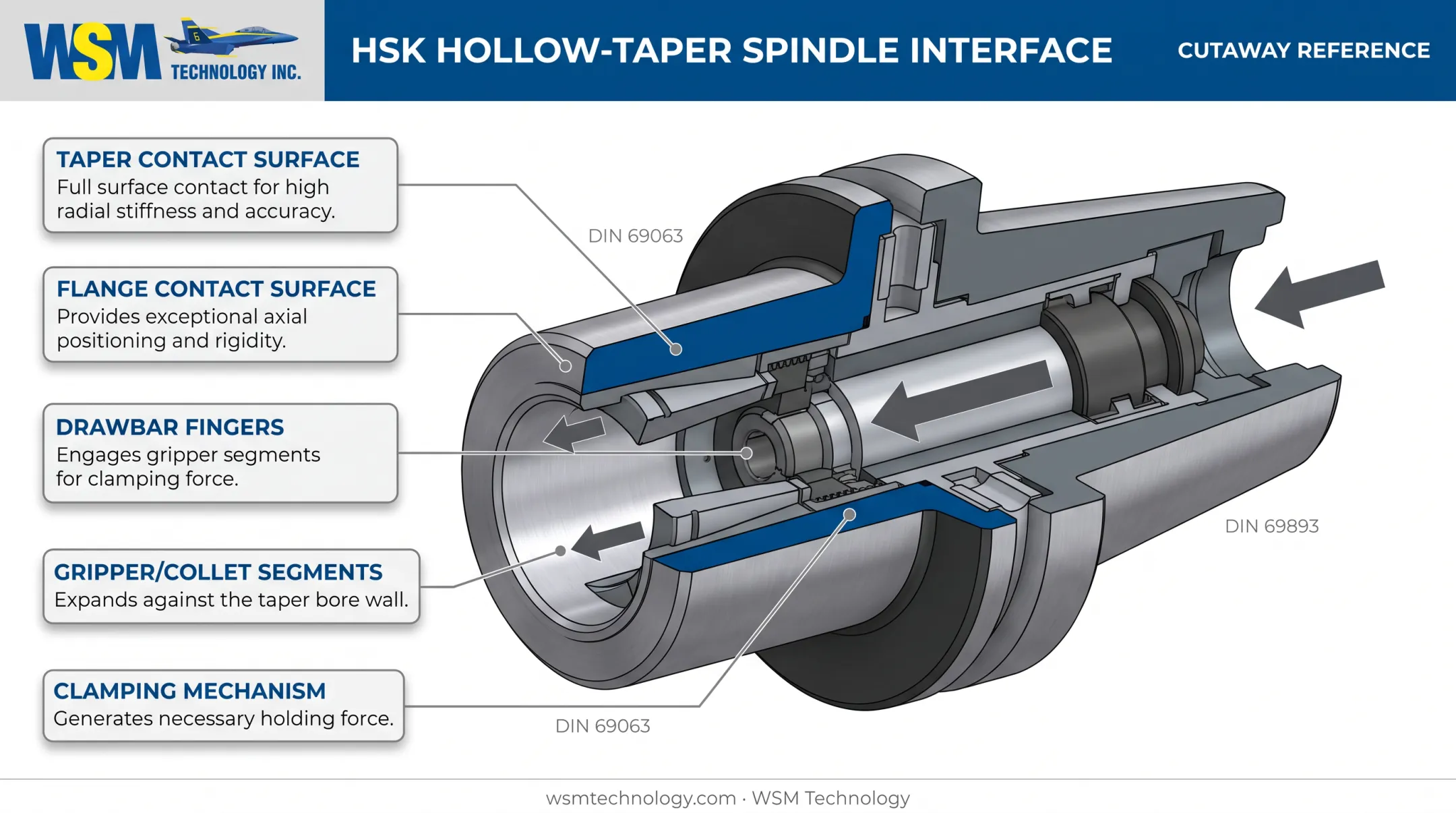

HSK's two-point contact design means both the taper and the flange must seat correctly every time. BIG DAISHOWA notes that the interface's drawbar fingers are engineered to expand with the spindle at speed, maintaining that dual contact. Contamination or wear on either surface reduces radial and axial rigidity, which shows up as poor surface finish and tool deflection.
Effect on Lifespan
HSK components are manufactured to extremely tight dimensional tolerances, with the spindle and holder tapers governed by DIN 69063 and DIN 69893 respectively. TAC Rockford's implementation guidance is blunt on this point: nicks and dings on the tool taper cannot be tolerated, and a worn spindle taper can be difficult or impossible to regrind. Neglected cleaning accelerates wear on grippers, collet segments, and drawbars long before you'd notice a problem by eye.
Role in Safety and Quality
Spindle issues don't just cause noise. They cause scrap. Haas documents that incorrect HSK probe seating can create Z-axis positioning errors severe enough to scrap a part. Spindle failures are also a frequent source of downtime: a Modern Machine Shop case study on predictive maintenance found that spindle replacement was one shop's leading cause of unplanned maintenance downtime.
Cost Savings
A cracked seal or a worn gripper is a cheap fix. A damaged spindle taper often isn't, and can mean a full rebuild. Routine inspection catches those problems early, when the fix still costs less.
For shops running HSK equipment, WSM Technology provides local training, technical support, installation, and application engineering on HSK-equipped machines, including the Roku-Roku Android II with its 60,000 RPM HSK-E25 spindle rated to ±1 micron accuracy. Support covers Northern Ohio, Western Pennsylvania, and West Virginia.

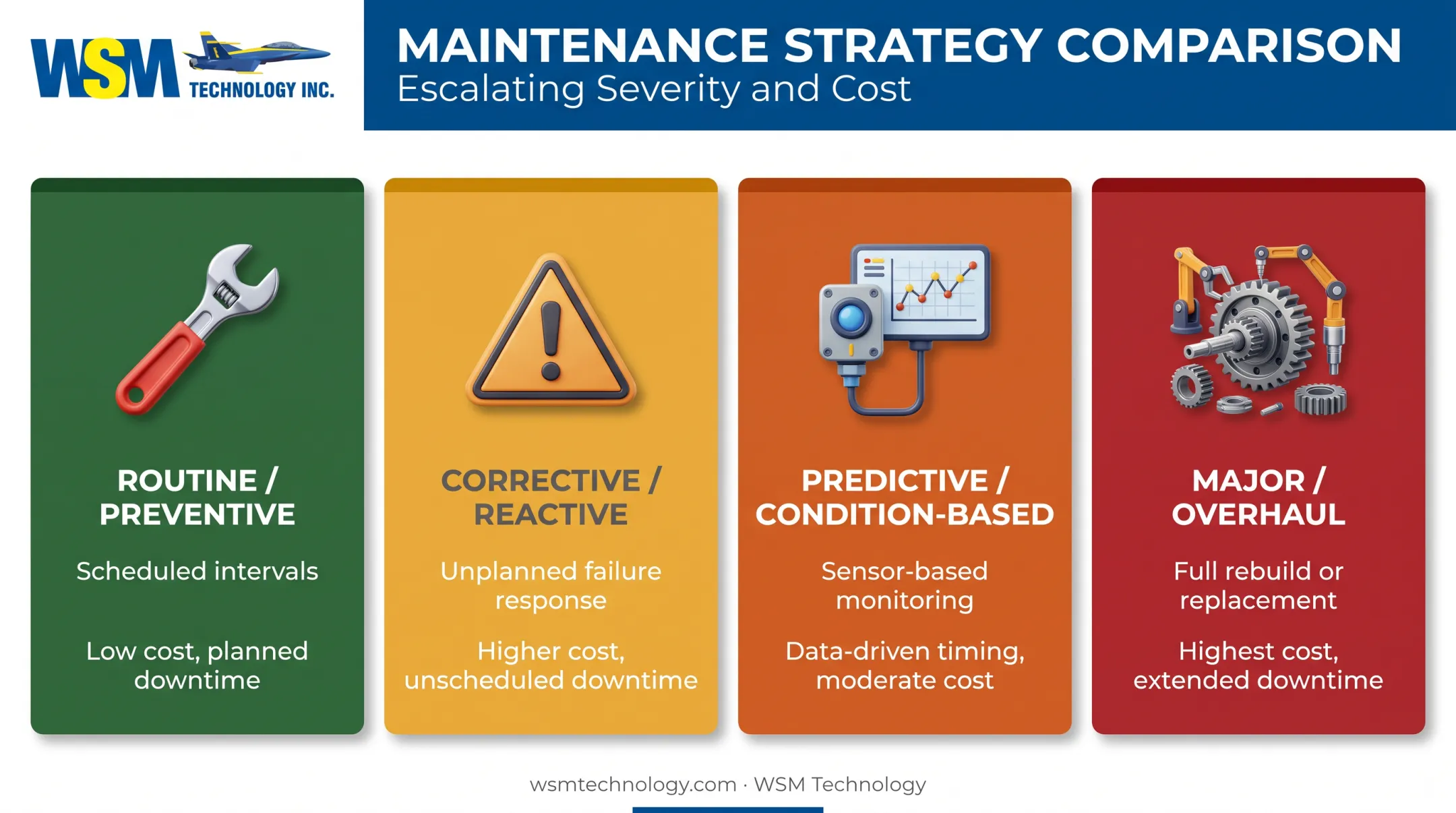

Types of Maintenance for HSK Spindles
Not every shop needs the same maintenance approach. It depends on usage intensity, application, and how much precision drift you can tolerate.
Routine / Preventive Maintenance
This is your baseline. Daily and weekly tasks include:
- Wiping taper and flange contact surfaces
- Checking O-rings for wear or damage
- Verifying air blow-off systems function correctly
- Inspecting coolant nozzles for blockage or leakage
This level is sufficient for standard-duty applications with consistent, predictable usage.
Corrective / Reactive Maintenance
Triggered by visible damage: a chipped taper, or sudden accuracy loss after a tool collision. Relying on this alone is risky. HSK's tight tolerances mean small, unnoticed damage compounds quickly into spindle receiver wear, and by the time damage is obvious the repair is usually larger than an earlier catch would have required.
Predictive / Condition-Based Maintenance
Instead of a fixed calendar, this approach uses data. Haas specifies clamping force and pushout testing at defined tool-change intervals rather than arbitrary dates.
Modern Machine Shop's predictive maintenance research describes shops tracking vibration, load, and temperature trends to catch problems before failure. One shop found rising post-cycle spindle temperature signaled end-of-life earlier than tap testing did.
Major / Overhaul Maintenance
Full spindle rebuild, bearing replacement, or clamping mechanism overhaul. This becomes necessary when:
- Precision has drifted beyond acceptable tolerance
- Repeated corrective fixes haven't resolved recurring tool holder issues
- The machine has seen extended high-speed use or a repeated overload event
Haas provides a dedicated HSK-A63 clamping-unit replacement procedure for this level of work and restricts it to qualified personnel.
How to Check If Your HSK Spindle Needs Maintenance
These are the early indicators that intervention is needed, before you're looking at a crash or a scrapped batch.
Performance and Behavior Changes
- Reduced surface finish quality or inconsistent part tolerances
- Increased tool deflection or chatter during cuts
- Abnormal noise or vibration during spindle rotation or tool change
- Difficulty seating or releasing the HSK tool holder during automatic tool changes
Low clamp force often shows up as seating or release problems. Haas troubleshooting docs recommend verifying the reading with a second gauge first; a faulty instrument can mimic a real problem. If the low reading holds, check grease condition, gripper wear, or drawbar function.
Wear, Leaks, and Recurring Downtime

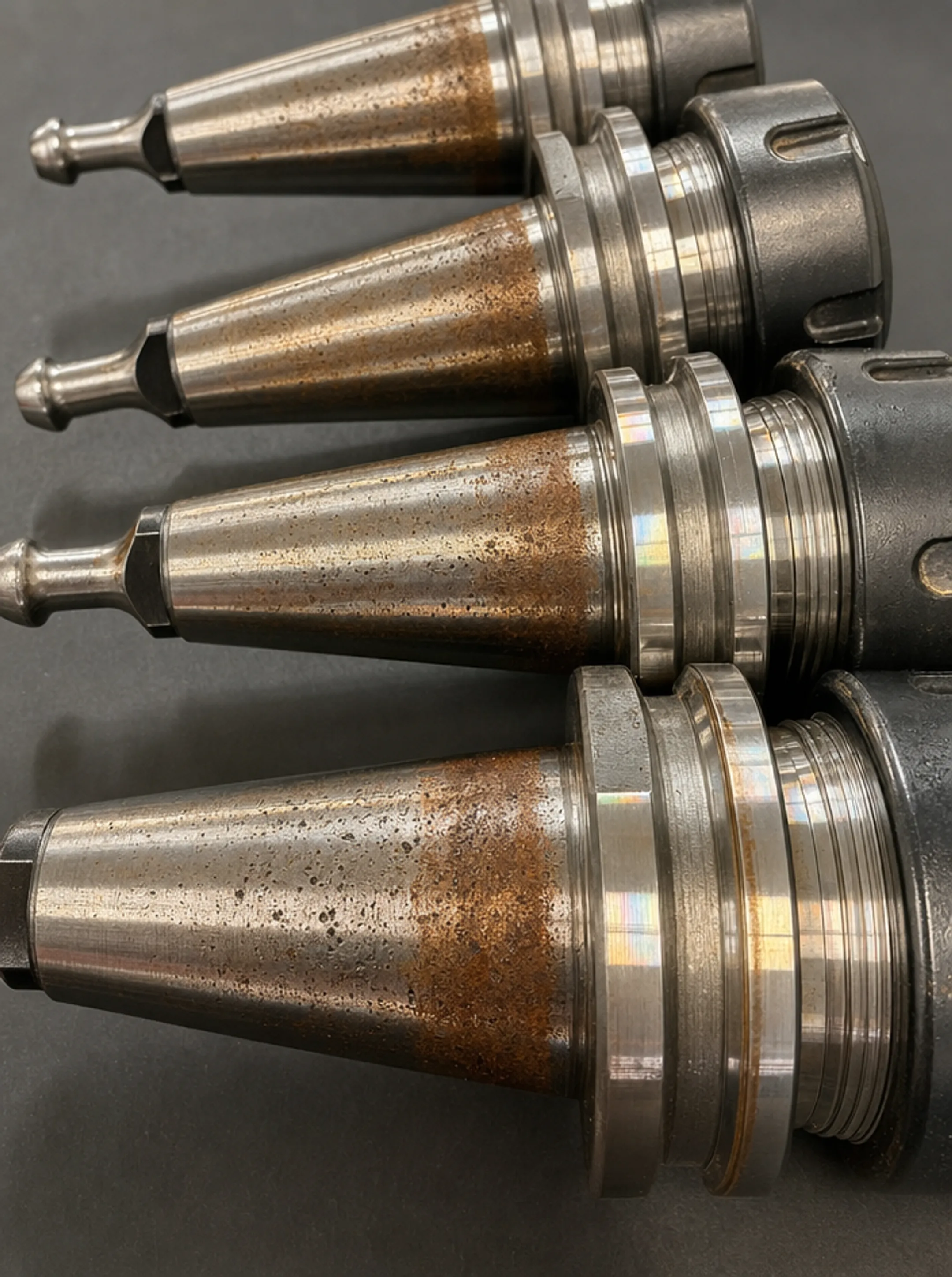

- Scoring, pitting, or contamination on taper and flange contact faces
- Coolant leakage around the nozzle or O-ring seals (often traced to a failed lip seal)
- Repeated tool holder slippage or clamping force loss requiring frequent adjustment
- Increasing frequency of unplanned stoppages tied to spindle or tool holder performance
Important: A warning sign doesn't automatically mean the spindle body has failed. Rule out gauge error, holder contamination, and pushout misadjustment first. Escalate to spindle repair only if the interface remains out of spec after those checks.

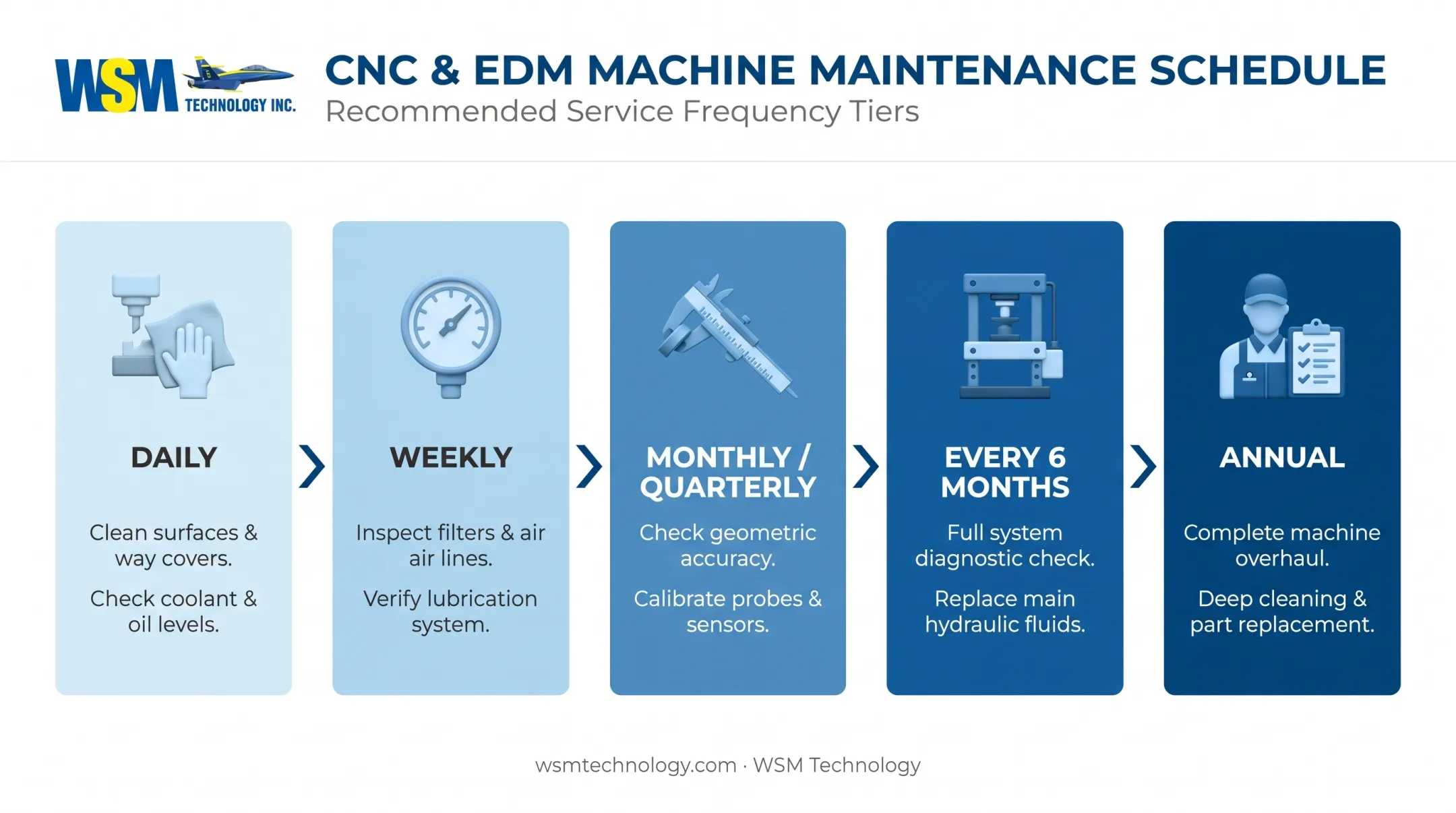

HSK Spindle Maintenance Schedule (General Guidelines)
Exact intervals vary by spindle RPM range, usage hours, and application. Milling, EDM, and turning don't all wear the same way. The table below reflects general practice, informed by OEM guidance such as Haas's published HSK service intervals.
| Frequency | Tasks |
|---|---|
| Daily | Wipe taper/flange surfaces, inspect for debris, verify coolant flow, run spindle warm-up sequence |
| Weekly | Check clamping force, inspect collet segments and drawbar action, inspect gripper for wear/dirt/grease |
| Monthly/Quarterly | Measure runout, inspect O-rings and seals, verify tool holder balance |
| Every 6 months or ~200,000 tool changes | Test pushout and pull force against OEM specification |
| Annual | Full spindle inspection, bearing check, professional service by a qualified technician |
A few notes on frequency:
- Shops running continuous high-speed operations should lean toward the higher end of inspection frequency. Daily and weekly checks aren't optional at that duty cycle.
- Lighter-duty, intermittent-use machines can sometimes stretch inspection intervals, but never skip the daily wipe-down. Contamination doesn't care how many hours you've run.
- Always defer to your machine OEM's documented intervals over a generic schedule. A Haas HSK-A100 spindle and an EDM machine's clamping unit don't share identical service needs.
Conclusion
HSK spindle maintenance protects the same tight tolerances that make the interface valuable. Pair routine preventive care with predictive monitoring when your equipment supports it, and you safeguard both uptime and part accuracy.
A structured plan protects a high-speed spindle investment far better than fixing failures after they start. WSM Technology provides local training, installation support, and technical assistance for HSK-equipped milling and EDM equipment across Northern Ohio, Western Pennsylvania, and West Virginia — reach the team at (330) 962-8308 or sales@wsmtechnology.com for equipment-specific guidance.
Frequently Asked Questions
What is an HSK spindle?
HSK stands for Hohlschaftkegel, German for hollow taper shank. It's a spindle interface using a 1:10 taper with dual contact at both the taper and flange, giving high rigidity and precision at high speeds.
What is the difference between HSK-A and HSK-T tools?
HSK-A (DIN 69893-1) is built for general milling with automatic tool change and moderate torque transmission. HSK-T is designed for turning on multitasking machines, with a tighter keyway tolerance that improves cutting-edge positional accuracy.
What does HSK stand for in CNC?
HSK stands for Hohlschaftkegel, German for hollow taper shank, referring to the hollow shank design that enables the dual-contact clamping at both taper and flange.
How often should HSK spindles be cleaned and inspected?
Daily wipe-downs and weekly clamping checks are standard practice, plus monthly runout checks and annual professional servicing based on usage intensity and machine OEM guidance.
What causes HSK spindle wear or failure?
The most common causes are contamination, taper nicks or dings from tool crashes, incorrect clamping force, worn grippers, and coolant entering through a failed seal or O-ring.
Can HSK spindles be repaired, or do they need full replacement?
Many issues (worn seals, damaged O-rings, minor gripper wear) can be repaired individually. Severe taper or receiver damage, however, often requires a full clamping-unit rebuild or spindle replacement.
