Grinding is one of the few machining processes capable of reliably hitting Ra values below 0.8 µm. But "capable" is doing a lot of work in that sentence. Achieving and holding a target finish requires understanding what actually drives Ra in a grinding operation — not just what a spec sheet says is possible.
This guide covers the Ra definition and calculation, typical Ra ranges by grinding method, the variables that shift results within those ranges, how to specify and measure Ra correctly, and what goes wrong when it lands outside target.
Key Takeaways
- Ra is the arithmetic mean of absolute surface profile deviations from a mean line, measured in µm or µin — lower values mean smoother surfaces
- Grinding achieves Ra 0.1–1.6 µm depending on grinding type, wheel spec, and process parameters
- Wheel grit, dressing condition, feed rate, and machine rigidity are the four variables that determine where your finish lands within that range
- Ra alone is insufficient for sealing and fatigue-critical surfaces; always pair it with Rz
- Over-specifying Ra adds cost without functional benefit; match the callout to the application
What Ra Is and How It's Defined
Ra — Roughness Average — is the arithmetic mean of the absolute values of surface profile height deviations from a mean line, measured over a defined evaluation length. Per ASME B46.1 and ISO 4287:1997, a stylus traces the surface and records every peak and valley relative to that mean line. Absolute values prevent peaks and valleys from canceling out; the result is averaged into a single number representing texture height. (Older U.S. and UK drawings may call this Center Line Average (CLA) — same parameter, legacy label.)

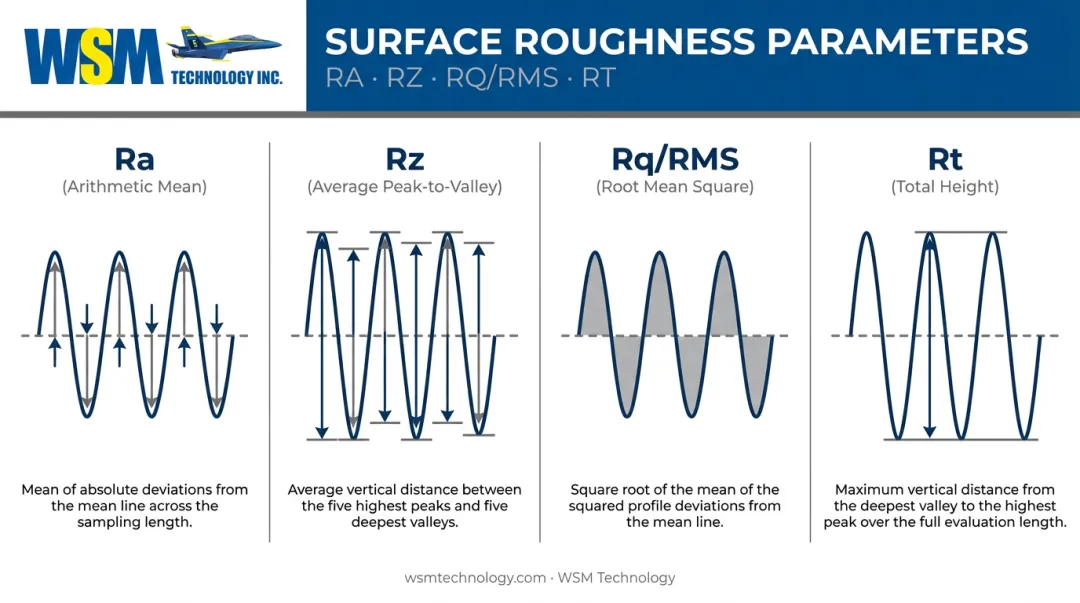

Companion Parameters Ra Doesn't Replace
Ra alone misses critical surface events. These three parameters cover what Ra cannot:
- Rz — Average of the five highest peak-to-valley distances across the evaluation length. More sensitive to extreme deviations than Ra. Preferred for sealing surfaces, O-ring seats, and fatigue-critical applications
- Rq (RMS) — Root mean square roughness, mathematically approximately 11% higher than Ra for a sinusoidal profile. Still appears on older U.S. drawings
- Rt — Total peak-to-valley height over the full evaluation length. Catches single critical defects that Ra averages away
Surface Roughness vs. Surface Finish
These terms aren't interchangeable. Surface roughness is an objective, instrument-measured parameter. Surface finish is broader — it encompasses lay direction, waviness, and visual appearance. Two surfaces can have identical Ra values and behave completely differently in service, depending on lay direction and waviness profile.
Factors That Influence Ra in Grinding
Published Ra ranges for grinding assume optimized conditions. In practice, Ra shifts based on the interaction of multiple variables at once.

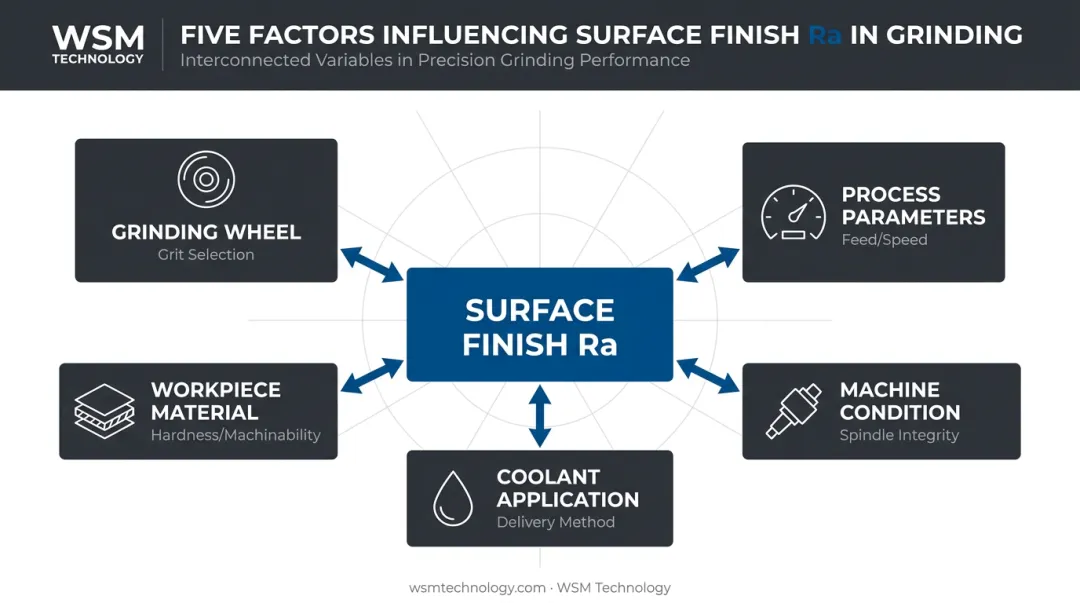

The Core Variable Categories
Grinding wheel characteristics:
- Grit size has a direct effect — Norton Abrasives documents that CBN wheels at 100 grit produce approximately 35–40 µin Ra, while 400 grit produces 4–8 µin Ra under comparable conditions
- Bond type and dressing condition determine effective wheel sharpness between redresses
Process parameters:
- Higher wheel speed generally improves finish
- Reduced feed rate and shallower depth of cut on finishing passes lower Ra
- Spark-out passes allow residual deflection to dissipate before the final cut — skipping them is a common source of inconsistent finish
Machine mechanical condition:
- Spindle bearing wear, structural rigidity, and vibration all degrade Ra. Norton specifically identifies periodic spindle bearing checks and vibration analysis as finish-maintenance practices
- For ID grinding, quill/arbor rigidity is one of the most important constraints — a long, slender quill amplifies vibration and limits achievable finish
Coolant application:
- Controls heat generation and swarf evacuation. Inadequate coolant delivery causes thermal distortion and glazing, both of which push Ra higher
Workpiece material:
- Hardness, microstructure, and thermal conductivity affect how the abrasive engages the surface. Harder materials generally produce finer finishes under equivalent wheel and process conditions
These variables don't operate in isolation. Increasing wheel speed, for example, changes heat generation, wheel wear rate, and effective chip thickness at the same time — which is why adjusting a single parameter rarely produces a predictable Ra improvement without accounting for its downstream effects on the others.
Ra Values and Surface Roughness Ranges in Grinding
Understanding the expected Ra range for each grinding method is the starting point for writing correct specifications.
Typical Ra Range for Surface Grinding
Flat surface grinding using aluminum oxide or CBN wheels typically achieves Ra values of 0.2–1.6 µm (8–63 µin). Fine finishing passes on hardened steel commonly target 0.2–0.4 µm Ra. The NIMS Level II surface grinding performance standard specifies a 16 µin (0.41 µm) maximum for finish ground features.
Conditions required to reach the lower end of this range:
- Fine grit wheel (220+ grit)
- Reduced feed rate and depth of cut on the finishing pass
- Adequate spark-out
- Well-dressed wheel face with no glazing
The upper end (1.6 µm) reflects a standard roughing pass, a worn wheel, or inadequate spark-out. It is not a finished condition for precision applications.
Typical Ra Range for Cylindrical Grinding
Cylindrical OD grinding of hardened steel typically achieves Ra values of 0.1–0.8 µm (4–32 µin). CNC cylindrical grinders can reach below 0.2 µm under optimized conditions. Internal (ID) grinding generally runs 0.2–0.8 µm due to smaller wheel contact geometry and the rigidity constraints of the grinding quill. The finer Ra typical of cylindrical work compared to surface grinding reflects the continuous rotational contact geometry, which distributes abrasive action more evenly across the workpiece surface.

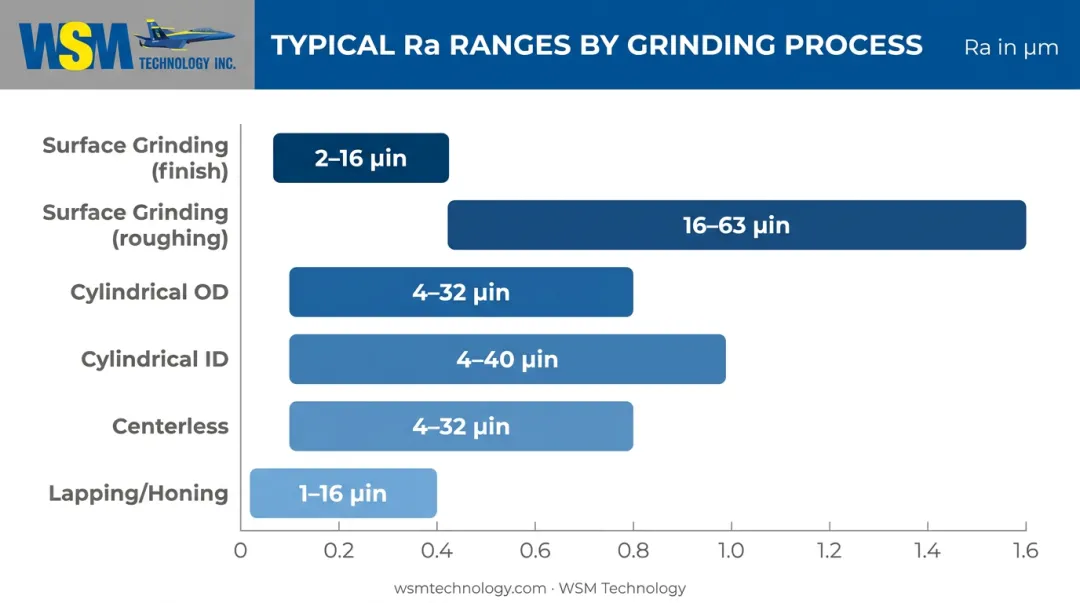

Comparative Ra Reference by Process
| Grinding Process | Typical Ra Range (µm) | Typical Ra Range (µin) |
|---|---|---|
| Surface grinding (finish pass) | 0.2–0.8 | 8–32 |
| Surface grinding (roughing pass) | 0.8–1.6 | 32–63 |
| Cylindrical OD grinding | 0.1–0.8 | 4–32 |
| Cylindrical ID grinding | 0.2–0.8 | 8–32 |
| Centerless grinding | ~0.2 (application-dependent) | ~8 |
| Lapping / honing | 0.025–0.4 | 1–16 |
The ranges above represent standard production conditions. Under fully optimized parameters, grinding can push lower: Bal Seal Engineering's technical report on surface finishing methods documents finishes as low as 0.076–0.152 µm (3–6 µin) — relevant when specifying bearing or sealing surfaces.
WSM Technology represents Danobat cylindrical, OD/ID, vertical, and centerless grinders, plus Overbeck external/internal grinders — equipment covering the full Ra range in the table above. Their Demonstration Center in Rootstown, Ohio runs test cuts on customer workpiece materials and geometries before any production commitment, so Ra targets are confirmed against the actual machine and part conditions rather than assumed from published ranges.
How Ra Is Specified, Measured, and Validated
Ra appears on engineering drawings as a callout symbol per ASME Y14.36 or ISO 1302, with a numerical value in µm or µin. Critical surfaces often carry both an Ra and Rz callout. The measurement direction must be specified — always measure across the grinding lay, not parallel to it.
Measurement Instruments and Methods
Contact profilometer (diamond stylus):
- Shop-floor standard — affordable, fast, direct digital output
- Standard stylus tip radius of 2 µm for Ra 0.02–2 µm range
- Limitation: stylus contact can damage very soft or highly polished surfaces; tip radius limits resolution on fine textures
Non-contact profilometers (optical, laser, white-light interferometry):
- Preferred for delicate surfaces, micro-features, and 3D area measurements (Sa)
- White-light interferometry provides sub-nanometer vertical resolution without surface contact
- Portable contact testers are a practical alternative for in-process QC on the shop floor
Measurement Best Practices
- Take multiple readings at different locations and orientations — a single reading doesn't capture variation across the ground surface
- Use the correct cutoff wavelength (λc): per ASME B46.1, 0.8 mm is the standard cutoff for Ra values in the 0.1–2.0 µm range
- Measure across the machining lay, never parallel — readings taken along the lay can understate actual roughness by a factor of 2 or more on ground surfaces
Implications of Getting Ra Wrong
When Ra Is Too High
Exceeding the specified Ra has direct functional consequences:
- Micro-peaks on mating surfaces accelerate adhesive wear and generate heat through increased friction
- Research on AISI 4140 steel found that reducing Ra from 0.43 µm to 0.15 µm had a greater effect on fatigue life than reducing residual compressive stress by 600 MPa — surface texture is not a secondary factor on cyclically loaded components
- Micro-peaks on seal faces allow fluid or gas leakage even under clamp load; O-ring seat specifications from ERIKS and Parker both define mating surface Ra ranges because the surface must retain lubricant while maintaining contact
- In mold and die work, rough cavity surfaces replicate directly onto part surfaces and increase ejection force
Ra being too high is the more familiar failure mode — but over-specifying smoothness creates a different set of problems.
When Ra Is Too Low
- Surfaces below 0.25 µm Ra are classified as "highly polished" by the British Stainless Steel Association, which notes they can increase galling tendency on sliding interfaces that depend on lubricant retention
- ERIKS specifically states that dynamic O-ring seal surfaces below 0.15 µm Ra (5 µin) are not recommended — some micro-texture is required to retain lubricant
- A mold cavity that performs at 0.4 µm Ra ground finish gains nothing from chasing 0.1 µm — it just adds cycle time, wheel wear, and cost
Both failure modes carry real cost consequences. In aerospace and medical manufacturing, surface finish is a controlled characteristic with formal inspection and documentation requirements under programs like AS9102 First Article Inspection. Ra out of specification typically requires rework, a formal deviation, or scrapping — there is no judgment call at the machine.
Common Misinterpretations of Ra in Grinding Practice
Three mistakes show up repeatedly when Ra is applied to grinding specifications:
Ra alone doesn't catch every defect. A surface with one deep scratch from a wheel artifact can pass an Ra check while failing functionally. Rz and Rt capture what Ra averages away. For sealing and fatigue-critical surfaces, specify both Ra and Rz.
Finer grit won't compensate for a worn machine. Ra below 0.2 µm requires adequate spindle rigidity, vibration damping, and thermal stability. A machine with worn spindle bearings or poor structural damping produces inconsistent results regardless of wheel specification. Over-specifying Ra beyond a machine's stable capability consistently produces scrap.
Milling callouts don't translate to grinding. The standard as-machined CNC milling finish of 3.2 µm Ra (125 µin) represents a rough grinding pass in grinding terms — not a finished condition. Norton's production grinding benchmarks target 4–32 µin Ra (0.1–0.8 µm) as typical finished results. Pull specifications from grinding-specific standards, not milling drawings.
Frequently Asked Questions
What is the Ra value for surface grinding?
Surface grinding typically achieves 0.2–1.6 µm Ra (8–63 µin). Fine finishing passes on hardened steel commonly target 0.2–0.4 µm Ra. The actual result depends on wheel grit, dressing condition, depth of cut on the finish pass, and spark-out. Roughing passes sit at the upper end of that range.
What is the finish of cylindrical grinding?
Cylindrical OD grinding typically achieves 0.1–0.8 µm Ra (4–32 µin), with CNC cylindrical grinders reaching below 0.2 µm under optimized conditions. Internal (ID) grinding generally falls in the 0.2–0.8 µm range due to quill/arbor rigidity constraints and the smaller wheel diameter used in bore work.
What is the difference between Ra and Rz?
Ra is the arithmetic average of all surface deviations — it smooths out extreme events. Rz is the average of the five highest peak-to-valley heights, catching isolated deep scratches or sharp peaks that Ra averages over. For sealing surfaces, O-ring seats, and fatigue-critical components, Rz is the more relevant parameter because a single deep scratch that Ra averages away can cause failure.
How is surface roughness measured in a grinding operation?
Contact profilometers with a diamond stylus are the shop-floor standard — fast, direct, and affordable — and portable testers handle in-process QC. Always measure across the grinding lay direction (not parallel to it) at multiple locations, using a 0.8 mm cutoff wavelength for Ra values in the 0.1–2.0 µm range.
What Ra value should I specify for precision mold or die surfaces?
Standard plastic injection mold cavity surfaces typically require 0.2–0.8 µm Ra. Optical or clear-part molds need Ra below 0.1 µm, typically achieved through lapping or EDM rather than grinding alone. Always verify achievable Ra against the actual machine and process before finalizing the drawing callout.
Does a lower Ra always mean better performance?
No. Some surfaces require controlled micro-texture for lubrication retention, coating adhesion, or break-in behavior. ERIKS explicitly advises against O-ring seal surfaces smoother than 0.15 µm Ra. Over-specifying Ra adds machining cost and cycle time without functional benefit. The correct Ra is the one matched to the application's actual friction, wear, sealing, and fatigue requirements.
