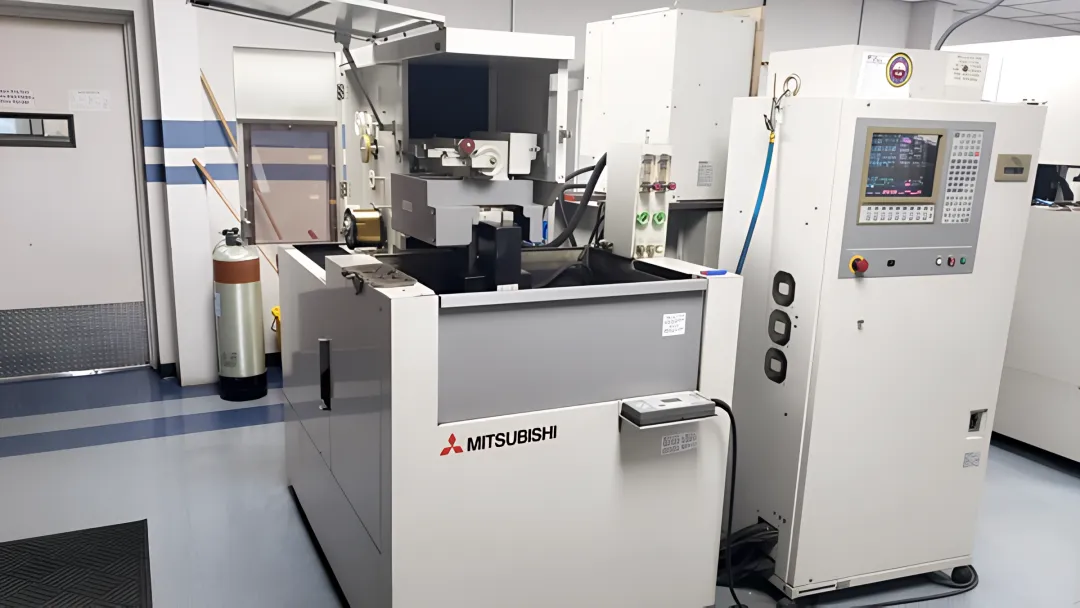

Mitsubishi MV1200S EDM Machine

The MV1200S offers X/Y/Z travel of 15.7" x 11.8" x 8.7", an inside tank workspace of 31.9" x 27.6" x 8.5", linear shaft motors on the X and Y axes, linear glass scales for accuracy, a 3-sided table, and an integrated chiller for thermal stability during cutting.

The MV1200S is equipped with Mitsubishi's advanced M800 CNC control, which supports complex geometry programming, taper cutting, and automation features. It's paired with an advanced hand pendant for intuitive operation and an intelligent auto-threader that reduces downtime between cuts.

WSM Technology offers MV1200S demo units backed by a 1-year warranty, providing a cost-effective way to acquire this high-precision wire EDM machine. New machine orders through WSM include full factory specifications, installation, and training. Contact us for current availability and special demo pricing.

Every MV1200S purchase from WSM Technology includes installation service, local training and advanced training programs, on-site qualified service, technical support, test cut services, and time studies. WSM also supplies EDM consumables including wire, filters, and resin tanks to keep your machine running at peak performance.

The MV1200S offers larger travel (15.7" x 11.8") and a more advanced M800 CNC control compared to the FX10's 32-bit control and smaller 13.7" x 9.8" travel. Both share automatic threading, but the MV1200S adds linear shaft motors and linear glass scales for enhanced speed, precision, and repeatability on complex jobs.

The MV1200S is built for hard material machining, including hardened tool steels, carbide, and other conductive materials used in mold and die components. Its submerged cutting technology and taper capability make it suitable for intricate mold cavities, aerospace components, and medical device parts requiring tight tolerances and fine surface finishes.
