Precision grinding is the process that closes that gap. It's often categorized as a finishing step — the last operation before a part ships — but that framing undersells what it actually does. The surface finish, dimensional accuracy, and batch consistency achieved at the grinding stage directly determine whether a part functions reliably, fits into an assembly without rework, and holds up under real operating conditions.
This article breaks down the practical, measurable benefits of precision grinding: what it delivers on the shop floor, why skipping it creates compounding problems, and how to get the most value from it as part of a complete manufacturing workflow.
Key Takeaways
- Precision grinding achieves tolerances as tight as ±0.0001 inches and surface finishes down to Ra 0.1 µm — far beyond what milling or turning can reliably produce.
- Its three core benefits are dimensional accuracy, superior surface finish, and production repeatability.
- Skipping precision grinding creates downstream costs through rework, scrap, assembly failures, and shortened component life.
- Grinding delivers maximum value when integrated into a broader workflow alongside CNC milling and EDM operations.
What Is Precision Grinding?
Precision grinding is a controlled abrasive machining process that removes small amounts of material to achieve exact dimensions and fine surface finishes. Unlike conventional cutting operations — which remove material in large passes with single-point or multi-point tools — grinding uses abrasive grains that act as thousands of micro-cutting edges.
That distinction matters at final-stage accuracy, where even a few microns determine whether a part passes or fails inspection.

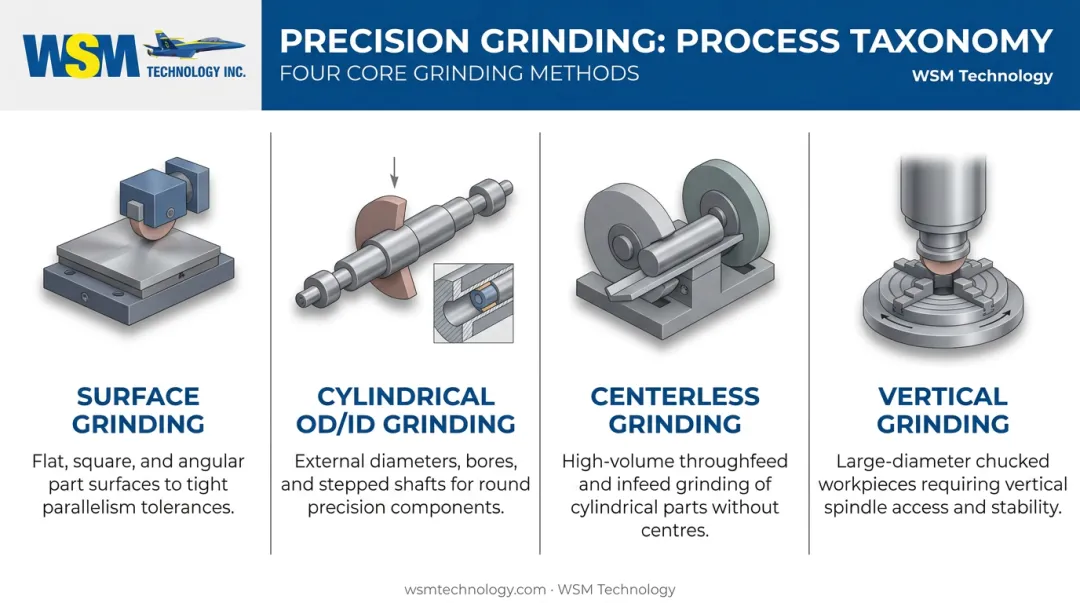

In practice, it covers a wide range of part geometries:
- Surface grinding — flat surfaces on mold plates, parting lines, and structural components
- Cylindrical grinding (OD/ID) — external and internal diameters on shafts, bores, bushings, and round inserts
- Centerless grinding — high-volume cylindrical parts supported on a work rest blade, without center-holding
- Vertical grinding — specific geometries requiring a vertical machine orientation
The process handles hardened steel, tool steel, stainless steel, aluminum, ceramics, and heat-resistant superalloys — covering the material spectrum across aerospace, automotive, mold and die, and medical device manufacturing.
Precision grinding isn't a cosmetic finishing step. It's what determines whether a part holds up under load, fits an assembly without rework, or clears a dimensional inspection on the first attempt.
The Three Core Advantages of Precision Grinding
The benefits discussed below are grounded in measurable, operational outcomes — not theoretical claims. Each connects directly to metrics manufacturers track: scrap rate, rework hours, assembly success rate, component lifespan, and cost per part.
Dimensional Accuracy at the Micron Level
Precision grinding achieves tolerances that conventional cutting processes can't reliably hold. According to UNITED GRINDING, typical cylindrical OD grinding diameter tolerances range from less than ±1 µm to ±10 µm (±0.00004 to ±0.00039 inches). SME documents modern centerless grinding systems holding roundness of 0.2 µm with compensation increments of 0.1 µm.
This accuracy isn't accidental — it's engineered into the process through:
- Rigid machine structures that minimize deflection under load
- Closed-loop feedback systems that correct for wheel wear and thermal drift in real time
- Controlled depth-of-cut mechanisms that prevent dimensional creep across a production run
For industries like mold and die, aerospace, and medical device manufacturing, a deviation of even a few microns can cause assembly failure, part rejection, or a safety risk. In those contexts, this level of control isn't optional.
The cost implications are direct. ASQ's cost-of-quality framework classifies scrap and rework as internal failure costs, while warranty claims and customer complaints fall under external failure costs.
Dimensional nonconformance triggers both categories — inspection, rework, scrapped sub-assemblies, production delays, and downstream warranty exposure. Higher accuracy at the grinding stage cuts off that chain at the source.
KPIs impacted: scrap rate, first-pass yield, rework hours, dimensional variance, rejection rate at inspection.
Superior Surface Finish and Extended Component Lifespan
Precision grinding achieves surface finishes that milling and turning simply can't reach. Norton Saint-Gobain reports that precision CNC grinding commonly achieves 32 to 4 microinch Ra or better, while milling or turning generally produces 125 to 32 microinch Ra.
Some grinding applications reach 3 microinch Ra — a level that eliminates most secondary polishing requirements entirely.
This matters for part performance, not just appearance. Peer-reviewed research published in Materials (2021) confirms that fatigue strength of engineering components increases as surface roughness decreases. A separate 2021 study on Inconel 718 found that surface roughness significantly affects fatigue strength when residual stress is controlled — a finding directly relevant to aerospace and high-cycle applications.
The practical consequences:
- Smoother surfaces reduce friction between mating components, extending service intervals
- Finer finishes eliminate micro-cracks that propagate into fatigue failure under cyclic stress
- Controlled surface texture reduces sites for corrosion initiation on critical surfaces
This is why precision grinding is essential for shafts, bearing seats, turbine components, and medical implants — all applications where surface quality has a direct, measurable effect on service life. When mold cavities are ground to final finish, that quality transfers directly to every molded part produced.
KPIs impacted: component lifespan, maintenance frequency, surface defect rate, fatigue performance, secondary processing cost.
Repeatability and Reduced Scrap Across Production Runs
Hitting spec on a single part is a starting point. Holding that same spec across hundreds or thousands of identical parts is what separates a competitive process from one that generates sorting, rework, and batch-level losses.
Precision grinding is built for repeatability. Quality Magazine notes that in-process gauging controls size during grinding so manufacturers don't produce scrap — the system detects drift before it creates out-of-spec parts, feeding real-time corrections back into the machine. Marposs describes this closed-loop grinding control as a practical way to increase productivity and reduce production costs.
The repeatability is built into the process at multiple levels:
- Automated wheel dressing maintains consistent cutting geometry across a full production run
- Modular workholding locks in part positioning piece to piece, eliminating fixture-to-fixture variation
For high-volume applications — centerless grinding of cylindrical components, tool and die work requiring consistent cavity dimensions — this consistency eliminates batch-level variation, the root cause of sorting, rework, and scrapped sub-assemblies.
From a lean manufacturing perspective, consistent output at spec means fewer interruptions to production flow, predictable quality audit results, and customer relationships built on reliable delivery rather than reactive problem-solving.
Operational metrics affected: scrap volume, batch yield, inspection pass rate, production cycle predictability, cost per good part.
What Happens When Precision Grinding Is Skipped
Skipping or under-investing in precision grinding can look like a cost-saving decision — until the downstream consequences add up.

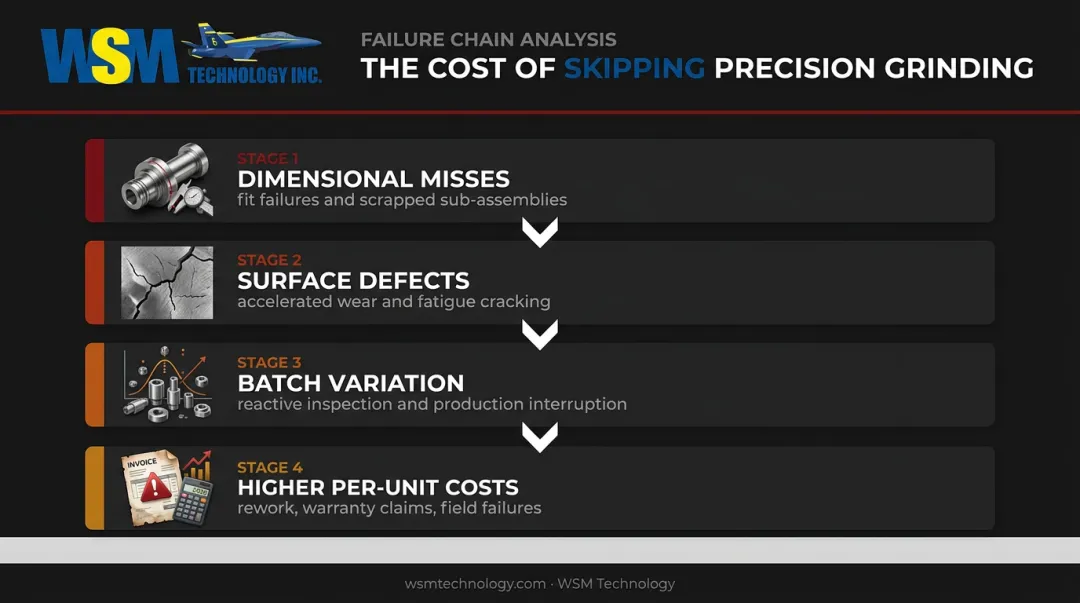

The typical failure chain:
- Dimensional misses cause fit failures at assembly, requiring rework or scrapping of complete sub-assemblies — not just the individual part
- Rough or defective surface finishes accelerate wear, invite fatigue cracking, and shorten component service life well below design intent
- Batch variation turns quality control reactive — inspection becomes sorting rather than verification, and production flow gets interrupted constantly
- Higher per-unit costs over time as rework hours, warranty claims, and field failures accumulate against a product line
The last point hits hardest in regulated industries. FDA's QMSR, AS9100D for aerospace, and ISO 13485 for medical devices all require controlled, documented production systems with nonconforming product control procedures.
A process that routinely generates dimensional nonconformances doesn't just cost money on the floor. It creates audit exposure and documentation burden that compounds with every affected lot.
None of this is unique to grinding, but grinding is often the step closest to final dimensions and final surface condition. Skipping it, or running it with poorly maintained equipment and no in-process measurement, removes the last opportunity to catch and correct dimensional error before a part enters service.
How to Get the Most Value from Precision Grinding
Precision grinding pays the biggest dividends when it's treated as a process — not a one-time fix applied to individual parts.
Process discipline matters:
- Track grinding-specific KPIs per batch: scrap rate, surface finish measurements, wheel dress intervals
- Use that data to refine parameters over time — feed rate, depth of cut, coolant pressure, wheel specification
- Don't wait for reject events to drive process review
Integration into the broader workflow matters equally. Grinding is most efficient when upstream operations deliver near-net-shape workpieces — meaning minimal stock removal burden on the grinder, which improves cycle time and wheel life.
This is where upstream process quality directly affects grinding economics. High-accuracy CNC milling and EDM equipment, when operated to their full capability, produce workpieces that arrive at the grinder dimensionally close to final spec. The Roku-Roku Android II, for example, achieves ±1 micron actual machining accuracy — reducing the stock removal required at the grinding stage.
Wire EDM and sinker EDM operations, when dialed in properly, deliver hardened workpiece geometry that's already close to final form.
WSM Technology's lineup covers this full workflow — from upstream CNC milling centers and EDM equipment through Danobat cylindrical, OD/ID, centerless, and vertical grinders, Overbeck external/internal grinders, and Ziersch surface grinders. For manufacturers in Northern Ohio, Western Pennsylvania, and West Virginia looking to evaluate how these process steps connect, WSM's demonstration center in Rootstown, Ohio offers test cuts and time studies across multiple machine types before any purchasing commitment.
When grinding is managed as a process rather than a reactive step, inspection becomes a confirmation — not a gamble.
Conclusion
Precision grinding delivers value through outcomes that build on each other: tight dimensional control cuts downstream error, refined surface finish extends part life, and consistent repeatability makes that quality scalable across a full production run.
None of these benefits appear in isolation. A part ground to tight tolerances with a fine surface finish, produced consistently across a batch, is what reduces scrap, eliminates rework, satisfies quality audits, and builds the kind of reliability customers return for.
Precision grinding isn't an afterthought — it's a process decision. Shops that integrate it correctly stop chasing tolerance failures after the fact and start producing conforming parts from the first piece forward.
Frequently Asked Questions
What is precision grinding?
Precision grinding is a controlled abrasive machining process that removes small amounts of material to achieve tight dimensional tolerances — as precise as ±0.0001 inches — and fine surface finishes. It's applied as one of the final production stages, covering flat surfaces, cylindrical parts, and internal and external diameters.
What are three benefits of precision grinding?
The three core benefits are dimensional accuracy at the micron level, superior surface finish that extends component lifespan, and high repeatability that reduces scrap and supports consistent production at scale — each with a direct impact on scrap rate, fatigue performance, and first-pass yield.
Why is grinding more precise than cutting?
Grinding uses controlled abrasive material removal in micro-increments with real-time feedback and rigid machine structures. Cutting operations involve greater tool deflection, heat variation, and larger material removal per pass — which limits how tight a tolerance they can hold reliably. Grinding routinely achieves finishes and tolerances that milling or turning can't reach.
What materials can be precision ground?
Precision grinding works across hardened steel, tool steel, stainless steel, aluminum, exotic alloys such as Inconel 718, and ceramics — with compatibility determined by wheel specification and machine setup as much as the process itself.
What industries benefit most from precision grinding?
Aerospace, medical device manufacturing, automotive, mold and die, and micro-mechanics rely most heavily on precision grinding due to tight tolerance requirements, regulatory standards, and functional criticality — in mold and die work, ground surface quality transfers directly to every part the mold produces.
How does precision grinding fit into a broader CNC or EDM manufacturing workflow?
Precision grinding typically follows CNC milling and EDM operations, refining parts to final dimensional and surface specifications after roughing and semi-finishing. When upstream processes produce near-net-shape workpieces, the grinding step becomes faster and more consistent, with less stock to remove and a tighter starting geometry.
