Mitsubishi Electric Wire EDM Machines

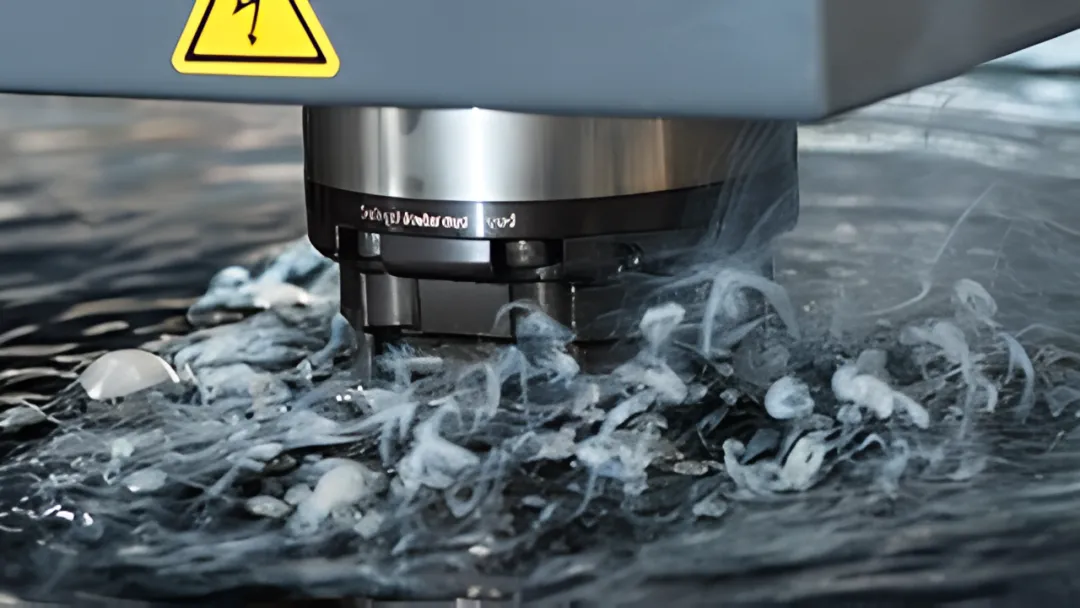

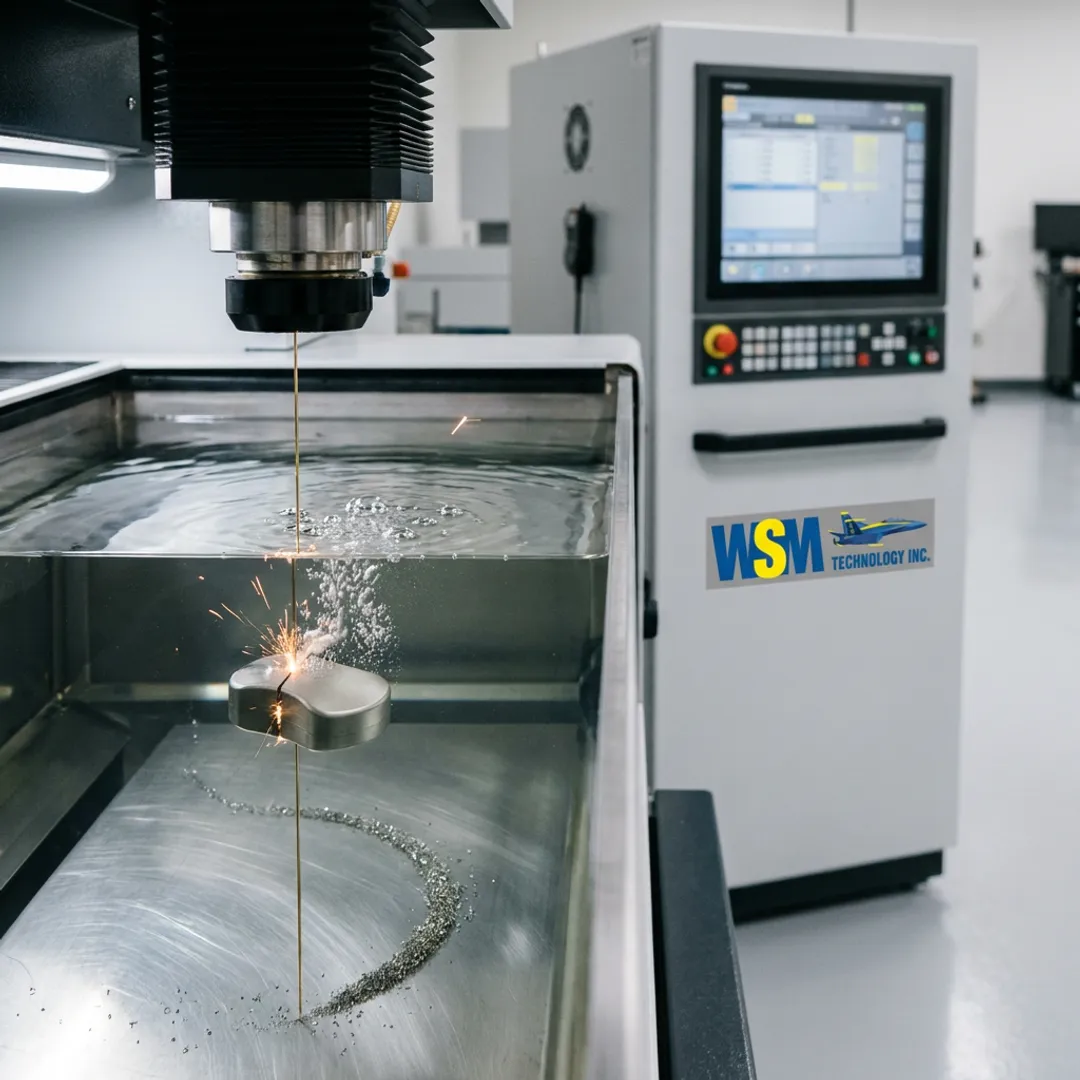

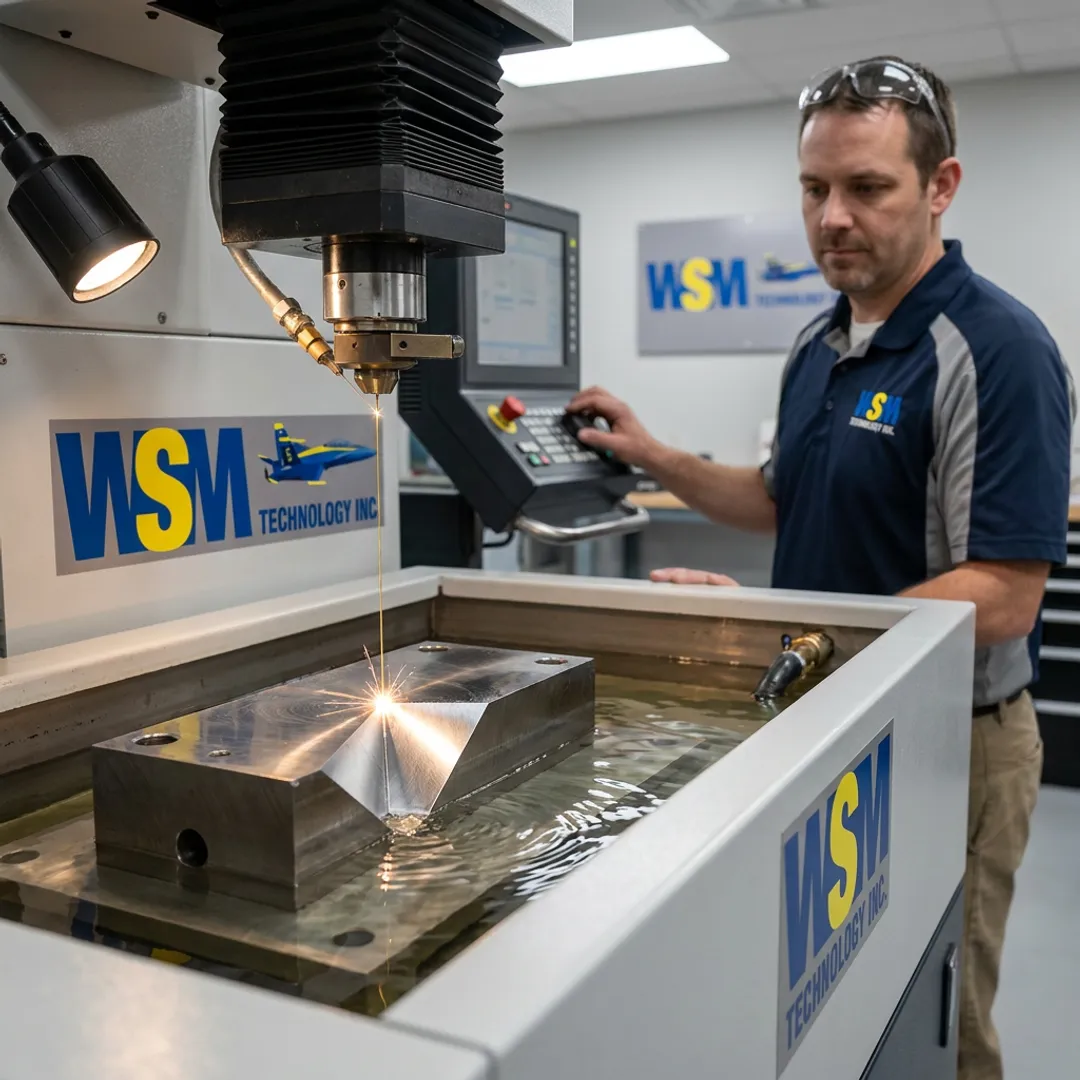

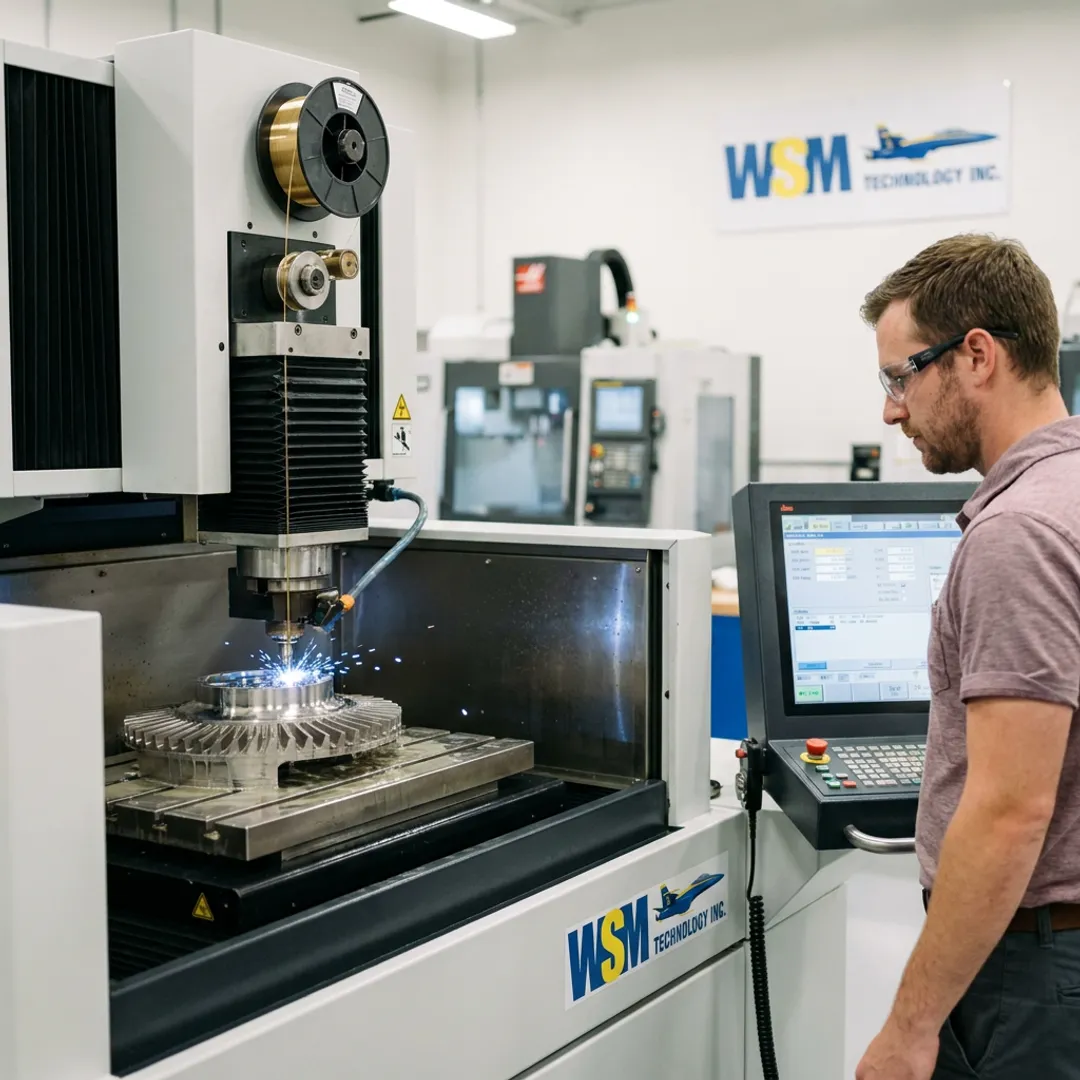

These machines are widely used in mold and die making, aerospace component production, medical device manufacturing, and automotive parts production. Their ability to cut hard materials and complex geometries with tight tolerances makes them ideal wherever precision tooling and repeatable accuracy are required.

Newer models like the MV1200S run the advanced M800 32-bit CNC control, built for complex geometries and automation. Earlier and used models such as the FX10 use Mitsubishi's 32-bit CNC with automatic threading and a wire chopper, both featuring an advanced hand pendant with LCD screen for operator convenience.

The FX10 can accommodate workpieces up to 31.5 x 22.65 x 8.5 inches, while the MV1200S offers an inside tank capacity of 31.9 x 27.6 x 8.5 inches. Actual travel ranges are 13.7 x 9.8 inches on the FX10 and 15.7 x 11.8 inches on the MV1200S, suitable for most mold, die, and tooling components.

Yes, the FX10 supports taper cutting up to +/- 15 degrees at 4 inches of material thickness, enabling complex angled geometries common in mold and die work. Combined with submerged wire EDM technology, this delivers superior surface finish even on intricate tapered profiles.

WSM Technology offers local and advanced training, installation service, on-site qualified service, technical support, EDM consumables supply (wire, filters, resin tanks), test cut services, time studies, and application support throughout Northern Ohio, Western Pennsylvania, and West Virginia.

Yes, WSM Technology offers both new and used Mitsubishi Wire EDM machines, such as a 1997 FX10 model priced around $14,500. New machine purchases include installation and training, while demo units like the MV1200S carry a 1-year warranty; volume and custom pricing are available upon request.
