Active damping systems are gaining real traction in grinding operations not because the technology is new, but because its impact on measurable outcomes — surface finish, wheel life, scrap rates — is now well-documented across production environments. This article breaks down what active damping actually does, why it matters specifically in grinding, and where the returns are clearest.
Key Takeaways
- Active damping uses sensors, actuators, and real-time control loops to cancel vibration at the source, not just absorb it.
- The three core benefits are: tighter surface finish consistency, longer wheel and spindle life, and higher throughput within the same quality window.
- Without active damping, chatter and resonance accumulate gradually, often going undetected until a part fails inspection.
- Aerospace, mold and die, and automotive precision grinding see the strongest returns, where tolerances and scrap costs are both unforgiving.
- Shops that integrate active damping into standard operations — rather than deploying it reactively — consistently hold tighter tolerances with fewer interruptions per shift.
What Is an Active Damping System?
Most vibration mitigation in machine tools is passive: damping pads, mass elements, or structural geometry chosen to absorb energy. Passive systems work, but they respond to vibration that has already entered the system. They don't adapt.

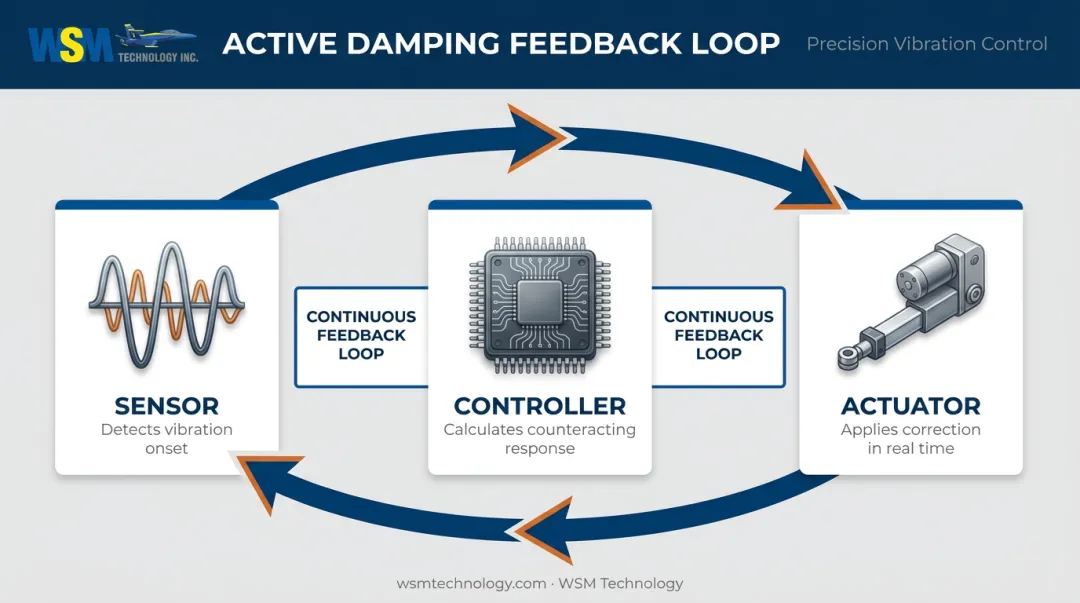

Active damping takes a different approach. A closed-loop active vibration control system uses external energy, a sensor, a controller, and an actuator working in a continuous feedback loop. Each element plays a specific role: the sensor detects vibration onset, the controller calculates a counteracting response, and the actuator applies it in real time — before the oscillation compounds into a chatter mark or dimensional error.
Where It Lives in a Grinding Machine
In precision grinding, active damping is typically integrated at the points where vibration most directly affects cut quality:
- Spindle assembly — where wheel imbalance or bearing wear translates directly to surface defects
- Tool head or grinding head — where structural vibration during passes creates waviness on the workpiece
- Structural axes — where resonance in the machine frame propagates through to the contact zone
Marposs describes grinder-specific active balancing systems that combine a balancing head, a piezoelectric vibration sensor, and an electronic control unit to compensate wheel imbalance in real time — improving surface roughness, roundness, and geometry.
Flange-type balancing heads are suitable for retrofitting existing machines. Spindle-integrated heads are built into new machines from the start.
The key distinction from passive solutions: active damping adjusts to changing conditions in real time. New materials, shifting workpiece geometries, and varying spindle speeds all require different responses — responses that fixed passive elements are built to ignore.
Key Advantages of Active Damping in Precision Grinding
The three advantages below map directly to the metrics grinding shops and their customers track most closely: surface quality, consumable cost, and production yield.
Advantage 1: Consistently Achieving Tighter Surface Finish Specifications
Chatter marks (the repeating waviness caused by vibration at the wheel-workpiece interface) are among the most common reasons precision ground parts fall outside Ra or Rz specifications. The mechanism is a feedback loop: vibration from a previous wheel pass leaves waviness on the workpiece surface, which then excites the wheel on the next pass, amplifying the oscillation.
Active damping breaks this loop before it becomes visible on the surface.
According to Aerospace Manufacturing and Design, vibration measurement in precision grinding is directly tied to reducing part rejection, improving productivity, and minimizing downtime. Research on centerless grinding identifies dominant chatter modes near 55 Hz, while ASME research on traverse cylindrical grinding shows chatter peaks typically appearing between 500 and 800 Hz — passive, fixed-frequency damping elements handle this range inconsistently at best.
Active control systems close that gap by responding faster than chatter can establish itself. NUM's CNC active vibration system samples its accelerometer every 100 microseconds (a 10 kHz sampling rate), allowing the controller to detect and counteract vibration onset before it propagates. Machine-tool active vibration control systems operate across frequency ranges from roughly 20 to 400 Hz for structural modes and up to 10 kHz for local spindle and tool modes.
KPIs directly affected:
- Surface roughness (Ra/Rz)
- First-pass yield
- Scrap and rework rate
- Customer rejection rate
This matters most in high length-to-diameter ratio grinding, slender workpieces, deep cavity grinding for mold and die components, and any operation where the wheel must maintain consistent contact pressure across a full pass.
Advantage 2: Extended Grinding Wheel and Machine Component Life
Vibration in grinding isn't just a surface quality problem. It's a wear problem.
When a grinding wheel runs with uncontrolled vibration, the abrasive grains don't wear evenly. Each micro-shock at the wheel-workpiece interface accelerates grain breakdown unevenly, shortening useful wheel life and increasing dressing frequency. The same shock loading reaches the spindle bearings — bearing fatigue accumulates faster than most shops realize, often surfacing only when an unplanned rebuild forces the issue.
Marposs confirms that when a grinding wheel runs imbalanced, vibrations transmit directly into the machine's mechanical components, particularly the spindle. Excessive vibration can increase wheel wear, cause material burn on workpieces, and contribute to early spindle bearing failure.

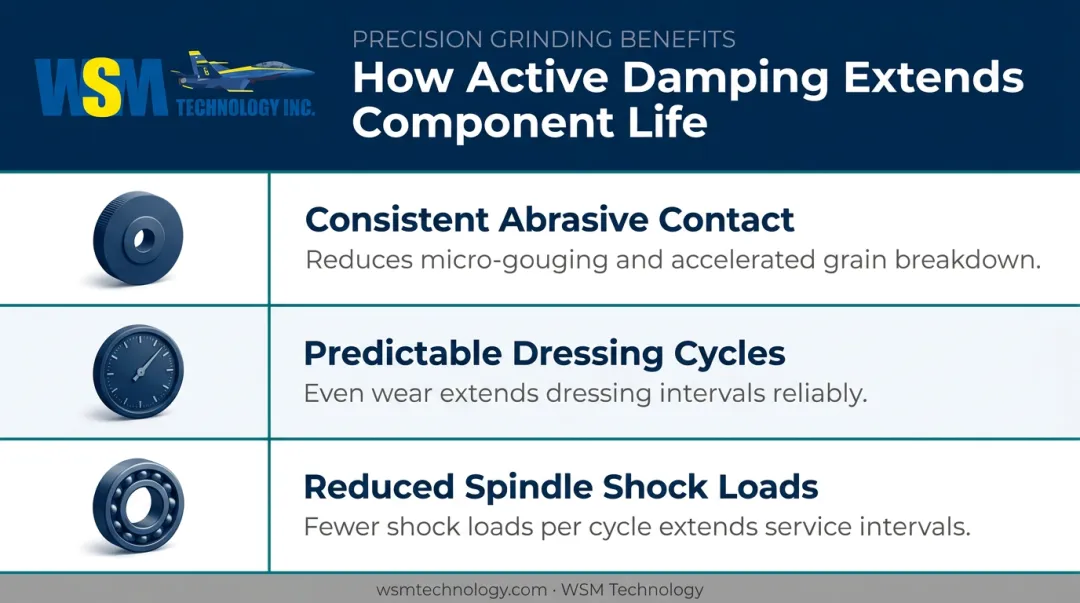

With active damping controlling the vibration environment:
- Abrasive grain contact becomes more consistent, reducing the micro-gouging that drives accelerated breakdown
- Dressing cycles become more predictable — intervals extend because the wheel wears evenly rather than unevenly
- Spindle bearings experience fewer shock loads per cycle, extending service intervals
For operations running CBN or diamond wheels, this is financially significant. Norton reports that in gear grinding, a single CBN wheel can last four to six months — and that life projection depends heavily on operating conditions remaining stable. Uncontrolled vibration shortens it unpredictably.
KPIs directly affected:
- Grinding wheel consumption rate
- Dressing frequency
- Spindle bearing replacement intervals
- Unplanned downtime
- Maintenance cost per part
High-volume production runs and CBN or diamond wheel operations feel this impact most directly — spindle rebuild costs are a real budget line, and vibration control is one of the few levers that moves it.
Advantage 3: Higher Material Removal Rates Without Sacrificing Quality
Without active damping, operators dial back parameters conservatively — lower feed rates, shallower depth of cut — to stay below the threshold where vibration degrades quality. The machine can do more; the process just won't let it. That gap shows up as lost throughput on every shift.
Active damping expands the stable cutting envelope. With vibration controlled, shops can increase material removal rate (MRR) while holding the same surface and dimensional tolerances — reducing cycle time per part and improving machine utilization without adding equipment.
NUM states that active vibration control is designed to reduce tool wear and increase MRR by reducing tool-head vibration. Research on centerless grinding active vibration control shows that regenerative chatter — the primary limitation on both circularity and productivity — can be actively suppressed using piezoelectric actuators, raising the stable process limit. Hannover research on plunge grinding further supports that active damping compensation can stabilize the grinding process at higher specific material removal rates than passive approaches allow.
For shops working high-value materials — titanium, hardened steel, Inconel — even modest MRR improvements meaningfully reduce expensive processing time per part.
KPIs directly affected:
- Material removal rate (MRR/Q-prime)
- Cycle time per part
- Parts per shift
- Machine utilization percentage
- Cost per part
When machine utilization is a capacity constraint — and quality can't slip — this is where active damping earns its place in the process.
What Happens When Active Damping Is Absent
The absence of active damping doesn't announce itself with a single failure. It compounds.
Grinding operations without active vibration control rely on operator experience and conservative parameters to stay out of trouble. That works — until a worn spindle bearing, a different workpiece geometry, or a new material shifts the system's resonance behavior. Chatter appears suddenly on a part that was running fine yesterday.
When that happens, the downstream effects stack up fast:
Common consequences:
- Chatter marks requiring rework or scrapping — internal failure costs that ASQ classifies as cost-of-quality losses
- Increased dressing intervals shortening wheel life unpredictably
- Premature spindle bearing wear from repeated shock loading
- Dimensional drift as vibration and thermal effects accumulate across long production runs
The pattern is rarely dramatic. Scrap rates climb slowly. Cycle times stretch as operators back off parameters to compensate. Wheel changes happen more often than they should, and part-to-part variation shows up on inspection reports without a clear root cause. None of it triggers an alarm — it just quietly eats margin.
The grinders most at risk are those running tight-tolerance parts on long passes, slender or high-L/D workpieces, or any operation where the workpiece geometry or material changes frequently.
How to Get the Most Value from Active Damping Systems
Active damping delivers its full value only when the machine's other variables are also in order. A well-damped machine running a worn wheel, inadequate coolant delivery, or poor workholding rigidity will still underperform — the damping system solves one variable, not all of them.

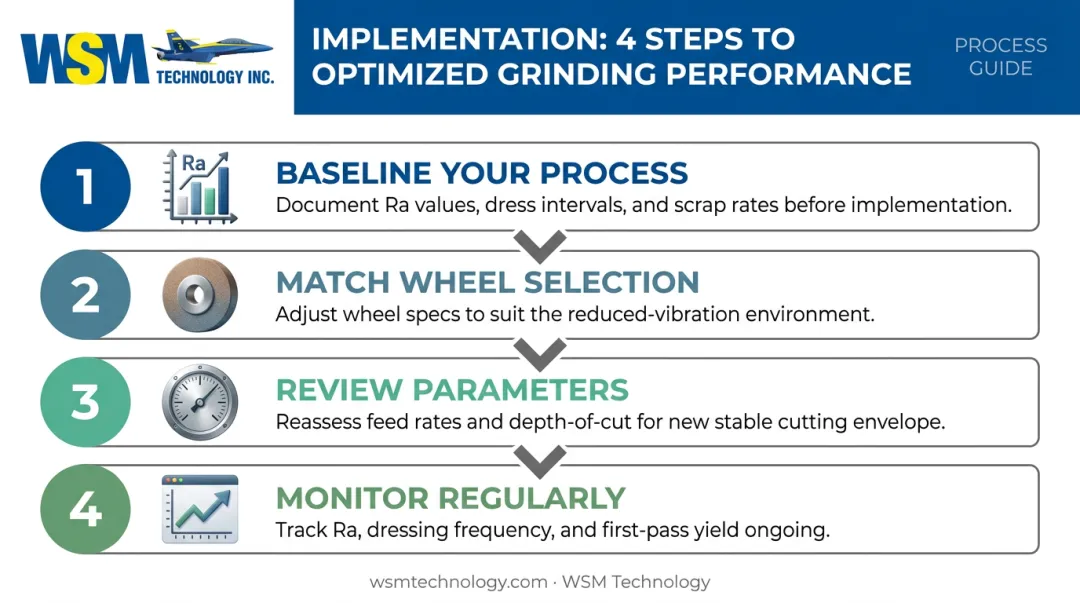

For shops implementing or evaluating active damping, the key practices are:
- Baseline your process first: document current Ra values, wheel dress intervals, and scrap rates before implementation, so improvement is measurable rather than assumed
- Match wheel selection to the damped environment: reduced vibration changes how abrasive breaks down, so wheel specifications may need adjustment to take full advantage
- Review parameters after implementation: conservative feed rates and depth-of-cut settings chosen to manage old vibration limits may now be leaving throughput on the table
- Monitor regularly: track Ra trends, dressing frequency, and first-pass yield on an ongoing basis to catch drift and identify when recalibration is needed
For shops ready to evaluate active damping in a real grinding environment, WSM Technology's Demonstration Center in Rootstown, OH offers hands-on test cuts against live process requirements — before any capital commitment is made.
Blaise Buholzer, WSM's founder and president with over four decades of precision manufacturing experience, leads the application team. He and his colleagues can help connect machine capability to specific process needs across the cylindrical, OD/ID, vertical, and centerless grinding lines WSM represents through Danobat and Overbeck.
Conclusion
Active damping in precision grinding isn't a luxury specification. It directly drives the outcomes shops are already measured against: surface finish, consumable costs, and productive throughput.
Shops that manage vibration as a standard operating condition — not as a reactive fix when chatter appears — see compounding gains across surface quality, wheel life, and cycle time at once. That's the difference between chasing problems and preventing them.
The shops that see the most consistent results are those that evaluate their full process: machine capability, tooling selection, cutting parameters, and vibration monitoring working together. If you're assessing a new grinding machine or optimizing an existing process, those interactions are worth testing before committing — which is exactly where a demonstration cut or application engineering review pays for itself.
Frequently Asked Questions
What is the difference between active and passive damping?
Passive damping absorbs vibration energy through materials or mass without external power — it's fixed and can't adapt to changing conditions. Active damping uses sensors and actuators in a real-time control loop to detect and cancel vibrations as they occur, making it significantly more responsive across variable speeds and shifting cutting conditions.
What is the purpose of a vibration damper?
A vibration damper reduces unwanted oscillation between the machine tool and workpiece, protecting surface finish quality and extending component life. In precision grinding, this prevents chatter feedback loops that cause dimensional drift and surface defects.
What are the three types of damping methods?
The three main types are passive damping (viscoelastic or tuned mass elements), active damping (closed-loop sensor-actuator-controller systems), and semi-active damping (adjustable passive elements). Active systems are most effective in high-precision grinding where cutting conditions shift dynamically and a fixed passive response falls short.
Can active damping systems be retrofitted onto existing grinding machines?
Many modern active vibration control systems are designed for retrofitting — accelerometer-based modules attach to the tool head or spindle and integrate with existing servo drive systems. Verify compatibility with the machine's CNC control architecture before purchase, as retrofit feasibility depends on the specific platform.
How does active damping affect grinding wheel life?
Active damping reduces shock loading at the wheel-workpiece interface, allowing abrasive grain to wear more evenly and predictably. This cuts dressing frequency and extends wheel life — a meaningful cost reduction for operations running CBN or diamond wheels.
What industries benefit most from active damping in precision grinding?
Aerospace, mold and die, and automotive precision grinding benefit most. These industries share demanding surface finish requirements, tight dimensional tolerances, and high scrap costs — conditions where vibration control directly impacts part quality and profitability.
