Key Takeaways
- Cup wheels grind on their rim face (W dimension), not their periphery — a distinction that drives every wheel selection decision
- Back thickness (E) must be at least one-fourth of total wheel thickness (T) per OSHA/ANSI standards
- Type 6 has a straight rim wall; Type 11 has a flared rim — each suits different grinding geometries
- External grinding with cup wheels requires a revolving cup guard or band-type guard under OSHA 1926.303(c)(3)
- Abrasive grain selection follows one rule: harder workpiece = harder, sharper abrasive
What Are Cup Type Wheels?
Cup type wheels are abrasive grinding wheels shaped like an open cup — flat or recessed back, cylindrical body, and an exposed rim used as the active grinding surface. Unlike straight (Type 1) wheels that grind on their periphery, cup wheels grind on their rim face, the W dimension. That single geometric difference changes how contact and heat distribute — and how pressure concentrates — across the workpiece.
Anatomy of a Cup Wheel
Per OSHA 1910.211 and ANSI B7.1-1970, cup wheels are defined by five dimensional parameters:
| Dimension | Meaning |
|---|---|
| D | Outer diameter |
| T | Total thickness |
| H | Hole size |
| W | Rim thickness / active grinding face |
| E | Back thickness |
One structural requirement matters above all others: minimum back thickness (E) must not be less than one-fourth of the total thickness (T). This isn't a guideline — it's a structural limit that directly affects wheel integrity at operating speed. Any cup wheel specification that doesn't preserve E ≥ T/4 should be rejected.

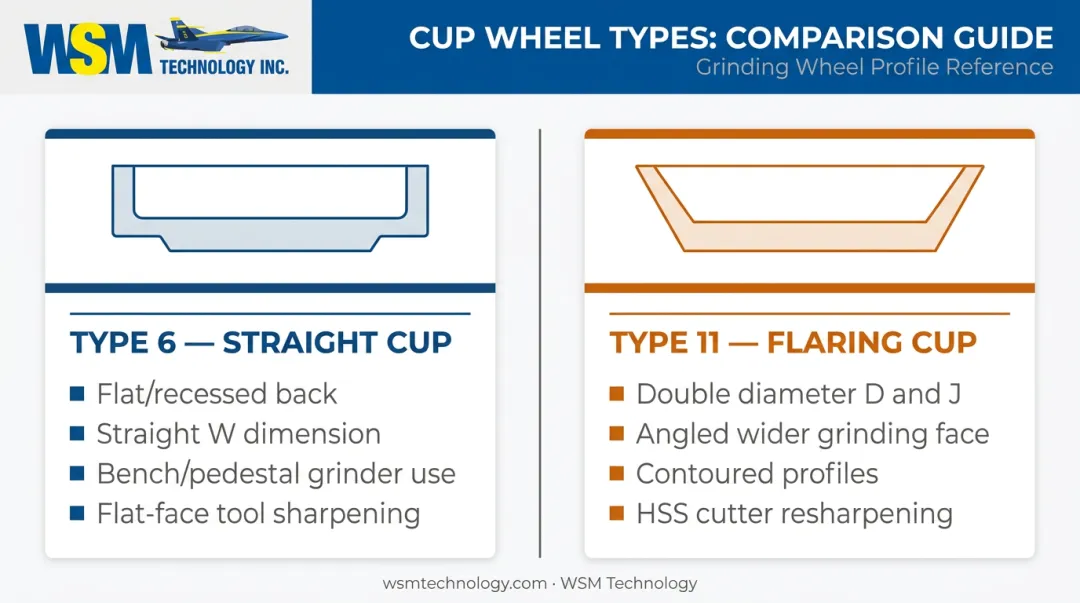

Type 6 vs. Type 11 Cup Wheels
These are the two cup wheel types you'll encounter for external grinding:
Type 6 — Straight Cup:
- One side flat, opposite side recessed
- Grinding occurs on the straight rim wall (W dimension)
- Defined in OSHA 1910.211(b)(3)
- Common on bench and pedestal grinders for tool sharpening and flat-face work
- Standard choice for tool and cutter grinders across most production environments
Type 11 — Flaring Cup:
- OSHA 1910.211(b)(4) defines it by double diameter dimensions (D and J), plus T, H, rim, and E
- Wall is flared or tapered outward from the back
- Provides a wider, angled grinding face
- Suited for contoured workpiece profiles or face grinding at a slight angle
- Particularly effective on tool and cutter grinders when resharpening HSS cutters
Neither wheel is universally better than the other. Machine type, work geometry, and guard configuration determine which one belongs on your spindle.
Cup Type Wheel Applications in External Grinding
External grinding, in this context, means grinding the outer surfaces, profiles, or faces of a workpiece — not internal bore work. The cup wheel's rim face geometry makes it well suited for this type of surface contact on stationary grinding machines.
Common Industries and Use Cases
The primary verified applications for cup wheels in external grinding include:
- Tool sharpening and cutter resharpening — milling cutters, drill bits, HSS reamers, taps, threading dies, and carbide tools
- Flat-face grinding on precision mechanical components
- Surface conditioning on bench or pedestal grinders
Tool and die shops, mold shops, and precision mechanics facilities — the kind of manufacturers WSM Technology works with across Northern Ohio, Western Pennsylvania, and West Virginia — routinely rely on cup wheels for tool maintenance and component preparation as part of their broader machining workflow.
For precision external grinding, stationary setups consistently outperform portable grinder use. Bench or tool-and-cutter grinder configurations allow repeatable, controlled contact — portable use introduces operator variability and demands additional guarding measures.
Machine Compatibility
Cup wheels are commonly used on:
- Bench grinders
- Pedestal grinders
- Tool and cutter grinders
- Surface grinders with appropriate spindle adapters
Cup wheels are not suited for cylindrical OD grinding — that application calls for straight or recessed wheels on a dedicated cylindrical grinder. Matching wheel type to your machine's spindle speed, flange design, and guard capacity isn't optional; it's the foundation of both part quality and operator safety.
On machines like Overbeck external/internal grinders or Danobat OD/ID grinders — equipment WSM Technology supplies and supports across its region — proper wheel selection directly determines surface finish and dimensional accuracy.
How to Select the Right Cup Wheel for External Grinding
Four variables drive every wheel selection decision: abrasive grain type, grit size, wheel grade (hardness), and bond type. The right combination depends on both your workpiece material and your grinding goal — stock removal versus finishing.

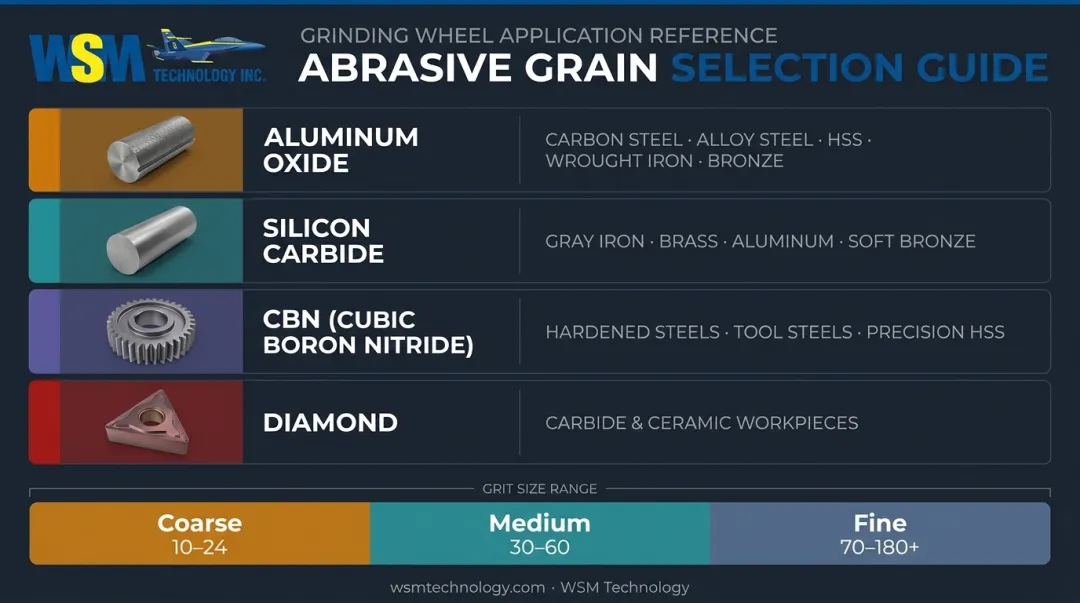

Abrasive Grain and Grit Selection
Grain type by workpiece material:
- Aluminum oxide — carbon steel, alloy steel, high-speed steel, wrought iron, bronze; the standard choice for ferrous metals and HSS tools
- Silicon carbide — gray iron, brass, soft bronze, aluminum, and selected nonferrous/brittle materials; used in some toolroom carbide applications
- CBN (cubic boron nitride) — hardened steels, tool steels, HSS when high precision and wheel life are priorities
- Diamond — carbide and ceramic workpieces; Modern Machine Shop recommends diamond as the abrasive of choice for carbides and ceramics
Harder workpiece materials demand harder, sharper abrasives — anything less generates heat and leaves a poor surface.
Grit size selection:
| Grit Range | Use Case |
|---|---|
| 10–24 (coarse) | Rapid stock removal where finish is secondary |
| 30–60 | Balance of removal rate and surface quality |
| 70–180+ | Fine finishes, small contact areas, precision work |
For most tool sharpening and die face work with cup wheels, a medium grit in the 60–120 range is the right starting point.
Wheel Grade and Bond Type
Grade (hardness A–Z):
The rule most shops get backwards: soft workpiece = hard wheel grade; hard workpiece = soft wheel grade.
| Grade Range | Behavior | Best For |
|---|---|---|
| Soft (A–H) | Releases dull grains quickly | Dense, hard materials — prevents glazing |
| Medium (I–P) | Balanced grain retention | General-purpose tool and die work |
| Hard (S–Z) | Holds grains longer | Soft or ductile workpieces |
A wheel that's too hard for the job glazes and generates heat. Too soft, and it breaks down before the work is done.
Bond types for cup wheels:
- Vitrified bonds — rigid, porous, dress well, and hold geometry precisely; the standard choice for precision tool and die work; vitrified bonds cut freely on hardened steel without loading, maintaining dimensional stability through long runs
- Resinoid bonds — organic, tougher, more shock-resistant; used for heavier stock removal or offhand grinding where some flex is acceptable
OSHA Guard Requirements for Cup Type Wheels in External Grinding
This is not an area where approximations are acceptable. The regulatory language is specific and mandatory.
OSHA 1926.303(c)(3) states directly:
"Cup type wheels used for external grinding shall be protected by either a revolving cup guard or a band type guard in accordance with the provisions of the American National Standards Institute, B7.1-1970 Safety Code for the Use, Care, and Protection of Abrasive Wheels."
Two guard options are permitted: the revolving cup guard rotates with the wheel and limits fragment exposure; the band type guard is a fixed enclosure around the wheel body. Both must conform to ANSI B7.1-1970.
Angle exposure limits per OSHA 1926.303(c)(1):
- Maximum angular exposure: 90° for standard bench/floor external grinding
- When work requires contact below the horizontal spindle plane: 125° maximum
- Exposure must begin no more than 65° above the horizontal spindle plane
- Guards must be strong enough to withstand a bursting wheel
Guard geometry alone isn't enough. OSHA also mandates inspection before any wheel reaches the spindle.
Pre-mounting inspection requirements:
OSHA 1926.303(c)(7) requires all abrasive wheels to be closely inspected and ring-tested before mounting. The ring test is simple: tap the wheel with a light non-metallic implement. A clear ring indicates a sound wheel. A dull thud means the wheel is cracked — discard it immediately and document the rejection.
OSHA 1926.303(c)(8) adds that wheels must fit freely on the spindle without being forced. The spindle nut should be tightened only enough to hold the wheel, not torqued down excessively.
Mounting, Wet/Dry Use, and Maintenance Best Practices

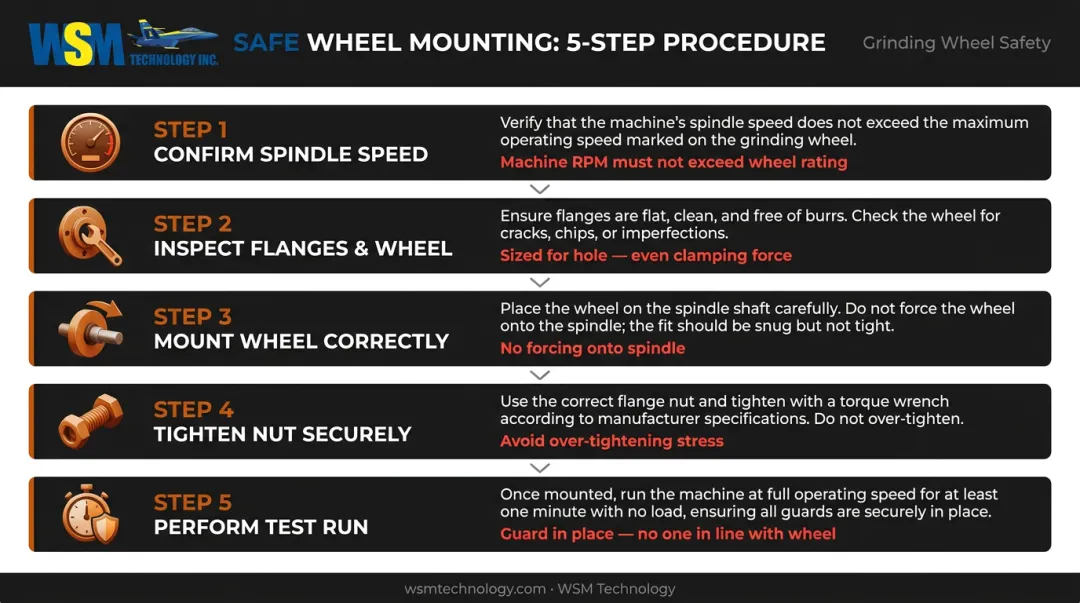

Proper Mounting Procedure
- Confirm spindle speed — the machine's maximum RPM must not exceed the wheel's rated maximum, marked on the wheel itself
- Use appropriate flanges — sized for the wheel's hole and designed to distribute clamping force evenly
- Fit freely — the wheel must slide onto the spindle without force; never force-mount
- Tighten only enough to hold — over-tightening creates stress concentrations
- Test run for one minute — per ANSI B7.1-1970 section 9.5, run the wheel at operating speed with the guard in place for at least one minute before engaging the workpiece; no one should stand in front of or in line with the wheel during this run
Improper mounting is one of the leading causes of abrasive wheel accidents. An OSHA accident investigation (ID 14317374) documented a fatal wheel disintegration: an 8-inch wheel rated at 6,470 RPM was run on a grinder rated at 18,000 RPM with no guard in place. That combination of mismatched speed and missing guarding cost a worker his life.
Wet vs. Dry Grinding
Coolant compatibility and shutdown procedure depend on your wheel bond type:
- Vitrified wheels are compatible with grinding fluid and benefit from it — reduced heat extends wheel life. On shutdown, ANSI B7.1-1970 section 9.8 requires turning the coolant off first, then letting the wheel spin until fluid is expelled. Skipping this step causes coolant absorption and out-of-balance conditions.
- Resinoid wheels may not tolerate all coolants. Check with the manufacturer before applying any fluid.
- Dry grinding (common for tool sharpening) generates more heat. Use intermittent passes to keep heat buildup in check.
Dressing and Storage
Dress the wheel when you see:
- Reduced cutting action (the wheel feels like it's rubbing, not cutting)
- A shiny, glazed surface on the rim face
- Workpiece loading or material clogging the wheel face
- Burn marks appearing on the workpiece
Dressing removes glazed or loaded abrasive to expose fresh cutting grain. Diamond dressing tools are standard for vitrified cup wheels used in precision tool grinding work.
Storage rules:
- Store Type 6 flat with cushioning, or on edge where appropriate
- Store Type 11 to prevent edge chipping
- Keep storage areas dry and protected from impact
- Inspect before every use — discard any wheel showing chips, cracks, or damage
Frequently Asked Questions
What are cup-type wheels used for in external grinding?
Cup-type wheels are used to grind the outer surfaces and faces of workpieces — including sharpening cutting tools, facing precision components, and surface grinding on bench, pedestal, or tool-and-cutter grinders. All grinding contact occurs on the rim face (W dimension), not the wheel's outer diameter.
Can cup-type grinding wheels be used wet or dry?
Vitrified bonds are generally compatible with continuous grinding fluid for heat reduction; resinoid bonds require manufacturer verification before using coolant. Dry grinding works well for tool sharpening but requires intermittent passes to prevent heat buildup.
What is the difference between a Type 6 and Type 11 cup wheel?
Type 6 has a straight rim wall and is best for flat-face grinding and tool sharpening. Type 11 has a flared or tapered rim providing a wider, angled grinding face suited for contoured surfaces or face grinding at an angle. Machine setup and work geometry determine which type is appropriate.
What guard is required for cup type wheels used for external grinding?
Per OSHA 1926.303(c)(3), cup type wheels used for external grinding must be protected by either a revolving cup guard or a band type guard, both conforming to ANSI B7.1-1970. These guards are mandatory and must be strong enough to contain fragments if the wheel breaks.
How do I select the right abrasive grain for a cup type wheel?
Match grain to workpiece material: aluminum oxide for ferrous metals and HSS, silicon carbide for nonferrous and brittle materials, CBN for hardened steels, and diamond for carbide and ceramics. Note that harder workpieces generally call for a softer wheel grade to allow fresh abrasive to expose continually — preventing glazing and heat buildup.
How often should cup type wheels be dressed?
Dress when the wheel shows glazing (shiny surface, reduced cutting) or loading (material clogging the face). Precision tool grinding may need dressing after just a few passes; heavy stock removal can go longer. Burn marks on the workpiece are an early warning sign.
