Introduction
Aerospace and defense components operate in conditions where failure is not recoverable. A turbine blade running at extreme temperature, a structural bracket absorbing flight loads, a guidance system component holding dimensional relationships across dozens of features — these parts must be right from the first article, and stay right across every production run.
Multi-axis CNC machining gets cited constantly as the answer for complex aerospace work. What manufacturers and procurement teams in Northern Ohio, Western Pennsylvania, and across the defense supply chain need to understand is how it creates measurable operational outcomes — and where the gaps show up when it's absent.
This article covers the real-world advantages of multi-axis CNC machining for aerospace and defense, what goes wrong without it, and how to extract full value from it in practice.
Key Takeaways
- Multi-axis machining completes complex aerospace components in fewer setups, directly reducing dimensional error from repositioning.
- It enables accurate, efficient machining of titanium, Inconel, and other high-strength aerospace alloys that 3-axis setups struggle to cut consistently.
- Fewer setups translate directly into lower scrap rates, reduced fixturing costs, and more predictable delivery schedules.
- The more mission-critical and geometrically complex the part, the more these advantages compound.
- Shops without multi-axis capability are increasingly locked out of complex aerospace and defense work.
What Is Multi-Axis CNC Machining?
Multi-axis CNC machining moves the cutting tool — and often the workpiece — along four or more axes simultaneously or sequentially. Where a standard 3-axis machine moves in X, Y, and Z, a 5-axis machine adds two rotational axes, letting the tool approach the workpiece from compound angles without manual repositioning.

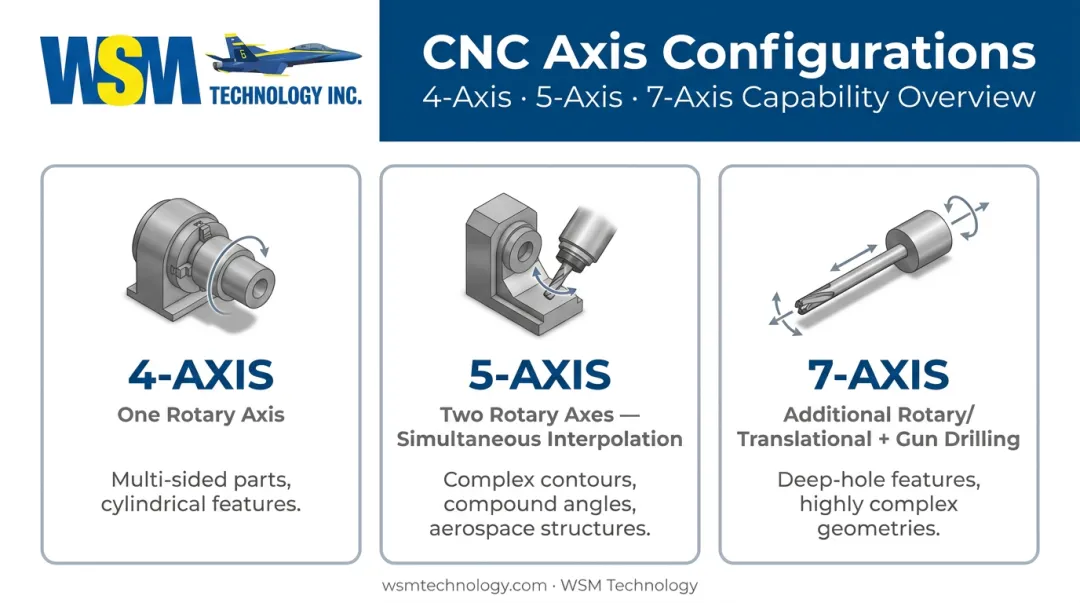

The Practical Axis Breakdown
| Configuration | What's Added | Typical Use |
|---|---|---|
| 4-axis | One rotary axis | Multi-sided parts, cylindrical features |
| 5-axis | Two rotary axes (simultaneous interpolation) | Complex contours, compound angles, aerospace structures |
| 7-axis | Additional rotary/translational movement + gun drilling | Deep-hole features, highly complex geometries |
As DMG MORI describes, simultaneous 5-axis machining interpolates all axes together, enabling tool-path control that follows complex contoured surfaces continuously. Haas notes that adding rotary axes to a mill reduces or eliminates multiple setups and handles multi-sided parts in one cycle.
What the axis count actually delivers is what matters for aerospace and defense work:
- Access to geometries physically unreachable with 3-axis equipment
- Consistent datum references maintained across all features
- Tight tolerances held without compounding repositioning error
Key Advantages of Multi-Axis CNC Machining for Aerospace & Defense
The advantages below show up in dimensional reports, scrap logs, schedule performance, and compliance audits — not in brochures.
Single-Setup Accuracy for Mission-Critical Tolerances
Every time a part is repositioned in a traditional 3-axis setup, there is a risk of datum shift. The fixture is never exactly where it was. Each re-chucking introduces small but real dimensional variation, and those errors accumulate across features. In aerospace and defense, where GD&T callouts can reach tenths or thousandths of an inch, that accumulation pushes parts out of spec.
Five-axis machining eliminates most of those repositioning steps. As Modern Machine Shop notes, a 5-axis machine can reach five faces of a workpiece in a single setup, maintaining a consistent datum throughout the entire machining cycle. The ASME Journal of Manufacturing Science and Engineering confirms the mechanism: in multi-operational machining, part dimensional error accumulates directly from setup and machining operations.

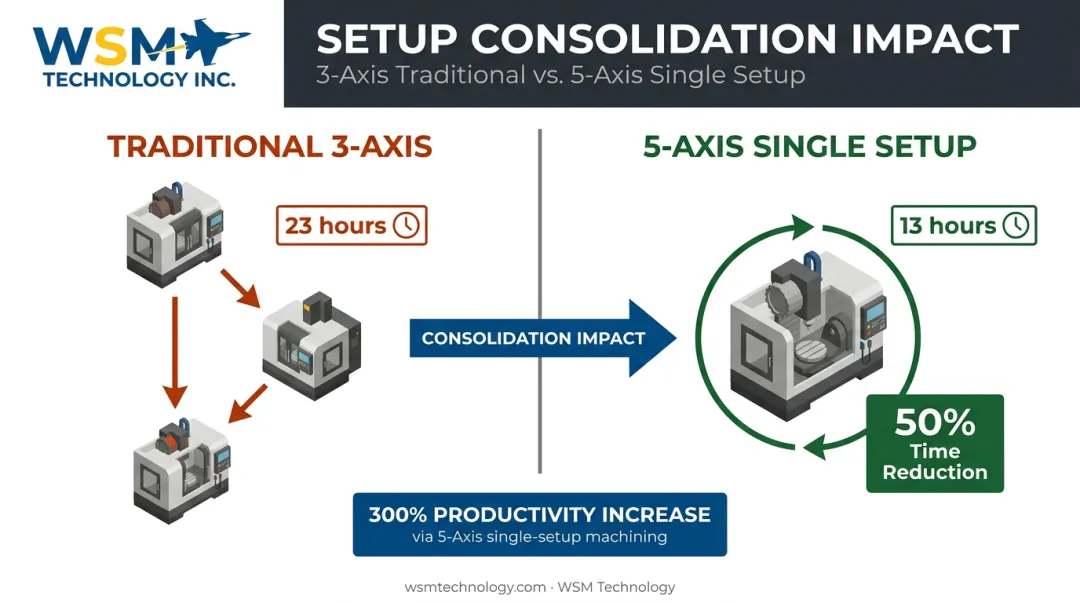

The production impact is concrete. Modern Machine Shop documented a 5-axis CAM case where one shop consolidated a part from multiple operations across several vertical machining centers into a single setup on one 5-axis machine, cutting machining time by 50%. Another case reduced process time from 23 hours to approximately 13 hours.
KPIs directly affected:
- First-pass yield rate
- Dimensional conformance rate
- Scrap and rework cost per part
- Inspection time per part
- Tolerance adherence across production runs
This advantage is most significant when parts have features on multiple faces, carry tight GD&T requirements, or run in low-volume, high-mix environments where setup variation is hardest to control. Collins Aerospace's supplier requirements reinforce what's at stake: their Zero Defect Plan formally applies to suppliers experiencing first-pass yield issues impacting quality or delivery.

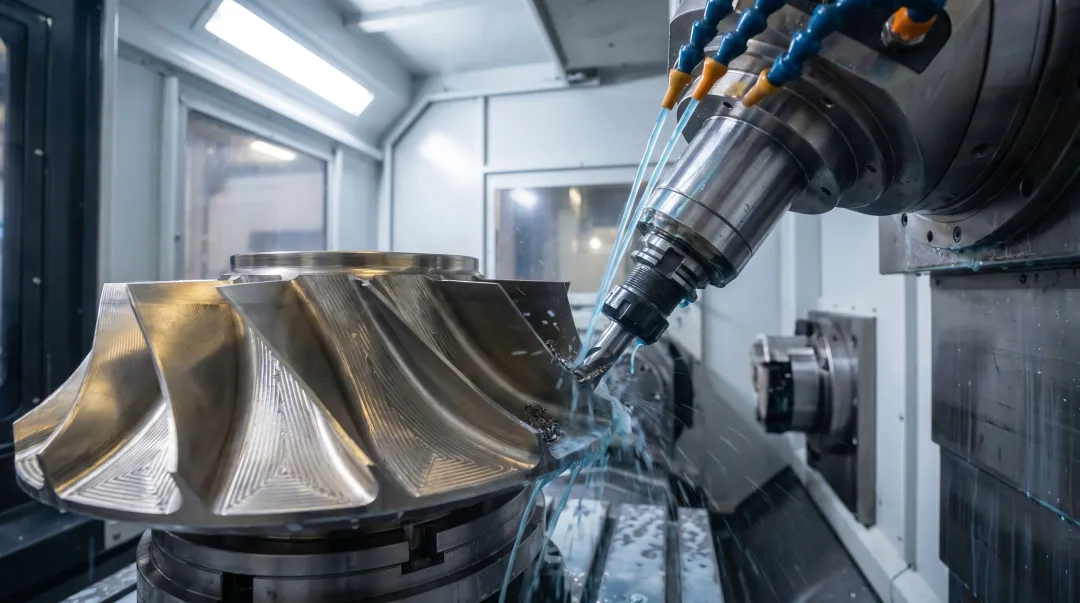

Complex Geometry and Exotic Material Capability
Turbine blade profiles, compound-angle bores, multi-face housings, thin-wall structures — these geometries are not just difficult on 3-axis equipment. Many are physically inaccessible. The cutting tool cannot reach the required angle without tilting the workpiece, and tilting the workpiece means repositioning, fixturing, and introducing all the error that comes with it.
Multi-axis machines solve this by continuously repositioning the tool relative to the workpiece surface. The tool maintains optimal cutting geometry even through contoured or undercut features, without building a custom fixture for every orientation.
The material challenge compounds the geometry challenge. As Sandvik Coromant documents, titanium has poor thermal conductivity, retains strength at high temperatures, and generates high cutting forces at the tool edge — conditions that punish any setup that forces a non-optimal approach angle.
Nickel-based superalloys like Inconel introduce a different problem set. They create an abrasive cutting environment, produce notch wear at depth-of-cut transitions, and can cause plastic deformation of the tool. Aerospace Manufacturing and Design confirms that these materials generate substantial cutting forces during roughing, producing vibration and heat buildup if the setup is not rigid.
Multi-axis movement lets the tool maintain the ideal approach angle throughout a cut on these materials. That consistent geometry controls heat input, preserves surface integrity, and prevents the work hardening that a suboptimal approach triggers. In titanium and Inconel, surface integrity failures don't stay on the shop floor — they become field failures.
KPIs directly affected:
- Surface finish quality
- Tool life and tooling cost per part
- Cycle time on complex features
- Part rejection rate from surface or geometric non-conformance
- Material yield
For superalloy and structural aerospace work, this is where multi-axis capability pays the largest dividend — particularly when surface finish specifications are tied to fatigue performance or sealing requirements.
Reduced Lead Times and Lower Total Part Cost
Multi-axis machining consolidates what would be three or four separate operations — each with its own setup, fixturing, transfer, and in-process inspection — into a single continuous machining cycle. Each eliminated operation reduces both cycle time and cost directly.
Consider a part that previously required three separate 3-axis setups: fixture design and build for each orientation, operator setup time at each machine, transfer between machines, and in-process inspection at each stage. On a 5-axis machine, that becomes one setup, one fixturing solution, and one in-process inspection point. DMG MORI reports that complete machining can increase productivity by 300% by reducing ten machining steps across three machines to four steps on one machine.
The cost math works even when the machine's hourly rate is higher than a 3-axis center. Fewer setups mean:
- Fewer fixtures to design, build, and maintain
- Less operator time per part
- Lower work-in-process inventory sitting between operations
- Fewer in-process inspection cycles
In aerospace and defense manufacturing, schedule performance often carries contractual weight. Compressing cycle time makes delivery commitments more achievable. One late batch on a defense program doesn't just create a scheduling problem — it can trigger non-conformance reports, re-qualification requirements, and audit exposure that affects the whole supplier relationship.
KPIs directly affected:
- Manufacturing cycle time
- Setup hours per part
- Total cost per part
- On-time delivery rate
- Work-in-process inventory
- Fixturing cost
This advantage is most pronounced in low-volume, high-mix aerospace work where setup overhead represents a large share of total job cost — and in programs with aggressive delivery schedules where each day of cycle time reduction has program-level impact.
What Happens When Multi-Axis Machining Is Missing
Shops relying on 3-axis equipment for work that demands multi-axis capability face a predictable set of problems:
- Repeated repositioning creates tolerance variation across parts within the same run, making yield unpredictable and eroding buyer confidence
- Complex features attempted across multiple 3-axis setups require corrective operations that compound cost well beyond what was quoted
- OEMs and Tier 1 suppliers increasingly require documented single-setup machining processes — shops without that capability are screened out of a growing portion of aerospace and defense contracts
- Frequent rework and inconsistent results make it harder to maintain the documented, repeatable process AS9100 requires, creating real audit risk
The downstream consequences go beyond individual orders. Collins Aerospace's supplier quality requirements make this explicit: suppliers with non-conforming product escapes or first-pass yield issues may face formal corrective action plans, Supplier Improvement Plans, or Zero Defect Plan requirements — designations that affect program access across the board.

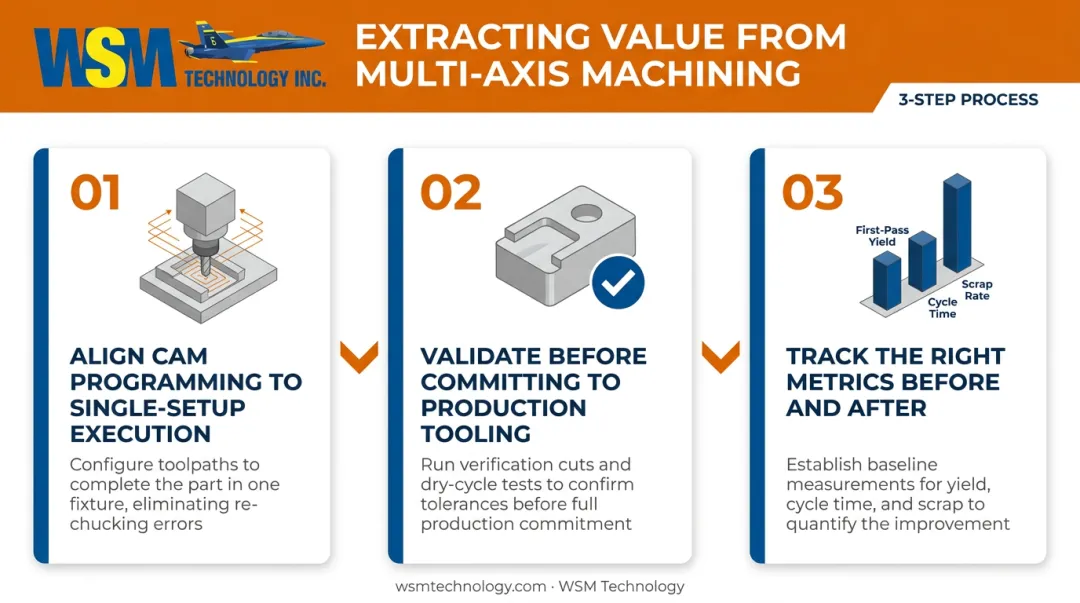

How to Get the Most Value from Multi-Axis CNC Machining
A multi-axis machine delivers its full benefit only when the surrounding process is built for it. CAM programming strategy, fixturing, tooling selection, and in-process inspection all need to be designed for single-setup execution — not adapted from 3-axis workflows.
A few practical principles:
- Align CAM programming to single-setup execution — multi-axis tool paths require different strategies than 3-axis code adapted to run on a 5-axis machine. The programming must be designed to take advantage of the machine's range of motion, not work around it.
- **Validate before committing to production tooling** — test cuts on representative parts give shops and buyers real data on cycle times, surface finishes, and dimensional outcomes before investing in dedicated fixtures or tooling packages.
- Track the right metrics before and after — specifically first-pass yield, cycle time per setup, and scrap rates. Tracking these before and after implementation gives shops the documented process consistency that aerospace quality systems require.
WSM Technology's Demonstration Center in Rootstown, OH is built for exactly this kind of pre-commitment validation. Manufacturers can run test cuts on the JINGDIAO 5-axis high-speed mill or the Cheto 7-axis milling and gun drilling machine using their own part geometries, getting real cycle time and dimensional data before purchasing.
For shops in Northern Ohio and Western Pennsylvania evaluating a multi-axis investment, that application-specific evidence is a more reliable basis for a decision than spec sheets alone.
Conclusion
For aerospace and defense manufacturing, multi-axis CNC machining is the foundational capability that determines whether a shop can hold the tolerances, machine the materials, and hit the schedules that mission-critical programs require.
Single-setup accuracy, complex geometry capability, and reduced lead times all compound over time when supported by the right programming, tooling, and inspection practices. Shops that haven't invested in multi-axis capability aren't just missing efficiency gains — they're increasingly locked out of aerospace and defense contract qualification entirely.
For manufacturers evaluating that investment, the right starting point is real-world testing on your own part geometries, with application engineering support that matches the complexity of what you're cutting. WSM Technology's demonstration center in Rootstown, Ohio offers exactly that — test cuts on your actual part geometries, time studies, and hands-on evaluation of 5-axis and multi-axis equipment before you commit to a purchase.
Frequently Asked Questions
Do defense and aerospace contractors use multi-axis CNC machining?
Multi-axis machining is standard across aerospace and defense manufacturing. The complexity of components like turbine parts, structural housings, and guidance system components makes 5-axis and higher machining a practical requirement — the geometries and tolerance requirements simply cannot be met reliably with 3-axis equipment.
Is there a 7-axis CNC machine?
Yes. CHETO manufactures deep-hole drilling and milling machine tools configured up to 7 axes, combining multi-axis milling with gun drilling capability in a single machine. These platforms are used for the most complex part geometries where even 5-axis access is insufficient. WSM Technology represents Cheto equipment across Ohio, Western Pennsylvania, and West Virginia.
What is the difference between 5-axis and 7-axis CNC machining?
A 5-axis machine adds two rotational axes to the standard X/Y/Z linear movements, enabling the tool to approach complex surfaces from compound angles. A 7-axis machine adds further rotational or translational motion — enabling access to more complex geometries, including deep-hole features, in a single setup.
What materials can multi-axis CNC machines cut for aerospace applications?
Common aerospace materials include titanium alloys, Inconel and nickel superalloys, hardened stainless steels, and aluminum alloys. Multi-axis movement is especially valuable for heat-sensitive and work-hardening materials like titanium and Inconel — where optimal tool approach angles directly affect surface integrity and tool life.
What are the hourly rates for multi-axis CNC machining?
Multi-axis machining carries a higher hourly rate than 3-axis work due to machine complexity and programming requirements. Total cost per part is often lower, though, once reduced setups, fixturing, and rework are factored in — so hourly rate alone is a poor basis for comparison.
How does multi-axis CNC machining support AS9100 compliance?
Multi-axis machining supports AS9100 compliance by enabling more consistent, repeatable processes with fewer manual interventions. Reducing the number of setups removes variation sources and makes it easier to document a controlled, traceable production process — both of which are direct requirements under AS9100's process control and documentation standards.
