Unplanned downtime is expensive across manufacturing. NIST puts average annual maintenance costs and losses across US manufacturers at $222.0 billion, and sensor-based condition monitoring is becoming standard in precision shops trying to avoid becoming part of that number.
The problem: many shop owners only think about diagnostics after something breaks. They know the alarm went off — they don't know why, or what it was actually measuring. That reactive habit means early warnings get ignored until a minor deviation becomes a major repair.
This guide breaks down how machine tool diagnostics actually work, stage by stage.
TL;DR
- Diagnostics use sensors, controllers, and software to catch performance deviations before failure

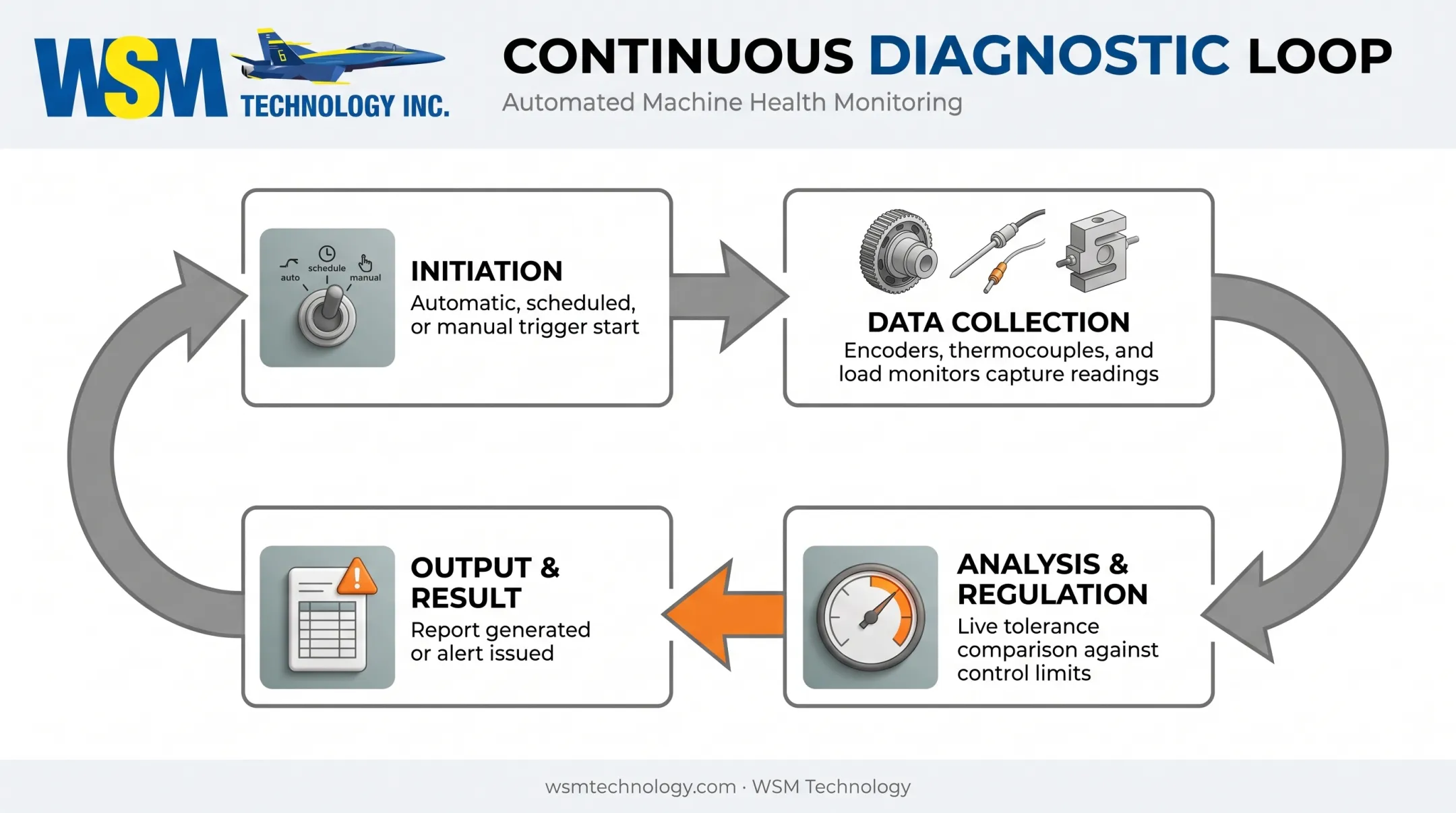

- A four-stage loop—initiation, data collection, analysis/control, and output—turns raw signals into action
- Shops run diagnostics in production, during preventive checks, and when troubleshooting faults
- Proper diagnostics cut scrap, downtime, and repair costs
- Mechanical machines and modern CNC/EDM systems both support diagnostics—methods and depth differ
What Is Machine Tool Diagnostics?
Machine tool diagnostics is the systematic process of monitoring and interpreting machine signals, including vibration, temperature, positioning accuracy, and electrical load, to assess operational health.
Manual inspection alone misses problems diagnostics catch early. A technician walking the floor once a shift won't notice a servo drifting 0.002 inches out of tolerance or a spindle bearing heating up incrementally over three weeks. That's the gap diagnostics fills.
Diagnostics is not the same thing as:
- Preventive maintenance — scheduled servicing (lubrication, filter changes) done on a calendar, regardless of condition
- Repair — fixing a fault that's already been identified
- Predictive maintenance — using diagnostic data to schedule work before failure, not the diagnostic process itself
Modern CNC controls don't eliminate the need for diagnostics. Electronic controls introduce their own failure modes, including servo drift, sensor faults, and software errors that older mechanical machines never had.
Three Types of Diagnostic Methods
- Built-in controller diagnostics — alarm codes, self-tests run automatically by the machine's control system
- External condition monitoring — vibration sensors, thermal sensors added onto the machine
- Manual diagnostic testing — test cuts, geometric accuracy checks run by an operator
The process differs by machine type. EDM diagnostics watch electrode wear and dielectric condition; CNC mills and lathes focus on spindle, servo, and positioning accuracy.
How Does Machine Tool Diagnostics Work?
Regardless of machine type, diagnostics run through a defined sequence: trigger, data collection, analysis, and resolution.
Initiation
Diagnostics get triggered three ways:
- Automatically — controller alarms or out-of-tolerance sensor readings
- Scheduled — routine health checks built into a maintenance calendar
- Manually — an operator notices abnormal sound, finish, or accuracy and runs a check
Modern CNC and EDM controllers run continuous background self-monitoring. Older machines rely more on manual, operator-initiated checks.
Here's the common bottleneck: operators ignore early alarm codes or minor deviations. A one-off "servo lag" alarm gets cleared without investigation. Three weeks later, that same issue has escalated into a scrapped batch of parts.
Core Operation
The working principle is simple: sensors and controller feedback loops continuously compare actual machine behavior against programmed or expected values.
During execution, data is captured in real time from:
- Encoders (position feedback)
- Thermocouples (temperature)
- Spindle load monitors
- EDM gap-voltage sensors
That data feeds into the control system or diagnostic software. Deviations in accuracy, cycle time, or surface finish are flagged as indicators of an underlying mechanical or electrical issue.

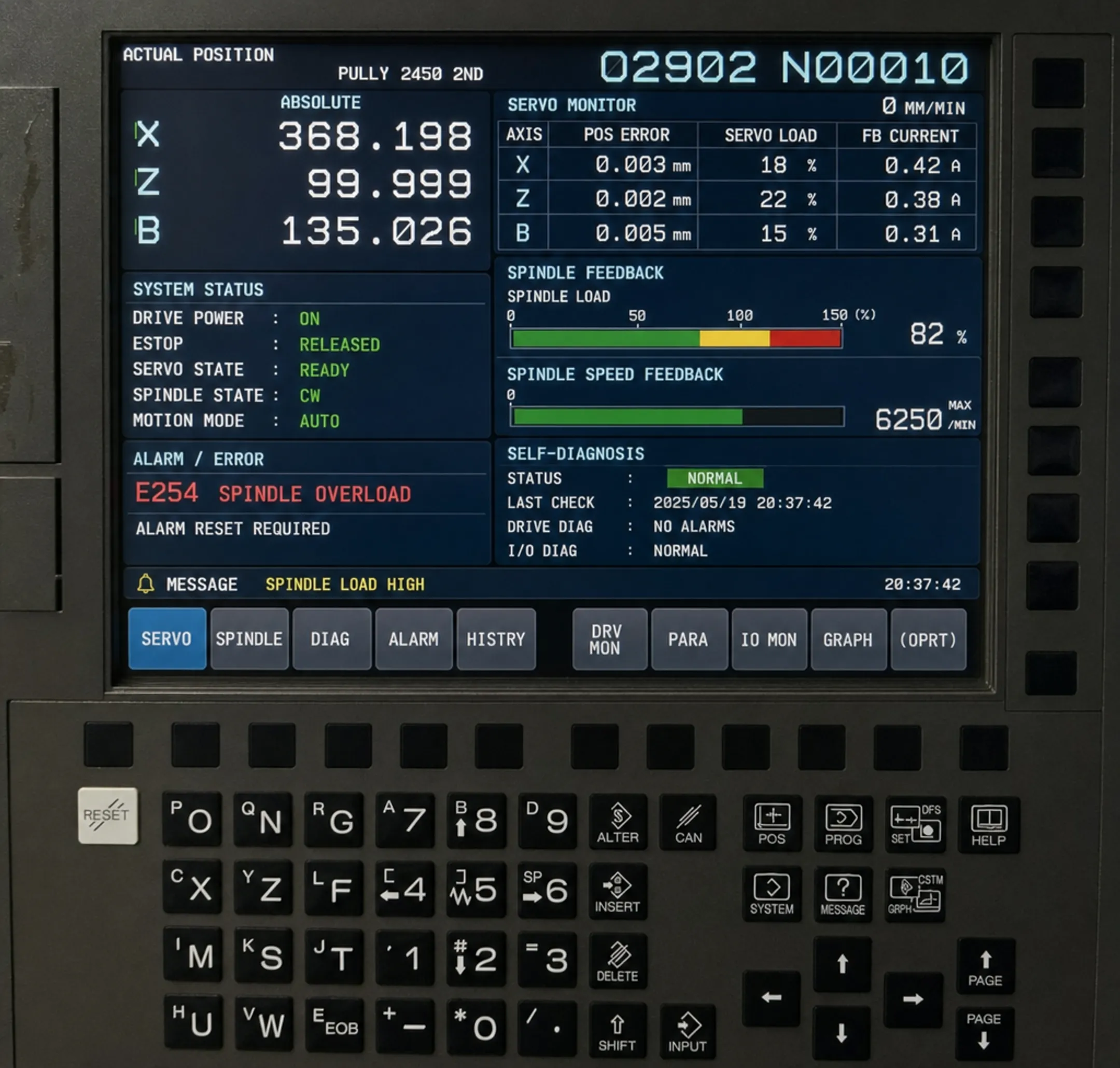

Mitsubishi's M800/M80/E80 series controllers, for example, support command-versus-feedback error monitoring, drive monitor screens for servo and spindle data, and self-diagnosis of hardware and NC operating state.
Regulation / Control
This is where diagnostics stops being passive observation and starts acting. Live readings get compared against tolerance thresholds. When a limit is exceeded, the system triggers an alert, an alarm, or, in more serious cases, an automatic shutdown.
Corrective mechanisms at this stage include:
- Recalibration prompts
- Adaptive control adjustments (EDM controls, for instance, will slow the axis or reduce power when spark-gap conditions get unstable, then resume once the gap stabilizes)
- Maintenance flags routed to a technician
Without active regulation, a machine keeps producing out-of-tolerance parts or keeps degrading, compounding the eventual repair bill. Once a flag is raised, speed to parts and service decides how long the machine stays down. WSM Technology supports that step with on-site qualified service and OEM replacement parts across its CNC, EDM, and turning lineup.
Output / Result
The end result of a diagnostic cycle is a report or alert that pins a fault area—spindle wear, servo misalignment, electrode wear on an EDM, or similar. Haas controllers, for instance, generate an Error Report that saves a screenshot, active program, and machine-state data into a file technicians can review.
That output then feeds directly into:
- Maintenance planning (schedule the repair before it becomes an emergency)
- Part replacement decisions
- Process adjustments (slow the feed rate, change the tool path)

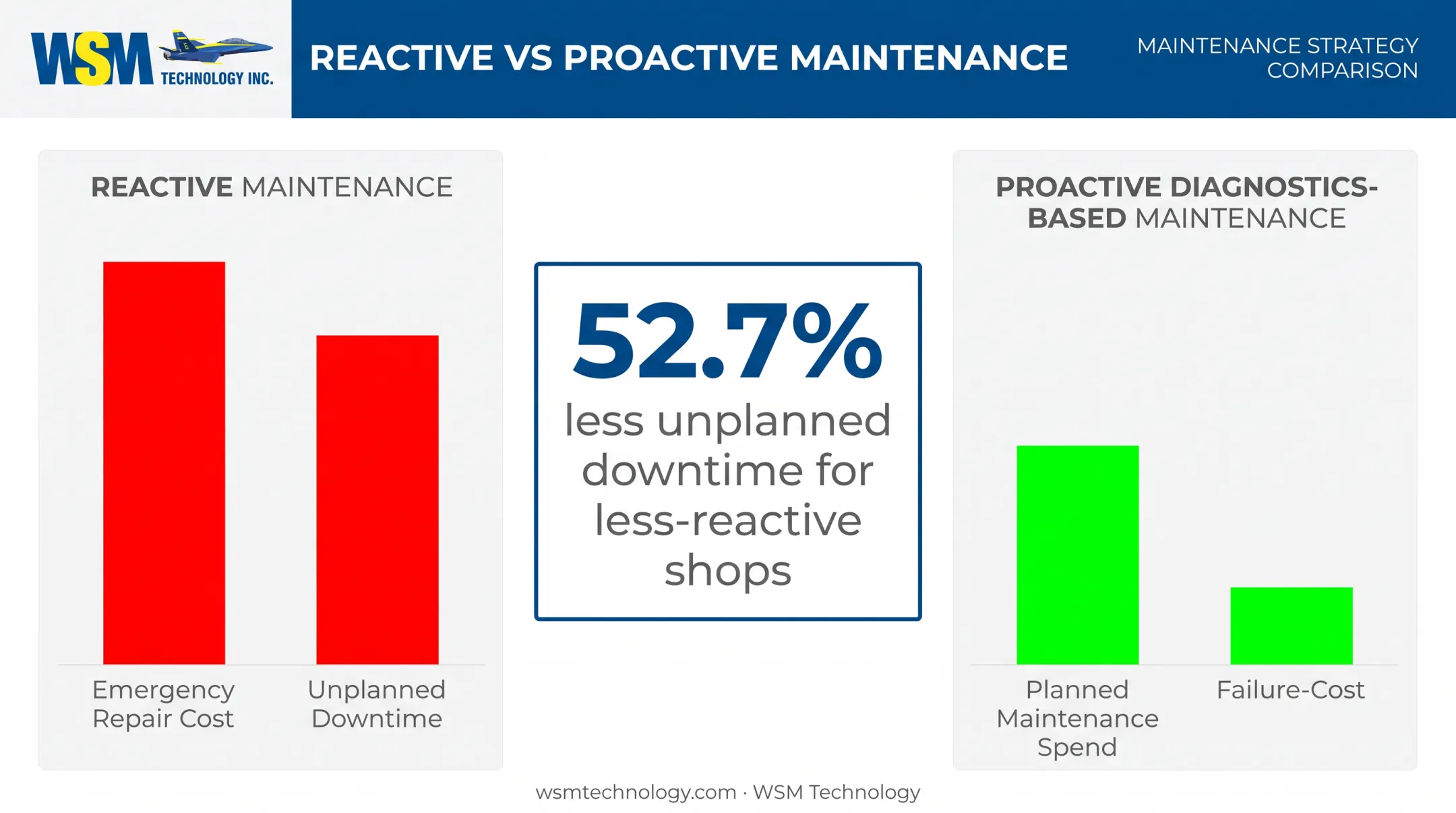

The payoff is measurable. NIST's 2021 survey analysis found shops using less-reactive maintenance practices reported 52.7% less unplanned downtime than shops relying mostly on reactive repair.
That same group spent more on direct maintenance, but far less on faults and failures—higher planned spend, lower emergency cost.
Where Machine Tool Diagnostics Is Used
Diagnostics fit into three points in a shop's workflow:
- Pre-production checks — verifying the machine is within tolerance before a job starts
- In-process monitoring — watching for deviation while parts are actually running
- Post-failure troubleshooting — isolating what caused a breakdown after it happens
Diagnostics deliver the most value in specific conditions:
- High-precision tolerance work where a few microns of drift ruins the part
- High-volume production runs where downtime cascades across a full schedule
- Continuous or lightly supervised runs, such as unattended mold and die work
The diagnostic focus shifts by machine type:
- EDM — electrode wear, dielectric cleanliness, and filter condition; poor flushing or clogged filters degrade finish and accuracy
- CNC milling and turning — spindle load, servo behavior, and positioning accuracy

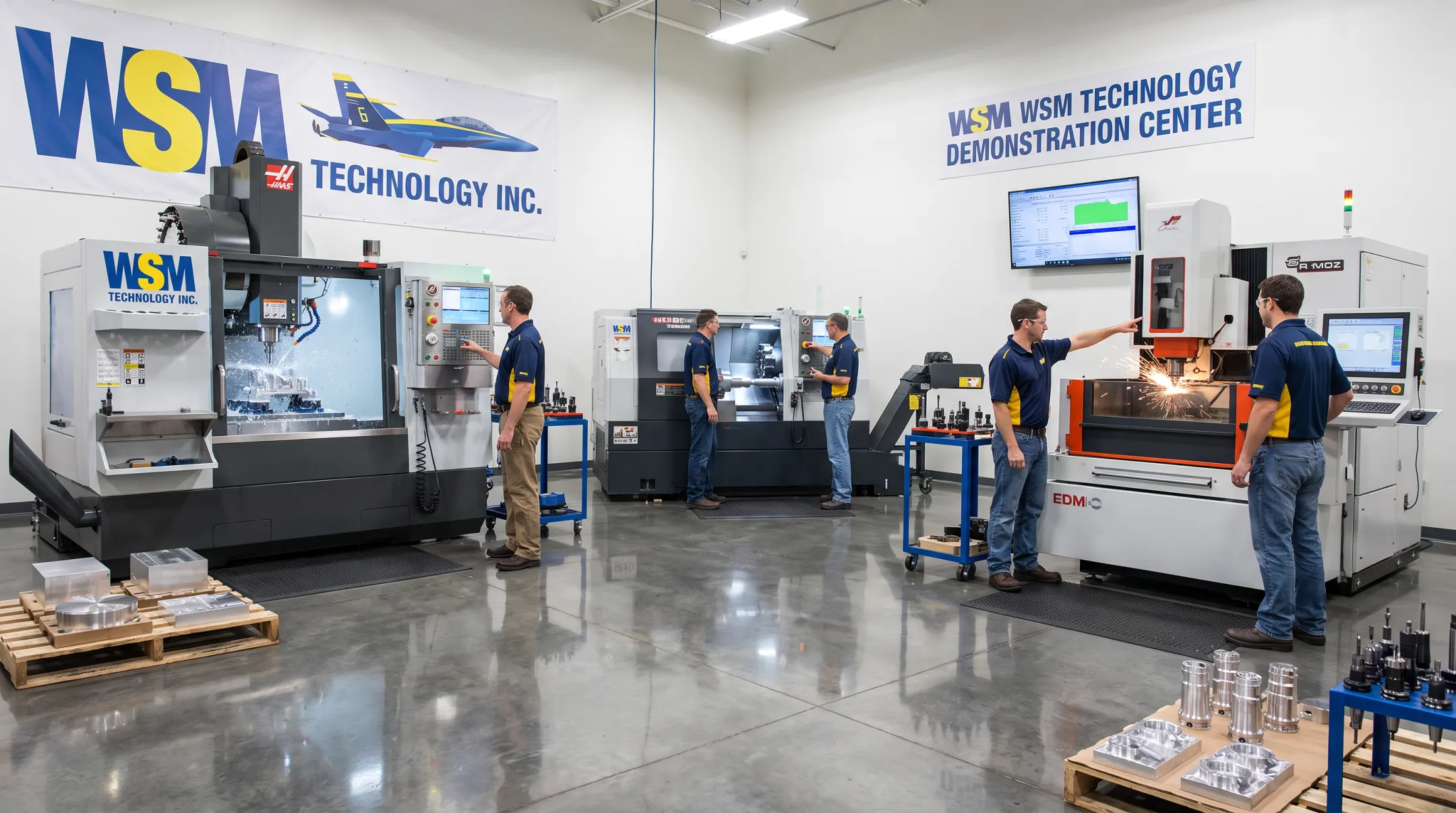

If you're evaluating a machine's diagnostic capabilities before buying, seeing it firsthand beats reading a spec sheet. WSM Technology's demonstration center in Rootstown, Ohio lets shops run test cuts and time studies on actual equipment, so you can evaluate real performance before committing capital.
Conclusion
Machine tool diagnostics work as a continuous feedback loop: monitor, compare, correct, repeat. Understanding that loop, rather than just reacting to whatever alarm pops up, is what separates shops that catch problems early from shops that find out the hard way.
That understanding should shape real decisions: adopting diagnostics proactively, scheduling maintenance around what the data actually shows, and choosing machines and dealers that back their equipment with strong diagnostic support and local service.
Frequently Asked Questions
What are examples of machine tools?
Common machine tools include CNC mills, lathes, EDM machines (wire and sinker), grinders, and drill presses. Each shapes material differently but relies on the same core principle of controlled, repeatable motion.
What is machine tool maintenance?
Machine tool maintenance is scheduled servicing—lubrication, part replacement, and calibration—on a set interval. It complements diagnostics by preventing many issues before monitoring would flag them.
How often should machine diagnostics be performed?
Continuous automated monitoring should run throughout operation on any modern CNC or EDM system. Manual diagnostic checks should be scheduled periodically and immediately after any performance anomaly.
Can diagnostics prevent machine downtime entirely?
No. Diagnostics significantly reduce unplanned downtime by catching issues early, but they can't eliminate all failure risk. Some components fail without enough warning for any monitoring system to catch them.
What's the difference between diagnostics and troubleshooting?
Diagnostics identifies and monitors potential issues proactively, before they become failures. Troubleshooting is the reactive process of isolating and fixing a problem that's already occurring.
Do older, non-CNC machines support diagnostics?
Yes, but with limits. Older mechanical machines rely mostly on manual inspection and retrofitted sensors, while modern CNC and EDM systems come with built-in diagnostic capabilities from the factory.
