Bearing seats need interference fits. Guide-pin bushings in mold bases often need location and roundness tolerances under 5 microns, according to Mitsui Seiki's research on jig boring for mold-base accuracy. Cylinder bores in automotive engines demand high-speed, tight-tolerance finishing, per Sandvik Coromant's cylinder block machining guidance. These aren't edge cases. They're standard specs across mold/die, aerospace, and precision mechanics shops.
This guide breaks down how CNC boring actually works, stage by stage, not just what it means on paper.
TL;DR
- CNC boring uses a computer-controlled single-point tool to enlarge and true an existing hole
- It follows drilling, moving through rough, semi-finish, and finish stages
- Boring fixes size, straightness, and concentricity issues drilling can't touch
- Common in bearing seats, hydraulic cylinders, mold bases, and aerospace housings
- Machine and tooling setup determine whether tight tolerances hold up in production
What Is CNC Boring?
CNC boring is a computer-controlled process that enlarges or refines an existing hole using a single-point cutting tool. Sandvik Coromant defines boring as improving an existing hole's diameter, depth, tolerance, surface finish, position, and straightness, not creating one from scratch.
That distinction matters. Drilled or cast holes often come out slightly undersized, off-round, or misaligned. Boring corrects what's already there.
Boring, Drilling, and Reaming Aren't the Same Job
Cutting Tool Engineering puts it plainly: drilling creates a hole where none exists; boring and reaming accurately enlarge holes that already exist. Reaming is a multi-edge finishing pass: good for tightening diameter and finish, but it follows the existing hole path closely.
Boring, by contrast, can reposition a hole along the spindle axis. That's the real answer to "what's the difference between boring and reaming": reaming can't correct an off-center hole. Boring can, provided there's enough stock left to work with.
Why Boring Still Matters
Advanced drills and reamers haven't made boring obsolete. Nothing else matches its ability to correct position, not just size. Shops still lean on it wherever alignment is non-negotiable.

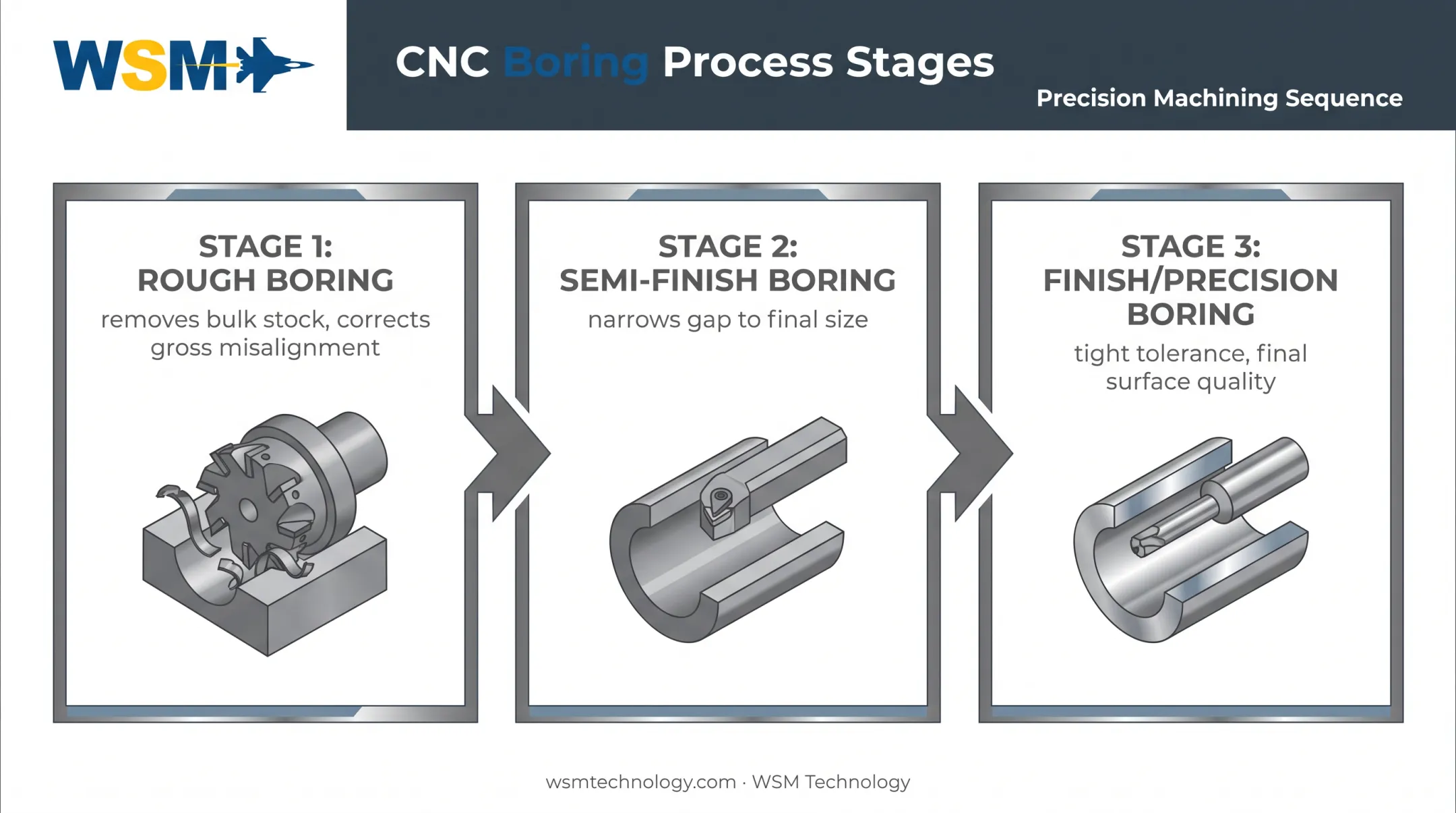

Shops typically run three stages, and tooling and cutting parameters shift at each one:
- Rough boring: removes bulk stock quickly, corrects gross misalignment
- Semi-finish boring: narrows the gap toward final size
- Finish/precision boring: small depth of cut, tight tolerance, final surface quality
How Does CNC Boring Work?
CNC boring moves through defined stages, from a rough existing hole to a finished, precision bore. Here's how each stage plays out.
Initiation
Boring never creates the starting hole. It always begins with one already made by drilling, casting, or milling.
On CNC machines, this stage is automated. The controller positions the tool digitally, unlike manual boring machines where an operator dials in position by hand.
The bottleneck to watch: if the original hole is too far off-center or undersized, there simply isn't enough stock allowance left for the boring tool to fully correct it. Poor prep stock limits what boring can fix.
Core Operation

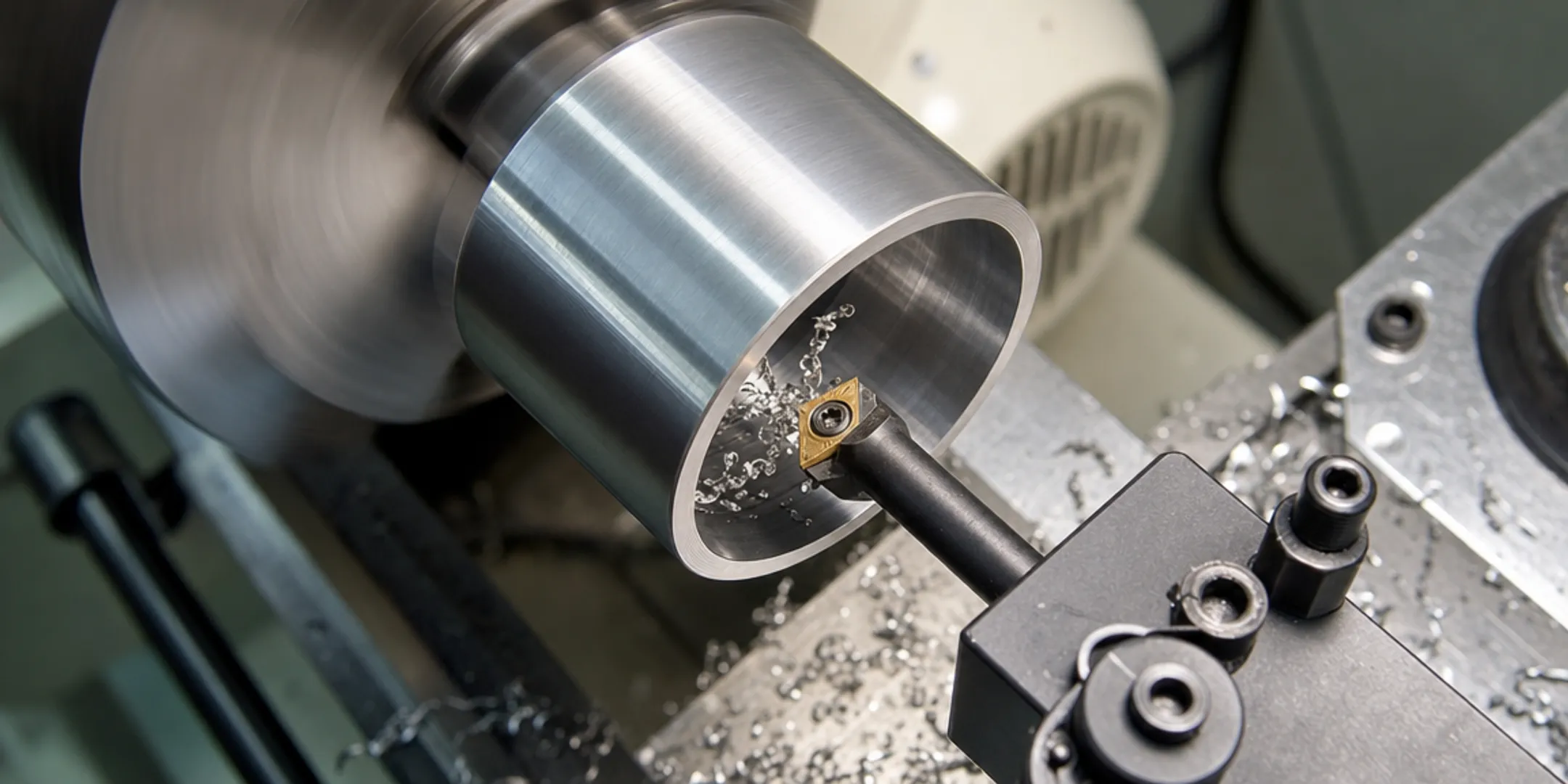

The central mechanism is simple: a single-point cutting tool, mounted on a boring bar, removes a thin, uniform layer of material along the spindle's centerline.
Depending on the machine, either:
- The tool feeds into a stationary workpiece (boring mills, machining centers), or
- The workpiece spins against a stationary tool (lathes, turning centers)
Bar rigidity drives everything downstream. Sandvik's application guidance notes that internal turning is highly vibration-sensitive, and recommends the shortest, largest-diameter bar possible.

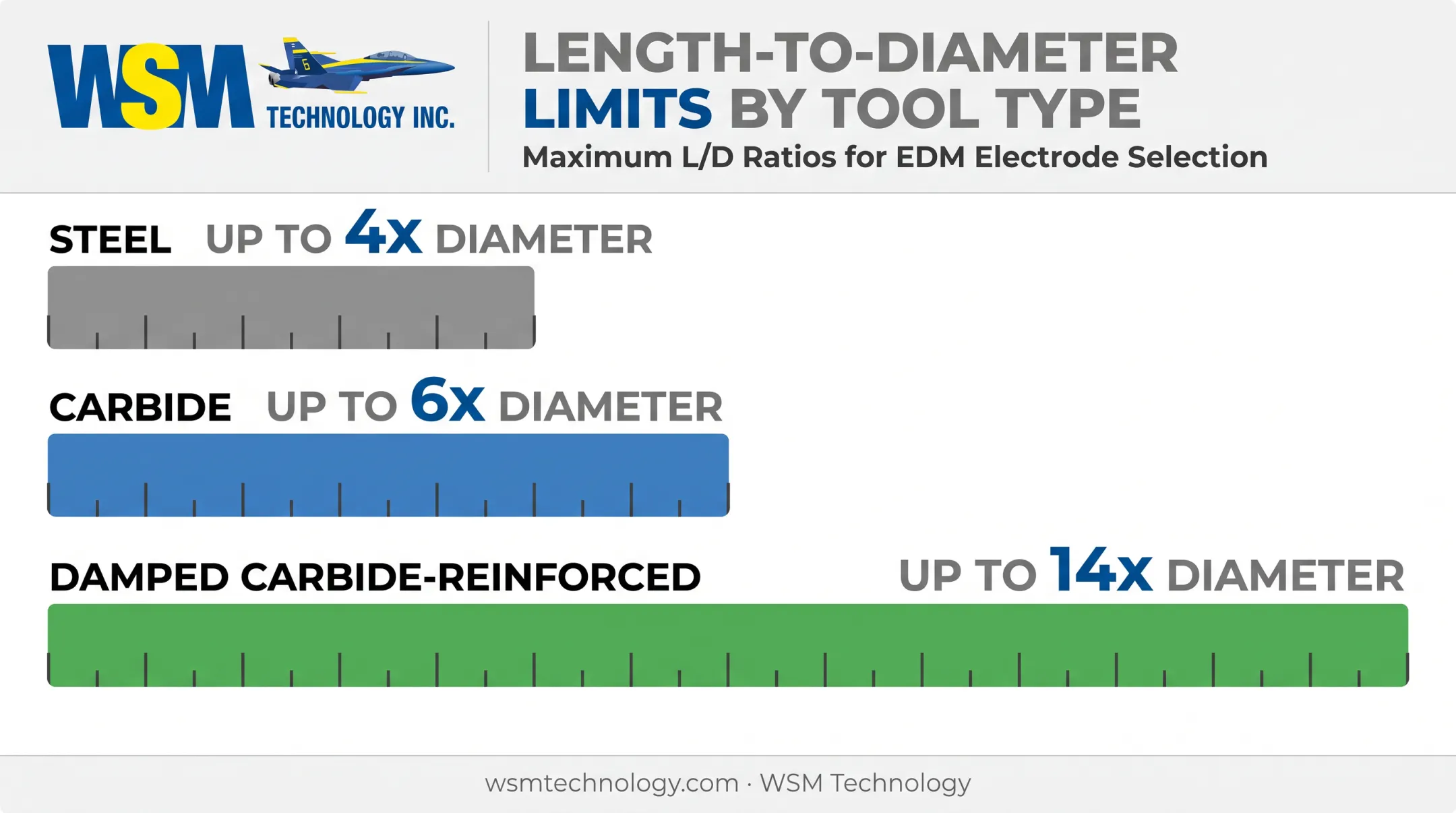

Length-to-diameter ratios set the practical limit before deflection takes over:
- Steel bars: typically up to 4× diameter
- Carbide bars: up to 6× diameter
- Damped carbide-reinforced bars: up to about 14× diameter
On tolerance: there is no single universal number. Finish boring commonly targets IT6–IT8 classes with cutting depths under 0.020 in (0.5 mm), per Sandvik's finish-boring specs.
Real jobs show how wide the range is. In a documented aerospace case on a Nitronic 40 closure head, the specified limit was +0.002/−0.000 inch on diameter, with 0.010-inch true position. Mold-base bores often need sub-5-micron control. Achievable tolerance depends on the application, machine, and tooling, not a fixed spec.
Regulation and Control
Keeping bore size consistent across a production run takes active management, not a set-and-forget program.
- Thermal control — machine heat and ambient temperature shift dimensional accuracy over a shift; some builders use sensor-based compensation systems to track this drift
- Tool offset adjustments — correct for insert wear as cuts accumulate
- Chatter monitoring — operators watch for vibration and adjust speed, feed, or depth of cut in real time
Why does this stage matter so much? Left unchecked, vibration and thermal drift produce oval bores, tapering along the bore length, or size drift between parts. Any of those outcomes means scrapped work.
Output and Result
The finished bore comes out with corrected diameter, roundness, straightness, and concentricity relative to other features on the part.
That precision feeds directly into assembly:
- Bearing fits that don't wobble
- Shaft alignment that holds under load
- Seal housings that actually seal
Consistent bore quality translates to fewer assembly failures and repeatable tolerances across a batch. That is the difference between a one-off good part and a production run you can trust.

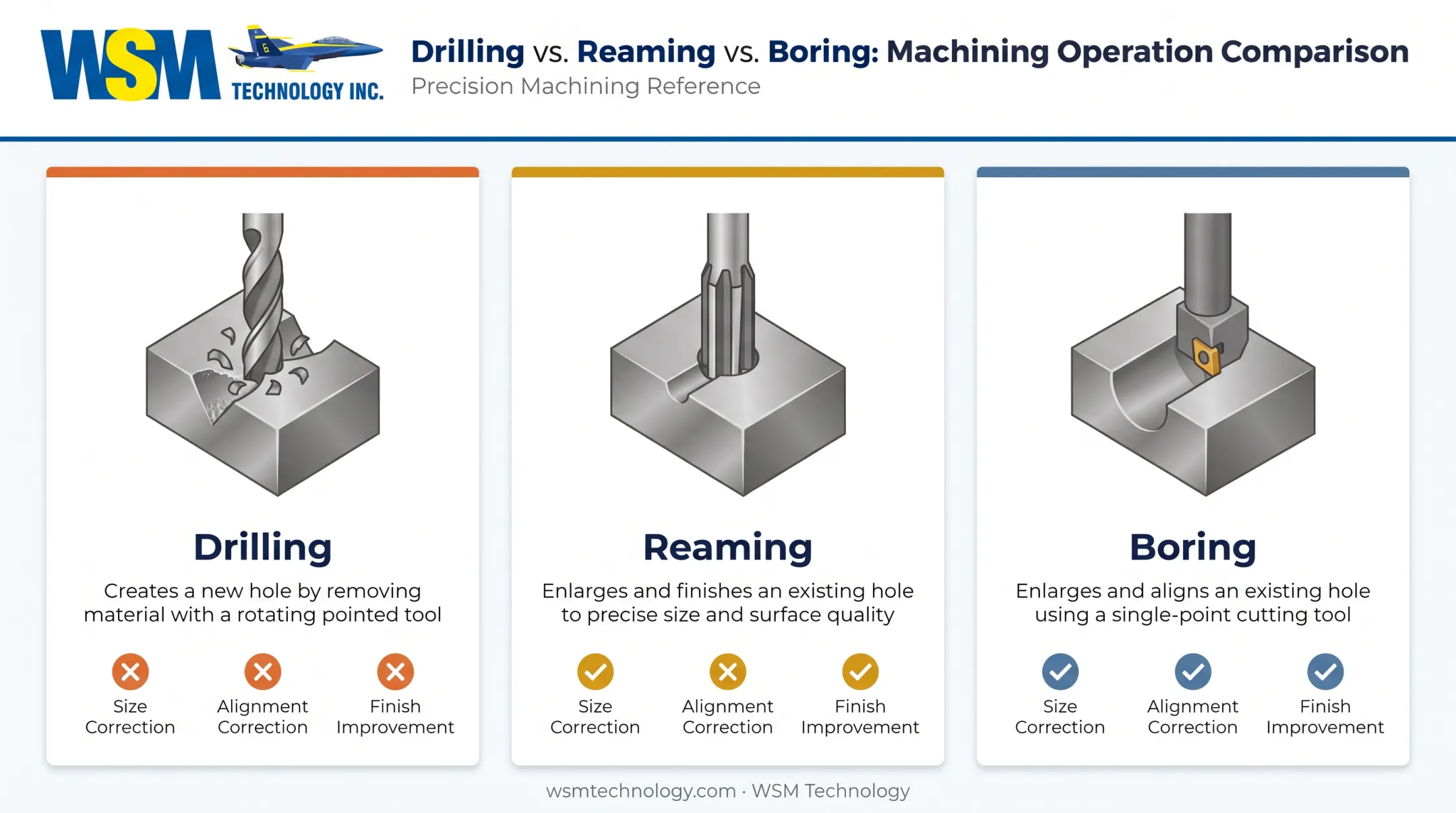

Boring vs. Drilling vs. Reaming
| Operation | What it does | Key limitation |
|---|---|---|
| Drilling | Creates the initial hole | No fine control over size or alignment |
| Reaming | Lightly improves size and finish | Follows the existing hole path; can't correct position |
| Boring | Corrects size, alignment, and roundness | Requires an existing hole with enough stock allowance |
Modern Machine Shop notes that boring tends to feed straighter and is more forgiving for squareness and position when the initial hole prep is imperfect, while reaming burnishes rather than corrects.
Many precision jobs use all three in sequence: drill for the initial hole, bore to correct and size it, then ream or hone if an even finer finish is required. Which combination you need depends on your tolerance requirements and the quality of the initial drilled hole.
Where CNC Boring Is Used
Boring typically slots in after rough drilling or casting, before final assembly or secondary finishing operations like honing.
Ideal conditions for boring:
- Parts requiring tight concentricity between multiple bores
- Press-fit or interference-fit applications
- Bearing seats where even minor axis deviation causes premature wear
Industries that rely on this operation include mold and die making, aerospace, automotive, and precision mechanics shops. Cutting Tool Engineering's coverage of bearing pocket machining highlights how paired bearing seats need to be machined without repositioning the part — any shift between operations risks shaft wear or eccentric motion down the line.
Running boring reliably across a production floor comes down to the right equipment: a machine with the spindle stability and rigidity to hold tolerance cut after cut, plus milling, turning, and EDM capability for upstream and downstream operations on the same part.
That's the range WSM Technology represents across Northern Ohio, Western Pennsylvania, and West Virginia. The lineup covers machining centers, turning centers, and precision grinding equipment from manufacturers like MC Machinery/Mitsubishi, ROMI, and Roku-Roku, backed by application engineering support, test cuts, and time studies to help shops dial in demanding hole-finishing work.
Conclusion
CNC boring earns its place by correcting hole size, roundness, and alignment in a single pass. Understanding how each stage works, from initiation through final output, makes it easier to decide when boring is worth the added setup time versus when drilling or reaming alone will do.
That decision shapes tooling choices, machine selection, and whether your bores hold tolerance batch after batch.
Frequently Asked Questions
What is bore machining?
Bore machining is a hole-correction process that uses a single-point cutting tool to size, straighten, and align an existing hole. It doesn't create the hole. It refines one already made by drilling, casting, or milling.
Which tool is used for boring?
Boring bars are the primary tool, available in solid carbide, steel, and damped configurations. Insert geometry and bar type are chosen based on the material being cut and the finish required.
What's the difference between boring and reaming?
Boring corrects size, alignment, and roundness, and can reposition an off-center hole. Reaming only lightly improves size and finish, following the existing hole path without correcting position.
Can CNC boring fix a misaligned or off-center drilled hole?
Yes, boring can recenter a hole along the spindle axis. This only works if enough stock allowance remains around the original hole for the tool to remove material evenly.
What tolerance can CNC boring achieve?
Finish boring commonly targets IT6–IT8 tolerance classes. With proper setup and thermal control, jobs such as aerospace closure heads have held +0.002/−0.000 inch on diameter.
Is CNC boring necessary for every drilled hole?
No. Boring is reserved for holes needing tight fits, precise alignment, or fine surface finish: bearing seats, hydraulic bores, and mold bushings. General clearance holes don't need it.
