Aerospace machining buyers face two compounding challenges. First, the technical demands are severe: tight tolerances, exotic alloys, and geometries that push the limits of conventional CNC equipment. Second, most suppliers look identical on paper — everyone claims AS9100 compliance, everyone says they can hold ±0.001".
This guide cuts through that. It defines what aerospace parts machining actually involves, explains why it requires a specialized supplier, and provides a six-factor framework for identifying shops capable of consistent, compliant output — not just first-article success.
Key Takeaways
- Aerospace tolerances routinely demand ±0.001" or tighter — small deviations compound fast across assemblies
- AS9100, ITAR, and NADCAP certifications signal quality system maturity — verify their scope, not just their presence
- Equipment portfolio determines geometric capability; 5-axis simultaneous machining is the baseline for complex aerospace parts
- Material expertise in titanium, Inconel, and aerospace-grade aluminum requires documented process evidence, not general claims
- The right supplier aligns quality systems, capacity, and technical depth with your specific program requirements
What Is Aerospace Parts Machining?
Aerospace parts machining is the precision manufacturing of structural, mechanical, and propulsion components for aircraft, satellites, missiles, and defense systems. Unlike standard CNC work, dimensional accuracy, material integrity, and surface finish must all be verifiable and repeatable — because a nonconformance discovered after delivery has no field fix.
Every aerospace machined part sits at the intersection of two demands: extreme material difficulty and regulatory compliance. Parts are made from challenging alloys, held to tight tolerances, and traced through a documented quality chain from raw material to final inspection.

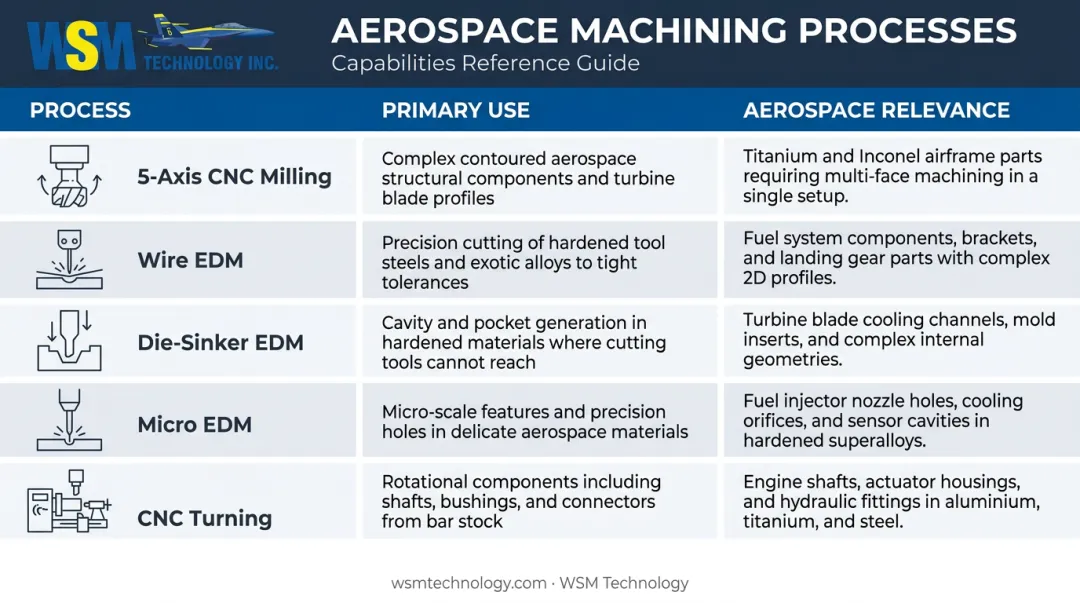

Common Aerospace Machining Methods
| Process | Primary Use | Aerospace Relevance |
|---|---|---|
| 5-Axis CNC Milling | Structural components, blisks, complex contours | Reduces setups, minimizes fixturing error |
| Wire EDM | Hard material features, slots, cooling holes | Low cutting force on delicate geometries |
| Die-Sinker EDM | Complex cavities, tooling, hardened materials | Intricate 3D cavity work without mechanical force |
| Micro EDM | Fine features in avionics, fuel systems | Sub-millimeter holes and 3D micro-geometries |
| CNC Turning | Shafts, bearing seats, rotational parts | High surface finish, diameter accuracy |
5-axis simultaneous machining deserves specific attention here. SME documented its use for aerospace blade and blisk machining years ago — it's now the expected baseline for complex structural and propulsion geometry. A supplier without genuine 5-axis simultaneous capability cannot produce this class of parts to spec; owning the machine is not the same as running it.
Why Aerospace Machining Differs from Standard CNC Work
Aerospace machining imposes requirements that go well beyond tolerance targets:
- Controlled environments with temperature-regulated inspection rooms
- Calibrated metrology traceable to NIST standards
- Material traceability from mill certificate to shipped part
- Process documentation ensuring repeatability across production runs, not just first-article conformance
Exotic materials introduce risks that general-purpose shops aren't equipped to manage. Ti-6Al-4V has a thermal conductivity of 6.7 W/m·K — far lower than structural steel — meaning heat concentrates at the tool, accelerating wear and causing dimensional drift mid-run.
Inconel 718's extreme strain hardening elevates cutting-zone temperatures and demands validated tooling strategies, not estimated ones. A shop that machines steel well doesn't automatically qualify for aerospace alloys.
Why Aerospace Parts Machining Requires a Specialized Supplier
Tolerances That Compound Across Assemblies
Aerospace tolerances aren't simply tighter — they're tighter in ways that multiply at the assembly level. NIST tolerancing research confirms that part-level variation must be evaluated for its assembly-level consequence: a deviation of ±0.002" on one mating surface can render an entire subassembly non-conforming. This is why AS9100D (IAQG 9100:2016) requires quality management across the full supply chain, not just at final inspection.
Material Behavior Under Cutting Conditions
General-purpose shops face two specific failure modes with aerospace alloys:
- Titanium — Low thermal conductivity causes tool temperature spikes, accelerating wear and inducing dimensional drift that compounds over longer production runs
- Inconel 718 — Work-hardening properties mean that incorrect feeds and speeds don't just reduce tool life; they alter the surface integrity of the part itself
Material-specific process validation — with documented tool life data, coolant strategy, and inspection history — is a legitimate audit requirement precisely because these failure modes are real and repeatable.
Regulatory and Traceability Requirements
Every aerospace part must be traceable from raw material certificate through machining, inspection, and delivery. Suppliers without a documented quality management system cannot participate in compliant supply chains regardless of machining skill. IAQG 9100:2016 — the standard behind AS9100D — applies at all levels of the aviation, space, and defense supply chain.
Inspection Capability as a Differentiator
Achieving a tolerance and verifying a tolerance are different problems. NIST dimensional metrology guidance states that inspection equipment uncertainty should be 4, 5, or 10 times smaller than the tolerance being verified, with 20°C as the defined reference temperature for length dimensions.
A supplier without a temperature-controlled inspection room, calibrated CMMs, and documented measurement uncertainty analyses cannot reliably verify aerospace-grade tolerances — regardless of what their machines can achieve.
Key Factors to Evaluate When Selecting an Aerospace Machining Supplier
Supplier selection in aerospace isn't a single-dimension ranking. The following six factors translate supplier claims into verifiable qualification criteria.

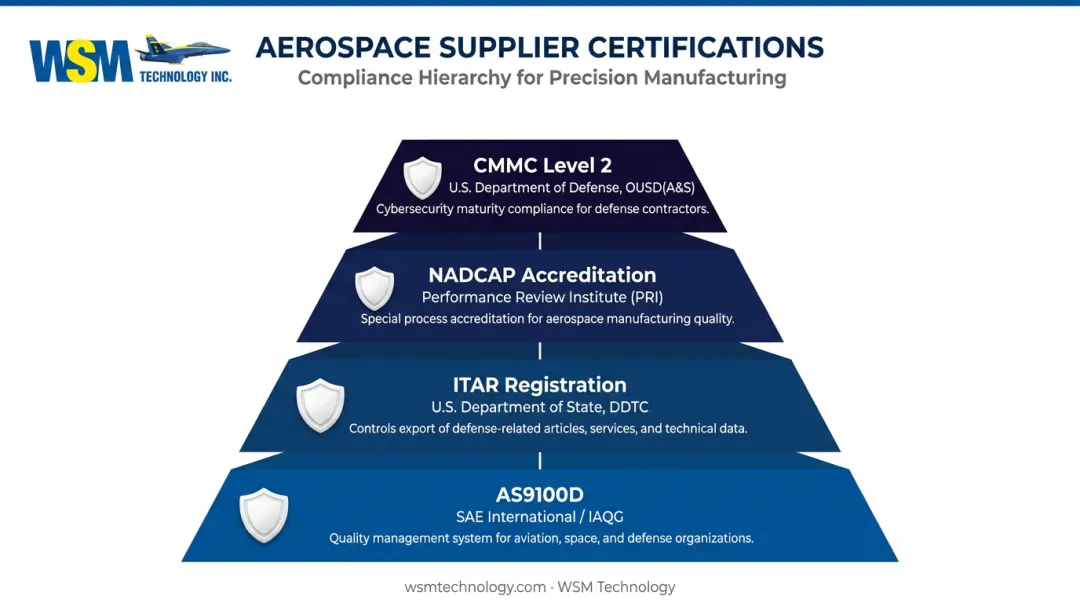

Certifications and Quality System Maturity
AS9100D is the baseline. Its presence means the shop operates under a documented, audited quality management system covering process control, risk management, and corrective action. Verify the certificate scope and site — not just the logo on a website. Coverage of specific processes matters.
Additional certifications by program type:
- ITAR registration — Required under DDTC regulations for any supplier manufacturing or exporting defense articles
- NADCAP accreditation — PRI offers 26 critical process accreditations covering heat treating, NDT, chemical processing, and coatings
- CMMC Level 2 — Required for DoD suppliers handling Controlled Unclassified Information, with either self-assessment or third-party assessment depending on program requirements
Each of these narrows the qualified supplier pool and reflects meaningful investment in compliance infrastructure.
Machining Capabilities and Equipment Portfolio
Request a specific equipment list: machine model, axis count, work envelope, and age. A 3-axis shop cannot competitively produce complex structural aerospace components. Having a 5-axis machine on the floor means little without qualified fixtures, probing, and a proven track record of aerospace part families. Look for shops that routinely run 5-axis simultaneous work — not just shops that own the hardware.
EDM capability is a meaningful differentiator for parts with intricate geometries or hardened material requirements:
- Wire EDM for hard material features and complex profiles
- Die-sinker EDM for cavity work and tooling
- Micro EDM for fine-feature avionics and fuel system components
Suppliers offering both CNC and EDM in-house reduce handoff risk and tolerance stack-up across processes.
Tolerance Capability and Metrology Infrastructure
Any shop can quote a tight tolerance. Cpk data proves they can hold it consistently. Request documented process capability data for the tolerance ranges your parts require — this confirms that precision is repeatable across production runs, not just achievable on the first article.
The metrology infrastructure required to support tight tolerances includes:
- Temperature-controlled inspection rooms (20°C reference per NIST)
- Calibrated CMMs with sub-micron measurement capability
- Measurement uncertainty analyses on file
- Defined decision rules for borderline results near tolerance limits
Ask specifically how measurement uncertainty is managed relative to tolerance band width.
Material Expertise and Proven Experience
Prior work in your specific alloys is non-negotiable. Ask for documented evidence:

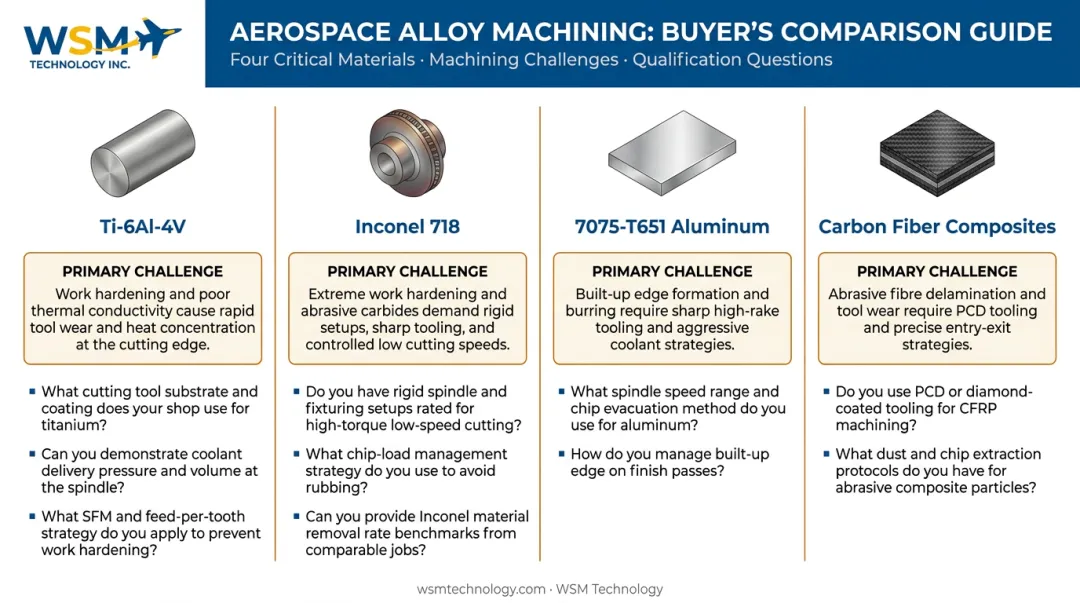

| Alloy | Key Machining Challenge | What to Ask For |
|---|---|---|
| Ti-6Al-4V | Low thermal conductivity, tool wear | Tool life data, heat control strategy, inspection history |
| Inconel 718 | Extreme work hardening | Validated parameters, proven cutting strategy |
| 7075-T651 aluminum | Distortion during machining | Material certs, temper verification, distortion controls |
| Carbon fiber composites | Delamination, tool wear | Delamination controls, dust management evidence |
Material traceability is inseparable from material expertise. Suppliers must maintain documented material certifications (mill certs, heat lot traceability) through every production stage and have a defined process for handling material non-conformances.
Lead Time, Capacity, and Program Management
Strong certifications and capable equipment still fail programs if the shop can't deliver at volume. Pull on-time delivery metrics from the past 12 months and ask directly about current equipment utilization and surge capacity.
Program management maturity signals operational readiness for long-term relationships. Look for:
- Structured ECO (engineering change order) processes
- Non-conformance report containment and root-cause closure evidence
- First-article inspection (FAI) process aligned with SAE AS9102
- Defined timelines for delivery recovery after a nonconformance event
Track Record and Reference Verification
Past aerospace performance is the most direct predictor of future reliability. When evaluating history, focus on three things:
- A list of aerospace or defense programs they've actively supported
- References willing to speak to both quality and on-time delivery
- Repeat business patterns — sustained relationships signal consistent performance
Supplier audits — whether first-party facility visits or documented third-party results — provide ground-level evidence that quality systems are practiced, not just documented. A shop that welcomes open facility tours has nothing to hide and something to prove.
How WSM Technology Supports Aerospace Machining Shops
WSM Technology helps precision machining shops across Northern Ohio, Western Pennsylvania, and West Virginia acquire the high-accuracy machine tools required to meet aerospace-grade tolerances. For shops pursuing or maintaining aerospace supplier qualification, the equipment on the floor determines what's achievable — and what isn't.

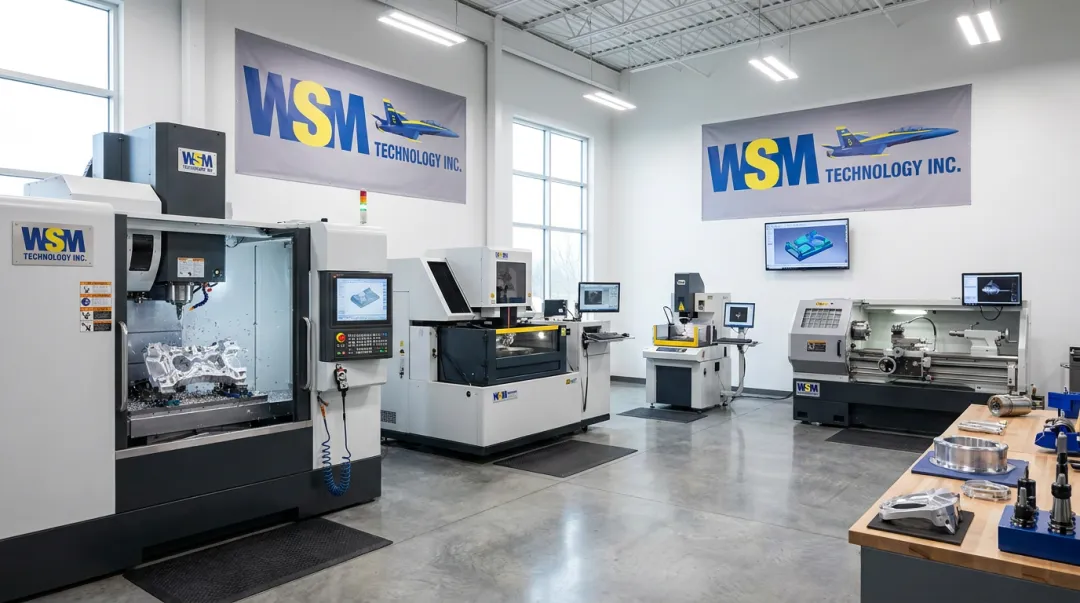

WSM's equipment portfolio maps directly to the capability gaps aerospace shops most commonly need to fill:
- Mitsubishi/MC Machinery Wire and Die-Sinker EDM — The MV1200S Wire EDM features linear shaft motors on X/Y axes, linear glass scales, and submerged cutting technology for tight-tolerance work on hard aerospace alloys
- JINGDIAO High Speed 3 and 5-Axis Milling — For complex contoured aerospace structural parts requiring simultaneous 5-axis capability
- Sarix Micro EDM — Swiss-manufactured micro hole drilling and 3D micro EDM milling for aerospace fuel system components and fine-feature work
- Schaublin Lathes — Over 100 years of Swiss precision turning heritage with more than 250,000 lathes installed globally, suited for aerospace shafts and bearing seats
At the top of the accuracy range, the Roku-Roku Android II — available at WSM's Rootstown, Ohio facility — achieves ±1 micron actual machining accuracy with a 60,000 RPM spindle, 16-sensor thermal compensation, and a Renishaw OMP400 part probe. It represents the precision standard WSM targets across its full equipment portfolio.
Before committing to any investment, shops can validate machine performance through test cuts at WSM's Demonstration Center in Rootstown, Ohio. For shops pursuing aerospace supplier qualification, that proof-of-process step directly affects first-article approval and sustained process capability — making it worth the trip.
Conclusion
The right aerospace machining supplier is the one whose quality systems, material expertise, tolerance capability, and operational reliability match the specific demands of your program — not simply the one with the most machines or the lowest quote.
Supplier qualification is also not a one-time event. Aerospace programs evolve, materials change, and tolerance requirements tighten. The best supplier relationships are built on ongoing technical dialogue, periodic performance reviews, and a shared commitment to continuous improvement. Selection is where that relationship begins; how you manage it determines whether it holds up under program pressure.
Frequently Asked Questions
What is the tolerance for aerospace machining?
Aerospace tolerances are drawing-specific, not universal. In practice, they range from ±0.005" for less critical features down to ±0.001" or tighter for mission-critical interfaces. The specific requirement is driven by design function, assembly fit, and the applicable engineering specification.
Will tightening a tolerance increase manufacturing costs?
Yes, and the relationship is non-linear. Tighter tolerances increase machining time, fixturing complexity, inspection burden, and scrap risk simultaneously. Best practice is to apply tight tolerances only to functionally critical dimensions rather than across an entire part indiscriminately.
What certifications should an aerospace machining supplier have?
AS9100D is the baseline quality management certification. ITAR registration is required for defense-related work. NADCAP accreditation covers special processes such as heat treating, NDT, and coatings. CMMC Level 2 applies to DoD suppliers handling Controlled Unclassified Information.
What materials are commonly machined for aerospace parts?
The most prevalent aerospace alloys are titanium (Ti-6Al-4V), Inconel superalloys (718), aluminum alloys (7075, 6061), stainless steel, and carbon fiber composites. Each presents distinct machining challenges that require specialized equipment and validated process parameters.
What is the difference between EDM and CNC milling for aerospace parts?
CNC milling removes material through rotating cutting tools and handles structural shapes and contoured surfaces. EDM uses electrical erosion to cut hardened materials or intricate geometries where conventional tools would induce unacceptable forces. Most complex aerospace programs require both.
What questions should I ask when auditing a potential aerospace machining supplier?
Start with these four questions:
- What is your AS9100 registration scope, and when was your last surveillance audit?
- Can you provide Cpk data for the tolerance bands my parts require?
- How do you manage material traceability from mill cert to shipped part?
- What is your on-time delivery rate for the past 12 months?
