Introduction
Mold and die shops, aerospace suppliers, and micro molding operations all face the same squeeze: customers want parts faster, but tolerances keep tightening. Many shops respond by pushing heavier cuts through existing machines, only to get chatter, blown-out tool edges, and parts that drift out of spec.
That's aggressive machining forced onto equipment that can't support it—not genuine high-speed performance.
True high-speed CNC machining (HSM) relies on a coordinated approach that syncs spindle speed, feed rate, toolpath strategy, and machine rigidity together. This guide breaks down what HSM actually means, how it works, where it pays off, and how to tell if your shop is ready for it.
Key Takeaways
- Rigidity, tooling, and CAM strategy determine HSM success, not spindle RPM alone.
- HSM spindle speeds range from 15,000 RPM upward, depending on tool and material.
- Trochoidal milling and feed optimization cut cycle time while extending tool life.
- Heavy roughing of large steel blocks still often favors conventional methods.
- Test rigidity and tooling compatibility before switching to avoid costly trial-and-error.
What Is High-Speed CNC Machining?
Defining High-Speed Machining
There's no single RPM number that flips a machine into "high-speed" mode. Instead, HSM is generally defined by a combination of factors: elevated spindle speed, high feed rates, and a shallow depth of cut. Spindle speeds often start around 15,000 RPM and climb well beyond that for small-diameter tooling, while the shallow depth of cut keeps chip load consistent rather than maximizing material removal volume.
This isn't a new idea. The concept traces back to a 1931 hypothesis proposed by German engineer Carl Salomon, who theorized that cutting temperatures rise to a material-specific critical point and then decline as speed increases further (a 2009 technical review of Salomon's hypothesis). Nearly a century later, that principle still shapes how shops think about pushing speed instead of just adding force.
Here's the part shops often miss: RPM alone doesn't create HSM. A machine needs:
- A rigid structure that resists deflection at high acceleration
- Tooling and workholding matched to the spindle's speed range
- CAM programming that maintains consistent engagement
- Controls capable of managing rapid, smooth transitions
Bolt a high-speed spindle onto a machine that wasn't built for it, and you'll get vibration, not precision.

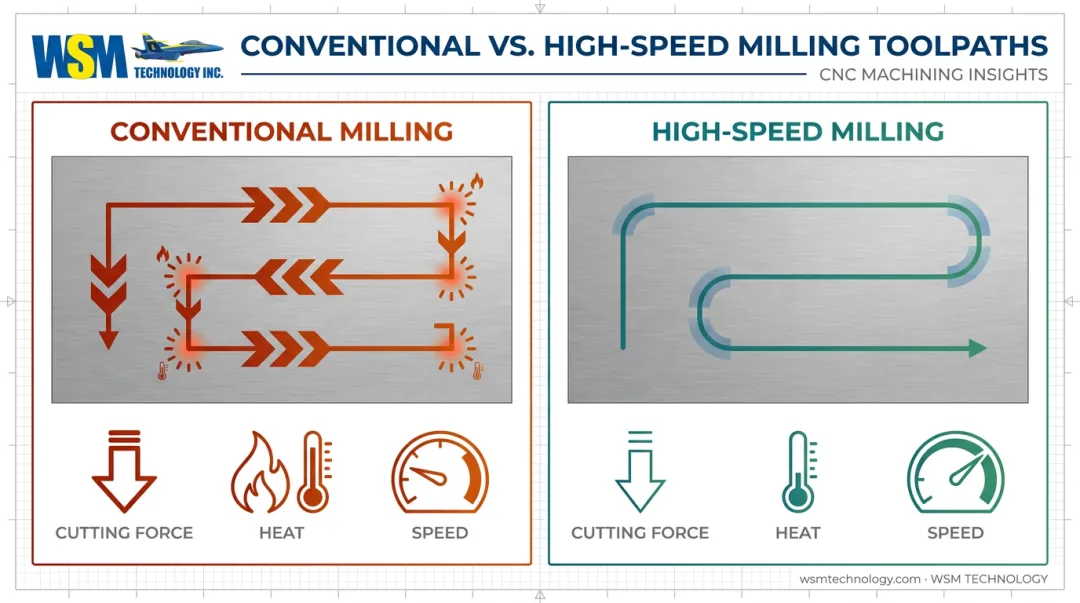

Conventional Milling vs. High-Speed Milling
Understanding those requirements explains why HSM looks so different from conventional milling in practice. Conventional milling relies on heavier cuts, longer tool contact time, and higher cutting forces. It's a proven approach, but it generates more heat and mechanical stress per pass.
HSM flips that script with lighter, faster passes that reduce both thermal and mechanical stress on the tool and part.
| Factor | Conventional Milling | High-Speed Milling |
|---|---|---|
| Cutting strategy | Heavy depth of cut, lower feed | Light depth of cut, high feed |
| Best use case | Large stock removal, loose tolerances | Complex geometry, tight tolerances |
| Surface finish | Often needs secondary finishing | Frequently near-final finish |
| Tool life | Shorter under heavy load | Extended with proper parameters |
| Cycle time | Slower on complex parts | Faster on intricate geometry |
Traditional toolpaths that follow feature contours often create abrupt engagement changes at corners. That forces the control to slow down right when precision matters most. HSM strategies are built specifically to smooth out those transitions instead of fighting them.
How High-Speed Machining Works: Machines, Tooling & Techniques
What It Takes to Machine at High Speed
Running at HSM speeds isn't just a spindle upgrade. The whole machine has to be built for it.
Machine construction needs stiff yet lightweight structures paired with high-acceleration linear guides and ball screws. The CNC control itself needs look-ahead processing and jerk control, meaning it smooths out the rate of acceleration change so the machine doesn't shake itself apart at speed.
Spindle technology matters just as much. High-speed spindles need:
- Minimal runout to keep the cutting edge true at elevated RPM
- Advanced bearing systems, often using lighter ceramic or silicon-nitride elements to handle higher speeds
- Thermal compensation, since heat generated at high RPM can change bearing preload if left unmanaged
Tooling and workholding round out the system. Balanced, short tool assemblies reduce vibration. Shrink-fit or hydraulic holders minimize runout. Heat-resistant coatings help tools survive the thermal load without premature wear.
Skip any one of these pieces, and the system underperforms no matter how fast the spindle spins.
Core HSM Toolpath Techniques
Even with the right hardware in place, the programming side is where HSM truly separates itself from conventional milling.
Trochoidal milling uses overlapping circular tool paths to cut slots wider than the tool diameter while keeping radial engagement low and axial depth higher. It's particularly effective in tough materials where full-slot engagement would overload the cutter.
Radial chip thinning comes into play when radial engagement drops below the cutter's radius. Modern CAM software automatically increases feed to compensate, keeping actual chip thickness consistent instead of letting the tool rub against the material without cutting efficiently.
Two more strategies worth knowing:
- Plunge roughing: directs cutting force axially into the spindle and table rather than laterally, which helps on less rigid setups or deep cavities.
- Smooth cornering and side-stepping: keeps tool engagement predictable through direction changes, avoiding the speed drops that abrupt corners typically force.
Benefits of High-Speed CNC Machining
The payoff of doing HSM correctly shows up in several places at once, not just cycle time.
Key benefits include:
- Cycle time on complex parts. Lighter, faster cuts trim total machining time on intricate geometry. Magellan Aerospace reported a 75%+ cycle-time reduction on an A350 wing-rib part after adopting HSM.
- Extended tool life. Reduced cutting forces and heat mean fewer tool changes and lower per-part tooling costs, especially on hardened die steel where tools often outlast conventional loads.
- Surface finish gains. Fine stepovers and stable engagement often produce near-mirror finishes right off the machine, cutting down secondary polishing for mold and die shops where hand-polishing eats hours.
- Better fit for high-mix, low-volume work. Faster toolpaths let a shop cycle through varied job schedules without tying up a machine for an entire shift.
- Not just for aluminum. With the right tooling and coatings, HSM handles hardened tool steels, titanium, and other tough alloys too.
Published guidance for milling steel above 60 HRC shows just how far HSM extends beyond aluminum work:
| Parameter | Recommended Range |
|---|---|
| Cutting speed | 200-400 sfm |
| Feed per tooth | 1-2% of tool diameter |
| Axial depth of cut | ~5% of tool diameter |
These figures come from hard-milling guidance published by Modern Machine Shop, a far cry from the aluminum-only reputation HSM sometimes carries.
When (and When Not) to Use High-Speed Machining
Best-Fit Applications
HSM earns its keep on work where geometry and tolerance matter more than raw removal rate:
- Thin-walled or delicate parts prone to deflection under heavy cuts
- Complex 3D and 5-axis geometries, like molds, impellers, and medical implants
- Hardened tool steels requiring fine detail work
- Prototyping and short-lead-time jobs where setup speed matters
These use cases map directly onto the shops that lean on HSM most heavily: mold and die makers, micro molding operations, and aerospace suppliers. These industries live and die by tight tolerances and fine surface detail.
When Traditional Machining Still Makes Sense
HSM isn't the answer for everything. Conventional methods often win when:
- Heavy roughing large steel blocks with loose tolerances
- High-volume production runs with straightforward geometry
- Machines lacking the rigidity or RPM capability HSM demands
Here's the real risk: forcing HSM toolpaths onto a machine that wasn't built for it. Instead of faster cycles, you get chatter, premature tool wear, and in worst cases, spindle damage. Match the platform to the process, or the speed advantage disappears entirely.
Choosing the Right High-Speed Machining Partner
Successful HSM adoption comes down to matching the right machine platform, spindle configuration, and tooling to your specific application. Buying a faster spindle and hoping for the best isn't a strategy.
WSM Technology added the JINGDIAO High-Speed Mill to its lineup, available in both 3-axis and 5-axis configurations. The addition gives shops across Northern Ohio, Western Pennsylvania, and West Virginia direct access to precision high-speed milling for mold, die, and micro-mechanical work.

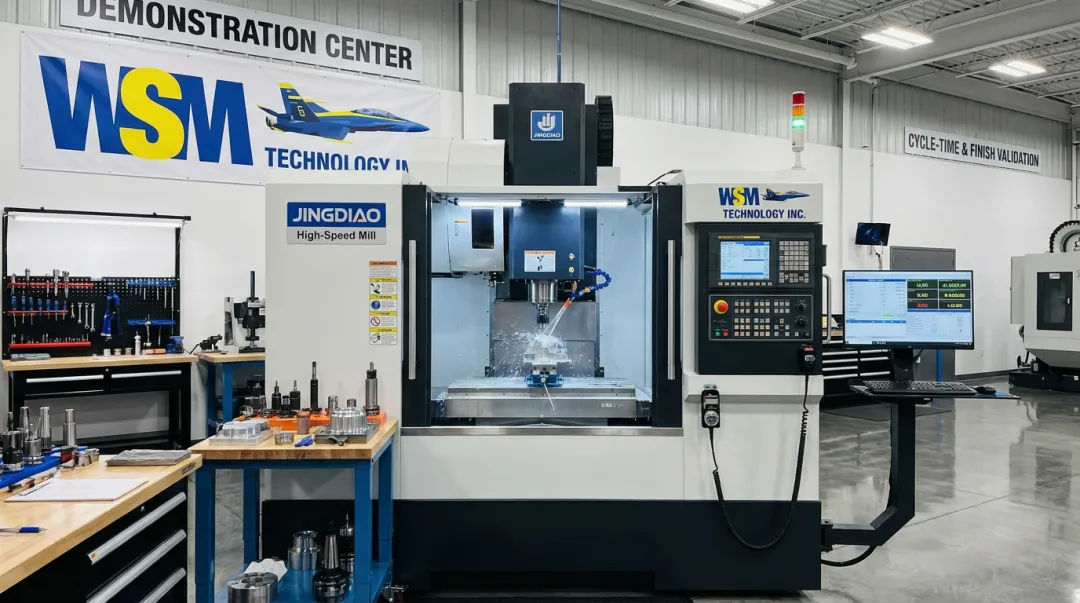

Before committing capital, it helps to see performance on your own parts, not a demo reel. That's exactly what WSM's Demonstration Center in Rootstown, Ohio is built for. Shops can run test cuts and time studies on their own geometry and materials to validate real cycle-time and finish improvements before purchasing.
WSM also backs the transition with a turnkey approach:
- Installation and setup support
- Operator and programming training
- Ongoing technical and application engineering support
That combination matters most for shops moving from conventional machining for the first time, where the learning curve, not the equipment, is usually the biggest risk.
Frequently Asked Questions
What is considered high speed machining?
HSM is generally defined by spindle speeds of roughly 15,000+ RPM combined with high feed rates and light depth of cut. The true definition depends on how the whole machining system performs together, not RPM in isolation.
What RPM range qualifies as high-speed machining?
HSM typically starts around 15,000 RPM. Specialized micro-machining spindles can reach 60,000 RPM or higher, depending on tool diameter and application.
Is high-speed machining better than conventional CNC milling?
Not universally. HSM excels at complex, precision parts and fine finishes, while conventional milling remains more efficient for heavy roughing of large stock.
Can high-speed machining handle hard materials like titanium or hardened steel?
Yes. With the right tooling, coatings, and toolpath strategy, HSM is effective on hardened steels, titanium, and Inconel (not just aluminum and softer metals).
What industries use high-speed CNC machining the most?
Aerospace, mold and die, medical device, and micro molding shops lead adoption, largely because their work demands tight tolerances and complex geometries.
Do I need to buy a new machine to do high-speed machining?
Generally, yes. True HSM requires machine rigidity, spindle capability, and controls built for it, so shops with older equipment often need a purpose-built high-speed mill. WSM Technology's Rootstown demonstration center lets shops test-cut parts on JINGDIAO high-speed mills before buying.
