Introduction
In precision manufacturing, the difference between a component that works and one that fails can be measured in microns. A fuel injector needle that's off by a few ten-thousandths of an inch won't seal. A surgical guidewire with inconsistent roundness won't track. The tolerances are unforgiving.
Centerless grinding is the process that makes micron-level accuracy achievable at production scale — not by clamping a part tightly, but by letting physics and geometry do the work. The workpiece floats between two wheels and a blade, self-centering on its own outer diameter while material is removed at tight, repeatable tolerances.
This article covers the mechanics, the three grinding methods, the variables operators control, and which industries depend on it most.
Key Takeaways:
- The 1:1 material removal ratio (vs. 2:1 in conventional OD grinding) makes each wheel movement twice as precise
- Three components — grinding wheel, regulating wheel, and work blade — govern all precision outcomes
- Through-feed, in-feed, and end-feed methods each serve different part geometries and production volumes
- Variables including wheel angles, blade height, and coolant pressure directly determine final tolerance
How Centerless Grinding Works: The Three-Component System
Centerless grinding is an outside-diameter (OD) material removal process where the workpiece is never clamped between centers or held in a chuck. Instead, the part rests freely on a work blade between two rotating wheels, self-centering on its own outer diameter. That single distinction — no fixturing — is what makes the process so effective.
The Grinding Wheel
The grinding wheel is the larger, faster-spinning abrasive wheel that removes material from the workpiece surface. Resin-bond centerless wheels typically run at 6,500–9,500 SFPM; vitrified-bond wheels at around 6,500 SFPM. Rotational speed, wheel diameter, abrasive grain type, and grit size each influence both the rate of material removal and the achievable surface finish. Coarser grits remove material faster; finer grits produce smoother surfaces at the cost of cycle time.
The Regulating Wheel
The regulating wheel is the smaller, slower-spinning wheel on the opposite side of the workpiece. It does two things simultaneously: controls the part's rotational speed and, when tilted at a slight angle, generates the axial force that moves the part through the grinding zone during through-feed operations.
According to Norton Abrasives, the through-feed angle of inclination is typically +1 to +3 degrees; Buffalo Abrasives specifies 3 degrees as their standard.
The regulating wheel runs considerably slower than the grinding wheel — Buffalo lists feed regulating wheel speed at 90–100 SFPM. That speed differential is what keeps the part rotating steadily against the grinding wheel rather than spinning freely.
The Work Blade
The work blade (or work rest) supports the workpiece between the two wheels. Blade height and angle directly affect part stability, roundness, and the tendency for chatter.
A few key parameters from established abrasive suppliers:
- Most common blade top angle: 30 degrees; typical range 20–45 degrees
- For work 1/2" diameter and larger: 20–30 degrees is recommended
- Work center height: Set at half the part diameter above the wheel centerline; 5/8" maximum
The workpiece center is deliberately positioned slightly above the centerline of both wheels. This geometry enables the self-centering action: any out-of-round condition gets progressively corrected as the part rotates.
Why This Beats Conventional Grinding
With all three components working together, the process achieves something conventional grinding cannot. In traditional cylindrical OD grinding, the part is held on its centerline axis. Every 0.001" of wheel infeed removes 0.002" from the diameter — a 2:1 ratio. KMM Group notes that in centerless grinding, the part floats against the regulating wheel, so each 0.001" of infeed removes only 0.001" from the diameter.

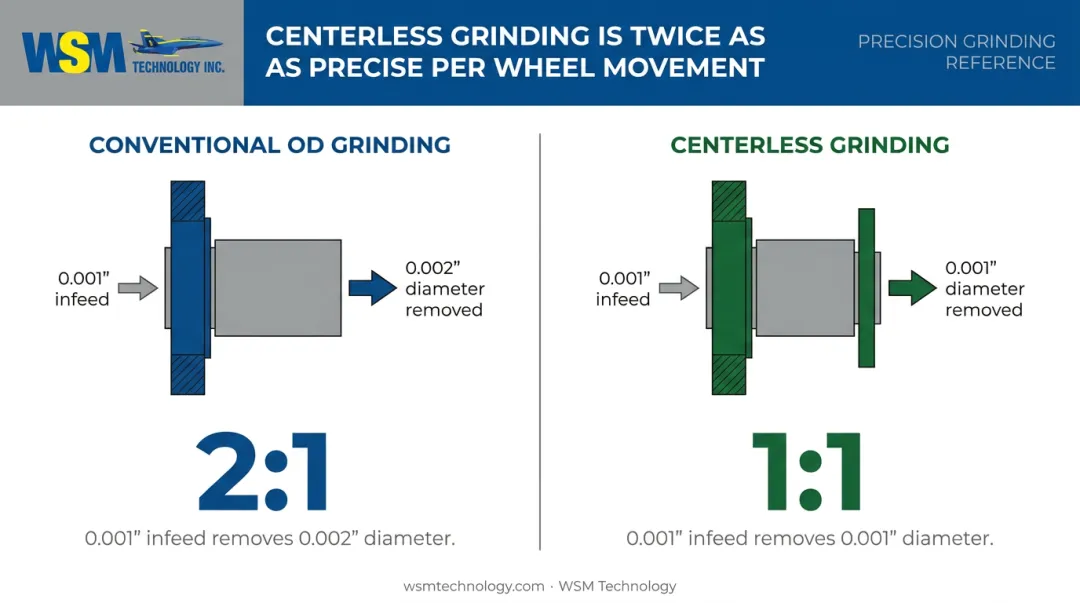

That 1:1 ratio makes centerless grinding inherently twice as precise per unit of wheel movement:
| Grinding Method | Infeed | Diameter Removed | Ratio |
|---|---|---|---|
| Conventional OD Grinding | 0.001" | 0.002" | 2:1 |
| Centerless Grinding | 0.001" | 0.001" | 1:1 |
The Precision Advantage Over Traditional OD Grinding
Because the workpiece references its own outer diameter rather than a fixed mechanical center, the grinding action naturally promotes roundness with each pass. Minor deformations get continuously corrected rather than locked in. That geometry is what makes the 1:1 material removal ratio meaningful in practice.
No Fixturing, No Distortion
Traditional grinding introduces multiple error sources: center hole runout, chuck jaw distortion, collet grip inconsistency. In centerless grinding, none of those exist. The part contacts the grinding wheel uniformly across its surface, which is why the process can hold tolerances that other methods struggle to achieve.
The precision achievable is well-documented in medical manufacturing contexts. Today's Medical Developments reports that surgical tools 0.1320" in diameter can be profile ground to better than 0.0001" with mirror finishes of 3Ra to 5Ra.
Glebar's GT-610 centerless grinder lists roundness capability better than 0.00004" and diameter resolution better than 0.00005". These aren't universal guarantees — tolerance outcomes depend on machine condition, setup, material, and part geometry. But they reflect what the process architecture makes possible.
Support Without Deflection
Because the workpiece is continuously supported between the regulating wheel and work blade, there is no deflection during grinding — even on long, slender parts with high length-to-diameter ratios that would flex in a lathe or between-centers grinder. PMPA confirms that the workpiece is rigidly supported and there is no deflection during grinding.
Brittle Materials, No Axial Thrust, and High-Volume Consistency
Centerless grinding also imposes no axial thrust. The absence of end pressure makes it possible to grind long pieces of brittle materials like ceramics and carbides without fracture risk, as PMPA notes — an advantage turning simply cannot match on fragile workpieces.
That same process consistency scales directly to volume. In through-feed mode, parts move continuously through the grinding zone with minimal loading time. Precision doesn't degrade as batch size increases; the process conditions stay the same for part 1 and part 10,000.

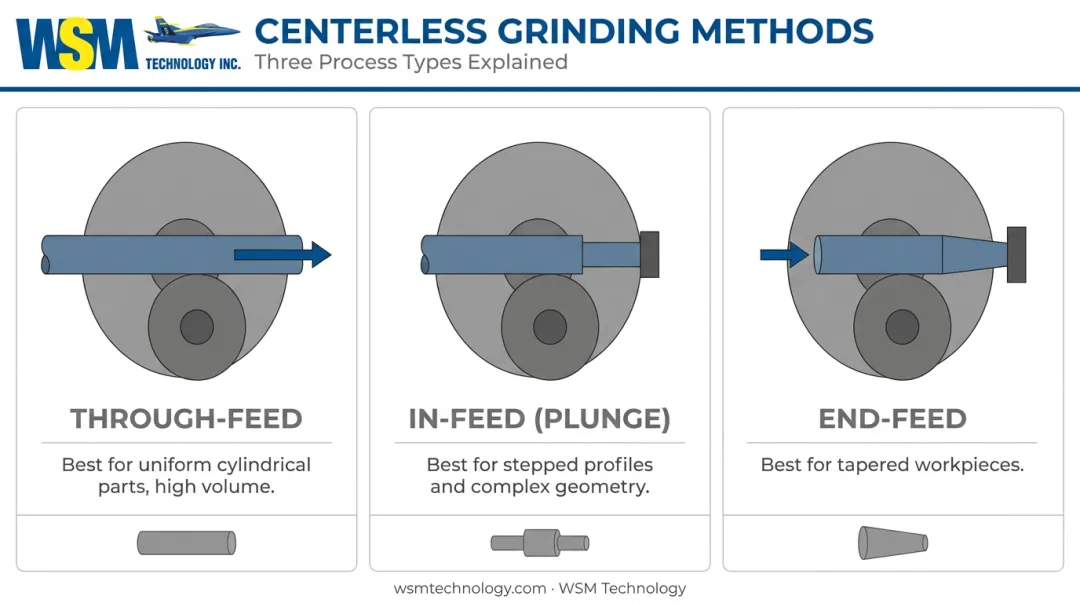

The Three Methods of Centerless Grinding
Through-Feed Grinding
Through-feed (also called traverse-feed) grinding moves the workpiece completely past the grinding wheel in a straight line without stopping. The regulating wheel, tilted at its slight angle, drives the part axially through the grinding zone while simultaneously controlling its rotation.
This method is best suited for high-volume production of cylindrical parts with uniform cross-sections. It's the most productive of the three methods because parts flow continuously — one exits as the next enters. Typical applications include:
- Shafts, pins, and rods
- Bar stock and needle rollers
- Bearing components
In-Feed Grinding
In-feed (plunge) grinding loads the workpiece onto the work blade; the regulating wheel feeds it into the grinding wheel to a predetermined depth. An end stop prevents axial travel — the part stays put while the wheel does its work.
This method handles parts with complex profiles, multiple diameters, or shoulders where shape replication across the wheel width is required. Common applications include:
- Stepped pins and gear shafts
- Medical implant components
- Titanium aerospace fasteners
- Transmission bushings
End-Feed Grinding
End-feed grinding follows a similar path to through-feed, except an end stop halts the part before it exits the grinding zone — the wheel completes the cut before the part is retracted. It's used primarily for tapered workpieces, where both the grinding and regulating wheels are dressed to create the required taper geometry across the part's length. This method handles headed or tapered forms that would be difficult to process with either of the other two approaches.
Critical Variables That Control Precision Outcomes
Wheel Selection
Wheel selection is as integral to machine setup as any mechanical parameter. Conventional aluminum oxide wheels are well-suited for most steel and general-purpose applications. Superabrasive wheels (cubic boron nitride for ferrous metals, polycrystalline diamond for non-ferrous and exotic materials) offer advantages on hard or difficult-to-grind materials:
- Longer wheel life between dressing cycles
- Better thermal conductivity at high contact temperatures
- Superior performance on carbides and hardened steels
- Reduced dressing frequency, which improves process consistency
Wheel and Blade Angles
The height of the workpiece above the wheel centerlines, the regulating wheel angle, and the blade angle all interact to determine roundness and stability. Get any one of them wrong and the consequences are predictable:
- Too high: Chatter
- Too low: Out-of-round conditions
- Regulating wheel angle too acute: Tapering and uneven wear
- Too parallel: Risk of parts stalling or a wheel crash
Blade angle must be matched to the work diameter. A 30-degree angle is most common; wider work typically requires 20–25 degrees to control pressure and suppress chatter.
Coolant Management
Cutting Tool Engineering reports that a grinding wheel spinning at 12,000 SFPM creates an air boundary layer that requires nearly 270 psi of nozzle pressure to penetrate. Without proper coolant penetration reaching the grinding zone, heat builds up in the workpiece — making it impossible to hold roundness and straightness tolerances, and risking thermal damage to both part and wheel.
In centerless grinding specifically, that air barrier can also reduce friction between the regulating wheel and workpiece, causing slippage and requiring more frequent wheel truing. SME flow rate guidelines for most applications:
- Untested cycles: 25 gpm/inch
- General reference: 1.5–2.0 gpm/hp
Dressing Cycle and Wheel Condition
Grinding wheels must be periodically re-profiled with a diamond dresser to maintain geometry and cutting sharpness. An out-of-profile or loaded wheel degrades part precision directly — no amount of setup compensation overcomes a wheel that can't cut cleanly.

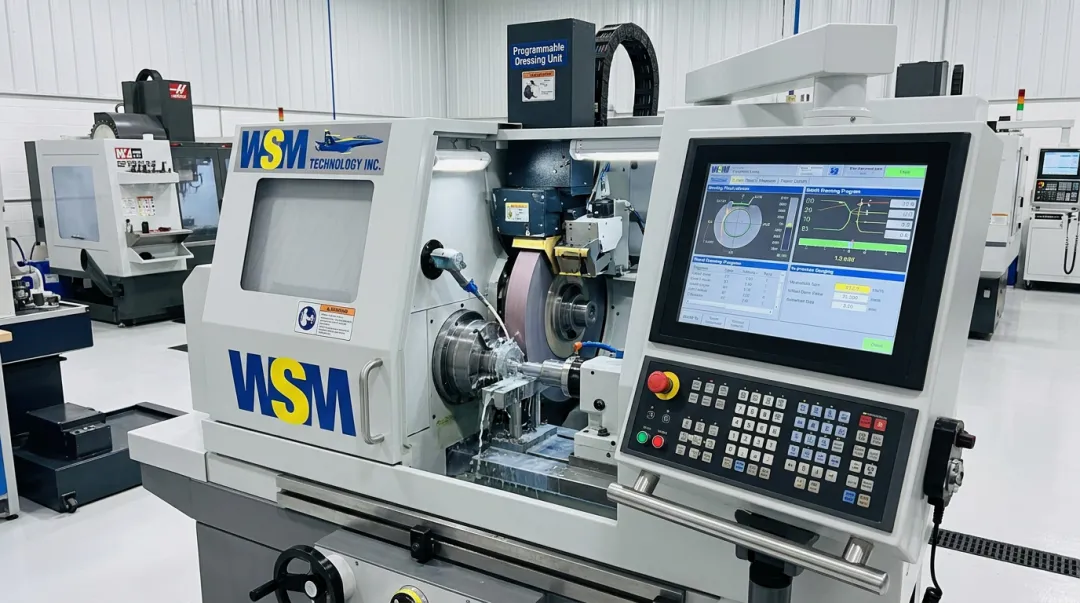

Modern CNC centerless grinders like the Glebar GT-610 address this with programmable dressing cycles that trigger automatically after a set number of parts. Combined with automatic size compensation and 100% inspection capability, that level of automation substantially reduces setup-to-setup variation compared to manually managed dressing schedules.
Operator Skill and CNC Controls
Centerless grinding has traditionally been learned through years of shop-floor experience. The interactions between wheel geometry, blade angle, regulating wheel speed, and coolant pressure are difficult to teach in a classroom; they're learned through repetition and failure on the shop floor.
Modern CNC centerless grinders reduce some of that dependency. Programmable controls now handle:
- Wheel speeds and infeed rates
- Dressing cycles with automatic compensation
- Robotic loading and unloading
Even so, fundamental process knowledge remains essential. A CNC controller will execute a programmed cycle exactly as written — if the underlying parameters are wrong, it will produce scrap just as consistently.
Real-World Applications Across High-Stakes Industries
Automotive and Fluid Systems
Centerless grinding is well-suited to the high-volume, tight-tolerance demands of automotive production. Glebar documented a specific process development for fuel-injection nozzle valves using the GT-610 CNC — a part family where diameter consistency and surface finish directly affect fuel atomization and injector sealing.
Common automotive centerless applications include:
- Fuel-injection nozzle valves requiring consistent diameter and surface finish
- Transmission bushings ground to tight bore-fit tolerances
- Needle rollers and cylindrical rolling elements where roundness determines bearing life
- Cylindrical bearing components produced at high volumes with uniform geometry
Aerospace and Defense
In aerospace, dimensional tolerances are governed by strict quality standards. Suppliers like United Centerless operate under AS9100 certification to demonstrate that rigor. Common centerless-ground parts include:
- Titanium aerospace fasteners and bolt shanks
- Bushings and studs
- Hydraulic cylinder rod components
The consistent repeatability of through-feed centerless grinding across large batch runs makes it practical for aerospace. The process produces part 5,000 with the same geometry as part 1, without operator-to-operator variation.
Medical Devices and Micro-Mechanics

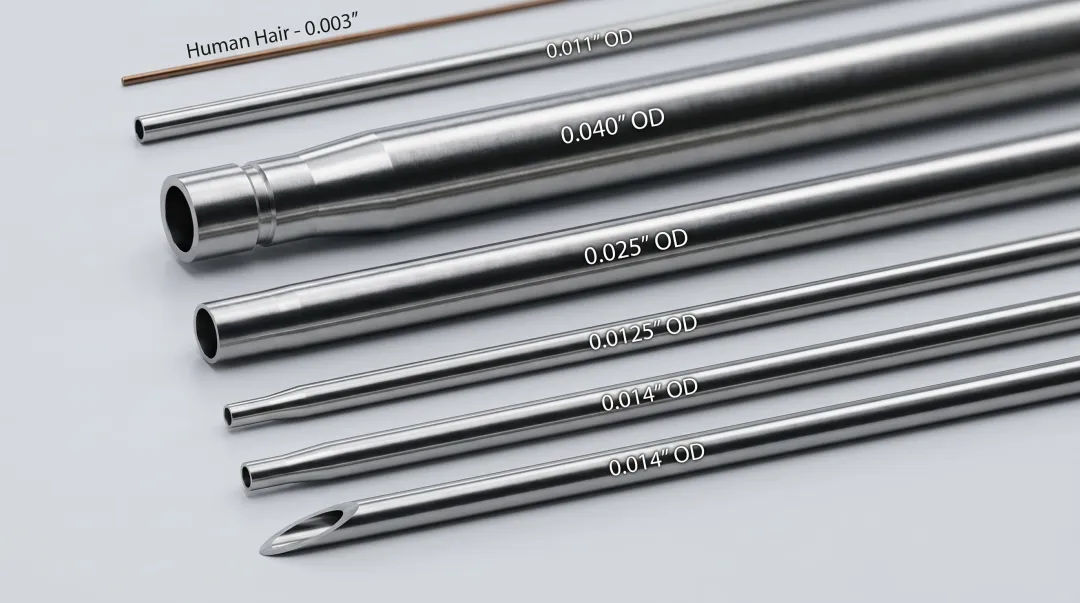

Medical manufacturing is where centerless grinding's precision advantage is most clearly documented. Wytech, an ISO 13485-certified medical grinding specialist, produces PTCA guidewires, neurovascular core wires, catheter mandrels, and hypotubes with:
- Outside diameters as small as 0.003"
- Diameter range from 0.003" to 0.375"
- Tolerances to ±0.0001" on nitinol and stainless steel
The process's ability to produce perfectly straight, round parts without clamping distortion is critical for implantable or interventional devices. A hypodermic needle that isn't truly round doesn't penetrate cleanly. A guidewire with diameter variation won't track predictably through a vessel.
When Centerless Grinding Is — and Isn't — the Right Choice
When It's the Right Process
Centerless grinding performs at its best under these conditions:
- High-volume production of cylindrical or near-cylindrical parts
- Tight diameter tolerances where fixturing-induced error is unacceptable
- High length-to-diameter ratios that would cause deflection in turning
- Fine surface finish requirements on OD surfaces
- Post-machining OD correction where turned parts need final roundness improvement
For shops processing large quantities of pins, shafts, or rods, centerless grinding can replace turning entirely for finishing operations — with better accuracy and higher throughput.
When It Isn't
Centerless grinding has real limitations. It struggles with:
- Interrupted surfaces — keyways, flats, and slots prevent the workpiece from rotating uniformly against the regulating wheel
- Small batch sizes — setup can be time-consuming relative to the cycle time saved
- Complex 3D geometries — the process doesn't support multiple axes operating simultaneously on the workpiece
- Simultaneous OD and ID operations — parts needing both require separate operations or different equipment

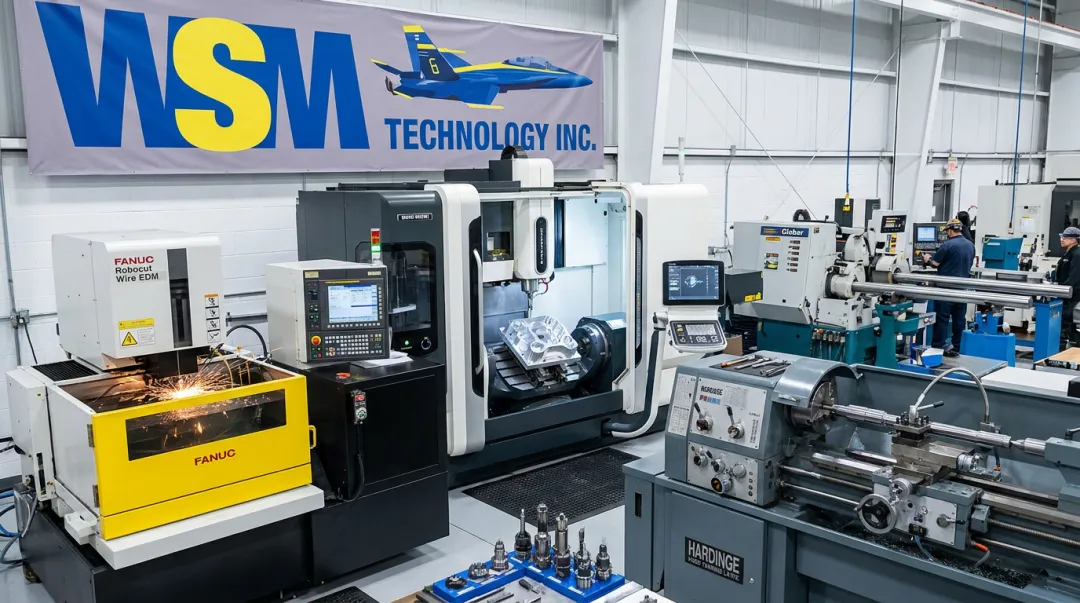

When a part falls outside centerless grinding's strengths, geometry and material determine which process fits. WSM Technology's complementary portfolio covers those gaps:
- Mitsubishi wire and sinker EDM for hard materials and intricate forms
- JINGDIAO high-speed 5-axis milling for precision 3D geometry
- Hembrug hard turning as a grinding alternative for rotationally symmetric hardened components
Together, these technologies complete the manufacturing workflow where centerless grinding stops.
WSM Technology represents Danobat Centerless Grinders alongside these complementary technologies, and their team offers test cuts, time studies, and application engineering support at the demonstration center in Rootstown, Ohio — so manufacturers can evaluate whether centerless grinding is the right fit before committing to equipment.
Frequently Asked Questions
What does precision mean in precision centerless grinding?
Precision means holding tight dimensional tolerances across diameter, roundness, and straightness while achieving fine surface finishes. The 1:1 material removal ratio, continuous workpiece self-centering, and precise control of wheel speeds, angles, and coolant flow all determine how tight those tolerances can be held.
What is the difference between centerless grinding and cylindrical grinding?
Cylindrical grinding holds the workpiece between centers or in a chuck, producing a less efficient 2:1 material removal ratio. Centerless grinding supports the part on its OD without fixturing, achieves a 1:1 ratio, and cuts out the setup time required for center drilling and workholding.
What are the three types of centerless grinding?
Through-feed moves the workpiece completely through the grinding zone — best for uniform cylindrical parts at high volume. In-feed (plunge) holds the part stationary for stepped or complex profiles. End-feed stops the part at an end stop and is used primarily for tapered workpieces.
How does the regulating wheel control precision in centerless grinding?
The regulating wheel controls the workpiece's rotational speed and, through its angular tilt, the axial feed rate. Both determine how much material is removed per revolution and how uniformly round the finished part becomes. Even a fraction of a degree off on the tilt angle can shift the feed rate enough to push a part outside tolerance.
What are the main limitations of centerless grinding?
The process struggles with interrupted surfaces like keyways and flats, is less economical for small batch sizes due to setup complexity, and cannot handle simultaneous OD and ID grinding or complex 3D geometries requiring multi-axis material removal.
What industries rely most on centerless grinding?
Automotive, aerospace, medical device manufacturing, oil and gas, and tool and die rely on centerless grinding most heavily. Each of these sectors demands the tight diameter tolerances and fine surface finishes the process is built to produce — think fuel injector components, titanium fasteners, guidewires, and hydraulic rods.
