EDM Filters

An EDM filter is a consumable component used in EDM machines to remove particles and contaminants from the dielectric fluid during machining. Clean dielectric fluid is critical for maintaining consistent cutting accuracy, preventing machine damage, and achieving fine surface finishes in Wire EDM, Sinker EDM, and Micro EDM operations.

EDM filter replacement frequency depends on machine usage intensity, material being machined, and the volume of dielectric fluid processed. As a general guideline, filters should be replaced when flow rate drops, dielectric conductivity rises, or surface finish quality deteriorates. Regular monitoring ensures consistent machining performance and prevents costly machine downtime.

EDM filters vary by machine make and model. WSM Technology supplies filters compatible with Mitsubishi EDM machines and a range of other EDM equipment. It is important to match the filter specification to your machine's flow rate, port size, and filtration rating. Contact WSM's technical team for guidance on the correct filter for your specific machine.

Wire EDM machines typically use deionized water as the dielectric fluid, while Sinker EDM machines commonly use dielectric oil. EDM filters are designed to handle the specific contaminants generated in each process — metallic particles and resin fines in water-based systems, and carbon and metallic debris in oil-based systems. Always use filters rated for your specific dielectric fluid type.

Yes. Using an incorrect filter can restrict fluid flow, cause pressure buildup, or allow contaminants to pass through, leading to poor surface finishes, inaccurate cuts, and potential damage to the machine's pump and dielectric system. Always verify filter specifications including micron rating, flow capacity, and fitting dimensions before installation.

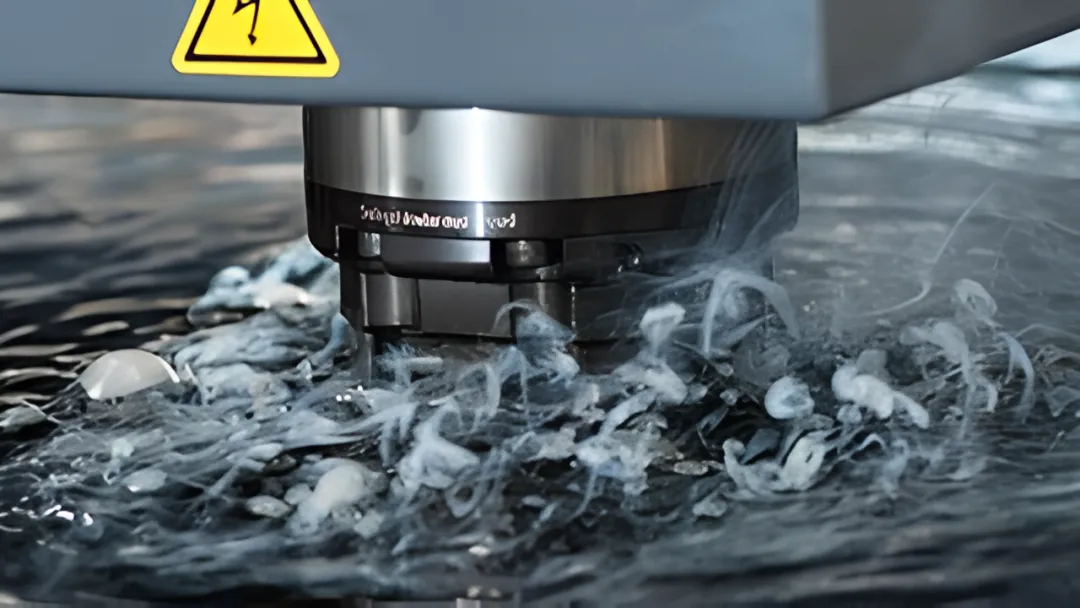

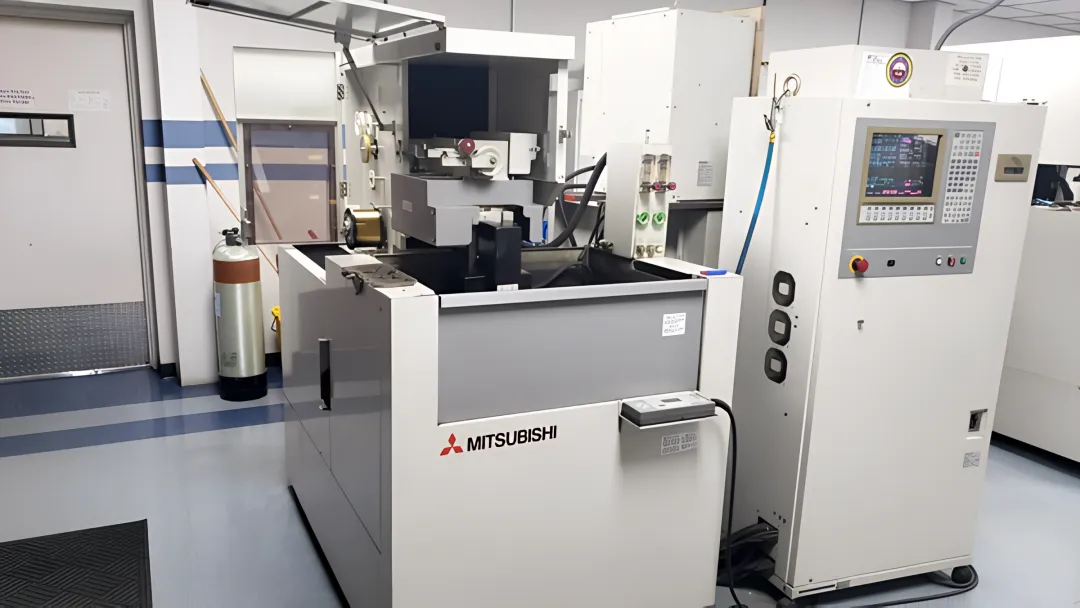

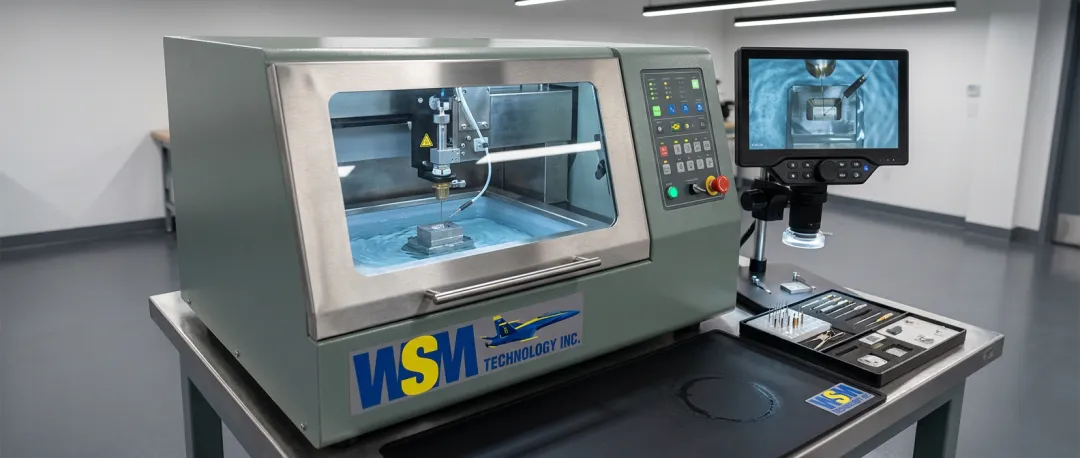

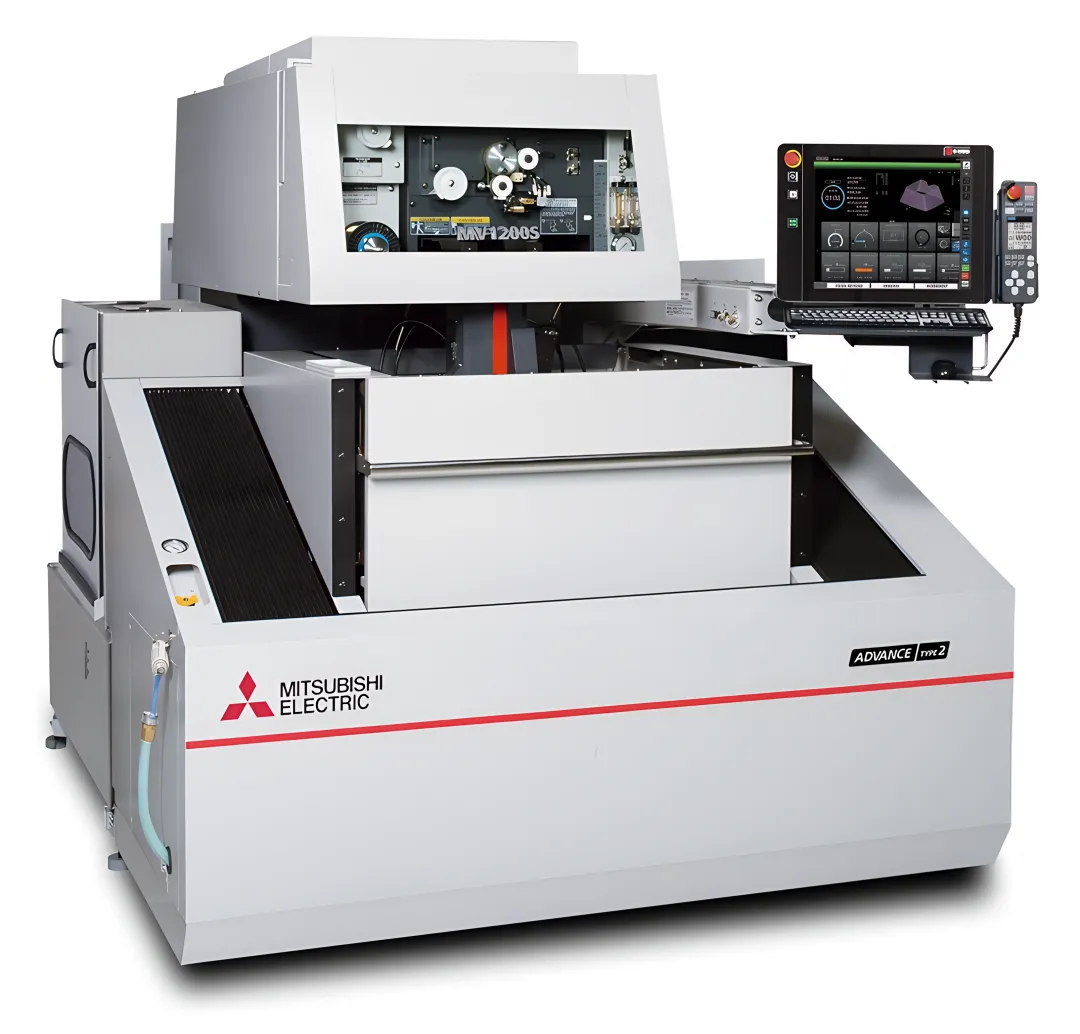

EDM filters support precision applications across mold and die making, aerospace, automotive, and micro machining industries. In mold and die production, filters ensure precise, contaminant-free cutting; in aerospace, they support tight-tolerance component machining with consistent surface integrity; in automotive, they enable reliable dielectric maintenance for tooling and die casting molds; and in micro machining, fine-micron filtration is critical for producing miniature, high-accuracy components.

WSM Technology supplies EDM filters and other consumables including wire and resin tanks across Northern Ohio, Western Pennsylvania, and West Virginia. As an authorized Mitsubishi EDM dealer with a local presence, WSM offers product consultation, competitive pricing, and regional availability. Contact the WSM team directly for pricing and availability for your specific machine.
