This is exactly why turning between centers has survived since the earliest lathe designs. Instead of cantilevering the part from one end, you support it at both ends, headstock and tailstock, eliminating the whip and the guesswork.
This guide covers how the process works, the tooling involved (live vs. dead centers), the real benefits, and how to choose equipment that keeps this old technique performing at modern tolerances.
Key Takeaways
- Supporting the workpiece at both ends dramatically reduces deflection versus single-end chucking
- The method requires center-drilled holes plus a driving mechanism like a dog and catchplate
- Live centers rotate with the work; dead centers stay fixed and need lubrication
- Long, slender, or precision shafts in mold, aerospace, and automotive work rely on this technique
- CNC turning centers still build on this same centering principle for repeatable accuracy
What Is Turning Between Centers?
Turning between centers is a lathe operation where the workpiece is mounted between a center in the headstock and a center in the tailstock, rather than gripped in a chuck. Each center seats into a tapered hole machined into the workpiece, and this interface — a 60-degree included angle is standard in the US — establishes the rotational axis.
This isn't a new idea. According to Ohio State's engineering program, the modern engine lathe traces back to the Industrial Revolution and British toolmaker Henry Maudslay. Turning between centers has remained a core technique ever since.
The key difference from chucking: a chucked part is cantilevered from one end, like a diving board. A part between centers is supported on both ends. Less overhang, less deflection, better accuracy.
One distinction matters in search results: "turning between centers" is a workholding method, not a machine type. A "turning center" is a CNC-controlled lathe. The two terms get mixed up constantly, but they describe different things entirely.

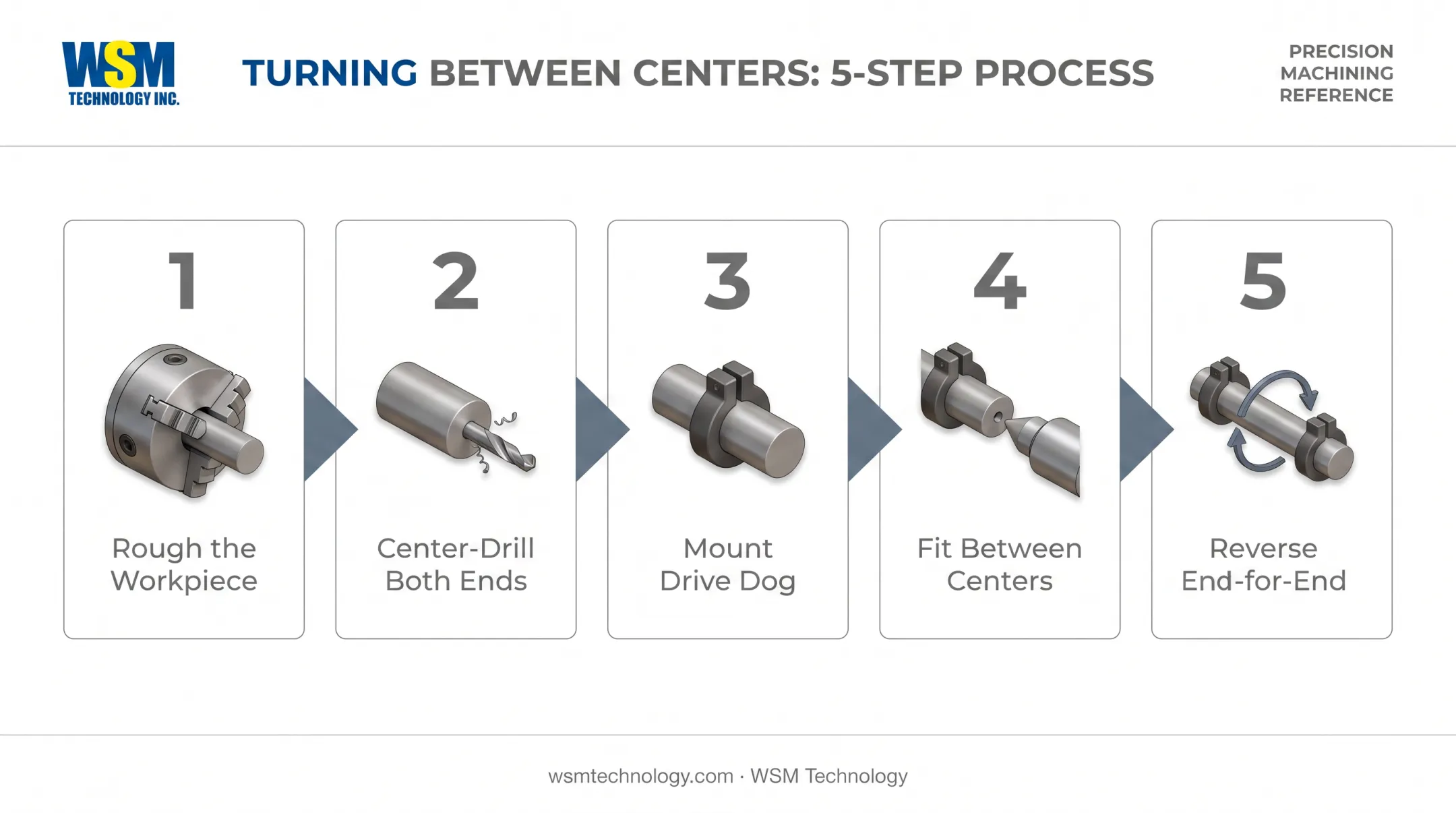

How Turning Between Centers Works
The process follows a logical sequence, and skipping steps is how concentricity problems creep in.
- Rough the workpiece. Start in a chuck or collet to true up the stock and establish the basic form before anything gets center-drilled.
- Center-drill both ends. Use a combination center drill to cut conical seating points matching the taper of your centers. A poorly matched or damaged center hole is one of the most common sources of runout in this operation.
- Mount a drive dog. Centers alone provide almost no friction. A dog clamps around the workpiece and its tail engages a slot in the face plate or drive plate, transmitting torque without touching the machined surface.
- Fit the part between centers. One center sits in the headstock-mounted catchplate or driver, the other in the tailstock. Adjust the tailstock to apply just enough tension: too little and the part chatters; too much and you risk binding or heat buildup.
- Reverse end-for-end when needed. Flip the part and remount it to machine features on the opposite side while holding the same axis. Shops also use this setup to verify tailstock-to-headstock alignment by checking indicator readings on opposing sides after a 180-degree spindle rotation.

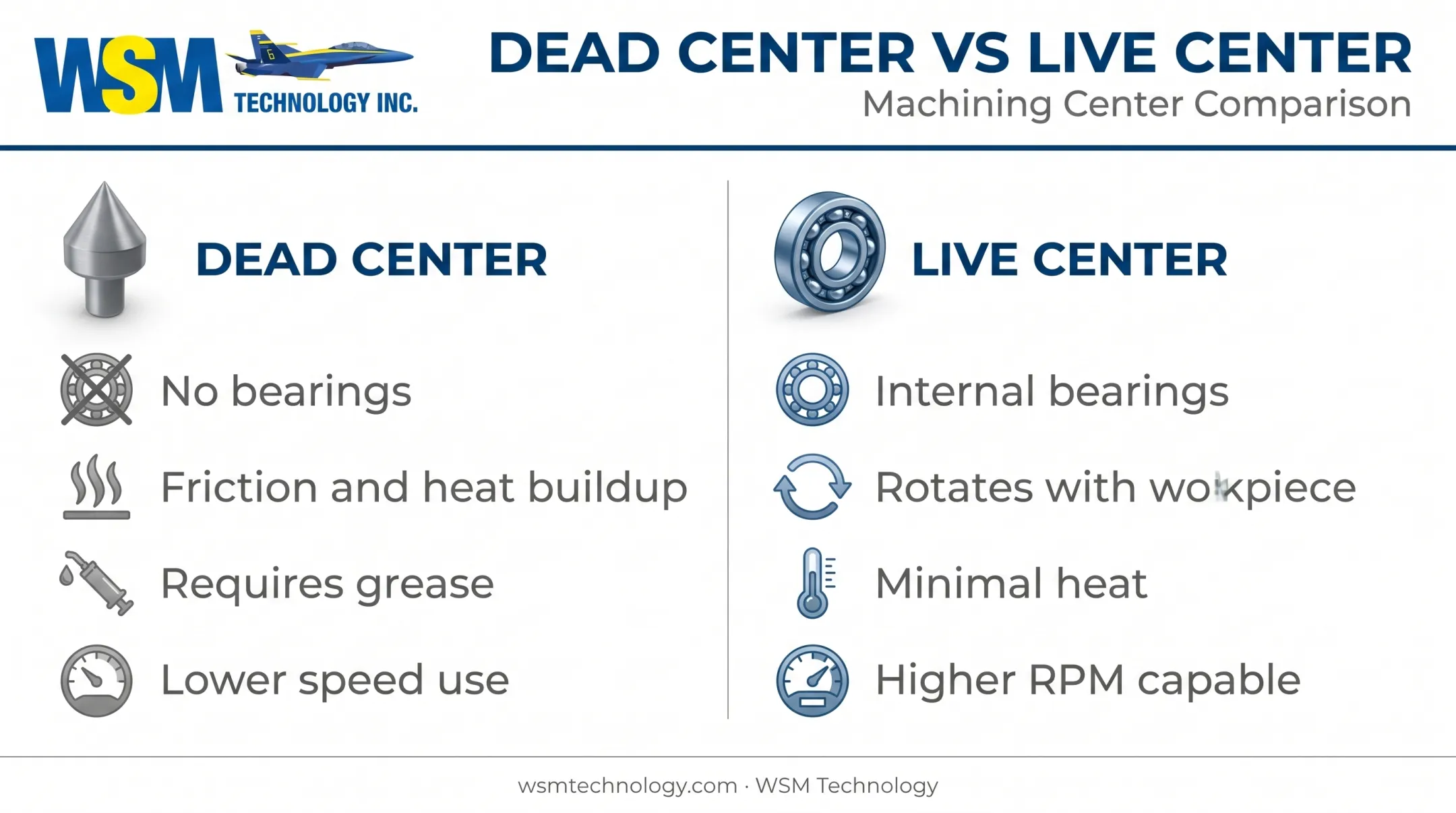

Live Centers vs. Dead Centers
This is probably the most common question machinists have about turning between centers, and the answer comes down to bearings.
Dead centers are solid, non-rotating points. The workpiece spins around them, which means friction and heat build up at the contact point. That's why dead centers require grease and typically run at lower speeds.
Live centers contain bearings, so the center itself spins with the workpiece. Less friction, less heat, and the ability to run at much higher speeds.
When to Use Each
- Dead centers — extreme precision work, low-speed finishing, situations where any bearing play is unacceptable
- Live centers — production runs, higher RPM work, anything where heat buildup would compromise accuracy over a long cycle
There's no single universal RPM cutoff between the two. Riten notes that most standard lathes stay under 5,000 RPM, with high-speed applications above 6,000 RPM requiring specialized models — some CNC-rated live centers push past 12,000 RPM. Always check the manufacturer's specific rating rather than assuming a blanket number.
Centers are only part of a between-centers setup. Related accessories include catch plates (transmit spindle rotation to the dog), lathe dogs (clamp the workpiece and engage the plate), and mandrels (support bored parts from the inside when you are not working with a solid shaft).
Benefits of Turning Between Centers

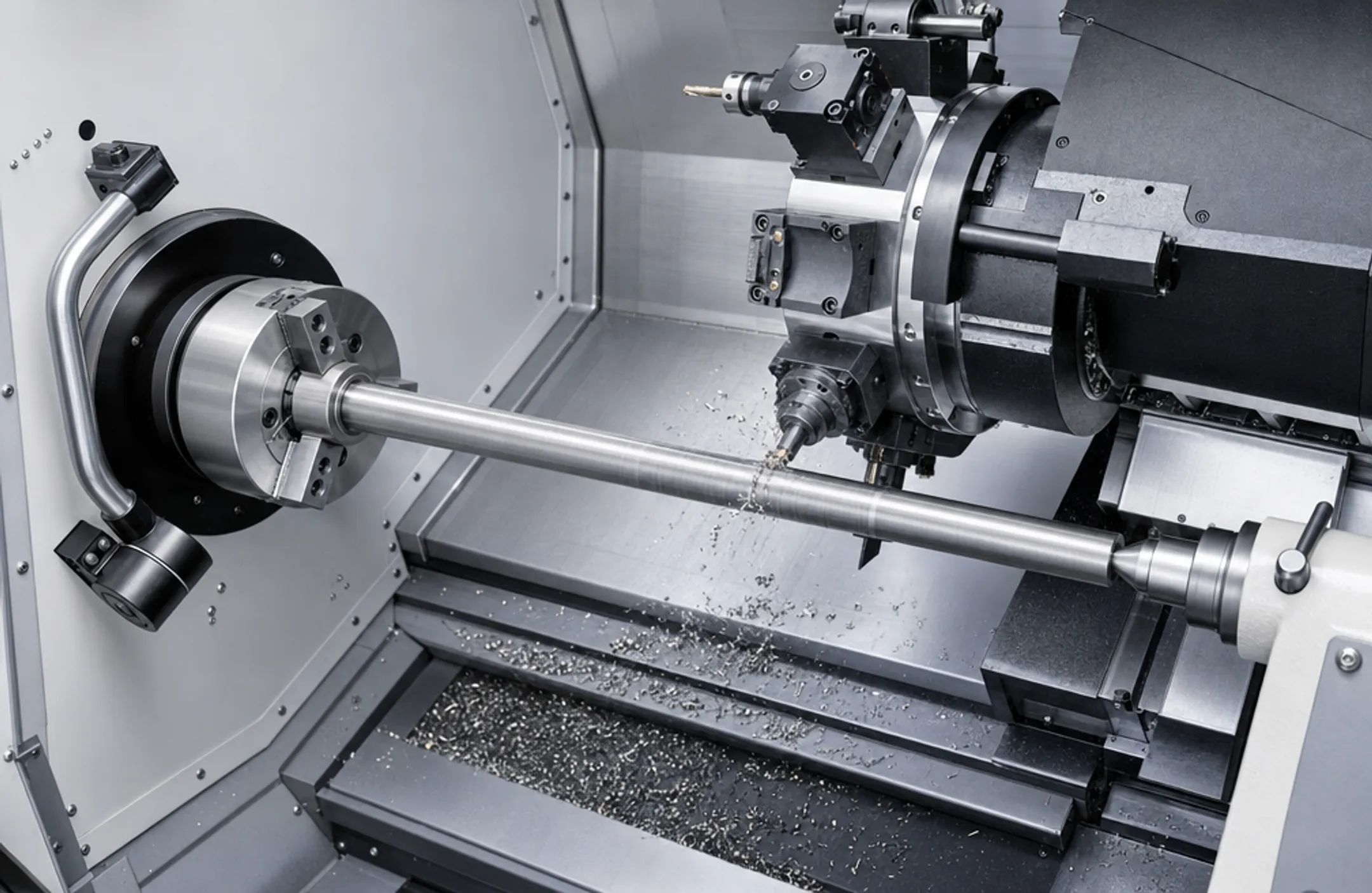

The core advantage is concentricity. Supporting both ends minimizes runout, especially on long or slender parts where a chuck's single-point grip just can't fight deflection.
Other practical gains:
- Repeatable end-to-end machining: Features on opposite ends of a shaft stay aligned to the same axis after reversal
- Less distortion: No chuck-jaw clamp pressure to squeeze thin-walled or delicate stock out of round
- Consistent surface finish: Steady support cuts chatter along the full length of the cut
This matters most in shops building tight-tolerance, long-geometry parts—mold and die, aerospace, and micro-mechanics. Those are the sectors WSM Technology supports every day, where a few thousandths of runout can mean a rejected part.
Choosing the Right Turning Equipment for Precision Work

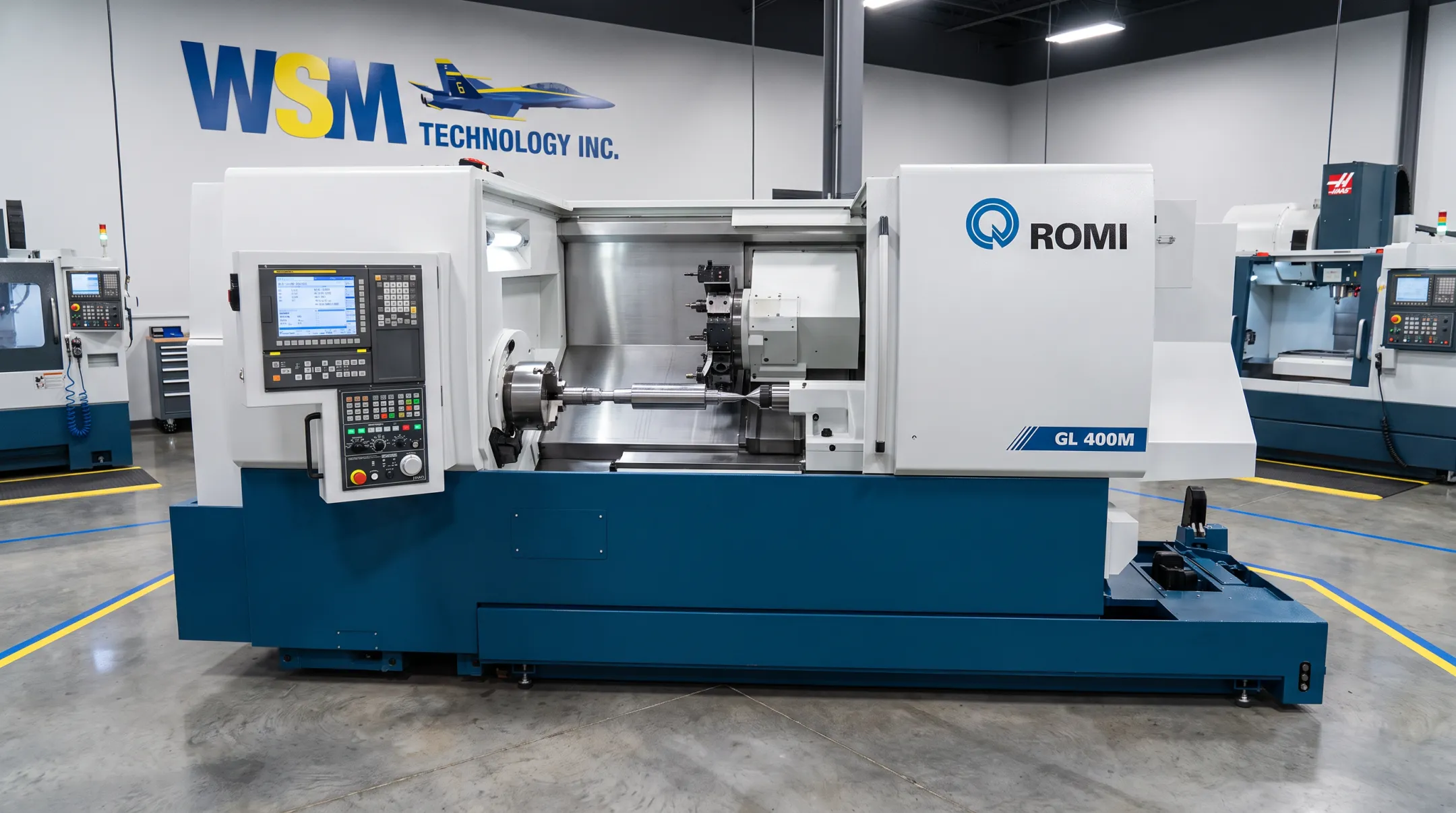

Manual between-centers turning still has a home in toolrooms and small shops. It's reliable and forgiving to set up. CNC turning centers automate the same principle: a tailstock still supports the far end, with programmable positioning and tighter repeatability across a production run.
What Drives the Equipment Decision
Choosing between a manual lathe and a CNC turning center comes down to a few practical factors:
- Part length: Does your longest shaft fit within the machine's maximum distance between centers?
- Diameter and swing: Check the turning envelope against your actual part geometry
- Tolerance requirements: Tighter callouts often justify the added cost of CNC control
- Production volume: Low-volume toolroom work rarely justifies a fully automated setup; high-volume runs usually do
WSM Technology, a regional dealer based in Rootstown, Ohio, helps manufacturers across Northern Ohio, Western Pennsylvania, and West Virginia work through this decision. Its lineup includes CNC turning equipment from ROMI and Schaublin, plus milling and EDM machines.
The team runs test cuts and time studies so shops can compare setups before committing to a purchase.
Whatever equipment you choose, accuracy still depends on ongoing upkeep:
- Regular alignment checks between headstock and tailstock
- Tailstock calibration to prevent drift over time
- Inspection of center holes and points for wear
Skip these, and even a well-chosen machine will drift out of tolerance eventually.
Frequently Asked Questions
What is between center turning on a lathe?
Between-centers turning mounts the workpiece on a headstock center and a tailstock center instead of gripping it in a chuck. Supporting both ends maximizes concentricity, especially on long or slender parts.
What does the maximum distance between centers on a lathe indicate?
That figure is the longest workpiece the lathe can hold and machine between its headstock and tailstock centers. Use it to match a machine to your longest shaft.
Is a turning center the same as a lathe?
Not quite. A turning center is a CNC-controlled evolution of a lathe, often with added axes and automation. A basic lathe typically runs on manual, 2-axis control.
What is a center lathe?
A center lathe is another name for a general-purpose engine lathe built for both turning between centers and standard chuck work.
What is the difference between a dead center and a live center on a lathe?
A live center has bearings that let it spin with the workpiece, reducing friction and heat. A dead center is a solid, fixed point that requires lubrication and generally runs at lower speeds.
