Die Component Machining for Automotive

Automotive die designers commonly use CATIA, SolidWorks, NX (Siemens), and AutoCAD for die component design. These platforms support complex 3D geometry creation and integrate with CAM software to generate CNC toolpaths for EDM and milling machines used in precision die machining operations.

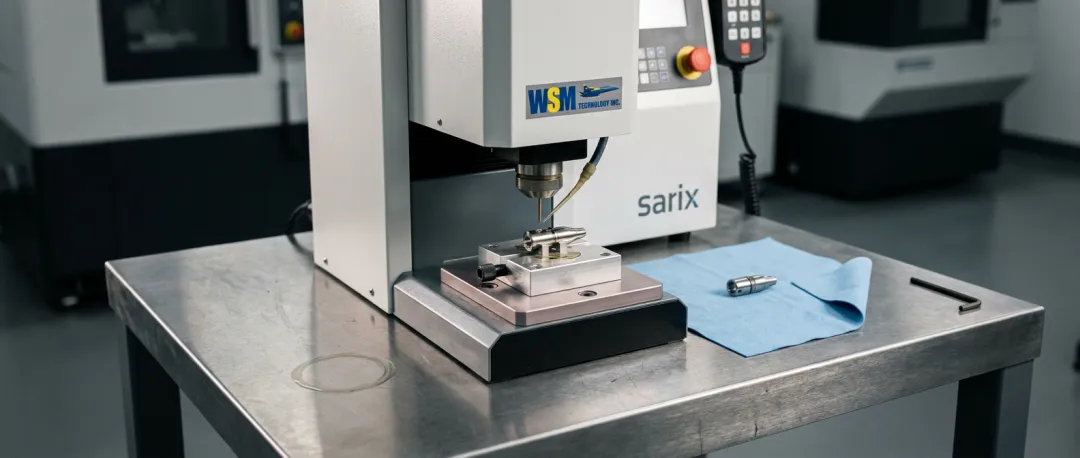

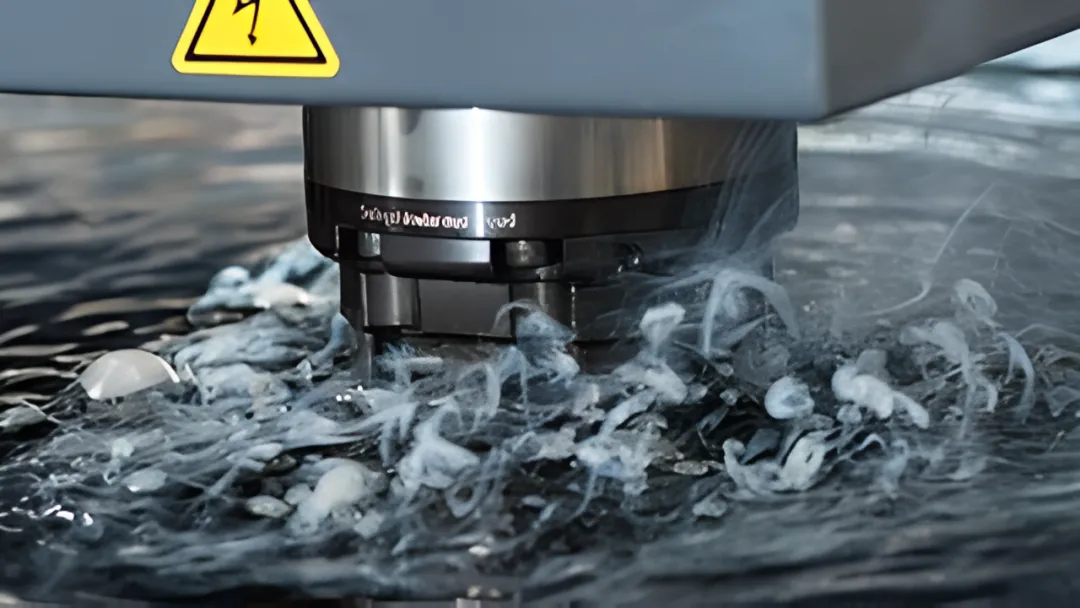

Automotive die machining typically requires Wire EDM for intricate contours, Sinker EDM for die cavities and deep pockets, high-speed milling for graphite electrodes and hardened steel, cylindrical and centerless grinders for precision surface finishing, and Micro EDM for fine-feature work. WSM Technology supplies all these machine types.

Yes. Wire EDM and Sinker EDM machines are particularly suited for hardened tool steels because the electrical discharge process removes material without mechanical contact or cutting forces. This makes them ideal for machining hardened automotive die steels like D2, H13, and P20 after heat treatment, maintaining dimensional accuracy.

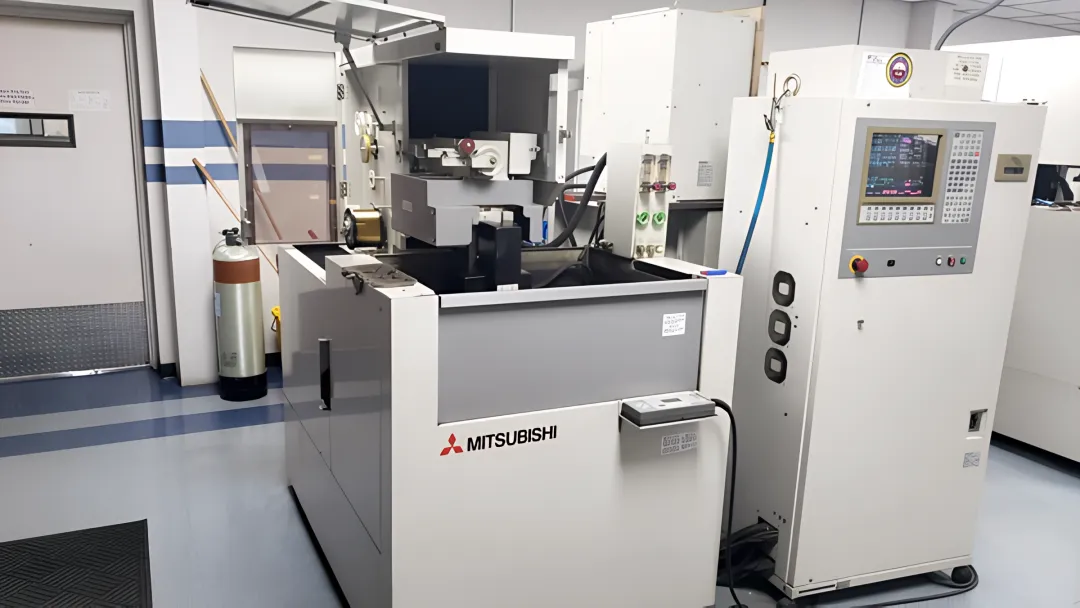

With Wire EDM and high-speed milling equipment like the Roku-Roku Android II, surface finishes as fine as Ra 0.1 µm or better can be achieved. Mitsubishi Wire EDM's submerged technology further enhances finish quality, reducing the need for hand polishing on automotive die cavity surfaces.

Yes. WSM Technology's Encore refurbished machines from MC Machinery are fully serviced and supported, offering a cost-effective entry point for automotive die shops. These machines are backed by local training and on-site service, making them viable for precision die component work with appropriate tolerance requirements.

Absolutely. WSM Technology offers local training, advanced training programs, test cut services, time studies, and application support. Their demonstration center in Rootstown, Ohio allows customers to evaluate machines with real parts before purchasing, ensuring the selected equipment meets automotive die machining requirements.
