Choosing the right collet type has become a bigger deal for shops than it used to be. It affects accuracy, tool life, surface finish, scrap rates, and how efficiently you're using your machine's spindle time. This article walks through the main types of milling machine collets, how they differ, and how to match one to your machine and your work.
Key Takeaways
- A collet's slotted, tapered design centers and clamps the cutting tool in the spindle
- R8 collets are built for manual Bridgeport-style knee mills; no separate chuck required
- ER collets offer the widest clamping range and dominate CNC milling applications
- TG collets trade range for grip strength, ideal for heavier cuts
- DA collets suit basic drilling, not side-load milling work
What Is a Milling Machine Collet?
A collet is a round, slotted, tapered sleeve that fits into a spindle or tool holder and clamps evenly around a cutting tool's shank. As the collet nut (or drawbar, depending on the system) is tightened, the tapered body compresses uniformly around the tool shank.
This centers the tool and applies even holding force across its full circumference, not just pressure from one or two points.
That distinction matters. It's why collets remain standard equipment for milling rather than a specialty item. You'll touch one during nearly every tool change, whether you're running a 40-year-old knee mill or a five-axis machining center.
Why Clamping Accuracy Matters in Milling
Uneven or incorrect clamping directly causes:
- Tool runout: the cutting edge no longer rotates true to the spindle centerline
- Chatter: vibration from an off-center tool striking the workpiece unevenly
- Poor surface finish: inconsistent chip loads leave visible tool marks
- Premature tool wear: one edge of the cutter does more work than the others

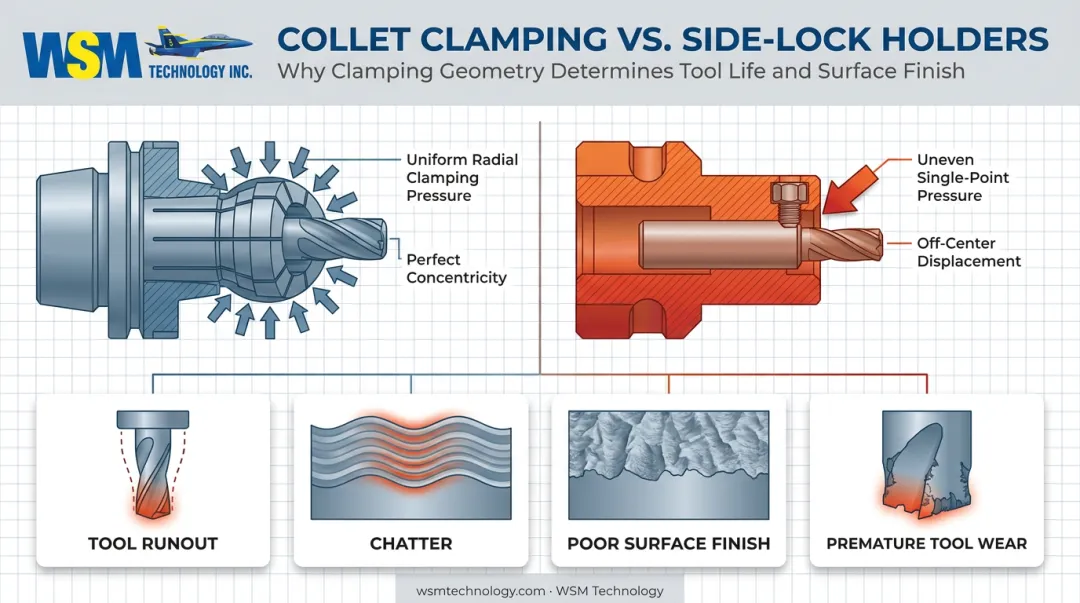

Side-lock holders, by comparison, push the tool off-center by design since they rely on a set screw pressing against one side of the shank. Collets keep the tool centered around its full circumference instead.
Skip the right collet setup, and you're looking at inconsistent part tolerances, shortened tool life, and more scrap and rework than the job should generate.
Collet selection also ties into your broader machine setup. When a shop invests in a new milling machine, confirming spindle and tool-holding compatibility with the dealer up front helps avoid retooling costs down the road. It's a conversation worth having before the machine ships, not after.
Types of Milling Machine Collets
Milling machine collets aren't one-size-fits-all. The right type depends on whether you're running a manual mill or a CNC machining center, what range of tool shank sizes you use, and what the job demands in terms of precision and rigidity.
R8 is specific to manual knee mills. ER, TG, and DA are the systems you'll encounter far more often on CNC and production setups.

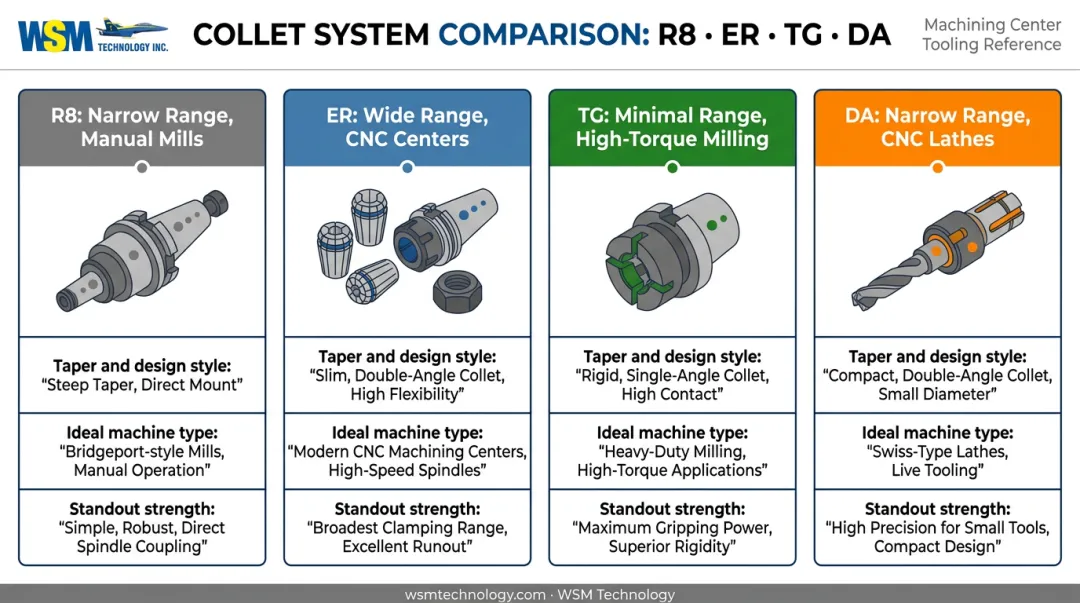

R8 Collets
R8 collets fit directly into the machine spindle taper, with no separate chuck required. They're most commonly found on Bridgeport-style knee mills, and they include a keyway that lines up with a key in the spindle to prevent rotation during insertion and removal.
Bridgeport's own Series I knee mill specifies a standard R8 spindle paired with a 7/16-20 drawbar, which has made R8 practically synonymous with manual milling in North American shops.
Unlike ER, TG, or DA systems, R8 collets don't collapse across a range. Each collet is sized for one specific tool shank diameter, and it's compressed from above using a drawbar rather than an external nut tightened by hand.
Best suited for: manual milling machines and job shops running one tool size at a time with frequent changeovers.
Strengths:
- Fast, self-releasing tool changes
- Simple, reliable mechanical design
- Well-matched to classic knee mill workflows
Limitations:
- Requires a full set of collets to cover every tool diameter you run
- Not built for high-speed CNC spindle applications
ER Collets
ER collets use an 8-degree taper (16-degree included angle) and are standardized across a size range from ER8 through ER50. Each individual collet collapses roughly 1mm, which lets a single collet accommodate a small range of shank diameters rather than one exact size. Standard ER collets from manufacturers such as REGO-FIX cover shank diameters from roughly 1mm to 36mm, depending on the series.
That collapse range is the key differentiator. It gives ER the widest clamping range per collet size of any milling collet system, which means shops need to stock fewer individual collets to cover the same tool inventory.
Best suited for: CNC milling centers running varied tool diameters — drilling, tapping, reaming, boring, and coolant-through applications.
Strengths:
- Excellent versatility across tool diameters
- Strong self-centering accuracy
- Fewer collets needed, lowering total inventory cost
- Wide industry standardization (formerly DIN 6499, now covered under ISO 15488)
Trade-offs: ER collets deliver slightly less clamping force than TG collets at the largest shank diameters in their range, and performance depends on keeping collets clean and torqued correctly. Skip a cleaning cycle, and grip consistency starts to slip.
TG Collets
TG collets use a tighter 4-degree taper per side (8-degree included angle, compared to ER's 16-degree included angle). That steeper taper produces a longer contact length along the tool shank, which is where TG's extra holding power comes from.
The trade-off is range. TG collapses over a much narrower band, roughly 1/64 inch per collet, meaning a shop needs more individual collets to cover the same tool diameter spread that a handful of ER collets would handle.
Best suited for: heavier CNC milling operations, longer cutting tools, and jobs where rigidity matters more than tool-change flexibility.
Strengths:
- Superior grip strength for demanding cuts
- Better accuracy on larger-diameter tools
- Reduced chatter under heavy loads
Limitations: TG's larger collet nut can interfere with deep pocket milling where clearance is already tight. And because the collapse range is so narrow, tooling suppliers note that TG requires a more complete collet inventory than ER to cover the same working range.
DA Collets
DA collets use a double-angle taper design with two separate clamping faces, originally built for drilling applications rather than milling. When tightened near the low end of its range, a DA collet effectively grips through only two opposing faces rather than the full circumference, which can create uneven holding compared to ER or TG.
Best suited for: basic drilling operations, not high-precision milling or toolpaths involving significant side-load cutting force.
Strengths: simple, economical option for straightforward, low-precision drilling tasks.
Limitations: Under lateral cutting force, the tool can deflect toward the unsupported faces, leading to chatter, shorter tool life, and rougher finish. Tooling manufacturers generally don't recommend DA for demanding side-milling work — it's built for axial operations like drilling, reaming, and tapping, not for pushing a tool sideways through material.
How to Choose the Right Collet Type for Your Milling Machine
The right collet type depends on your machine's spindle design, your tooling range, and your production needs. It has little to do with whichever system happens to be most popular at your local supply house.
Work through these factors before settling on a system:
- Machine type — a manual knee mill points toward R8; a CNC machining center opens the door to ER, TG, or DA
- Tool shank diameter range — if you run a wide mix of sizes, ER's broader collapse range means fewer collets to stock versus TG or R8
- Required precision and finish — TG and ER generally outperform DA for anything beyond basic hole-making
- Production volume and tool-change frequency — high-mix, low-volume shops benefit from quick-change systems
- Collet inventory budget — narrower-range systems like TG or R8 require buying more individual collets to cover the same tool range
- Existing spindle/tool holder compatibility — whatever you already have installed on the machine
If you're purchasing a new milling machine, confirm tool-holding compatibility and available collet packages directly with the dealer before the sale closes.
WSM Technology handles turnkey installation and training for the milling and EDM equipment it represents across Northern Ohio, Western Pennsylvania, and West Virginia. That includes covering collet and tool-holding setup during installation, so shops aren't troubleshooting compatibility issues after the fact.
Even with the right system in mind, a few common missteps can undercut the decision.
Common mistakes to avoid:
- Choosing a higher-precision system than the job actually requires
- Ignoring the practical trade-offs of a narrow collapse range (more collets, more inventory cost)
- Overlooking long-term collet replacement costs when comparing systems
- Sticking with a familiar system instead of matching spindle type and tooling needs
Conclusion
Collets are the physical link between a spinning spindle and a cutting edge, and they directly affect milling accuracy, tool life, and part quality. R8, ER, TG, and DA each serve different machines and different applications, and understanding those differences up front prevents costly tooling mismatches later.
If you're evaluating a new mill purchase, discuss tool-holding compatibility with your dealer before you sign off. WSM Technology's demonstration center in Rootstown, Ohio, lets shops run equipment firsthand and ask those questions directly. This hands-on approach ensures the collet and tooling setup fits the work from the start.
Frequently Asked Questions
What are the different types of milling collets?
The primary types are R8, ER, TG, and DA. R8 works best in manual knee mills, ER and TG dominate CNC milling for their range and grip strength, and DA suits basic drilling work.
How do I know what type of collet I have?
Measure the collet's overall length, diameter, and taper angle, or check your machine or spindle manual for the original specification. Comparing those measurements against manufacturer catalogs will confirm the system.
What is a 5C collet used for?
5C collets are a lathe workholding style, used to grip workpieces or bar stock during turning. They are not a tool-holding collet used in milling machine spindles like R8, ER, TG, or DA.
What is the difference between R8 and ER collets?
Manual mill spindles use R8 collets, each sized for one exact tool diameter. ER collets collapse over a small range and serve as the standard tool-holding system on CNC mills.
How often should milling machine collets be replaced?
Collets are a wear item. Many tooling manufacturers suggest replacement every four to six months of regular use, or sooner at the first signs of runout, fretting, or galling on the collet face.
What is TIR and why does it matter when choosing a collet?
TIR, or Total Indicator Reading, measures how far a rotating cutting edge deviates from the spindle centerline. Lower TIR means better accuracy and longer tool life, with a cleaner surface finish as the payoff.
