Wire EDM cutting speed isn't a fixed machine spec. It's an outcome. Material, thickness, wire type, and machine condition all shift it, and pushing it too hard trades cycle time for wire breaks, poor finish, and consumable costs that erase any savings.
This article breaks down what cutting speed actually means, the ranges shops can realistically expect, the technical properties that govern it, and the risk of chasing speed without control. Understanding this trade-off matters more than any number on a spec sheet.
Key Takeaways
- Cutting speed (cut rate) is measured in in²/hr or mm²/min, reflecting area removed per hour, not wire feed
- Brochure "top speed" figures assume ideal wire, thickness, and material; shop-floor rates run lower
- Speed and accuracy pull in opposite directions, since faster rough cuts demand more skim passes
- Flushing, servo response, and machine condition affect daily output more than peak advertised speed
- Test cuts on your material beat any published number when quoting a job
What Wire EDM Cutting Speed Represents
Cutting speed measures material removal through controlled spark erosion. There's no rotating tool and no mechanical cutting force. A series of electrical discharges melt and vaporize conductive material along the programmed path, and the wire never physically touches the workpiece.
That's why speed is reported as an area rate, in²/hr or mm²/min, rather than a linear feed number. Cut rate equals contour travel speed multiplied by workpiece height. A thin bracket and a thick die block moving at the same wire travel speed remove very different volumes of material per hour.
Cutting speed isn't something set with a single control, either. Shops shape it through generator power, servo response, and flushing pressure working together, making it a derived characteristic built from several interacting parameters rather than one fixed spec.
Factors That Influence Cutting Speed in Real-World Operation

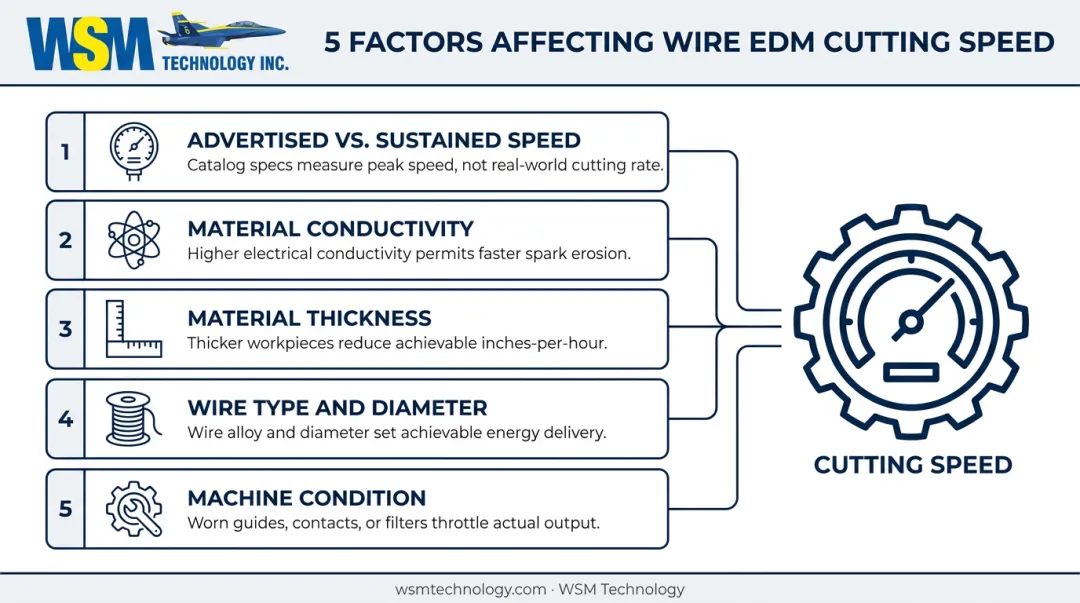

Five variables explain most of the gap between what a brochure promises and what a shop actually sustains:
- Advertised vs. sustained speed - peak numbers assume ideal wire, material, and flushing conditions rarely present in daily production
- Material conductivity - tool steel, aluminum, and carbide all cut at different stable speeds, which directly affects how a job should be quoted
- Material thickness - as parts get thicker, flushing effectiveness drops and wire lag increases, slowing the achievable rate
- Wire type and diameter - standard 0.010-inch brass covers most jobs, but coated wire improves spark gap flushing and typically cuts 10-15% faster thanks to its rougher surface texture
- Machine condition - debris buildup in filters, degraded resin, and worn guides erode sustainable cutting speed long before anyone notices a problem
Range of Wire EDM Cutting Speed
Realistic cutting speed depends on both machine design limits and job-specific conditions. There's no universal number that applies across every part.
Nominal Operating Range
Under standard rough-pass conditions with adequate flushing, stable power, and standard 0.010-inch brass wire, cutting speed on common tool steel falls in a predictable range. Modern Machine Shop reports achievable rates of 24 to 37 in²/hr, with some machines reaching 45 in²/hr, or roughly 258 to 484 mm²/min.
Treat this as an industry benchmark, not a guarantee. It holds only when:
- Flushing pressure and nozzle position stay consistent
- Power supply remains stable throughout the cut
- Thickness stays in a moderate, unremarkable range
- Wire type matches standard production brass, not oversized cable-style wire
Allowable Tolerance and Boundary Limits

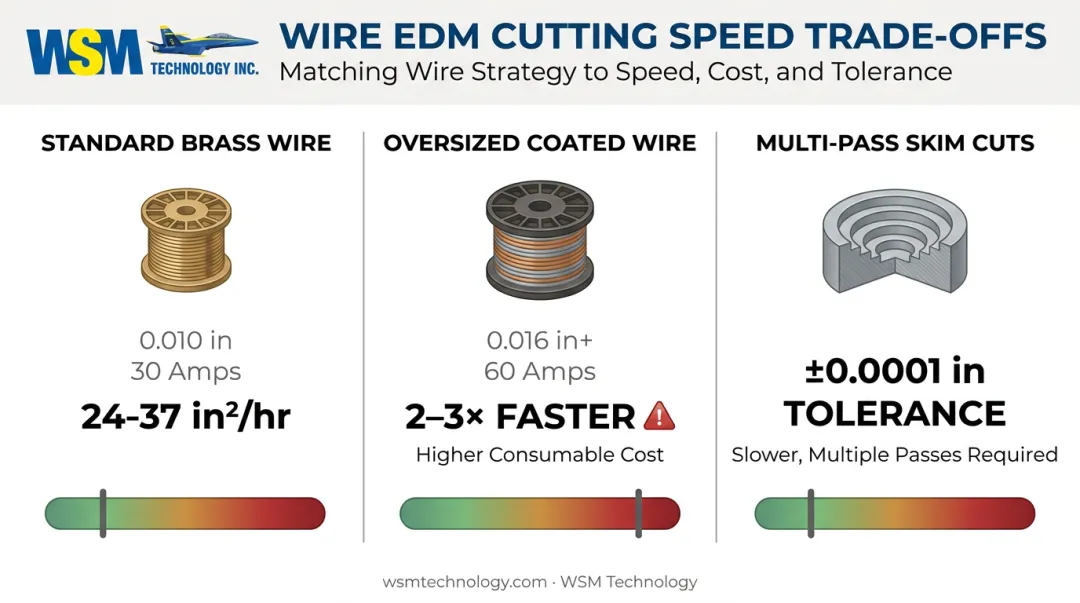

Advertised maximum speeds usually require oversized coated wire (0.016 inch or larger) running at higher amperage, sometimes 60 amps versus 30 for standard brass. These setups can cut 2-3 times faster, but they consume more wire and demand hardware that most shops don't run day-to-day.
There's also a real difference between pass types. A single rough cut is fast but leaves poor finish and loose tolerance. Multi-cut skim passes run slower, using lower current and tighter spark gaps to bring a part down to size and finish. Six or seven passes can achieve tolerances near ±0.0001 inch, but each additional pass adds time.
Safe Operating Margin
Shops intentionally run below advertised peak speed to protect wire integrity and surface finish. Pushing near the ceiling produces:
- Frequent wire breaks that stop the machine mid-cut
- Unstable arcing that damages surface finish and part metallurgy
- Downtime for rethreading that often erases whatever time was saved
A machine that "could" run faster on paper isn't helping you if it breaks wire twice a shift. WSM Technology runs test cuts and time studies on actual parts before quoting cycle times, because real production speed rarely matches the number on a spec sheet.
Key Technical Properties of Cutting Speed
Cutting speed only makes sense in context with accuracy, consumable use, and machine reliability. Three properties define how it behaves in production.
Property 1: Stability and Repeatability
Speed can drift within a single job as debris accumulates in the gap or dielectric fluid quality degrades. Repeatable speed across shifts depends more on servo response and reliable automatic wire threading than on raw power settings. A machine that rethreads consistently after a break holds its average speed far better than one with strong peak power but shaky threading.
Property 2: Material and Thickness Dependency
Speed is never a fixed value. It scales differently with every material and thickness combination, which is why blanket speed claims ("this machine cuts at X in²/hr") mean little without specifying the material and height behind them. Cutting 0.5-inch aluminum runs far faster than the same pass through 2-inch tool steel, and moving from 0.25-inch to 1-inch stock in the same material can cut speed by half or more.
Property 3: Coupling With Accuracy and Finish
Pushing rough-cut speed higher often increases the number of skim passes needed to hit tolerance, which can offset the time gained. Consumable wear on guides, contacts, and wire also accelerates disproportionately as speed climbs. A 20% speed increase might cost far more than 20% extra in wire and wear parts.
Measuring, Validating, and the Risks of Pushing Cutting Speed Too Far
Cutting speed is both a spec machine builders publish and an operational value that needs validation for each specific job.
How Cutting Speed Is Specified and Verified
OEM brochure figures typically assume ideal wire, thickness, and material, conditions that rarely match a specific customer's job exactly. That's why reputable EDM dealers run test cuts and time studies on the customer's own material before purchase.

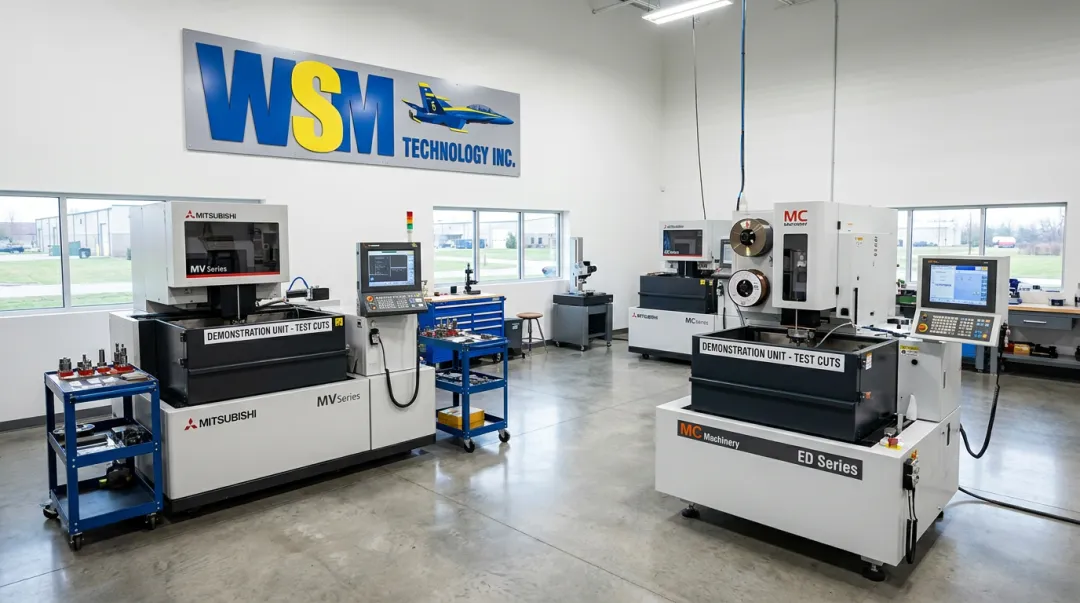

At WSM Technology's Demonstration Center in Rootstown, Ohio, shops across Northern Ohio, Western PA, and West Virginia can run their actual parts on Mitsubishi and MC Machinery EDM platforms before committing to a machine.
Founder Blaise Buholzer built his career as an application engineer at Charmilles, and that background shows up in how the company approaches speed claims: verify on real material, not on a brochure page.
What Happens When Cutting Speed Exceeds Safe Limits
Excessive speed forces a smaller spark gap and stresses flushing capacity. Once debris can't clear the gap fast enough, current follows debris bridges instead of distributed sparks, causing arcs rather than controlled erosion. That leads to wire breaks and localized heat damage.
The compounding cost adds up fast:
- Downtime for rethreading after each break
- Extra consumable spend from wire, guides, and contacts wearing faster
- Rework when arcing damages surface finish
Chasing peak speed on paper often costs more than it saves on the floor.
Common Misconceptions About Wire EDM Cutting Speed
A few beliefs persist even among experienced buyers:
- Higher advertised speed means a better machine: reliability and automatic wire threading uptime usually matter more to actual daily output than a peak number reached under ideal test conditions.
- One material's speed figure transfers to another: a rate proven on tool steel doesn't apply directly to aluminum or carbide without adjustment for conductivity and thickness.
- Wire breaks are a wire quality problem: power control, servo response, and flushing are the usual culprits, not the wire itself.
These assumptions lead shops to either overpay for capability they won't use or underquote jobs based on numbers that don't match their material.
Conclusion
Wire EDM cutting speed is a governing, interacting variable rather than a fixed spec pulled from a brochure. It shifts with material, thickness, wire type, and machine condition, and it's always coupled to accuracy and consumable wear.
Understanding its realistic range, and the trade-offs it creates, matters for accurate quoting and consistent part quality. Engineering judgment, informed by real test cuts on your actual material, will always tell you more than a published maximum speed number ever could. WSM Technology's Rootstown, Ohio demo center offers these test cuts and time studies, giving you real numbers before you commit.
Frequently Asked Questions
Is Wire EDM faster than waterjet?
No. Waterjet can complete a profile roughly 10 times faster than wire EDM, especially on thick or non-conductive materials. Wire EDM is slower but delivers far tighter tolerances and better finish on conductive materials.
Is Wire EDM safe to touch?
Wire EDM uses controlled, low-energy discharges submerged in dielectric fluid, and the process itself isn't typically hazardous to touch during operation. Standard safety practices still apply.
How thick of material can Wire EDM cut?
Wire EDM machines can generally cut material several inches thick, with some machines handling parts over a foot tall. Cutting speed decreases noticeably as thickness increases.
What is the tolerance of EDM wirecut?
Wire EDM commonly achieves tolerances in the range of ±0.0002 to ±0.0004 inches. Multi-cut skim passes improve accuracy further, but each added pass costs speed.
Does wire diameter affect cutting speed?
Yes. Thinner wire allows finer detail and sharper corners but cuts slower, while thicker wire improves speed and stability at the expense of corner accuracy.
Can cutting speed be increased without sacrificing accuracy?
Speed can improve through better power control, stable servo settings, and clean flushing. Pushing beyond a machine's stable range, however, usually compromises finish and tolerance.
