HSC Milling Machines

HSC stands for High-Speed Cutting. An HSC machine is a CNC machining center specifically engineered to operate at elevated spindle speeds — often 30,000 RPM or higher — combined with high feed rates and optimized cutting strategies. This allows manufacturers to achieve exceptional surface quality and dimensional accuracy in fewer passes.

High-speed machining (HSM) refers to manufacturing processes that employ spindle speeds, feed rates, and cutting velocities well above conventional parameters. By removing smaller chip loads at very high speeds, HSM reduces cutting forces, minimizes heat buildup in the workpiece, and delivers finer surface finishes. It is widely used in mold making, aerospace, and precision component manufacturing.

The Roku-Roku Android II features a 60,000 RPM high-speed spindle with an HSK-E25 interface, making it ideal for ultra-precision and micro machining applications. OPS Ingersoll machining centers also offer high-speed spindle configurations suitable for graphite electrode milling and precision mold manufacturing. Contact us for specific spindle speed options per model.

The Roku-Roku Android II achieves an actual machining accuracy of ±1 micron, making it one of the most precise HSC milling machines available. This level of accuracy is achieved through a linear motor drive system on all axes, 16 thermal sensors for compensation, and an Active Heat Isolation System that minimizes thermal distortion during high-speed operations.

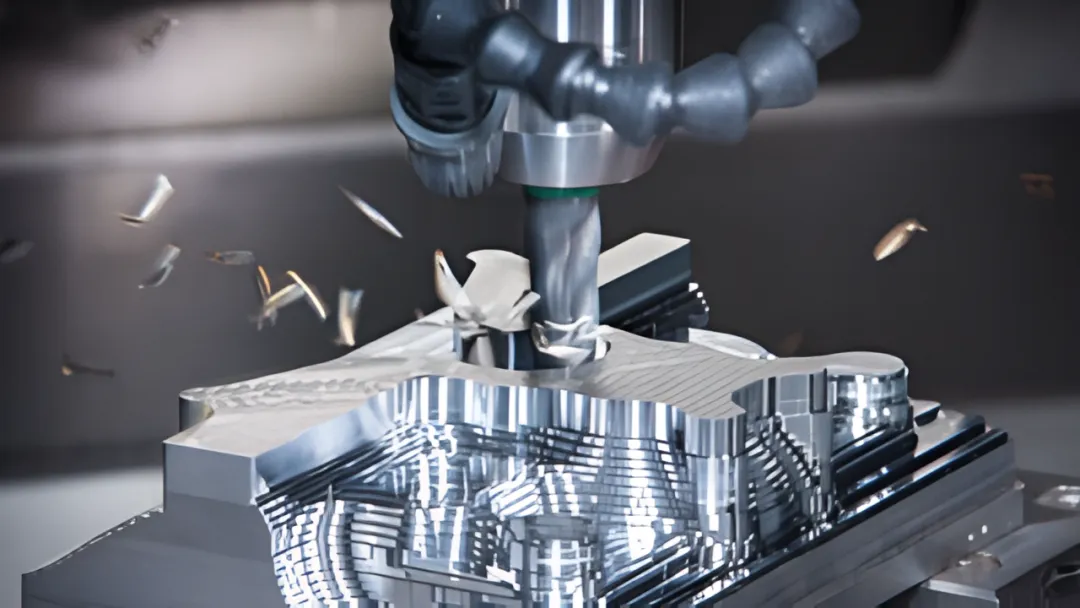

HSC milling machines are widely used in mold & die making, aerospace, automotive, and micro machining industries. These sectors demand tight tolerances, superior surface finishes, and the ability to machine complex geometries in hardened materials. Graphite electrode machining for EDM applications is also a major use case supported by machines like the OPS Ingersoll Graphite Mill.

Yes. WSM Technology includes installation and training with every HSC milling machine purchase. Both local training and advanced training programs are available, along with ongoing technical support. A demonstration center in Rootstown, Ohio also allows customers to perform test cuts and evaluate machine performance firsthand before committing to a purchase.
