The pain points are familiar to anyone who's run it: tools wear out mid-job, thin walls chip without warning, conductive dust creeps into CNC electronics, and coolant turns the whole operation into an abrasive mess. This article covers graphite's core properties, the challenges that catch shops off guard, the best practices that actually work, common machining methods, and how to pick equipment built for the job.
Key Takeaways
- Fine grain suits detailed EDM electrodes; coarse grain resists thermal shock
- Compressive strength ranges 10,000 to over 30,000 psi, yet it fails brittle rather than bending
- Dry machining with vacuum extraction replaces coolant, which turns graphite dust into abrasive slurry
- Diamond-coated tooling and climb milling extend tool life and reduce chipping
- Graphite-ready CNC equipment needs sealed guideways and dust-protected spindles to hold accuracy over time
What Is Graphite Machining and Why Is the Material So Unique?
Graphite machining is the process of shaping graphite stock into precision parts: EDM electrodes, mold cavities, dies, and fixtures. It sounds like standard metal cutting, but it behaves differently under the tool.
Graphite doesn't shear like steel or aluminum. Its crystalline structure means the material fractures and crumbles ahead of the cutting edge instead of forming a continuous chip. Machinists often describe it as "plowing" rather than cutting — the tool is breaking apart bonds between graphite platelets, not slicing through ductile material.
That fracturing behavior traces back to how the graphite itself is produced. Natural graphite comes from mined deposits and requires purification before industrial use. Synthetic graphite is engineered from calcined petroleum coke and coal-tar pitch, processed at extremely high temperatures. According to Entegris, unpurified manufactured graphite runs 300-1,000 ppm ash, dropping below 5 ppm after purification. That purity difference affects machinability, density, and consistency batch to batch.
Grain Size and Grade Selection Matters

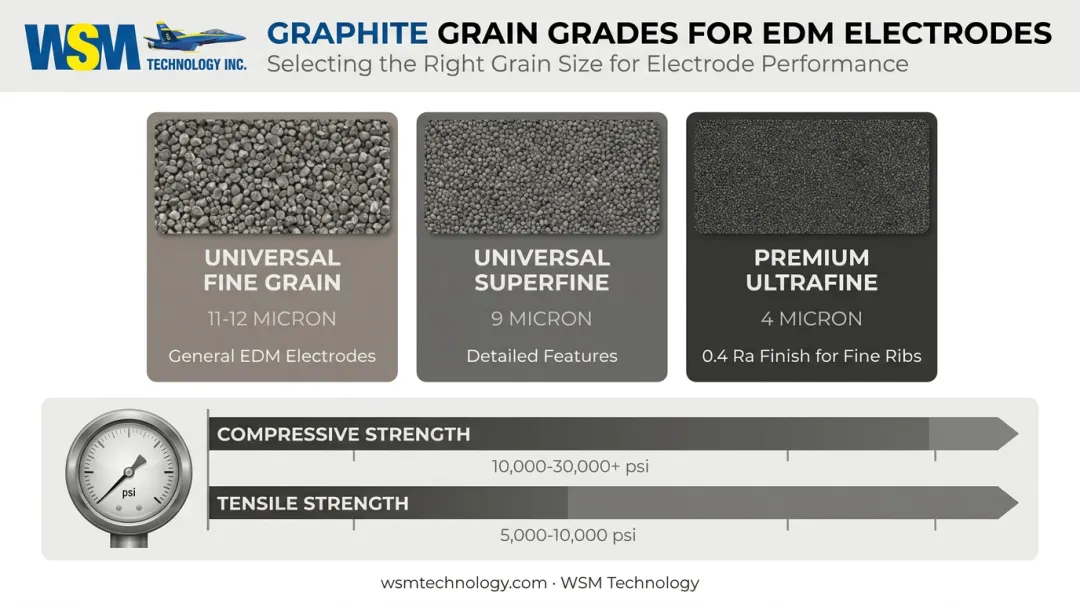

Graphite grades are typically described as fine, medium, or coarse grain, though there's no industry-wide standard defining those boundaries. Mersen's EDM grade lineup illustrates the range:
- Universal fine grain: 11-12 micron average particle size
- Universal superfine: 9 micron
- Premium ultrafine: 4 micron or finer, capable of a 0.4 Ra micron steel finish
A shop cutting detailed EDM electrodes with fine internal ribs needs fine or ultrafine grain to hold tolerance and avoid grain pullout. A shop producing large components exposed to thermal cycling might choose coarse grain instead, since it resists thermal shock better despite a rougher achievable finish.
Key physical properties:
- Compressive strength: 10,000 to more than 30,000 psi, per Entegris data on graphite properties and characteristics
- Tensile strength: typically 5,000-10,000 psi, roughly a third of compressive strength
- Graphite fractures under stress rather than deforming plastically, which is why thin walls and sharp corners are vulnerable
Common Challenges When Machining Graphite
Graphite's abrasive nature is the first thing most machinists notice. Even carbide tooling degrades fast when it's not built for graphite, and worn edges produce inconsistent dimensions partway through a job. That inconsistency isn't always something you catch until a part fails inspection.
Brittleness creates its own set of problems:
- Chipping and edge breakout on pocket walls when excess force is applied
- Fracturing of thin features under dull or improperly loaded tooling
- Island breakout inside pockets if the toolpath isn't sequenced correctly
Then there's dust. Graphite generates fine, electrically conductive particulate that gets into CNC enclosures and can short circuit boards, a genuine risk in poorly sealed machines. OSHA regulates this closely, and the limits differ by material type:
- Natural graphite, respirable fraction: 15 mppcf under OSHA's Table Z-1 permissible exposure limits
- Synthetic graphite, total particulate: 15 mg/m3 (8-hour TWA)
- Synthetic graphite, respirable fraction: 5 mg/m3 (8-hour TWA)
Identify which type of stock you're running before designing your dust controls. The two materials aren't regulated the same way.
Moisture adds another layer of trouble. Graphite is porous, and Entegris notes that 75-95% of total porosity can be open, meaning damp stock combined with dust forms an abrasive slurry. On a band saw, that slurry gets pulled back through the cut repeatedly, accelerating wear and ruining surface quality.
All of this makes tight tolerances harder to hold. Porosity limits achievable surface finish, and brittleness limits how aggressively you can cut without risking fracture.
Best Practices for Successful Graphite Machining
Never use liquid coolant on graphite. Dry machining with vacuum-based dust extraction is the industry standard for good reason. Coolant mixes with graphite dust to form the same abrasive slurry problem described above, and graphite's sponge-like porosity means it soaks up moisture readily.

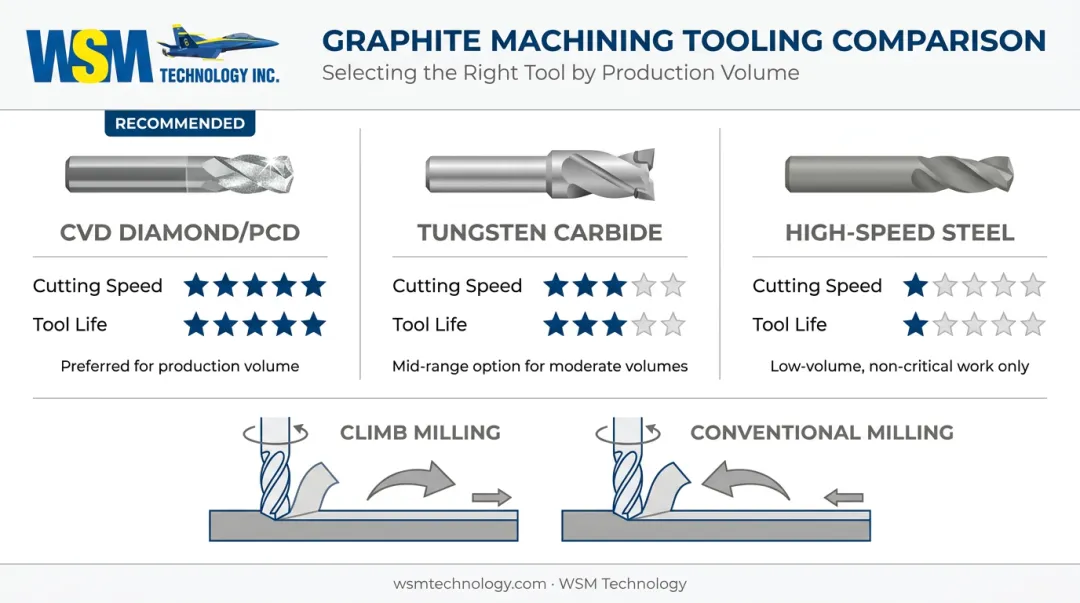

Tooling choice matters just as much:
- CVD diamond-coated or PCD tooling: supports higher cutting parameters and longer service life; the preferred choice for production volume
- Tungsten carbide: a solid mid-range option for moderate volumes
- High-speed steel: reserve for low-volume, non-critical work only
No independently verified numerical life ratio exists comparing these tool types head-to-head under controlled graphite conditions. Treat vendor claims skeptically, and validate performance with a test cut on your own material before committing to a tooling budget.
Cutting direction matters just as much as tool material. Climb milling (down-milling) is generally preferred over conventional milling because it reduces chipping, tool wear, and heat buildup on flat surfaces.
For contouring work, though, eliminating up-milling entirely can shorten tool life — choose direction based on toolpath geometry, not a blanket rule. Drilling a center hole before milling pockets from the inside out also helps prevent island breakout on thin-walled features.
Dust Control and Shop Safety
Protecting your machine and your people requires a layered approach:
- Seal machine enclosures to keep dust away from electronics
- Pair HEPA filtration with centralized dust collection
- Pre-dry or bake graphite stock to remove moisture before it causes slurry formation
Clamping deserves attention too. Calibrate clamping force gradually, testing up to just below the point of compressive failure, to get a secure, vibration-free setup without cracking the stock.
Common Graphite Machining Methods and Their Applications
Milling is the primary method for mold cavities, profiles, and EDM electrodes. It pairs high-speed spindles with diamond-coated tooling to manage graphite's abrasiveness while holding tight geometry.
Drilling, turning, and sawing round out the process list. Each needs diamond or carbide-tipped tooling adapted for graphite's wear characteristics and dust output — standard steel-cutting tooling won't hold up.
EDM plays a unique dual role here. Graphite is machined into precision electrodes: those same electrodes then burn cavities into hardened tool steel via sinker EDM. It's a closed-loop workflow, and shops that coordinate it well see dramatic time savings. Documented examples from Modern Machine Shop's electrode machining coverage include:
- One mold shop cut electrode machining time from 3 hours to 15 minutes using a shared clamping block from mill to EDM
- Another reduced test-part machining from 5 hours to 30 minutes, while cutting graphite purchases by 30% through redressing
- Sharing clamping fixtures between mill and EDM eliminates re-referencing, the step responsible for most of that saved time
Choosing the Right Equipment for Graphite Machining
Not every CNC mill is graphite-ready. Standard machines can technically cut it, but shops chasing consistent accuracy over time need:
- Sealed linear guideways that keep dust out of moving components
- Dust-protected spindle designs
- Rigid construction capable of sustaining high-speed cutting parameters
Shops that produce their own EDM electrodes benefit from pairing a dedicated high-speed graphite mill with sinker or micro EDM equipment, keeping electrodes moving from machining to EDM without losing datum reference.

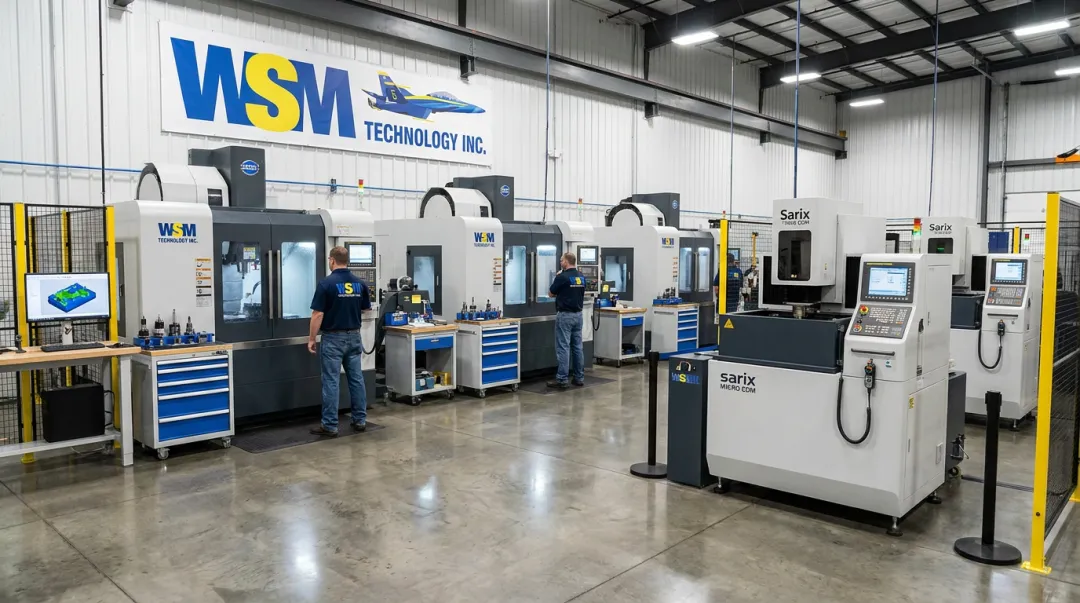

WSM Technology's demonstration center in Rootstown, Ohio, houses equipment built for this exact workflow:
- JINGDIAO high-speed 3-axis and 5-axis mills, paired with Sarix Micro EDM machines for a streamlined electrode-to-mold path
- OPS Ingersoll graphite mills
- Roku-Roku Android II, a precision machining center running a 60,000 RPM spindle with ±1 micron accuracy
Before investing in new equipment, request a test cut or time study, a service WSM Technology provides. This validates cycle times, tool wear, and surface finish against your shop's specific graphite grade and part geometry. Guessing at parameters on a six-figure machine purchase rarely ends well.
Common Applications of Machined Graphite Parts
Machined graphite shows up wherever high heat, high precision, or electrical conductivity intersect:
- EDM electrodes: the largest application by volume in mold and die shops
- Injection mold and die tooling: graphite serves as the electrode material used to burn cavities into hardened steel
- Aerospace components: bearings, seals, vane guides, and motor brushes that rely on thermal and electrical conductivity
- Semiconductor fixtures: brazing and packaging fixtures that need excellent thermal-shock resistance
- Industrial bearings and seals: low-friction, dry-running service in pumps, motors, and other demanding equipment
- Crucibles: continuous casting applications needing thermal resistance and low expansion
Among WSM Technology's customers, mold and die shops request graphite machining support most often, since electrode production ties directly into sinker EDM workflows. Aerospace, automotive, and micro molding shops round out the demand, drawn by graphite's precision and thermal properties.
Frequently Asked Questions
What is the best way to machine graphite without damaging tools?
Use diamond-coated or PCD tooling, machine dry with vacuum extraction, and favor climb milling on flat surfaces. Together, these practices extend tool life and reduce chipping the most.
Can graphite be machined on a regular CNC mill, or does it require special equipment?
A standard mill can cut graphite in a pinch, but dust-protected spindles and sealed guideways are strongly recommended. Without them, dust infiltration will shorten machine life and hurt accuracy over time.
Why shouldn't you use coolant when machining graphite?
Liquid coolant mixes with graphite dust to form an abrasive slurry that accelerates tool wear. Graphite's porous structure also absorbs moisture readily, compounding the problem.
What is the difference between machining natural and synthetic graphite?
Natural graphite is mined and requires purification, while synthetic graphite is manufactured from petroleum coke and pitch under controlled conditions. Synthetic stock offers more consistent purity, density, and isotropy for machining.
How do you control graphite dust during machining?
Sealed machine enclosures, HEPA filtration, and centralized vacuum dust collection are the core controls. These protect both CNC electronics and operators from OSHA-regulated exposure limits.
What industries commonly use machined graphite parts?
Mold and die making, aerospace, semiconductor manufacturing, and EDM electrode production are the top users. Each relies on graphite's conductivity, thermal-shock resistance, or precision-machining characteristics.
