Understanding Wire EDM Diameter Wire diameter might be the single most consequential spec in wire EDM, yet it's often an afterthought. Get it right, and you hit tolerance, finish, and cycle time targets in one pass. Get it wrong, and you're chasing wire breaks, missed corners, or a job that runs three times longer than it should.

Many shops get comfortable running standard .010" brass wire and rarely question it. Then a job lands that needs a sharp internal corner, or a thick block of tool steel that needs to move fast, and the standard spool suddenly isn't the right tool.

This article breaks down the full diameter range, what it actually governs on the machine, how to select the right size for a given job, and what happens when the wrong wire ends up on the spool.

Key Takeaways

  • Wire diameters span .0008" (0.02mm) micro to .016" (0.4mm) large, with .010" (0.25mm) brass standard
  • Diameter controls kerf width, spark gap, corner radius, and removal rate together
  • Larger wire cuts faster but rounds corners; finer wire sharpens corners while cutting slower and risking breakage
  • Machine capability sets a hard boundary on which diameters you can actually run

What Wire Diameter Represents in Wire EDM

Wire diameter is the cross-sectional thickness of the single-strand electrode wire that feeds continuously through the workpiece. It's typically brass, zinc-coated brass, or a specialty alloy core.

This wire is the physical cutting tool in the process: the spark jumps from it to the material, eroding a path as the wire feeds through.

Diameter works two ways at once. It's an input variable the programmer selects for a job, and it's a constraint that sets what's physically achievable once that selection is made.

Choose a .012" wire, and you've already fixed your minimum corner radius, your approximate kerf width, and a good chunk of your cutting speed before the first spark fires.

That's why diameter isn't a fixed machine spec the way, say, table travel is. It's a per-job design decision, driven by:

  • Part geometry and corner requirements
  • Material thickness
  • Surface finish specification
  • Machine power and flushing capability

That range of options didn't happen overnight. Commercial wire EDM has been around since the late 1970s, and the available wire range has grown alongside machine power and flushing technology.

Early machines commonly ran .008" wire; today's shops routinely stock .008", .010", .012", and .016" wire side by side, picking whichever suits the job in front of them.

Factors That Influence the Right Diameter in Real-World Operation

Textbook diameter charts assume ideal conditions. Real shop floors rarely match them. A few variables consistently override the "recommended" size:

  • Part geometry: sharp internal corners demand finer wire regardless of what the material thickness would otherwise suggest
  • Material thickness and machine amperage: thick stock needs more power and flushing volume, which favors larger diameters
  • Spool, guide, and auto-threading compatibility: not every machine's threading system handles every wire size reliably
  • Wire tensile strength and job type: tall parts, taper cuts, and poor flushing conditions all shift the calculus toward tougher, sometimes larger, wire

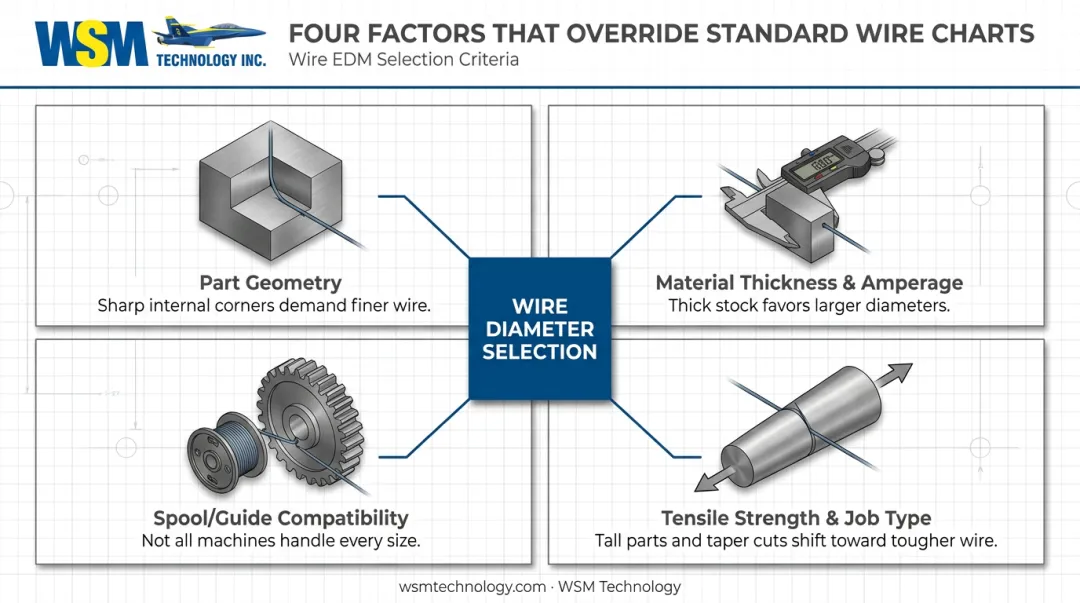

Four key factors influencing wire EDM diameter selection decisions

A programmer who ignores these factors and defaults to "whatever's on the machine" ends up fighting the job instead of running it.

The Standard Range of Wire EDM Wire Diameters

Wire diameter selection sits inside two overlapping boundaries: what the industry commonly stocks, and what a specific machine can actually run.

Nominal Operating Range

Shops group available wire into three bands:

Band Range (inch) Range (mm) Typical use
Ultra-fine .0008"–.004" 0.02–0.10mm Micro EDM, medical, fine detail
Standard .008"–.012" 0.20–0.30mm General mold and die production
Large-diameter .014"–.016" 0.35–0.40mm High-speed roughing, thick stock

.010" (0.25mm) brass remains the most common size across U.S. shops, and Cutting Tool Engineering identifies .010" and .012" as the sturdiest and most frequently used diameters in production work. Treat these bands as practical groupings rather than a formal industry standard — individual machine builders publish their own supported ranges.

Allowable Tolerance and Boundary Limits

Pushing toward either end of the range changes what the machine needs to support it:

  • Wires below .004" require tighter guide tolerances and specialized threading systems, often using air-assisted threading instead of standard water-jet methods
  • Large-diameter wire near .016" needs higher amperage and stronger flushing pressure to clear debris from a wider kerf
  • Ultra-fine sizes like .0008" work on certain micro EDM platforms, but slow threading and reduced cutting speed keep them out of production use

Safe Operating Margin

Most shops don't run at the extreme edges of the range. Cost, breakage risk, and machine capability create a practical middle ground shops default to instead.

Ignore that margin and the consequences show up fast: more wire breaks, unreliable auto-threading, and cycle times that creep upward as the machine struggles to hold parameters it wasn't really built for.

Key Technical Properties Affected by Wire Diameter

Change the wire diameter and you're changing four things simultaneously — kerf, corner geometry, cutting speed, and wire strength. There's no adjustment that improves one without affecting the others.

Kerf Width and Spark Gap

Thicker wire produces a wider kerf and a larger spark gap, removing more material per pass but reducing the achievable precision. For roughing with .010" or .012" wire, a typical spark gap runs .001"–.002", and that gap generally widens as wire diameter increases because larger wire tolerates more power.

Finer wire narrows both the kerf and the gap, which improves accuracy and finish, at the cost of cutting speed.

Corner Radius and Surface Finish

Wire diameter sets a hard floor on how sharp an internal corner can be. According to an example from GF Machining Solutions, a looping path with .005" wire can produce roughly a .007" corner radius, while sizes down to .0008" allow much more acute detail, cutting more slowly and breaking more easily along the way.

Finer wires also tend toward smoother surface finishes, largely because of lower spark intensity and a narrower kerf compared to thicker wire running the same technology settings.

Material Removal Rate and Cutting Speed

This is where diameter pays off most visibly. In a documented Makino test cutting 4-inch-thick D2 tool steel, .016" coated wire finished in 2 hours 8 minutes versus 4 hours 59 minutes for .010" brass. That's a 2.3x speed increase and 57% cycle-time reduction on the same material.

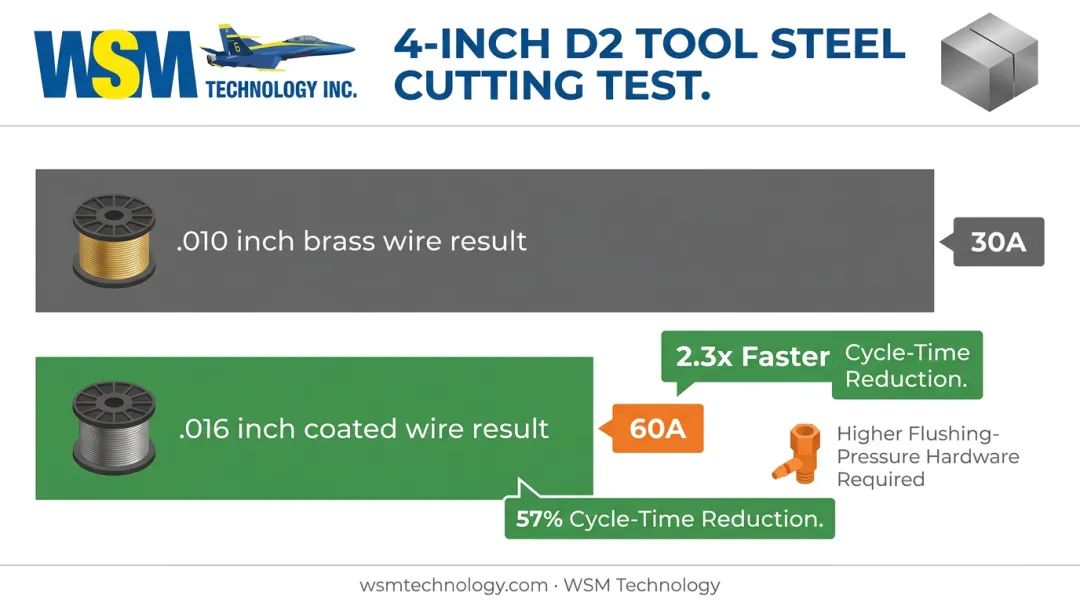

Makino test comparing 016 inch versus 010 inch wire cutting speed on D2 tool steel

That gain comes with a catch: the .016" setup needed roughly double the amperage (60A versus 30A) and higher-pressure flushing hardware to support it. Speed isn't free: it demands machine power to back it up.

Tensile Strength, Breakage, and Trade-offs

Finer wires carry lower absolute tensile strength, even when their strength per unit area is higher than thicker wire. That's why sub-.004" wire is more breakage-prone in production despite technically strong material specs.

The underlying pattern holds across every property:

Choose You Gain You Sacrifice
Thicker wire Faster cutting, more durability Corner sharpness, tight tolerance
Thinner wire Corner sharpness, tight tolerance Cutting speed, durability

No single diameter maximizes everything at once.

Specifying and Selecting the Right Wire Diameter for Your Application

Diameter selection starts with the part itself. Before speed or cost enters the conversation, nail down:

  • Required internal corner radius: this alone can eliminate half the diameter range
  • Material thickness — thin stock and thick stock favor very different wire sizes
  • Surface finish specification — tighter finish calls typically push toward finer wire

From there, job type points toward a general starting range:

  • Micro or fine wire for medical and aerospace detail work requiring sharp features and tight tolerances
  • Standard .010"–.012" for general mold and die production, the workhorse range for most shops
  • Large-diameter wire for thick-stock, high-throughput roughing where speed matters more than corner sharpness

Machine capability is a hard boundary here, not a preference. Not every wire EDM platform runs the full spectrum from micro to large-diameter wire — spool design, guide systems, and generator power all limit what's physically possible on a given machine.

This is where equipment selection becomes as important as wire selection. WSM Technology carries Sarix Micro EDM equipment built specifically for fine-wire precision work, alongside Mitsubishi wire EDM machines engineered for large-diameter, high-speed cutting.

Shops unsure which range fits their part mix can bring material into WSM's Rootstown, Ohio demonstration center. Test-cutting there compares wire diameter performance before committing to a machine purchase or process change.

Implications of Using the Wrong Wire Diameter

Mismatched diameter rarely announces itself as an immediate failure. It usually shows up first as poor corner geometry or a missed tolerance on an otherwise normal-looking cut.

Left uncorrected, the problems compound:

  • Wire breakage climbs as the machine pushes parameters the diameter can't support
  • Auto-threading reliability drops, especially when running fine wire on hardware tuned for standard sizes
  • Strikes and short circuits increase from inadequate flushing at the wrong diameter for the job

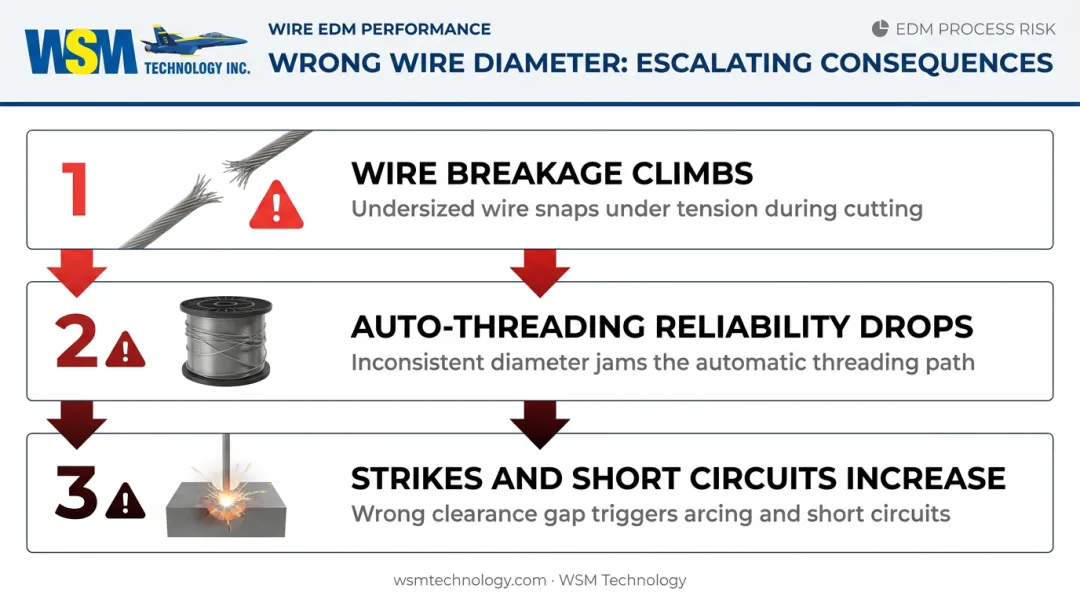

Three compounding problems from mismatched wire EDM diameter selection

The cost impact cuts both directions. Oversized wire on detail work wastes precision the part didn't need and can blow through the corner tolerance entirely.

Undersized wire on thick or high-volume jobs multiplies cycle time and consumable cost, turning a straightforward roughing job into an overnight run.

There's no single "best" wire diameter. Published wire charts are starting points, not universal rules. The right size depends on the machine running it, the material being cut, and the geometry the part demands. Every time.

Frequently Asked Questions

What wire diameters are available for wire EDM?

Wire diameters range from ultra-fine .0008" (0.02mm) micro wire up to large-diameter .016" (0.4mm) wire. The .010" (0.25mm) size remains the most commonly stocked and used across general shop work.

What is the best wire for wire EDM?

There's no universal "best" wire. Plain brass .010" suits general-purpose work, while coated, steel-core, or micro wires solve specific speed, breakage, or precision problems depending on the job.

What is the standard wire EDM wire diameter?

.010" (0.25mm) brass wire is the conventional baseline used across most general mold and die applications, though .012" is also common in production shops.

Does wire diameter affect surface finish?

Yes. Finer wires generally produce smoother finishes due to a narrower kerf and lower spark intensity, while thicker wires trade some finish quality for faster cutting speed.

Can I use different wire diameters on the same EDM machine?

It depends on the machine. Spool design, wire guides, and power/flushing specs determine the usable range, so not every machine supports both micro and large-diameter wire.

What is the smallest wire diameter used in micro EDM?

Diameters as fine as .0008"–.001" (0.02–0.025mm) are used in micro EDM for medical, aerospace, and other ultra-precise detail applications, though they require specialized threading hardware.
