Introduction
If you're still running a Mitsubishi BA8, you're in good company. Mitsubishi Electric introduced this wire EDM system back in 2007, and nearly two decades later, plenty of units are still cutting parts on shop floors every day.
That longevity creates a real problem, though. Many shop owners running an aging BA8 struggle to find consolidated information about its original specs, its real-world capabilities, and whether it's still worth keeping versus upgrading to something newer.
This guide covers the BA8's history, technical features, ideal applications, and how it stacks up against Mitsubishi's current wire EDM lineup.
We'll also look at how to keep one running at peak performance, with insight from WSM Technology, a regional Mitsubishi/MC Machinery dealer serving Northern Ohio, Western Pennsylvania, and West Virginia.
Key Takeaways
- The BA8 debuted in 2007 as Mitsubishi's dedicated wire EDM solution for parts production
- It runs on ball-screw driven axes, one generation behind today's linear motor systems
- Properly maintained BA8 units have logged 10-12+ years of reliable, high-precision service
- Shops running a BA8 should weigh rising maintenance costs against the productivity gains of newer Mitsubishi models

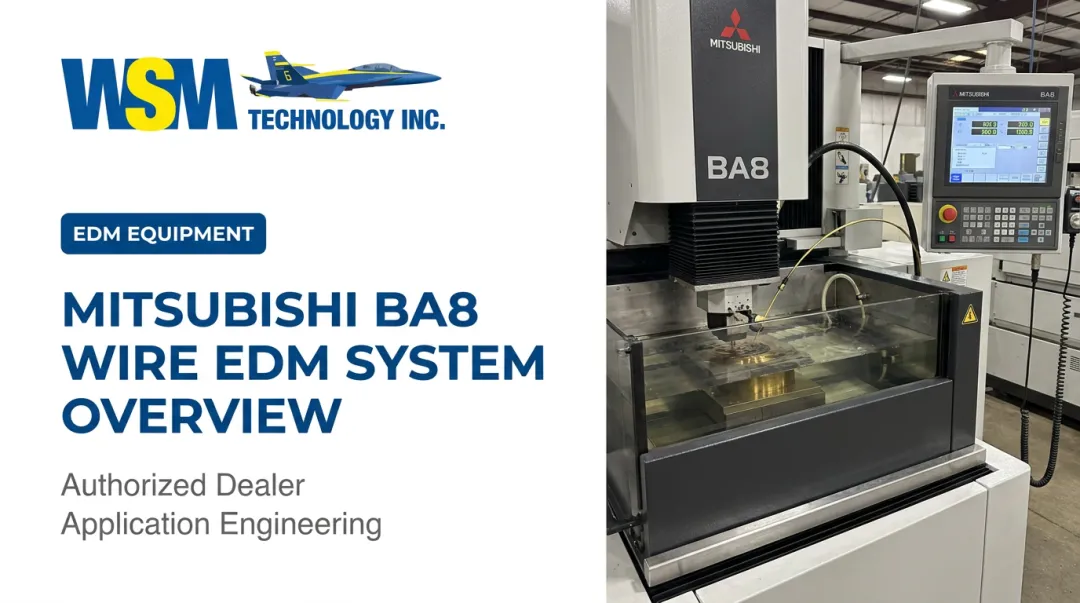

What Is the Mitsubishi BA8 Wire EDM System?
Mitsubishi Electric launched the BA8 in 2007 as an extension of its wire erosion lineup, built specifically for "parts production" rather than pure tool and die work, according to Mitsubishi's official product history. That same year, Mitsubishi rolled out its D-FS (digital fine simple) generator technology, which extended machining efficiency across the standard FA-S series and informed the BA8's design.
Where the BA8 Fit in Mitsubishi's Catalog
The BA8 wasn't positioned as a replacement for Mitsubishi's tool-and-die-focused machines. It sat alongside the FA, MP, and MV series as a production-tier option — built for shops that needed to cut similar parts repeatedly and efficiently, rather than one-off precision tooling. This reflected Mitsubishi's broader strategy: segment machines by shop type, so part manufacturers get equipment tuned to their actual workflow instead of a one-size-fits-all machine.
How Wire EDM Works
For readers newer to the technology: wire EDM uses a thin, electrically charged wire that erodes conductive material through a rapid series of electrical discharges. The wire never physically touches the workpiece. Instead, sparks jump across a small gap, vaporizing material in a controlled, repeatable path. It's how shops cut tight tolerances into hardened steel and other tough conductive materials.
A Reputation Built on Durability
Ask anyone who's spent time around Mitsubishi EDM equipment, and you'll hear the same thing: these machines are built to last. WSM Technology's founder, Blaise Buholzer, has worked in application engineering on wire and sinker EDM machines since 1985, long enough to watch multiple generations of equipment come and go.
Well-maintained BA8 units regularly hit 10 to 12 years or more of dependable service, a build quality that holds up even today.
Key Features & Technical Capabilities of the BA8
The BA8's published specifications, drawn from Mitsubishi's archived brochure, give a clear picture of what the machine was built to handle:
| Specification | BA8 Value |
|---|---|
| X/Y/Z cutting travel | 320 x 250 x 220 mm |
| Maximum workpiece size | 700 x 550 x 215 mm, 500 kg |
| Table size | 540 x 430 mm |
| Taper cutting | 15 degrees at 100 mm workpiece height |
| Dielectric tank capacity | 350 L, dual 3 µm filters |
| Wire diameter range | 0.1-0.3 mm |
| Wire spool capacity | 10 kg |
Source: BA8 archived specification brochure
Drive System and Control
The BA8 uses ball-screw driven axes, the standard mechanical drive approach of its era. Later Mitsubishi models moved away from this design entirely. A Modern Machine Shop report confirms that Mitsubishi's newer MV platform replaced the conventional ball-screw drives used across the earlier FA, BA, and MD+Pro II families with cylindrical linear-shaft motors. This shift improved both speed and positioning accuracy.
On the control side, the BA8 shipped with a 64-bit CNC and PC-style graphical interface, including 3D program-check graphics. That was a meaningful step forward for its time, though it's noticeably less intuitive than the touchscreen, menu-driven controls standard on machines today.
Threading, Cutting Strategy, and Wire
A few operational details:
- Automatic wire threading: The BA8 uses a water-beam AT system rated at roughly 10 seconds per thread
- Multi-pass cutting: Like most wire EDM platforms, the BA8 relies on a rough cut followed by skim passes to dial in surface finish and hold tight tolerances
- Wire compatibility: The machine handles wire diameters from 0.1 to 0.3 mm, with brass and V-wire options commonly used
Wire choice affects cut speed, finish quality, and consumable cost — a detail we'll revisit in the FAQ.

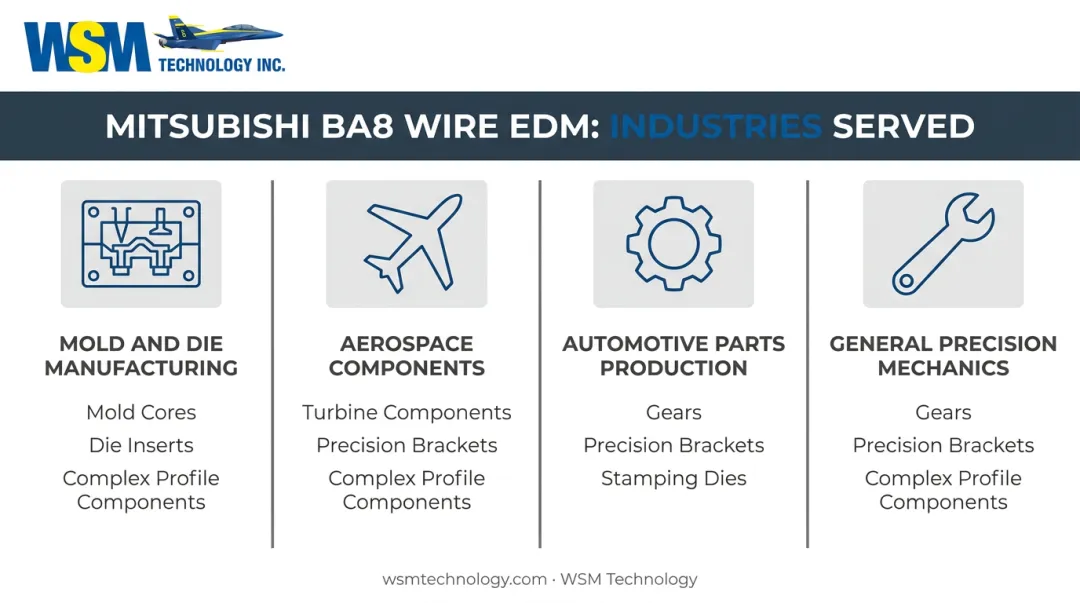

Industries & Applications Suited to the BA8
Mitsubishi built the BA8 for shops working across several core industries:
- Mold and die manufacturing
- Aerospace components
- Automotive parts production
- General precision mechanics
These are the same segments that drive most wire EDM demand across the industry, and the BA8's production-focused design made it a natural fit.
On a BA8-class machine, common parts include gears, precision brackets, and complex profile components — anything that benefits from repeat, high-volume cutting rather than one-off custom tooling. Gears are a particularly strong match for wire EDM's ability to hold tight tolerances on intricate geometries, a topic we cover further in the FAQ.
The BA8 isn't the right tool for every job, though. Shops chasing the absolute highest precision on complex tool and die work often gravitated toward Mitsubishi's FA or MP series instead. Mitsubishi designed the BA8 for efficient, repeat production runs, not the most demanding one-off precision tooling projects.

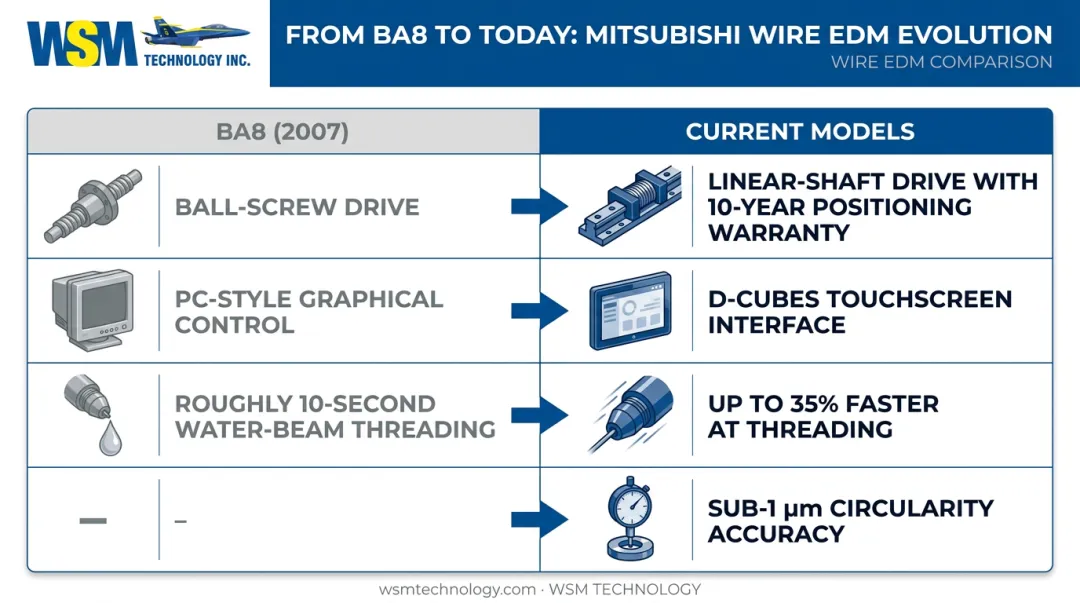

BA8 vs. Today's Mitsubishi Wire EDM Lineup
If you're weighing whether to keep your BA8 running or move to something newer, the differences between generations are significant.
Drive Systems and Accuracy
The BA8's ball-screw axes have been fully replaced in current models by tubular direct-drive and linear motor systems, and the accuracy numbers show it:
- Carries a 10-year positioning warranty on the MV1200S, built around its cylindrical linear-shaft drive
- Publishes 0.8 µm circularity on the MP series under specified test conditions
- Claims 0.73 µm circularity on the oil-dielectric MX900, measured on a 30 mm circle at 20 mm cutting height
Those are meaningfully tighter numbers than anything the BA8 generation was built to deliver.
Control and Generator Technology
Current machines run D-CUBES intelligent touchscreen interfaces, a marked improvement over the BA8's PC-style graphical control. Setup times shrink, and operators spend less time hunting through menus. Newer V-series generators also build voltage faster, which typically means fewer finishing passes are needed to hit target surface finish.
Threading Speed
The BA8's water-beam threading system operates around 10 seconds per cycle. Mitsubishi's current MV series uses a high-speed AT mode that cuts threading time by up to 35% compared to earlier systems, reducing the downtime that piles up over hundreds of daily re-threads.
Getting a Direct Comparison
Here's where things get practical. WSM Technology serves as the regional Mitsubishi/MC Machinery dealer across Northern Ohio, Western Pennsylvania, and West Virginia. The company helps shops running legacy BA8 machines evaluate upgrade paths to current MP, MV-R, MV-S, or MX900 series systems.
Rather than guessing at the productivity difference, shops can visit WSM's Demonstration Center in Rootstown, Ohio, and run side-by-side test cuts — comparing their existing BA8's actual performance against current-generation Mitsubishi machines on the same material. It's a far more useful way to make the call than relying on brochure specs alone.
Keeping Your BA8 Running: Parts, Service & Upgrade Support
A BA8 that's been in service for over a decade still has plenty of life left in it, provided the wear points get proper attention.
Common Wear Points to Monitor
- Ball screws: the mechanical heart of the BA8's axis movement, prone to wear over years of continuous cutting
- Wire guides: precision components that directly affect cut accuracy as they age
- Generator components: critical to maintaining consistent spark energy and finish quality
Left unchecked, wear in any of these areas gradually erodes the tight tolerances your shop depends on.
Sourcing the Right Parts
Genuine OEM replacement parts and consumables matter more than shops sometimes realize. Swapping in off-brand components might save money upfront, but it can erode accuracy over time. WSM Technology supplies **OEM replacement parts and EDM consumables**, wire, filters, and resin tanks among them, to Mitsubishi machine owners across its service territory.
When to Get a Second Opinion
If your BA8 feels like it's not cutting the way it used to, a periodic time study or performance audit (a service WSM offers) can tell you whether it's still hitting production-grade tolerances.
Sometimes it's a simple maintenance fix. Other times, declining performance means it's time to consider a newer machine. The math on continued repairs may no longer pencil out against what a current-generation machine delivers.
Frequently Asked Questions
Can you wire EDM gears?
Yes. Wire EDM, including on BA8-class machines, is commonly used to cut precision gears and gear-like profiles. The process holds tight tolerances on complex geometries that would be difficult to achieve with conventional cutting methods.
What is the difference between EDM and wire EDM?
Die-sinking EDM uses a shaped electrode pressed into the material to erode a specific cavity. Wire EDM uses a continuously moving wire to cut all the way through conductive material, making it better suited to precision profiles and through-cuts.
What is the best wire for EDM?
It depends on your material, cut speed, and finish requirements. Brass wire is the standard workhorse, while zinc-coated or stratified wire cuts faster and resists breakage better, though it typically costs two to three times more.
Is the Mitsubishi BA8 still available new today?
No. The BA8 has been succeeded by newer Mitsubishi wire EDM series. WSM Technology, an authorized Mitsubishi dealer, recommends current models like the MP, MV-R, or MV-S series, which offer tighter accuracy and faster threading.
How long do Mitsubishi wire EDM machines like the BA8 typically last?
With proper maintenance, BA8 units have demonstrated 10 to 12+ years of reliable, high-precision service in real shop environments. Longevity largely depends on how consistently wear points get monitored and serviced.
What signs indicate my BA8 is losing precision and needs attention?
Watch for inconsistent surface finish, gradual tolerance drift, or setup times that keep creeping up. Any of these warrant a professional time study or service evaluation, such as those WSM Technology performs, before the problem affects part quality.
