Introduction
Deep hole drilling isn't just drilling deeper — it's a fundamentally different process. Any hole exceeding 10 times its diameter qualifies, and at that point conventional equipment can't keep up. Specialized tooling, high-pressure coolant systems, and self-guiding drill heads become necessary.
Beyond roughly 20:1 depth-to-diameter (L/D) ratios, twist drills fail predictably: chips pack, tools deflect, and hole straightness degrades. Two methods dominate at these depths: gun drilling and BTA drilling. Knowing which one fits your application is what this article is built around.
If you're a machinist, manufacturing engineer, or shop owner in aerospace, automotive, mold and die, or medical manufacturing, this guide explains how each process works, where they diverge on performance and cost, and which L/D ranges and materials favor each method.
Key Takeaways
- L/D ratios beyond 10:1 require deep hole drilling methods; standard tooling fails past 20:1
- Gun drilling targets small diameters (1–50 mm), delivering tight tolerances and superior surface finish
- BTA drilling handles larger diameters (20–200+ mm) at feed rates 5–7× faster than gun drilling
- Both methods depend on high-pressure coolant — not just for cooling, but for chip transport
- In the 12–20 mm crossover zone, production volume and machine budget determine which method wins
What Is Deep Hole Drilling?
Deep hole drilling is defined by L/D ratios greater than 10:1. According to UNISIG, dedicated gun drilling machines become necessary for holes exceeding 20:1, while L/D ratios up to 100:1 are achievable on dedicated machines — and up to 400:1 with specialized equipment.
Why Conventional Drills Fail
Standard twist drills run into a wall around 10–20 diameters of depth. Cutting Tool Engineering identifies three compounding failure modes:
- Chip packing — chips can't evacuate fast enough and jam the flutes
- Tool deflection — the unsupported drill bends, sending the hole off-course
- Heat buildup — without active coolant delivery to the cutting edge, temperatures spike

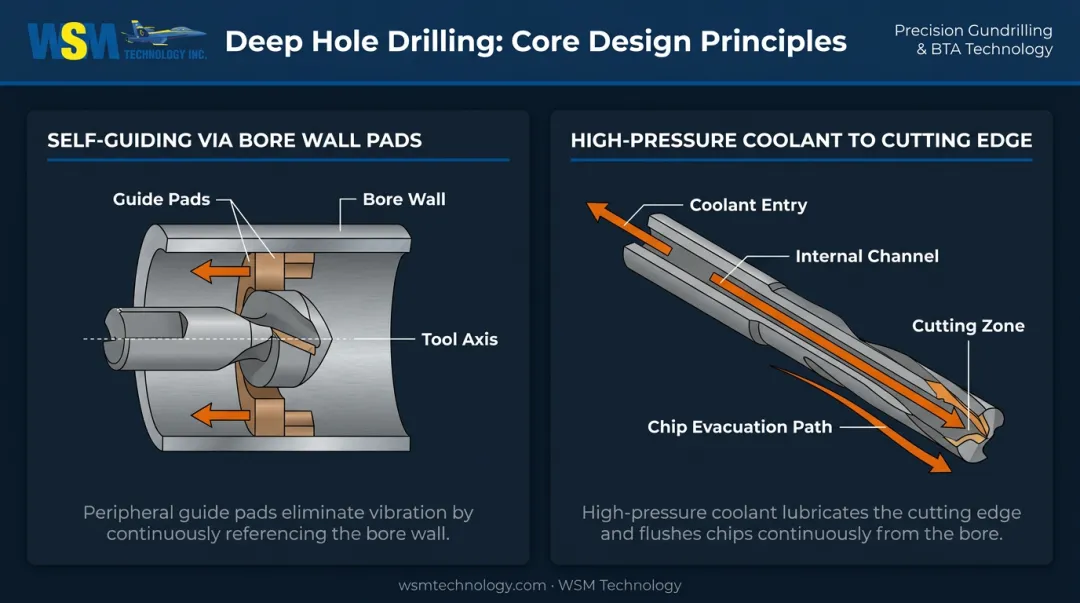

Dedicated deep hole drilling solves these problems through two design principles. First, the tool self-guides along the bore wall via guide pads instead of relying on spindle alignment. Second, coolant is pumped at high pressure directly to the cutting edge, carrying chips out continuously — no peck cycles required.
Two classical methods handle this: single-lip gun drilling and BTA drilling. Each targets a different diameter range and production volume, so the right fit depends on what your shop is actually cutting.
How Gun Drilling Works
A gun drill is a single-flute tool that pumps high-pressure coolant through an internal channel in the drill shaft. That coolant reaches the cutting edge, picks up chips, and carries them back out through a V-shaped longitudinal groove along the tool's outside. This single-pass chip evacuation is what keeps deep bores clean and prevents chip packing at extreme depths.
Tool Anatomy
A gun drill has three components:
- Carbide drill head — contains the asymmetric cutting edge and guide pads
- Drill tube — carries coolant internally from the machine to the cutting zone
- Clamping sleeve — connects the tube to the spindle and toolholder
The guide pads are what make gun drilling work at extreme L/D ratios. Botek notes that these pads ride against the bore wall, absorbing radial cutting forces and burnishing the surface simultaneously — producing both straightness and a fine finish in a single pass.

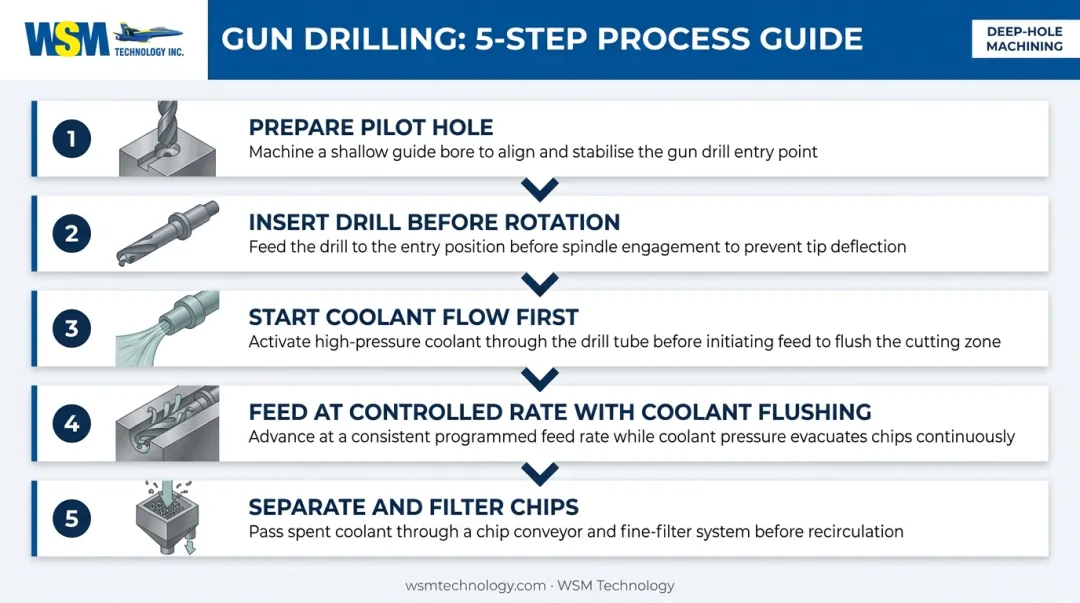

Process Steps
- Prepare a pilot hole — typically 1–2 diameters deep and slightly larger than the drill, to guide entry and prevent walk
- Insert the drill before starting rotation — never advance into the workpiece while stationary
- Start coolant flow first, then begin rotation and advance
- Feed at a controlled rate while coolant continuously flushes chips through the flute
- Separate and filter chips from the coolant at the machine's chip collector
Coolant Pressure by Diameter
Required coolant pressure scales inversely with diameter — smaller tools need dramatically more pressure to keep chips moving. Botek and Guehring published the following reference data:
| Diameter | Approximate Coolant Pressure |
|---|---|
| 0.5 mm | ~190 bar |
| 5 mm | 40–80 bar |
| 12 mm | 25–55 bar |
| 26 mm | 15–35 bar |
| 40 mm | 5–15 bar |
Sources: Botek Type 113 catalog; Guehring EB 800 guidelines

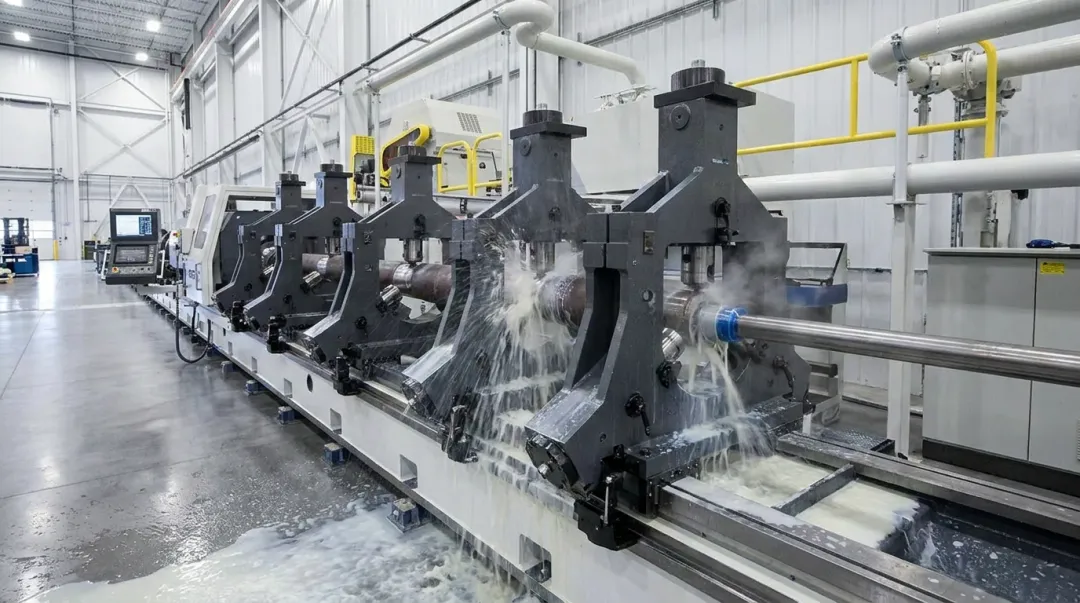

Machine Options
Gun drilling can run on a conventional lathe (workpiece rotates only) or a dedicated gun drilling machine (which can contra-rotate both tool and workpiece for improved straightness). Dedicated machines become notably more effective beyond roughly 40:1 L/D: at that point, whipping guards, steady rests, and high-pressure coolant delivery shift from optional to essential.
For shops that need both deep-hole capability and multi-axis milling on a single platform, WSM Technology's Cheto 7 Axis Milling and Gun Drilling machine is built for exactly that workflow — a practical option for manufacturers in Northern Ohio, Western Pennsylvania, and West Virginia looking to consolidate operations.
How BTA Drilling Works
BTA drilling — short for Boring and Trepanning Association, also called STS (Single Tube System) — reverses the coolant and chip flow compared to gun drilling. High-pressure coolant enters the annular gap between the outside of the drill tube and the bore wall. Chips are swept into openings in the drill head and evacuated through the hollow inside of the drill tube, exiting through the machine spindle.
Tool Anatomy and Rigidity
The BTA drill head mounts onto a rigid drill tube and typically features:
- Multiple cutting edges (brazed or indexed carbide inserts)
- Chip mouth openings for chip intake
- Guide pads for bore wall support
The closed tubular cross-section gives BTA tooling significantly higher torsional rigidity than single-flute gun drill tubing. That rigidity is why BTA sustains higher cutting forces and achieves aggressive feed rates.
The Sealing Requirement
Because coolant enters from outside the drill tube, the entry point at the workpiece face must be sealed. This is handled by the BOZA — the drilling oil supply unit — which seals between the workpiece face and the drilling system.
Without this seal, coolant escapes, chip removal breaks down, and surface quality degrades rapidly. This is a non-negotiable setup step that requires a dedicated machine rather than an improvised lathe setup.
Productivity Advantage
UNISIG reports that BTA feed rates are typically 5–7× faster than gun drilling at the same diameter. Sandvik Coromant places the productivity advantage at 4–6×. The gap is consistent across sources: when production volume matters at larger diameters, BTA is the faster process.
Diameter Range
BTA drilling is industrially applied from approximately 16–20 mm up to 200 mm per UNISIG's standard tooling range, with Botek listing capability up to 700 mm for heavy-industry bores. Below approximately 16 mm, tool size constraints and sealing challenges make BTA impractical.
Gun Drilling vs. BTA Drilling: How to Choose

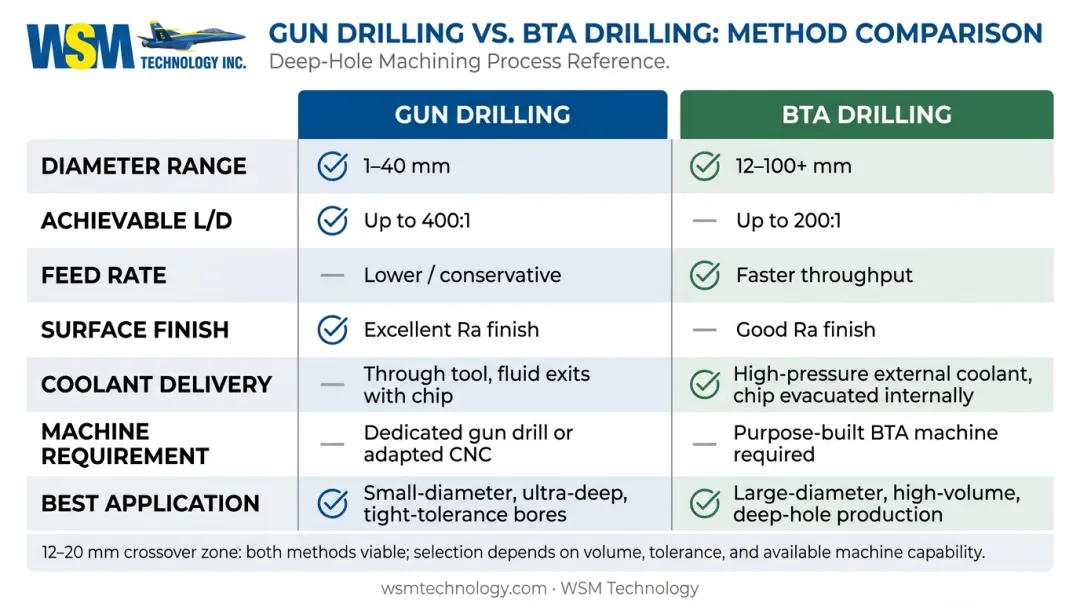

Direct Comparison
| Factor | Gun Drilling | BTA Drilling |
|---|---|---|
| Diameter range | 1–50 mm | ~16–200+ mm |
| Typical L/D achievable | Up to 100:1 (dedicated machine) | Up to 150:1 (Sandvik); 400:1 specialized |
| Feed rate | Baseline | 5–7× faster at same diameter |
| Surface finish | Ra 0.1–3.2 µm; up to IT7 | Ra 1.5–3.2 µm; IT8–IT10 |
| Coolant delivery | Internal (through tool) | External (into annular gap) |
| Machine requirement | Lathe or dedicated machine | Dedicated machine required |
| Best for | Small diameter, high precision | Large diameter, high throughput |
The 12–20 mm Crossover Zone
Both methods are technically applicable in the 12–20 mm range. What tips the decision:
- Production volume — BTA's speed advantage pays off quickly in high-volume runs
- Surface finish requirement — gun drilling typically achieves finer finish without secondary operations
- Existing machine investment — BTA requires infrastructure that may not be justified for one-off parts
- Job type — recurring production favors BTA; prototype or low-volume work often favors gun drilling
Material Compatibility
Both methods work across steel, aluminum, titanium, and superalloys. Botek's cutting speed guidelines give a sense of the differences by material:
- Steel under 900 N/mm²: 70–100 m/min
- Aluminum alloys: 100–300 m/min
- Titanium and Inconel-type superalloys: 25–60 m/min
Where the methods diverge is in surface outcome. Gun drilling's single cutting edge geometry is the better choice when micro-surface finish matters — medical components and mold cores being the clearest examples. BTA's multi-edge design is optimized for material removal rate, not fine-finish requirements.
Setup and Infrastructure
Gun drilling can start modestly (adapted to a lathe for shallower depths) and scale to dedicated equipment as applications demand. BTA requires a dedicated machine and sealed coolant circuit from day one. That baseline investment is typically justified by recurring production volume rather than occasional jobs.
Shops evaluating which direction to go benefit from running test cuts before committing to capital equipment. WSM Technology's demonstration center in Rootstown, Ohio offers exactly that — test cuts and time studies on actual parts, giving manufacturers in Northern Ohio, Western Pennsylvania, and West Virginia concrete data before making a capital decision.
Where Deep Hole Drilling Is Applied
Industries and Applications
| Industry | Typical Components | Preferred Method |
|---|---|---|
| Aerospace | Turbine shafts, landing gear, hydraulic cylinders (titanium, Inconel) | Gun drill (1–40 mm); BTA (20–500 mm) |
| Automotive | Camshafts, fuel injection components, transmission shafts | Both, by diameter |
| Firearms | Rifle and pistol barrels, shotgun barrels | Gun drilling |
| Oil & gas / Energy | Drill collars, frack pump blocks, heat exchanger tube sheets, turbine shafts | BTA primarily |
| Mold & die | Cooling channels, ejector pin holes, lifter holes | Gun drilling |
| Medical | Surgical instruments, implants (0.8–6 mm, L/D 20:1 to 100:1+) | Gun drilling |
The global deep hole drilling machines market reached $654.1 million in 2025, projected to reach $993.3 million by 2034. Automotive leads end-use demand at 24.7%, followed by oil and gas at 19.8%.
What Triggers the Need
That demand isn't evenly distributed — it concentrates in applications where conventional drilling simply can't hold up. Three component characteristics push manufacturers toward dedicated deep hole equipment:
- Holes requiring straightness beyond 20:1 L/D — where twist drills fail
- Parts where secondary operations (reaming, honing) would be costly or impractical
- Bores where surface finish directly affects function: sealing, flow, or bearing fit
Common Misconceptions and Limitations
"Peck drilling can substitute for gun drilling at depth"
It can't. Beyond approximately 20:1 L/D, the physics of chip evacuation require a fundamentally different tooling approach. No matter how carefully peck cycles are programmed, chip packing, tool deflection, and heat buildup compound at depth in ways that periodic retraction doesn't solve.
"Any lathe can perform gun drilling"
A lathe can physically mount a gun drill. What it lacks: whipping guards, contra-rotation capability, and a dedicated high-pressure coolant system. Results degrade rapidly beyond 40:1 L/D, and safety risks increase from drill whip when unsupported tool lengths become too long.
Industry guidelines recommend steady rest spacing not exceeding 40–50× tool diameter: a specification that standard lathes can't practically enforce.
Knowing when each method is the wrong choice
- Gun drilling above ~50 mm diameter: BTA becomes more economical
- BTA below ~16 mm: Tool size constraints and sealing challenges make it impractical
- Either method for L/D under 10:1: Standard drilling is far more cost-effective — deep hole methods add cost and setup time that isn't justified for shallow holes
Frequently Asked Questions
What is the main difference between gun drilling and BTA drilling?
The primary difference is chip evacuation direction and diameter range. Gun drilling pumps coolant through the tool and exits chips via an external flute (effective from 1–50 mm). BTA feeds coolant from outside the tube and removes chips through the drill tube interior (effective from ~16–200+ mm), giving BTA significantly higher feed rates for larger holes.
What depth-to-diameter ratio requires specialized deep hole drilling?
Deep hole drilling methods become necessary when L/D ratios exceed approximately 10:1 and are essentially mandatory beyond 20:1. At that point, conventional twist drills can no longer reliably evacuate chips, maintain hole straightness, or achieve acceptable surface finish regardless of peck cycle programming.
Can gun drilling be done on a standard CNC machine or lathe?
Gun drilling can be adapted to a conventional lathe for shallower applications up to approximately 40:1 L/D. Beyond that threshold, a dedicated gun drilling machine with contra-rotation, whipping supports, and high-pressure coolant delivery is strongly recommended — for both part quality and operator safety.
What surface finish and tolerances can deep hole drilling achieve?
Gun drilling achieves bore tolerances in the IT6–IT7 range with surface roughness as low as Ra 0.1 µm — often eliminating the need for secondary reaming or honing. BTA drilling typically achieves IT8–IT10 and Ra 1.5–3.2 µm, prioritizing throughput over micro-surface finish.
Which industries rely most heavily on deep hole drilling?
Aerospace, automotive, oil and gas, firearms manufacturing, medical devices, and mold and die are the primary industries. Their recurring need for long, straight, precision bores in demanding materials — titanium, Inconel, hardened steels — makes deep hole drilling a production necessity rather than a specialty operation.
When should I choose BTA drilling over gun drilling?
Choose BTA when hole diameter exceeds approximately 20 mm and production volume demands fast cycle times — BTA feeds 5–7× faster than gun drilling at comparable diameters. For smaller diameters or one-off precision work, gun drilling is the better fit.
