Coated wire costs more per spool. That's a fact. What many shops discover after switching, though, is that the math works heavily in coated wire's favor once you account for cutting speed, machine uptime, and cost per part rather than cost per spool.
This article covers what coated wire is, how it differs from standard brass, the four main types and what each does best, and how to evaluate whether switching makes financial sense for your operation.
Key Takeaways
- Coated wire cuts 20–50% faster than standard brass, depending on wire type and application
- Faster cutting means more parts per shift—without adding machines or headcount
- Fewer wire breaks and better flushing make coated wire well-suited for lights-out machining
- Surface finish and dimensional accuracy both improve with the right coated wire selection
- Coated wire requires parameter adjustments, but the speed and throughput gains justify the setup time
Why Your Wire Choice Is a Profitability Decision
Wire EDM machine time is expensive. When your machine cuts slowly, every hour of reduced throughput compounds against your overhead, labor, and amortization. Choosing wire based only on spool price misses the bigger cost picture entirely.
Modern Machine Shop reports that with planned unattended operation, wire EDM machines can reach as many as 5,000 productive cut hours per machine per year—but also that on-machine part pickup alone costs roughly 130 hours of lost cutting time annually. Wire choice then compounds the remaining hours: slower-cutting wire quietly bleeds output from every shift, not just the obvious downtime.
Makino notes that most wire EDM machines consume more than 1 lb of wire per hour, and identifies wire as the largest recurring operating expense. That makes wire selection both a consumable decision and a throughput decision simultaneously.
The Standard Brass Trap
Shops default to standard brass wire (typically CuZn35 to CuZn37—roughly 63% copper, 37% zinc) because it's familiar, predictable, and cheaper per spool. The problem: "cheaper per spool" frequently means "more expensive per part" once throughput enters the calculation.
- A machine cutting at 15% slower speed with brass wire produces proportionally fewer parts per shift
- Fixed costs—labor, power, overhead—don't decrease because the wire costs less per spool
- The cost difference per spool rarely offsets the throughput loss over a full month of production
For shops in mold and die, aerospace, or automotive manufacturing—the industries WSM Technology serves across Northern Ohio, Western Pennsylvania, and West Virginia—higher throughput without additional capital or headcount is the fastest path to margin improvement.
A realistic "what if" scenario: If a shop runs one wire EDM on a single shift and coated wire increases cutting speed by 20%, that's roughly 1.6 additional productive hours per 8-hour shift. Over 20 working days, that's 32 extra machine-hours per month—without buying another machine or hiring another operator.
What Is Coated EDM Wire?
Coated EDM wire is a wire electrode with a zinc-enriched outer layer applied over a brass or copper core. The coating is engineered to deliver cutting performance that standard homogeneous brass wire cannot match.
MDPI research confirms that zinc vaporizes at approximately 907°C, compared to copper at roughly 2,567°C. A zinc-rich wire surface vaporizes more readily during each electrical discharge, releasing energy more efficiently at the spark gap. The result: faster vaporization, better debris flushing, and faster cutting—all while the copper-rich core maintains the wire's structural integrity.
Standard brass wire's uniform composition can't replicate this surface behavior. The zinc concentration is distributed throughout the wire rather than concentrated at the surface where the discharge actually occurs.
Coated wires are available in a range of tensile strengths and hardness levels, making them useful beyond raw speed. Depending on the type, they can:
- Improve surface finish on tight-tolerance cuts
- Reduce wire breakage in difficult flushing conditions
- Handle tall workpieces that strain standard brass wire
Types of Coated EDM Wire and What Each Does Best
Not all coated wires are the same. The coating technology determines what the wire excels at—and where its limits are.
Zinc-Plated (A-Type) Wire
A-type wire has a thin pure zinc layer (2–3 µm) applied by electro-galvanizing over an alpha-brass core. It delivers cleaner cutting, a modest speed improvement over standard brass, and good surface finish.
Its main constraint: workpiece height. A-type wire is generally suited for parts under 3–4 inches tall. Above that, flushing efficiency drops off.
Diffusion-Annealed Wire
Diffusion-annealed wire takes a heavier zinc coating (18–35 µm) and heat-treats it into a near 50/50 brass-zinc surface layer. This process overcomes A-type wire's height limitation by creating a more robust zinc-rich zone that maintains performance even when heads can't be positioned close to the workpiece.
Gamma-Phase Coated Wire
Gamma-phase wire features an intermetallic Cu₅Zn₈ coating with approximately 65% zinc. When drawn, the brittle gamma layer fractures into a discontinuous, porous structure that promotes turbulent flushing—an advantage in high-speed roughing cuts.
The tradeoff: that same porous surface structure makes it less ideal for ultra-fine finish work. Gamma-phase wire prioritizes speed over final surface quality.
Multi-Phase / Hybrid Coated Wire
Hybrid wires combine multiple brass phases (alpha, beta, gamma) in engineered layers. The goal is to capture the speed benefits of gamma-phase wire while maintaining surface finish quality closer to A-type wire—without fully trading one for the other.
Some hybrid product lines, including those from Thermocompact, are designed to run on existing brass machine settings, which simplifies the transition for shops testing coated wire for the first time.

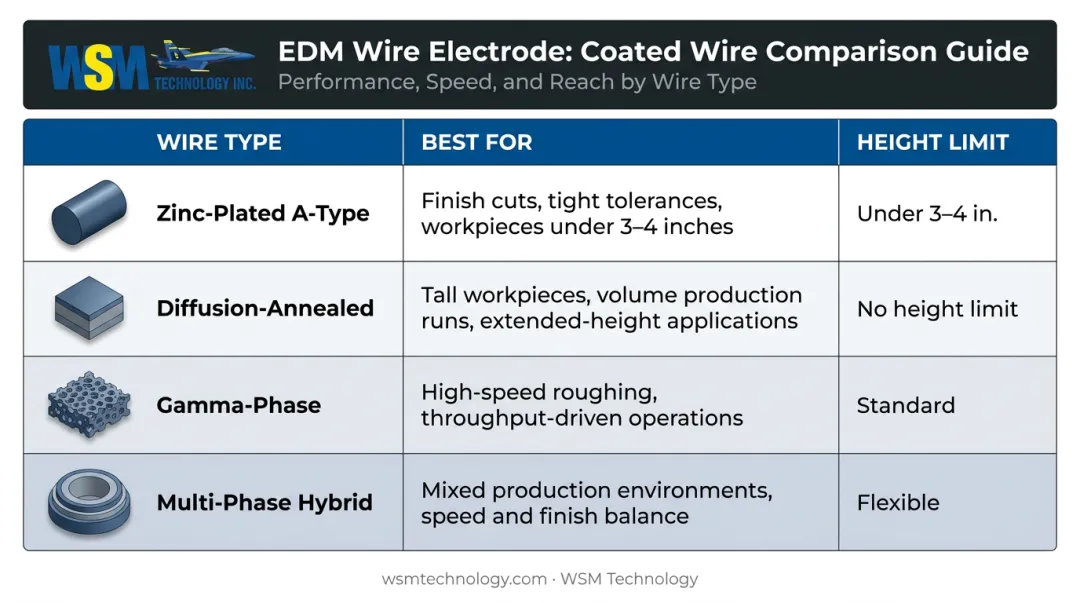

| Wire Type | Best For | Height Limit |
|---|---|---|
| Zinc-Plated (A-Type) | Finish cuts, tight surface finish, first-time coated wire users | Under 3–4 inches |
| Diffusion-Annealed | Tall workpieces, volume runs, poor flushing, tool steels, aluminum | No significant limit |
| Gamma-Phase | High-speed roughing, throughput-driven applications | Moderate |
| Multi-Phase / Hybrid | Mixed production needing both speed and finish quality | Varies by product |
The Profitability Math: Speed, Throughput, and Cost Per Part
The core equation is simple:
Profitability improvement = (additional parts per shift × margin per part) − incremental wire cost
The challenge is that shops often skip the first part and focus only on the second.
Speed Improvement: What the Numbers Look Like
Manufacturer data consistently shows coated wire outperforming standard brass by meaningful margins:
- Bedra reports high-tech coated wires can deliver up to 40% shorter machine running times
- Bedra's topas plus H 2.0 claims a 25% productivity gain using the same settings, up to 35% with adjusted settings
- Thermocompact's product range spans 20–50% faster than standard brass, depending on wire family
Using a conservative 20% improvement as a working assumption: a job that takes 10 machine-hours with brass wire completes in roughly 8 hours with coated wire. That's 2 hours freed per job cycle—hours that can run another job.

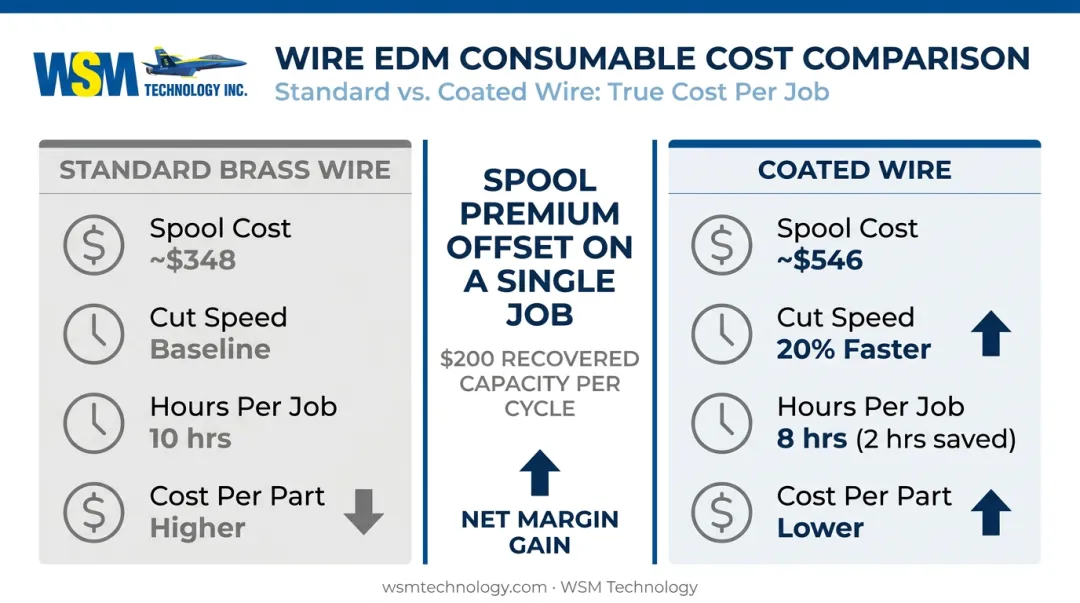

Cost Per Spool vs. Cost Per Part
Coated wire does cost more per spool. To illustrate the gap, EDM America lists a 35-lb spool of standard brass wire at approximately $348, while a comparable gamma-phase coated wire runs around $546—roughly a $200 premium per spool.
Wire cost is a small fraction of total machine operating cost per hour. When you account for labor, overhead, power, and machine amortization, the per-hour wire consumption cost is rarely the dominant variable.
Consider the rough math: at a $100/hour fully-loaded machine rate, a 20% throughput gain recovers 2 hours per 10-hour job—$200 in capacity per cycle. That offsets the entire spool premium on a single job. Every additional cycle after that is net gain.
Lights-Out Machining
Coated wire's improved flushing and reduced wire breakage rates make it a natural fit for unattended machining. Canadian Metalworking reports that wire EDM jobs can run from 1 hour to over 80 hours without manual intervention, and that 44-lb spools can provide over 100 hours of unmanned cutting time.
For shops already running overnight or weekend unattended cycles, fewer wire breaks mean fewer interrupted runs—and that's a multiplier on everything else.
We offer time studies and optimization support to help shops in Northern Ohio, Western Pennsylvania, and West Virginia quantify expected performance improvements before committing to a full wire transition. Our Mitsubishi EDM machines can also be configured to get the most from coated wire—something we walk through during the evaluation process.
Surface Finish and Accuracy Benefits of Coated Wire
Speed gets most of the attention, but finish and accuracy matter just as much for mold, die, and precision component work. Surface finish in wire EDM is measured in Ra (roughness average) or Rz values, and customers in tight-tolerance industries specify these on their prints—missing them means rework or scrap.
Thermocompact's high-performance finish wires are rated to achieve Ra 0.05 µm in carbide and Ra 0.10 µm in steel. Sodick lists wire EDM surface finish capability as fine as 0.36 µm Ra on its machines—numbers that show what's possible when wire selection and machine capability align.
For production work, the practical benefit of finish-optimized coated wire is fewer skim passes to reach spec—which directly reduces machine time per part.
Dimensional Accuracy
Coated wires with higher tensile strength ratings—Bedra's topas plus H 2.0 and V are rated at 800 MPa—reduce wire deflection during cutting. Less deflection means:
- Straighter walls on tall workpieces
- Sharper corner geometry
- Better dimensional consistency across a production run
For mold and tooling work, where corner radii and wall straightness directly affect part function, this translates into fewer secondary operations and higher first-pass acceptance rates.

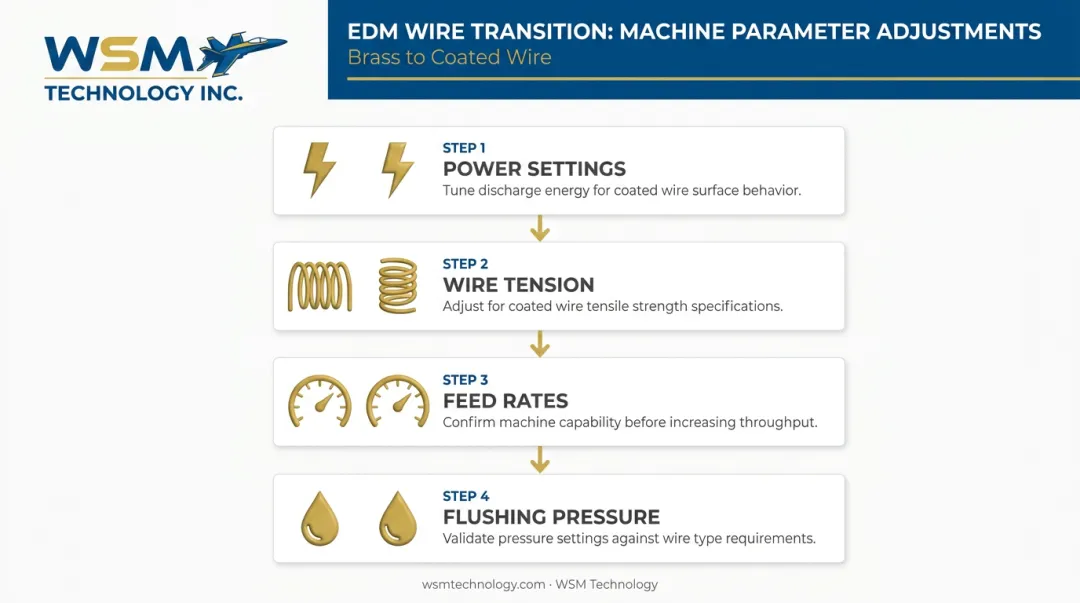

How to Switch From Brass to Coated Wire Without Losing Ground
Coated wire is not a plug-and-play swap. Machines running brass wire settings will underperform with coated wire—and in some cases, running coated wire on unadjusted settings can produce worse results than brass.
Parameters that typically require adjustment:
- Power settings — discharge energy needs tuning because coated wire's surface releases energy differently than bare brass
- Wire tension — coated wire tensile strength varies from brass, which affects deflection and breakage risk under load
- Feed rates — coated wire can support faster feeds, but confirm your machine's capability before pushing throughput
- Flushing pressure — coated wire promotes more turbulent flushing; validate pressure settings against the specific wire type
Some manufacturers design specific product lines for easier transitions. Bedra's topas plus H 2.0 claims a 25% gain using the same settings as brass—and Thermocompact's THERMO JP2 is optimized for Japanese machines using original brass settings. These options reduce adjustment complexity for shops that want to minimize process changes.
Start With One Application
The lowest-risk approach is to select one job type well-suited to coated wire—high-volume parts, tall workpieces, or parts with tight finish requirements—and run a controlled comparison rather than switching your entire operation at once. This builds internal data and confidence before a full transition.
WSM Technology's Demonstration Center in Rootstown, Ohio is set up specifically for this kind of evaluation. Shops can bring their actual part geometry and run test cuts comparing coated and brass wire performance before committing to any changes.
That means real data generated on your own parts—not vendor claims or lab averages—before you make the call.
Frequently Asked Questions
What are the different types of EDM wire?
EDM wire falls into several categories: copper, standard brass (CuZn35 to CuZn37), coated wires (zinc-plated/A-type, diffusion-annealed, gamma-phase, and hybrid/multi-phase), and specialty wires including molybdenum, tungsten, and steel-core. Each type is matched to different performance requirements—speed, finish, workpiece height, or wire diameter.
What is the surface finish of wire EDM?
Wire EDM surface finish uses Ra (roughness average) or Rz values as its standard measures. High-performance coated wires can reach Ra 0.05 µm in carbide (per Thermocompact ratings) and typically hit those specs in fewer skim passes than standard brass wire requires.
Is coated EDM wire worth the extra cost?
For most production applications, yes. Coated wire costs more per spool, but faster speeds, fewer wire breaks, and fewer skim passes per part add up fast. The throughput gain offsets the spool premium quickly.
Can I use coated wire on any wire EDM machine?
Most modern wire EDM machines can run coated wire, but cutting parameters—power, tension, flushing pressure, and feed rates—must be adjusted. Older or entry-level machines may not be optimized to fully capture coated wire's performance advantages, so verify machine compatibility before switching.
What is the difference between diffusion-annealed and gamma-phase coated wire?
Diffusion-annealed wire uses a heat-treated zinc-rich layer suited for tall workpieces and broad material ranges. Gamma-phase wire has a porous, high-zinc intermetallic coating that drives turbulent flushing and higher cutting speeds, though it trades off some fine-finish capability.
When should I NOT use coated EDM wire?
Standard brass wire remains the better choice for very fine wire diameters, extremely low-volume one-off jobs where the cost premium isn't justified, or applications on older machines not configured to handle coated wire's requirements. The right wire always depends on the specific job, machine, and production volume.
