The wrong end mill geometry, flute count, or coating doesn't just reduce tool life. It creates chip welding, built-up edge, dimensional inaccuracy, and scrapped parts — all of which drive up cycle times and production costs faster than most machinists expect.
This guide breaks down every factor that matters in aluminum end mill selection: substrate, flute count, helix angle, geometry, coatings, and running parameters. Whether you're roughing 6061 on a VMC or finishing 380 die cast on a high-speed spindle, the right tool choice is a production decision, not just a tooling one.
Key Takeaways
- Solid carbide outperforms HSS in aluminum — better heat resistance, sharper edges, longer tool life
- Two- or three-flute end mills are the standard for aluminum; four or more flutes risk chip packing
- High-helix angles (35°–45°) improve chip evacuation, reduce chatter, and deliver cleaner surfaces
- ZrN and DLC coatings reduce built-up edge and extend tool life; avoid TiAlN on aluminum
- Cast and wrought alloys behave differently — match tool specs to the specific alloy being cut
Understanding Aluminum as a Machining Material
Aluminum's appeal is straightforward: it's lightweight, corrosion-resistant, and generally considered easy to machine. What catches machinists off guard is how unforgiving it becomes when tool selection is off.
The core issue is aluminum's low melting point combined with its tendency to adhere to cutting edges. When chips don't evacuate cleanly, they weld to the tool flutes — creating built-up edge (BUE), increased friction, and surface damage that compounds with every pass.
Alloy composition drives tool selection in ways that aren't always obvious:

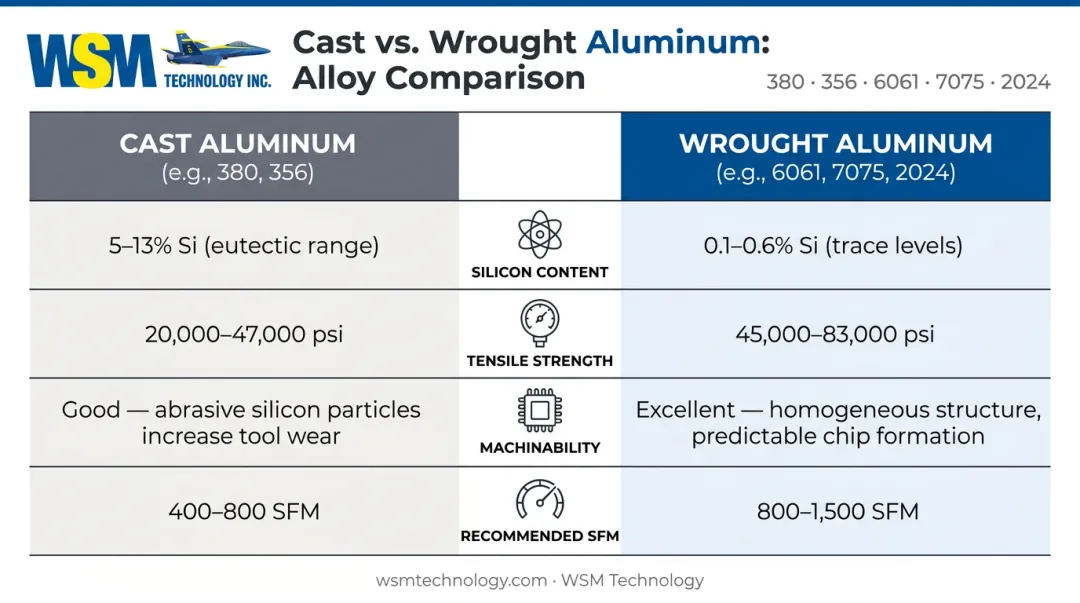

Cast vs. Wrought Aluminum: What It Means for Tool Selection
| Property | Cast Aluminum (e.g., 380, 356) | Wrought Aluminum (e.g., 6061, 7075, 2024) |
|---|---|---|
| Silicon content | 6.5–9.5% Si | 0.4–0.8% Si (max) |
| Tensile strength | 324 MPa (380), ≥33 ksi (356) | 310–572 MPa depending on alloy |
| Machinability | More abrasive, higher BUE risk | Better machinability, supports higher SFM |
| Recommended SFM | 500–1,000 SFM | 800–1,500 SFM |
According to Harvey Performance's aluminum machining guide, these SFM ranges reflect the real-world behavior difference between cast and wrought alloys in production environments.
Cast alloys carry far more silicon than wrought: A380.0-F runs 7.5–9.5% Si, while 6061-T6 sits at 0.4–0.8% Si per MatWeb data. That silicon content increases abrasiveness and accelerates tool wear, particularly on uncoated carbide.
For alloys with Si above 12%, ISCAR recommends transitioning to PCD tooling. Most common die casting alloys fall below that threshold, so properly specified carbide end mills handle them well.
Key Factors When Selecting an End Mill for Aluminum
End mill selection for aluminum isn't one-size-fits-all. The right tool depends on alloy type, operation, machine capability, and surface quality requirements. Each factor below connects directly to measurable production outcomes.
Substrate Material: Carbide vs. HSS
Solid carbide is the preferred substrate for aluminum milling. Carbide maintains sharper cutting edges at high speeds, generates less heat through friction, and outlasts HSS in high-volume or precision runs.
Harvey Performance's substrate comparison confirms that solid carbide has the highest heat resistance and wear resistance among HSS, cobalt, and carbide substrates — and can run at the fastest speeds and feeds. HSS must run slower, which often means more heat, more rubbing, and shorter tool life in aluminum.
HSS remains a reasonable choice for:
- Light-duty or low-volume applications
- Situations where upfront tooling cost is the primary constraint
- Slower-speed machines where carbide's speed advantage isn't accessible
For high-volume production, precision aerospace work, or any operation running above 800 SFM, carbide's performance advantage consistently justifies the cost difference.
Flute Count
Flute count is the most consequential selection factor for aluminum. The material produces large, gummy chips that need room to escape — and flute count directly controls how much space is available.
The aluminum standard:
- 2-flute end mills — Maximum chip valley size; the traditional choice for slotting, aggressive roughing, and any operation where chip evacuation is the primary concern
- 3-flute end mills — More rigid, improved surface finish; preferred for finishing passes and high-efficiency milling (HEM) toolpaths
- 4+ flute end mills — Not recommended for aluminum; reduced valley size creates chip packing risk, especially in heavy material removal
Three-flute mills have gained ground in finishing and HEM applications where rigidity and surface quality take priority over raw chip clearance.
Helix Angle
Helix angle determines how aggressively chips are pulled away from the cut and how much axial force acts on the workpiece. For aluminum, high-helix geometries are the standard — not an upgrade.
| Helix Angle | Best For |
|---|---|
| 35° | Tough roughing, interrupted cuts, slotting |
| 40° | General roughing, slotting, basic finishing |
| 45° | Finishing passes, HEM toolpaths |
| Variable helix | Thin-wall parts, long-reach setups, chatter reduction |
The 45° helix wraps around the tool faster, creating more aggressive chip lift and smoother cutter-to-workpiece contact. Variable-helix end mills disrupt the harmonic pattern of cuts, reducing chatter and resonance. This makes them particularly useful for thin-wall aluminum components or long-reach setups where vibration is otherwise hard to control.
End Mill Geometry and Shape
Geometry type is driven by the operation, not just the material:
- Square end mills — Profiling, slotting, plunge cutting; the workhorse geometry
- Ball nose mills — 3D surface work, curved contours
- Corner radius mills — Mold and die applications; reduces stress concentration at corners
- Long-neck/tapered mills — Deep pockets requiring clearance
For high-volume aluminum removal, chipbreaker tooling (serrated cutting edges) splits chips into smaller segments, improving evacuation at elevated feed rates. High-balance end mills are precision-balanced for machining centers running very high RPMs — Harvey Performance notes these tools are designed for aluminum machining up to 33,000 RPM, where even minor imbalance generates significant centrifugal force and vibration.
Coatings for Aluminum
Geometry and substrate get you most of the way there, but coatings close the gap. Uncoated carbide performs adequately on aluminum, but the right coating reduces built-up edge formation, improves lubricity, and extends tool life — particularly in high-speed or high-volume runs.
Critical note: Coatings designed for steel are not interchangeable with aluminum. Harvey Tool's coating guide specifically states that AlTiN is not recommended for aluminum due to chemical affinity — it actually promotes material adhesion rather than reducing it.

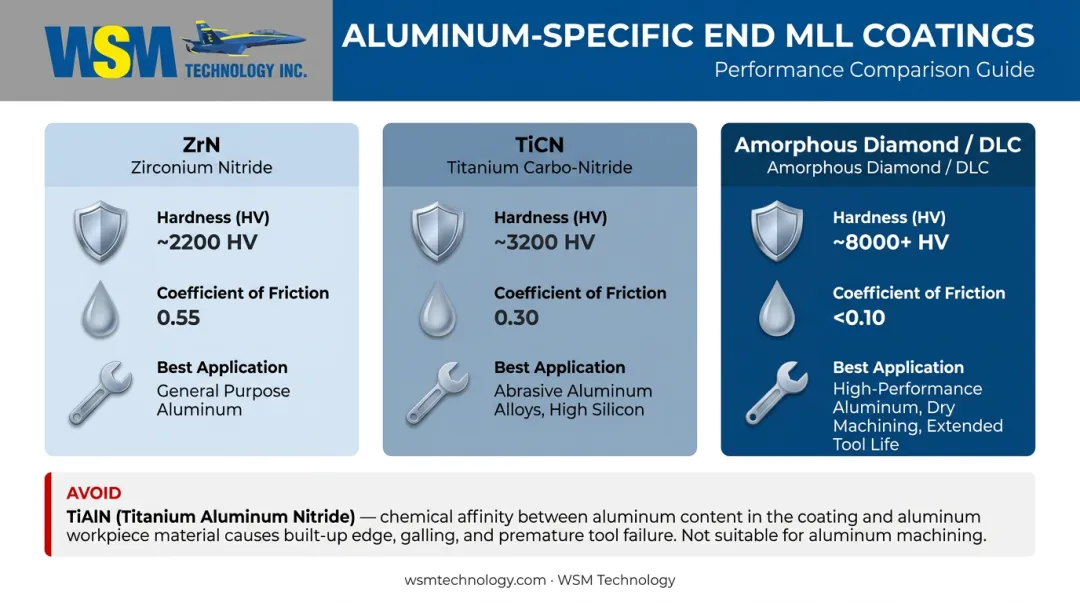

Recommended coatings for aluminum:
| Coating | Hardness | Coefficient of Friction | Best Application |
|---|---|---|---|
| ZrN (Zirconium Nitride) | 2,243 HV | 0.40 | General-purpose; abrasive aluminum alloys |
| TiCN (Titanium Carbo-Nitride) | — | Low | Added lubricity; high-silicon aluminum, HSS tools |
| Amorphous Diamond / DLC | 7,954–8,973 HV | 0.10 | High-Si aluminum; dry or high-temperature machining |
DLC coatings offer the lowest friction coefficient of any practical option for aluminum — 0.10 CoF compared to ZrN's 0.40 — making them particularly effective in dry machining environments or when running high-silicon cast alloys where BUE is a persistent problem. The tradeoff is a lower maximum operating temperature (399°C / 750°F vs. ZrN's 593°C / 1,100°F), so application temperature matters when selecting between them.
Running Parameters for Aluminum Milling
Even a correctly specified end mill will underperform if cutting parameters are poorly set. Cutting speed, feed rate, and depth of cut are interdependent. Adjust one without the others and you typically trade one problem for another.
Cutting Speed (SFM) and RPM
Start with these SFM ranges based on alloy type, then calculate RPM from cutter diameter:
RPM = (3.82 × SFM) / Tool Diameter
| Alloy Type | Example Alloys | Recommended SFM |
|---|---|---|
| Cast aluminum | 308, 356, 380 | 500–1,000 SFM |
| Wrought aluminum | 2024, 6061, 7075 | 800–1,500 SFM |
For a ½" end mill running 6061-T6 at 1,000 SFM: RPM = (3.82 × 1,000) / 0.5 = 7,640 RPM. That's a baseline. Adjust from there based on machine rigidity, workholding, and tool condition.
Feed Rate, Chip Load, and Depth of Cut
Feed rate in aluminum should maintain proper chip formation. Running too slow creates rubbing instead of cutting, which generates heat and accelerates tool wear. Running too fast without adequate chip clearance leads to packing.
Chip load reference by cutter diameter (carbide, aluminum):
| Diameter | Chip Load (IPT) |
|---|---|
| 1/8" | 0.001 IPT |
| 1/2" | 0.004 IPT |
| 1" | 0.007 IPT |
Once chip load is dialed in, depth of cut strategy matters just as much. In roughing operations, High Efficiency Milling (HEM) toolpaths use a high axial depth of cut (ADOC) paired with a low radial depth of cut (RDOC). This spreads tool wear across the full cutting length, keeps heat from concentrating at any single point, and drives higher material removal rates — a combination that works especially well in aluminum's gummy, heat-sensitive alloys.
Coolant and Chip Evacuation
Sandvik Coromant's guidance on dry vs. wet milling is more nuanced than the typical "flood everything" approach:
- Rough milling — Run dry; wet coolant during roughing creates thermal shock that shortens cutting edge life
- Finishing — Apply cutting fluid to prevent aluminum particles from smearing into the surface
- Thin-wall parts — Use cutting fluid to prevent geometric distortion from heat
- Deep cavities — Micro-lubrication (compressed air + small oil quantity) assists chip evacuation
Properly coated end mills (ZrN, DLC) support near-dry or dry machining in many aluminum applications. When coolant is used, directing it precisely at the cutting zone is more effective than flooding the entire workpiece.
How WSM Technology Can Help
Selecting the right end mill is one decision. Running it correctly on the right machine is another — and that's where local expertise matters.
WSM Technology, based in Rootstown, Ohio, has been serving manufacturers across Northern Ohio, Western Pennsylvania, and West Virginia since 2012.
Their team includes people who have actually run machining centers in production environments. Phillip Warlop Jr. spent years operating vertical and horizontal machining centers and programming plastic injection molds before joining WSM — that hands-on background translates directly into practical tooling and parameter guidance.

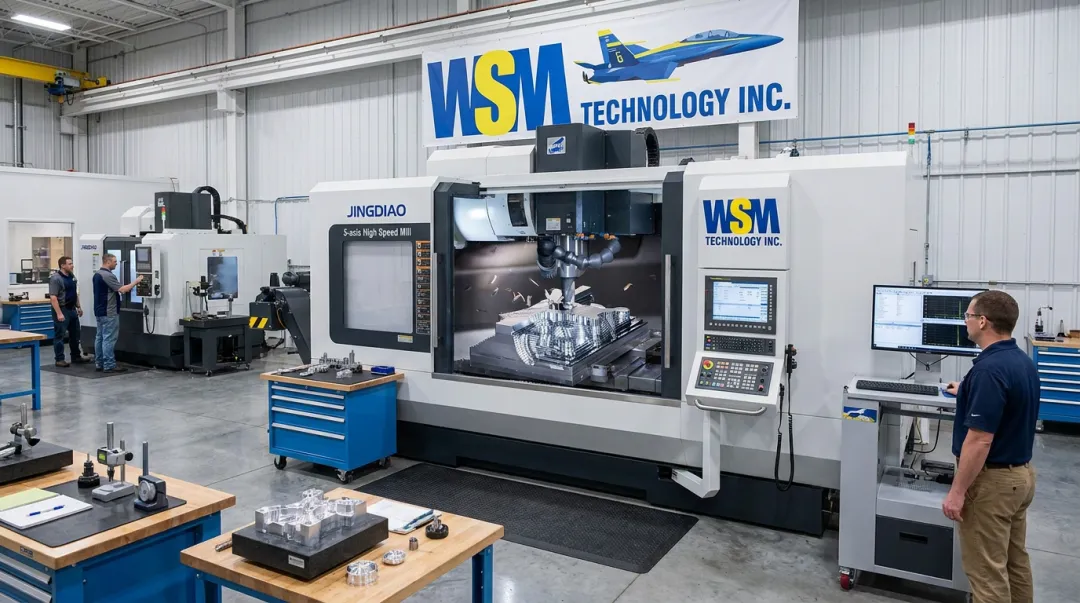

WSM's portfolio includes the JINGDIAO High Speed Mill in both 3-axis and 5-axis configurations — purpose-built for demanding aluminum milling applications that require precision, speed, and repeatability. Their Demonstration Center in Rootstown, Ohio allows customers to perform test cuts and time studies on actual workpiece materials before committing to equipment or tooling decisions.
Key advantages for manufacturers evaluating aluminum machining setups:
- Validate tooling decisions with test cuts and time studies on your actual material and geometry
- On-site service and support across the full service territory
- Hands-on training for operators and programmers
- Access to new and refurbished high-performance milling machines, backed by application engineers with real shop-floor experience
Conclusion
The right end mill for aluminum isn't the most popular tool in the catalog — it's the one that matches your specific alloy, operation, and machine. Get the substrate, flute count, helix angle, geometry, and coating aligned correctly, and aluminum rewards you with high material removal rates and excellent surface finish. Get any one of those factors wrong, and the material's tendency to stick, smear, and weld chips will make itself known quickly.
Tooling decisions don't stay static — as your alloys, batch volumes, or machine capabilities shift, the parameters that worked last year may not hold. When those conditions change, validating your tooling choices through actual test cuts matters far more than rechecking a spec sheet. WSM Technology's application engineering team runs test cuts and time studies at their Rootstown, Ohio demonstration center, giving manufacturers across Northern Ohio, Western Pennsylvania, and West Virginia a concrete way to confirm tooling performance before committing to production runs.
Frequently Asked Questions
What is the best end mill for cutting aluminum?
Solid carbide, 2- or 3-flute end mills with a high-helix angle (35°–45°) and a ZrN or DLC coating are the strongest performers across most applications. The specific choice depends on alloy type — cast vs. wrought — and the operation being performed (roughing vs. finishing).
What is a good SFM for aluminum?
Cast aluminum alloys (308, 356, 380) typically run at 500–1,000 SFM; wrought alloys (2024, 6061, 7075) support 800–1,500 SFM. Convert to spindle speed using RPM = (3.82 × SFM) / tool diameter, and adjust based on machine rigidity.
How many flutes should an end mill have for aluminum?
Two-flute end mills are the traditional standard for maximum chip clearance in roughing and slotting. Three-flute mills offer added rigidity and are preferred for finishing or HEM toolpaths. Four or more flutes are not recommended due to chip evacuation limitations with aluminum's large chips.
What coating is best for aluminum end mills?
ZrN is the general-purpose choice for most aluminum alloys; TiCN works on both carbide and HSS tools and handles high-silicon cast alloys well. DLC coatings offer the highest lubricity and hardness for dry or high-speed cuts. Avoid TiAlN — it promotes adhesion on aluminum.
What helix angle is best for cutting aluminum?
Use 35°–40° for roughing and slotting; 45° is preferred for finishing and HEM toolpaths. Variable-helix tools provide additional vibration damping for long-reach setups or thin-wall aluminum parts where chatter is a concern.
Should I use coolant when milling aluminum?
Rough milling is often best run dry to avoid thermal shock; finishing benefits from cutting fluid to prevent surface smearing. ZrN- and DLC-coated tools support near-dry machining in many applications. When coolant is used, direct it at the cutting zone — not flooding the whole part.
