Get the radius wrong, and it's not just a cosmetic issue. A poorly formed fillet becomes a stress riser that can lead to fatigue cracking in service. This article covers the tool types available for internal radius turning, how to select the right one for your bore, and the practices that keep your finish consistent from the first part to the ten-thousandth.
Key Takeaways
- Match the method to volume and bore size: fixed-form bars, indexable radius inserts, or CNC circular interpolation
- Prioritize tool rigidity and overhang control above every other variable to avoid chatter
- Keep insert nose radius smaller than the part radius—never match the two
- Use through-coolant tooling on deep bores to clear chips and control heat
- Run a hands-on test cut before production; catalogs miss what the cut reveals
What Are Internal Radius Turning Tools and Why They Matter
Internal radius turning means machining a concave curve inside a bore, groove, or recess. It is the opposite of an external radius cut with a ball turner on the outside of a part.
The tool has to fit inside the hole, clear the walls on the way in, and hold up under radial cutting load while it is stuck out on a stick.
Common applications include:
- Bearing seats requiring smooth transitions
- Fillet radii for stress relief at shoulders
- Seal grooves in hydraulic and pneumatic fittings
- Mold cavity corners
- Fluid fitting internal profiles
A 2019 gearbox-shaft failure study documented a keyway fillet machined at just 0.228 mm when 0.7–1.0 mm was specified.
The shaft fractured after roughly 6,000 service hours, with cracks starting at both keyway corners. Investigators cited rough machining and an undersized radius as contributing causes.
Two paths to an internal radius:
- Manual form tools: ground to a fixed radius, fast and repeatable for one geometry
- CNC profiling: programmed circular interpolation with a standard boring bar, flexible across geometries
Which one you need depends on bore diameter, radius size, material, and how deep the recess sits. There's no universal answer here.
Types of Internal Radius Turning Tools
Fixed-Form Radius Boring Bars
These bars carry a ground insert tip machined to match one specific radius. They're built for repetition: same part, same radius, thousands of times.
Scientific Cutting Tools' published radius-bar line spans minimum bores from 0.050 to 0.490 inches, with tool radii as tight as 0.0040 in ±0.001. If your job runs the same radius over and over, a fixed-form bar removes the guesswork.
Indexable Insert Boring Bars with Radius Inserts
Modern indexable systems let you swap inserts between radius profiles without swapping the whole bar. That flexibility suits shops running mixed radius work on shared bars.
The catch: minimum bore size is a package spec, not a formula. Iscar's PICCO line, for example, clamps CCGT/CCGW inserts for bores as small as 4.5–6 mm (about 0.177–0.236 in), while larger insert styles need 6.5 mm (0.256 in) or more.
Match the insert nose radius to your minimum bore diameter carefully. Undersizing the bar relative to the bore invites deflection.
CNC Profiling and Circular Interpolation Tooling
Haas describes how G02/G03 circular interpolation lets a standard boring bar trace an internal arc under program control, no dedicated form tool required.
This is the right call for prototype work or low-volume jobs where a custom ground insert isn't worth the tooling cost. It demands correct nose radius compensation in the control, which we'll cover below.

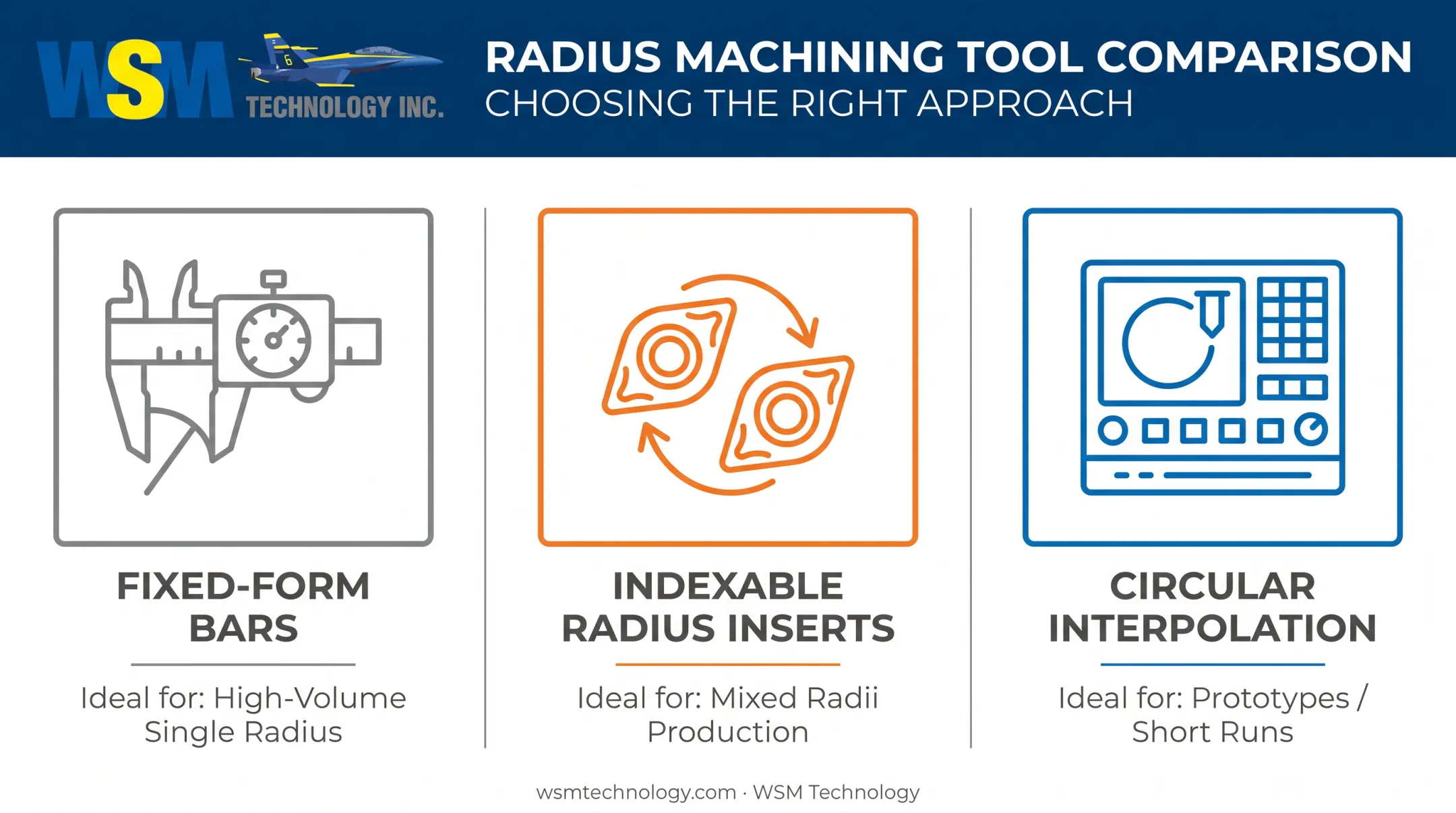

Quick pick by job type:
- Fixed-form bars — single radius, high-volume production
- Indexable radius inserts — mixed radii without changing the bar
- Circular interpolation — prototypes and short runs on a standard bar
How to Select the Right Internal Radius Turning Tool
Bar selection starts with rigidity, not radius. The biggest lever you have is overhang.
| Bar Material | Sandvik Guidance | Kennametal Guidance |
|---|---|---|
| Steel | Up to 4× bore diameter | ~3× diameter |
| Carbide | 6× bore diameter | Up to 6× diameter |
| Steel, damped | 10× bore diameter | 10× or more |
| Carbide, reinforced damped | 14× bore diameter | — |
These figures come from Sandvik Coromant's application guide and Kennametal's boring resources. Treat them as starting guidance, not guarantees — bore condition, material, and part length all shift the real answer.

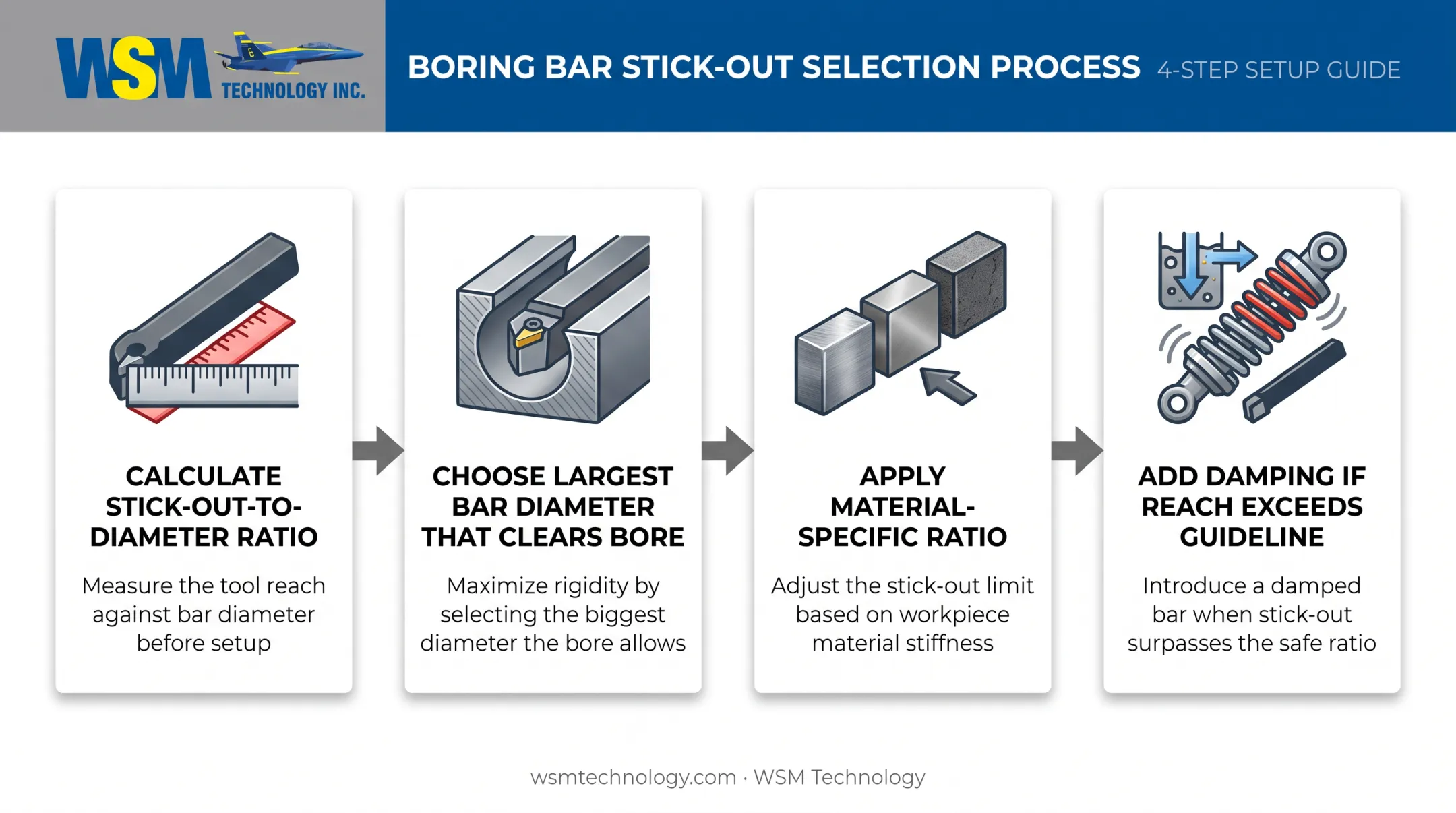

Selection order that works:
- Calculate actual stick-out-to-diameter ratio for your part
- Choose the largest bar diameter that still clears the bore and leaves chip room
- Apply the material-specific ratio above
- Add damping only if reach still exceeds the guideline
Kennametal calls excessive overhang the single most common cause of chatter, and recommends clamping at least 4× diameter in length using a sleeve or collet rather than set screws.
Once the bar setup is solid, match insert grade and coating to the workpiece. Harder alloys like nickel-based or titanium need positive geometry and rigid setups. Softer materials like aluminum tolerate more aggressive engagement.
For nose radius, Sandvik's rule is straightforward: choose a radius equal to or smaller than your depth of cut, and go smaller still when vibration risk is high.
Best Practices for Machining Internal Radii
Slow down at the transition. A larger insert radius raises cutting pressure, so feed needs to drop as you approach the arc. But drop the feed too aggressively and you'll trigger vibration instead of preventing it. Sandvik's profiling guidance caps radius plunging feed at 50% of the parallel-cut feed rate.
Use through-coolant on deep bores. Once bore depth passes 2× the bore diameter, Cutting Tool Engineering recommends through-coolant tooling to flush chips and keep the tip cool. Bars exist for bores as small as 0.180 inches. The coolant system still needs real pressure—a minimum of 20 psi at 20 gpm—plus filtration to prevent plugging.

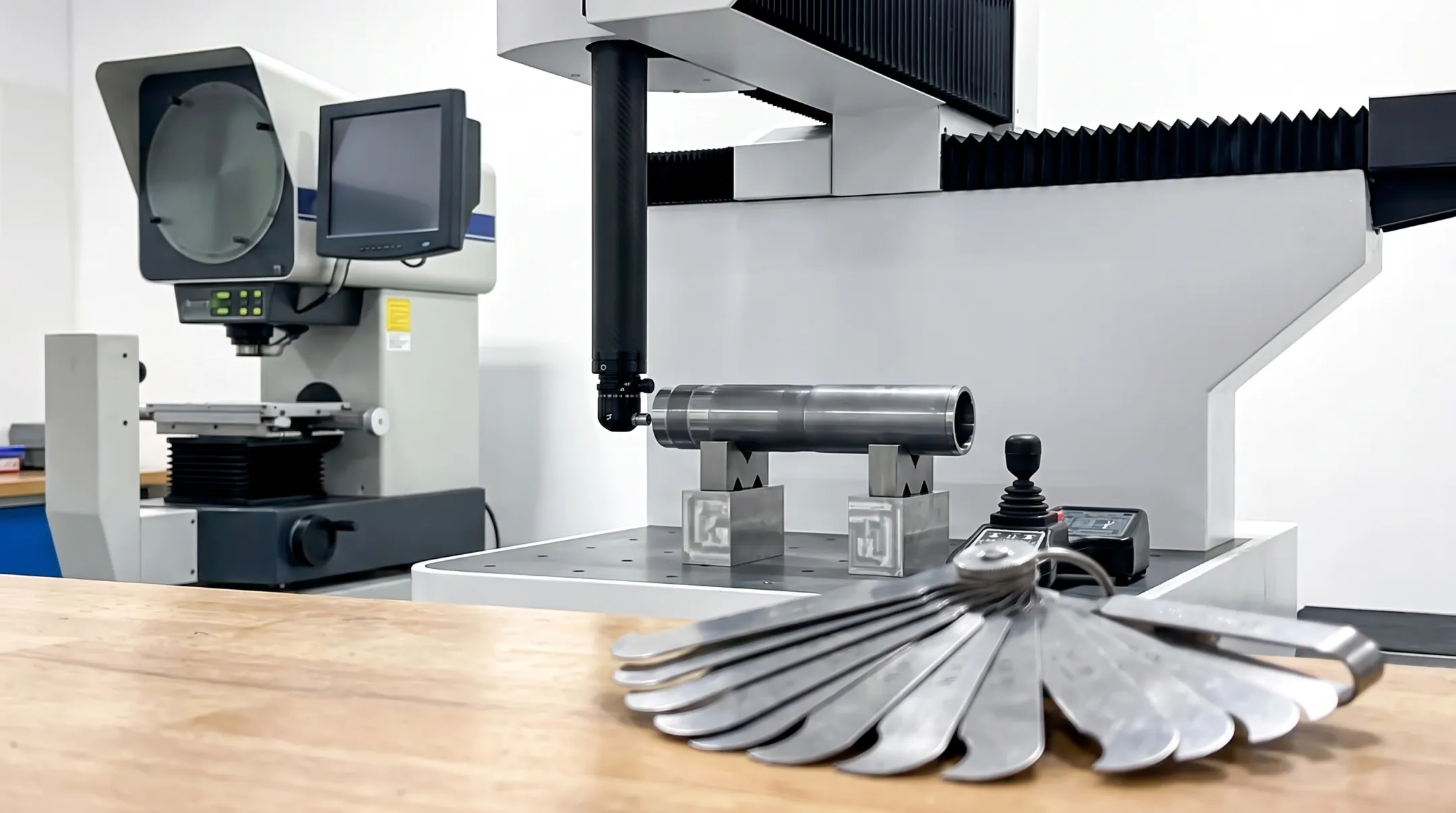

Verify before you run production. Don't trust the program alone.
- Radius gauges: fast shop-floor check, decimal range typically .010–.500 inches
- Optical comparators: 2D visual inspection, good for edge profiles
- CMM: 3D check when tangent points and axis location matter
Common Mistakes to Avoid
Most internal-radius problems start with setup or programming, not the insert. Catch these three mistakes before you chase feed and speed.
- Undersized or overly long boring bars: Leading cause of chatter and deflection per Kennametal's boring guide. Shorten reach or upsize diameter before you touch feed rate.
- Skipping nose-radius compensation: Haas notes that tool nose compensation (TNC) prevents under- or overcutting on tapers and arcs when nose radius changes. Without it, programmed and cut radii won't match.
- Ignoring spring-back in hard alloys: Nickel and titanium deflect away from the tool and spring back after the pass, causing chatter and poor finish. Use rigid, short-reach tooling and conservative engagement.
Getting Expert Support for Internal Radius Turning Applications
Catalog specs only tell part of the story. Bore tolerance, chip evacuation, and real-world rigidity depend on your specific part and machine.
WSM Technology's demonstration center in Rootstown, Ohio gives shops a way to test-cut internal radius applications on CNC lathes before you buy. Rather than guessing at bar overhang or insert geometry from a datasheet, you can run your own part and see the finish for yourself.
Beyond test cuts, WSM supports radius turning work with:
- Training on tooling setups and machine utilization
- Time studies that quantify setup and cycle-time gains
- Application engineering for mold and die, aerospace, medical, and automotive jobs
If you're weighing a fixed-form bar against an indexable system for a new job, talk it through before you commit to tooling.
FAQ
What tool do you use to measure radius?
Radius gauges are the quick shop-floor standard for checking form accuracy, typically covering .010–.500 inches. Optical comparators handle 2D profile checks, and CMMs verify tangent points in full 3D coordinates.
What are the different types of turning tools?
The main categories are turning/facing tools, boring bars, threading tools, grooving/parting tools, and form tools including radius tools. Internal radius work specifically relies on boring bars and profiling tooling.
What's the difference between internal and external radius turning?
External radii are cut on outside surfaces, often with ball turners. Internal radii are machined inside a bore or recess using boring bars, indexable radius inserts, or CNC circular interpolation.
Can a standard boring bar cut an internal radius?
Yes, through CNC circular interpolation. For repetitive fixed-radius production, a dedicated form tool or radius insert gives more consistent results.
Why does my internal radius have chatter marks?
Excessive tool overhang, insufficient bar rigidity, or mismatched feed and speed settings are the usual culprits. Shortening stick-out and increasing bar diameter solve most cases.
How do I choose the correct insert nose radius for boring?
Keep the insert radius smaller than the smallest internal radius required, and adjust for material and finish needs. Never match nose radius directly to the part radius.
