Many shop owners struggle with this exact decision. Buy too much axis capability and you're paying for capacity you'll rarely use. Buy too little and you'll watch complex, higher-margin contracts go to a competitor down the road.
This guide breaks down what separates 3-axis from 5-axis machines, where each one earns its keep, and how to think through the upgrade decision. We'll draw on WSM Technology's experience outfitting shops across Ohio, Pennsylvania, and West Virginia with both platforms.
Key Takeaways
- 3-axis machines cut flat or 2.5D parts along X, Y, and Z at a lower cost.
- 5-axis machines add two rotational axes for complex geometries in one setup.
- Setup count, programming skill, and tolerance separate the two more than price.
- The right choice depends on part geometry, volume, and long-term ROI, not specs alone.
3-Axis vs 5-Axis CNC: Quick Comparison
Here's how the two platforms stack up across the factors that matter most to shop owners:
| Factor | 3-Axis | 5-Axis |
|---|---|---|
| Cost | Lower purchase price and lower operating cost | Higher upfront investment, offset by fewer setups |
| Axes of Movement | X, Y, Z linear motion only | X, Y, Z plus two rotary axes (A/B or A/C) |
| Part Complexity | Flat, 2D/2.5D geometries | Complex curves, undercuts, multi-sided parts |
| Setup & Programming | Simple, fast setup | Requires skilled operators, advanced CAM |
| Ideal Industries | Prototyping, general machining | Aerospace, medical devices, mold/die |
Notably, 3-axis machines still represented 52.34% of the global machining-center market in 2025, according to Mordor Intelligence's machining centers market report. That's a reminder that plenty of production work doesn't need a fifth axis at all.
What Is a 3-Axis CNC Machine?
A 3-axis CNC machine moves a cutting tool along three linear paths: X (side to side), Y (front to back), and Z (up and down). No rotation, no tilting. The tool approaches the workpiece from one direction at a time.
That simplicity is the whole point. Lower capital investment, shorter operator training curves, and faster turnaround on straightforward jobs like brackets, plates, and housings. A new operator can be productive on a 3-axis VMC in weeks, not months.
Variations Worth Knowing

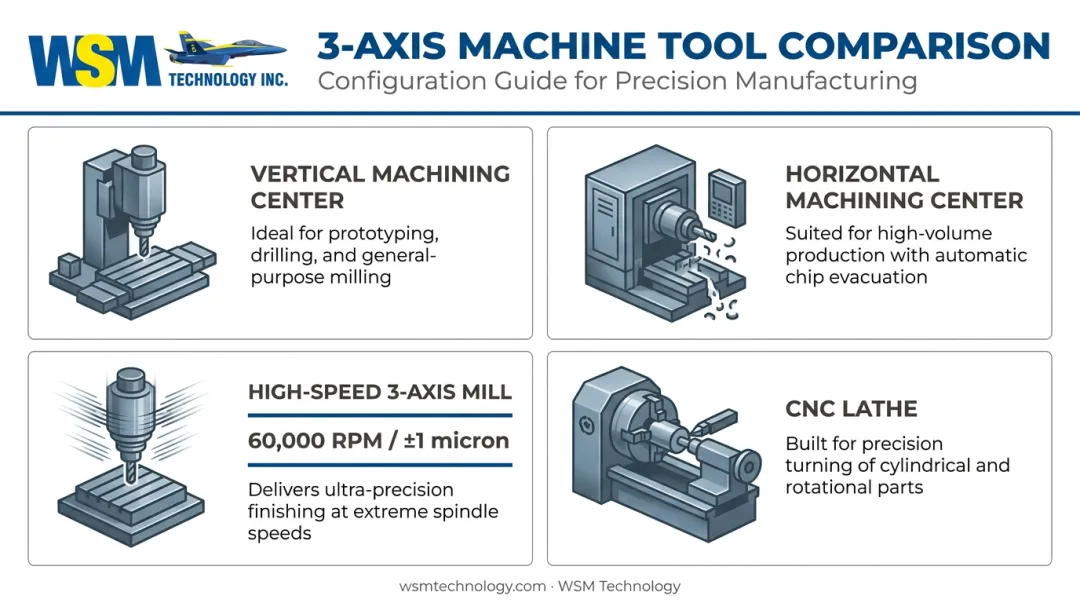

WSM's own milling lineup illustrates the range within "3-axis":
- Vertical machining centers (VMC), such as the ROMI D1000, built for general-purpose production milling
- Horizontal machining centers (HMC), better suited to high-volume runs where horizontal spindle orientation improves chip evacuation
- High-speed 3-axis mills, like the Roku-Roku Android II, which runs a 60,000 RPM spindle and holds ±1 micron accuracy for mold and die work
- CNC lathes, such as Schaublin's turning centers, which rotate the workpiece instead of the tool
Each variant fits a specific job, from high-speed mold work to high-volume runs. Yet all four share one limitation worth knowing before you buy.
The Key Limitation
Parts with angled or compound features need multiple fixture setups on a 3-axis machine. Each repositioning adds lead time, adds cost, and introduces a real risk of alignment error between operations. That's the trade-off shops accept for the lower price tag.
Where 3-axis fits best: prototyping runs, tool-and-die shops building simple components, and short production runs where speed-to-market outweighs geometric complexity. Automotive brackets, general metalworking, and plastics work without tight multi-angle tolerances all live comfortably here.
What Is a 5-Axis CNC Machine?
A 5-axis CNC machine keeps the standard X, Y, Z linear motion and adds two rotational axes, typically labeled A/B or A/C. That combination lets the tool or workpiece approach from virtually any angle without repositioning.
Fewer setups mean fewer chances for cumulative tolerance error. Surface finish improves, tool life extends, and total cycle time often drops for complex parts, even though individual programs take longer to write upfront.
3+2 vs. Continuous 5-Axis
Not all 5-axis machining works the same way:
- 3+2 (indexed) machining: the two rotary axes lock into position, then a conventional 3-axis toolpath cuts the feature
- Simultaneous (continuous) 5-axis machining: all five axes move together, enabling true complex contouring
WSM Technology's JINGDIAO High Speed Mill line offers both 3-axis and true 5-axis configurations, so shops scaling into multi-axis work can match machine capability to the complexity they're actually quoting.
Maintaining precision across simultaneous multi-axis motion demands rigid machine structures and advanced servo control. Without that rigidity, accuracy degrades fast the moment two rotary axes and three linear axes move at once.
Where 5-Axis Pays Off

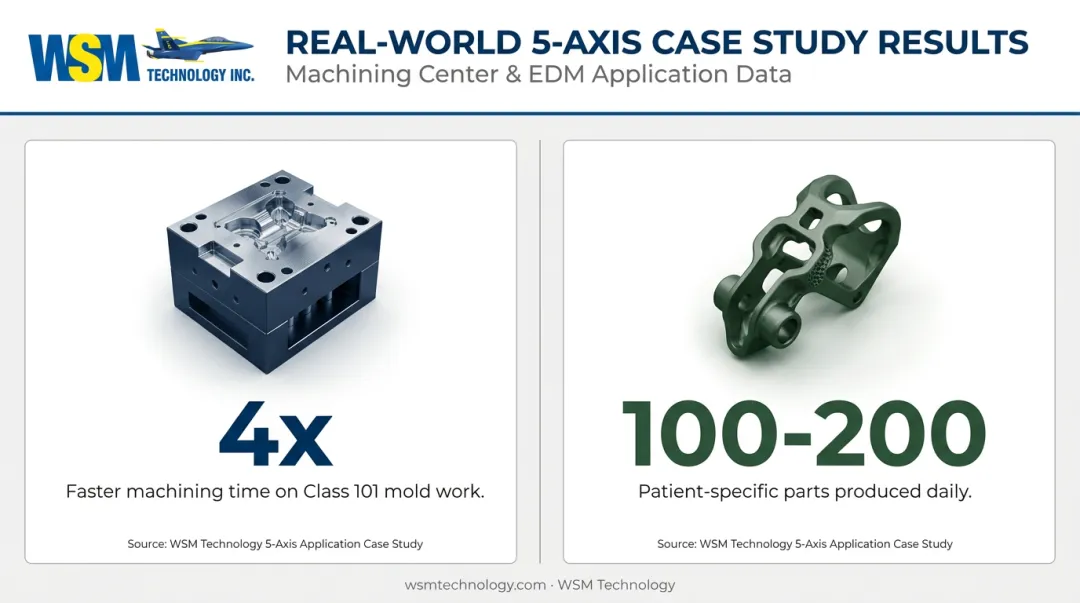

Real-world results back this up. JK Machining, a Michigan mold shop, cut machining time on Class 101 mold work by as much as 4x after shifting to 5-axis methods. The shop used shorter tools and higher cutting speeds, according to Modern Machine Shop. Fewer datum transfers also reduced chatter and improved surface finish.
In medical manufacturing, .decimal added two five-axis Mazak machines to produce patient-specific proton-therapy apertures, handling 100 to 200 patient-specific jobs daily, as reported by Modern Machine Shop. That kind of throughput on custom geometry simply isn't realistic on a 3-axis platform.
Where 5-axis fits best:
- Turbine blades and impellers
- Aerospace structural components
- Orthopedic implants
- Complex mold cavities
Any part where geometry demands continuous multi-angle contact belongs here.
3-Axis vs 5-Axis: Which Is Right for Your Shop?
Weigh these five factors before committing to either platform:
- Part geometry and complexity : flat and simple, or angled and multi-sided?
- Required tolerances : can you afford tolerance stacking across multiple setups?
- Production volume : is speed or precision the bigger driver?
- Operator expertise : do you have (or can you train) 5-axis CAM programmers?
- Budget : for the machine, plus programming software, plus training
Choose 3-axis if you're producing flat, simple, or high-volume repetitive parts and want lower cost with a faster ramp-up.
Choose 5-axis if your parts require undercuts, compound angles, or tight tolerances across multiple surfaces, or if you're bidding on aerospace and medical contracts that demand single-setup precision.
Test-Cutting Before You Invest
Plenty of shops hesitate on 5-axis technology because they're not sure it'll pay off for their specific part mix. That hesitation is reasonable, given the jump in capital and training cost.
WSM Technology's Demonstration Center in Rootstown, Ohio, exists for exactly this reason. Shops can run test cuts and time studies on both 3-axis and 5-axis JINGDIAO High Speed Mills before committing to a purchase.
Paired with turnkey installation support and on-site training, this hands-on evaluation helps shops across Northern Ohio, Western PA, and West Virginia confirm ROI before switching machine platforms.
If you're weighing an upgrade from 3-axis to 5-axis, contact WSM Technology to schedule a test cut and time study at the Rootstown Demonstration Center before you sign a purchase order.
Conclusion
Neither machine is universally better. The right choice comes down to matching axis capability to your actual part geometry, tolerance requirements, and production goals. Don't default to the most advanced or cheapest option on the floor.
Getting this match right delivers real results:
- Lower per-part costs from matching capability to the job
- Fewer setup errors and scrap
- A stronger position to bid on complex contracts
Over-invest or under-invest in axis capability, and margins erode either way, just from different directions. WSM Technology's application engineers can help you match part requirements to the right machine before you invest.
Frequently Asked Questions
What are the limitations of 3-axis CNC?
Three-axis machines can't reach angled or undercut features without repositioning the part. That repositioning adds setup time and cost, plus alignment risk on complex geometries.
Are there CNC machines with 4, 6, or more axes?
Yes. Four-axis machines add a single rotational axis for angled features, while 6, 7, or more-axis machines, like WSM's Cheto 7-Axis Milling and Gun Drilling systems, serve highly specialized, ultra-complex production needs.
How much more does a 5-axis CNC machine cost than a 3-axis machine?
Three-axis machines are generally far less expensive to purchase and operate. Five-axis machines carry a higher upfront and operating cost, typically justified by complex part production and setup savings.
Can a 3-axis CNC machine be upgraded to 5-axis capability?
Most 3-axis machines can't simply be retrofitted to true 5-axis. Upgrading usually means investing in a new machine or an add-on rotary/tilting table, which carries limitations compared to a native 5-axis system.
Which industries benefit most from 5-axis CNC machining?
Aerospace, medical device, and mold/die industries benefit most, since they require complex geometries and single-setup precision that 3-axis machines can't deliver.
Is 5-axis CNC programming much harder to learn than 3-axis?
Five-axis programming does require advanced CAM software knowledge and an understanding of machine kinematics. Modern post-processors and hands-on training, like WSM's on-site programs, have made the learning curve more manageable.
