That exact problem is what pushed manufacturers toward Swiss-type turning technology more than a century ago, and it's still why shops adopt it today. A CNC Swiss-type lathe is a precision turning machine originally built for producing tiny watch components in Switzerland. Now it's a workhorse for medical device makers, aerospace suppliers, and precision mechanics shops that can't afford deflection on slender, small-diameter parts.
This guide covers how Swiss-type lathes work, how they stack up against conventional CNC lathes, which industries depend on them, and what to weigh before adding one to your shop floor.
Key Takeaways
- Sliding headstocks and guide bushings support material at the cutting zone, virtually eliminating deflection
- Multi-axis simultaneous machining completes turning, milling, and drilling in one setup
- Some Swiss-type machines hold tolerances to single-figure microns
- Best fit: long, slender parts in medical, aerospace, and precision mechanics work
- Higher upfront cost, but less scrap and fewer secondary operations over time
What Is a CNC Swiss-Type Lathe?
A CNC Swiss-type lathe is a turning machine built around a sliding headstock and guide bushing. In a conventional lathe, the workpiece sits fixed in a chuck while the tool moves in to cut it.
A Swiss-type does the opposite: it moves the bar stock itself axially through a guide bushing positioned just millimeters from the cutting tool. That tight support point keeps the material rigid, even on parts with diameters under 1/16 inch, where a conventional lathe would let the stock whip or bow.
From Watch Valley to Global Manufacturing
Jakob Schweizer developed the sliding-headstock concept in the 1870s, in the Swiss region now nicknamed "Watch Valley," to produce miniature movement components with extreme accuracy. Nicolas Junker industrialized the design in 1883, and it spread through the region's watchmaking trade over the following decades, according to Production Machining's history of Swiss-style machining.
Despite the name, Swiss-type lathes aren't exclusively built in Switzerland or used only on Swiss products. It's a design category, not a country requirement. You'll find these machines running today in shops across Ohio, Pennsylvania, and West Virginia, producing everything from bone screws to fuel system fittings.
That global adoption paralleled a major shift in the technology itself. Cam-driven mechanical Swiss lathes dominated production through the mid-1900s. Then CNC systems arrived in the 1960s and 70s, swapping physical cams for programmable controls and giving shops far more flexibility to change part programs without re-tooling. That shift set the stage for the multi-axis machines running today.

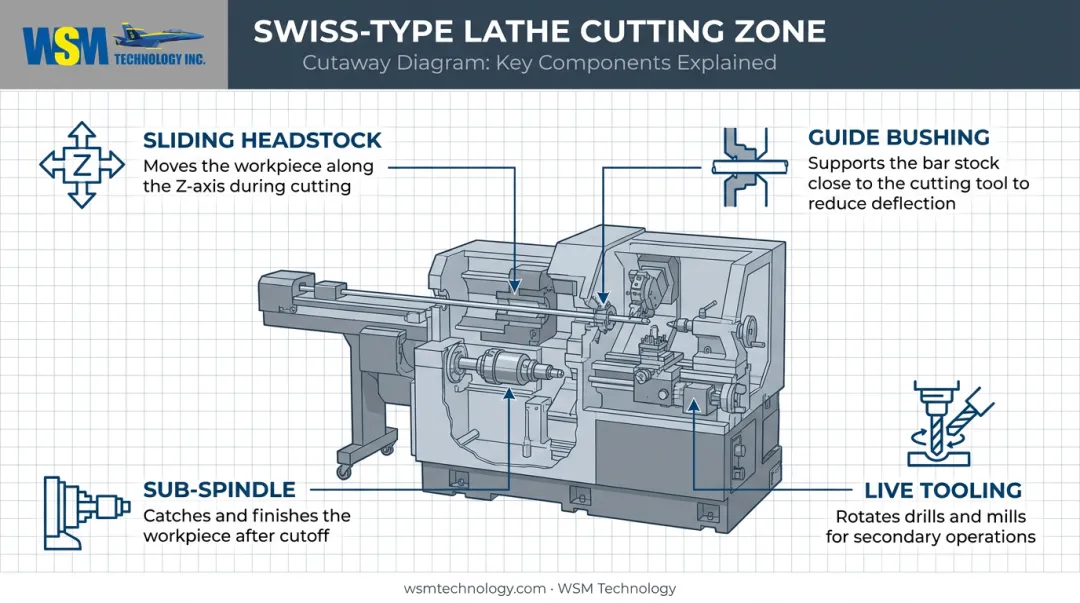

Core Components That Make It Work
Four elements define this machine category:
- Sliding headstock – moves bar stock axially through the machine (Z-axis) instead of holding it stationary like a fixed-headstock conventional lathe
- Guide bushing – supports the workpiece within millimeters of the cutting tool, virtually eliminating deflection and chatter
- Sub-spindle – catches and holds the finished end of a part so back-side operations happen without a second setup
- Live tooling – adds rotating tools that mill, drill, or cross-cut simultaneously with the main turning operation
How Does a CNC Swiss-Type Lathe Work?
The defining trait is segmented machining. Material feeds incrementally through the guide bushing, so the cutting zone always sits close to the support point, no matter how far into the bar the tool has worked. That's what keeps a 3-inch-long, 0.060-inch-diameter shaft from bowing under tool pressure.
Multiple Operations, One Setup
A Swiss-type lathe can turn, mill, drill, and thread a part across 7 to 13 axes, compared to the 3 or 4 axes on a typical conventional CNC lathe. Because the sub-spindle picks up the part the instant it's parted off, back-side features get machined in the same cycle. No manual re-fixturing. No lost concentricity between operations.
Automatic Bar Feeding and Lights-Out Runs
Bar feeders load stock automatically, letting a Swiss-type run unattended through a shift change or overnight, a mode shops call "lights-out" production. That matters most on high-volume jobs, where manually swapping material would eat into machine uptime that should be spent cutting parts.
Precision Tolerances and Material Compatibility
Standard production tolerances land around ±0.0002 to ±0.0005 inch, and specialized micro-machining setups push into single-figure micron accuracy on connector pins and similar tiny components, according to Citizen Machinery.
That precision depends on feeding ground, close-tolerance bar stock, often held to ±0.0005 inch, through the guide bushing. Cold-rolled or commercial-grade bar introduces enough runout to defeat the whole point of the setup.
Shops match that precision to the material. Common choices include:
- Stainless steel and titanium (medical, aerospace)
- Brass and aluminum (electronics, general precision parts)
- Engineered plastics like Delrin and PEEK (medical, micro molding)
Swiss-Type Lathe vs. Conventional CNC Lathe
The two machine types solve different problems. Here's how they compare directly:
| Feature | Swiss-Type Lathe | Conventional CNC Lathe |
|---|---|---|
| Headstock | Sliding, moves bar stock through guide bushing | Fixed, workpiece held in chuck |
| Workholding | Guide bushing supports near cutting zone | Chuck or collet clamps the part |
| Ideal geometry | Long, slender, high length-to-diameter parts | Larger, general-purpose components |
| Axes | Typically 7-13 | Typically 3-4 |
| Secondary operations | Often eliminated via sub-spindle backworking | Frequently required |
So which one fits your shop? Parts running under an inch in diameter with a length-to-diameter ratio above 4:1, produced by the thousands, are where a Swiss-type earns its keep fast. Larger-diameter components, one-off prototypes, or parts that don't demand micro-tolerances are better suited to a conventional lathe's simpler, less expensive setup.

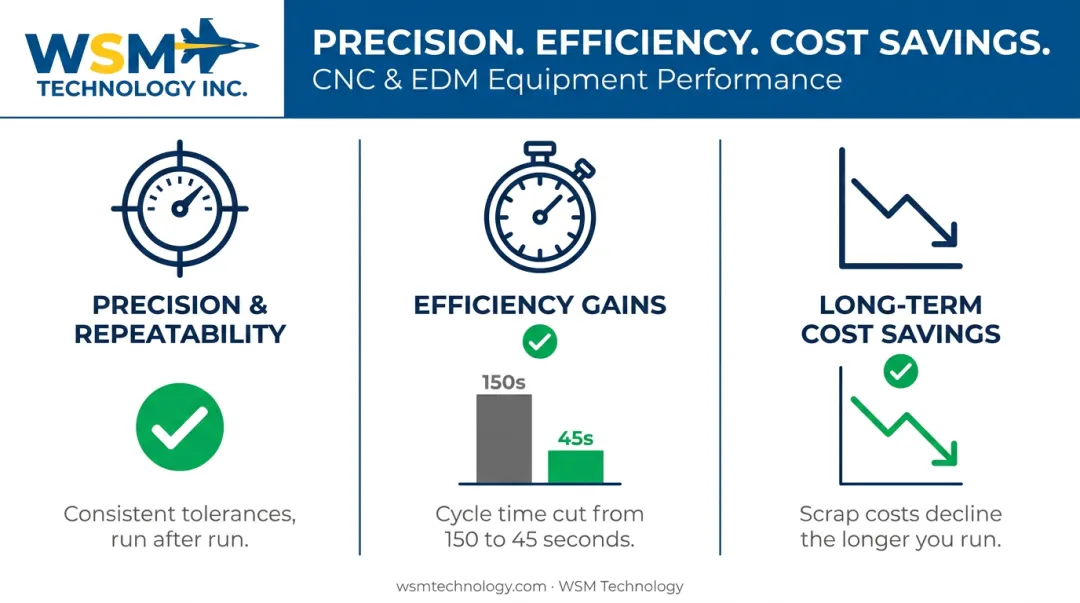

Key Benefits of CNC Swiss-Type Lathes
Three advantages consistently show up in shops that make the switch:
- Precision and repeatability: Guide-bushing support keeps tight-tolerance, small-diameter parts consistent run after run, something conventional lathes struggle to match on slender geometries.
- Efficiency gains: Simultaneous multi-axis operations and sub-spindle backworking cut setup and changeover time, with cycle times dropping from 150 seconds to 45 seconds on some legacy parts.
- Long-term cost savings: The machine costs more upfront, but scrap drops, secondary operations disappear, and labor input per part falls compared to running the same job across multiple conventional setups.
Industries and Applications That Rely on Swiss Machining
Three sectors drive most Swiss-type lathe adoption:
- Medical device manufacturing – bone screws, dental implants, surgical instrument components
- Aerospace – fuel system fittings, small structural fasteners, sensor housings
- Precision mechanics and tool & die shops – micro-tolerance components feeding into molds and assemblies
Beyond those core three, Swiss-type machines also show up in automotive (fuel injector parts, small die inserts), electronics (micro connector pins and contacts), micro molding (tiny fasteners and fittings), and defense (small precision fasteners and instrument components).
WSM Technology's own customer base reflects this spread. The company's Schaublin Swiss-type lathes serve mold and die shops, micro molders, aerospace suppliers, and automotive manufacturers across Northern Ohio, Western Pennsylvania, and West Virginia, all of whom depend on the tight-tolerance turning these machines deliver.
Choosing the Right Swiss-Type Lathe (And What It Costs)
Pricing on Swiss-type lathes varies widely, driven mainly by:
- Number of axes – 7 to 13, with more axes enabling more simultaneous operations
- Bar capacity – machines commonly range from about 7mm to 42mm
- Sub-spindle and backworking capability – lets a second spindle finish the back of a part without a second setup
- Automation features – bar feeders, robotic part unloading, spindle speeds up to 15,000 rpm
Before buying, weigh a few practical questions:
- Part complexity – Do your parts need backworking, or will a simpler configuration suffice?
- Production volume – Justifying the investment usually depends on running consistent, high-volume batches.
- Material type – Ground bar stock requirements add cost that should factor into your total per-part economics.
- Operator training – Programming a Swiss-type takes a different skill set than running a conventional lathe.

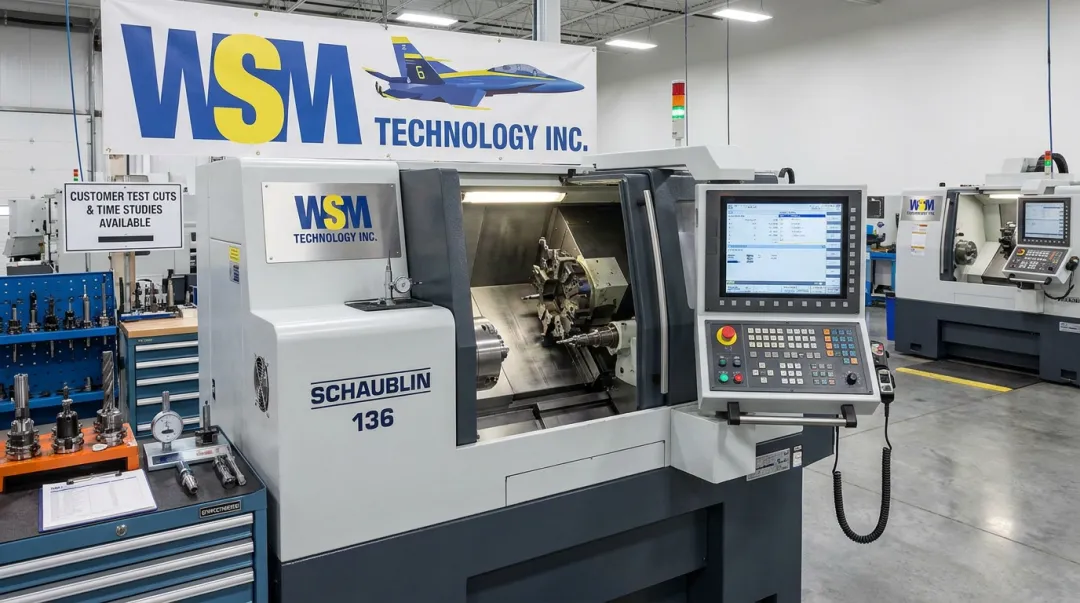

WSM Technology represents the Schaublin line of Swiss-type lathes, a Swiss manufacturer with more than a century building precision spindles and over 250,000 lathes installed worldwide. That track record is backed by local access: shops in Northern Ohio, Western Pennsylvania, and West Virginia can run test cuts and time studies on their own parts at WSM's Demonstration Center in Rootstown, Ohio, before committing to a machine.
Frequently Asked Questions
What is a Swiss turn lathe?
A Swiss turn lathe is a CNC turning machine that uses a sliding headstock and guide bushing to support material right at the cutting zone. This design minimizes deflection when machining small, precise parts.
What is the difference between a Swiss turn lathe and a conventional lathe?
Swiss lathes move the bar stock through a guide bushing, while conventional lathes hold the part fixed in a chuck. Swiss types suit long, slender, high-precision parts; conventional lathes handle larger, general-purpose components.
How much does a Swiss turn lathe cost?
Cost depends on axes, bar capacity, sub-spindle capability, and automation features, so pricing varies by configuration. Contact a dealer like WSM Technology for a quote and demo tailored to your parts.
What industries use Swiss-type lathes most?
Medical device manufacturing, aerospace, and precision mechanics shops lead adoption, since these industries need consistent micro-tolerance parts. Automotive, electronics, and micro molding also rely on Swiss machining.
Can a Swiss-type lathe machine larger or shorter parts, or is it only for tiny components?
Many modern Swiss-types run in "chucker" mode without the guide bushing, handling shorter or larger-diameter parts too. Bar capacities on common machines typically range from about 7mm to 42mm.
Do operators need special training to run a Swiss-type lathe?
Yes, programming and setup carry a learning curve distinct from conventional CNC lathes. WSM Technology offers local training and advanced training programs for customers running Schaublin machines.
