Too many buyers, and even some machinists, still treat EDM finish as an unpredictable byproduct of "burning metal." It isn't. Pulse energy, pass count, electrode choice, and flushing all shape the result, and each variable is measurable and controllable. Mitsubishi's own test data shows how directly cut count changes texture, moving from Ra 0.45 µm after three wire cuts to Ra 0.28 µm after a fourth, based on documented wire-EDM test results.
This article covers what EDM surface finish actually is, the Ra and VDI ranges you can realistically expect, the technical properties behind the number, how to measure and specify it correctly, and the mistakes that trip up even experienced buyers.
Key Takeaways
- EDM produces an isotropic, no-lay texture from overlapping discharge craters, not directional tool marks
- Achievable Ra spans 1.4 µm on a first cut down to 0.05-0.12 µm with fine skim passes
- Pulse energy, pass count, electrode/wire choice, and flushing consistency shape the final texture
- A low Ra number alone doesn't prove surface integrity; recast layer needs separate inspection
- Test cuts on your actual material remain the most reliable way to confirm a target finish
What Is EDM Surface Finish?
EDM surface finish is the physical topography left behind after electrical discharges vaporize material, one microscopic crater at a time. Each spark removes a tiny amount of metal and leaves a shallow crater. Thousands of overlapping craters accumulate into the texture you can see and measure, quantified as Ra (arithmetic mean roughness) or Rz (average maximum height).
This differs sharply from a milled or ground surface. Milling and grinding leave directional tool marks, a "lay" that runs with the cutting path. EDM produces what's often called a "no-lay" or non-directional surface instead, since material comes off through spark erosion rather than a moving cutting edge.
NASA's testing on wire-EDM'd superalloys found no significant roughness difference measured parallel versus perpendicular to the wire path. That supports the non-directional description for those specific materials and settings, though it isn't an unconditional rule for every material and process combination.
Finish behaves as two different things depending on where you sit in the process:
| Perspective | What It Means |
|---|---|
| Operating variable | A direct output of pulse current, on/off time, and how many finishing passes run |
| Design specification | A target Ra or VDI grade a designer calls out on a drawing, independent of how the machine gets there |
Wire EDM vs. Sinker EDM: Different Paths to the Same Texture
Wire EDM builds finish progressively. A rough first cut is followed by successive skim passes at lower energy, each one refining the texture the previous pass left behind. Sinker EDM works differently. Finish comes from the shaped electrode itself, plus orbiting motion and how consistently dielectric fluid flushes debris out of the cavity. Both processes rely on the same crater-formation physics, but the practical controls differ.

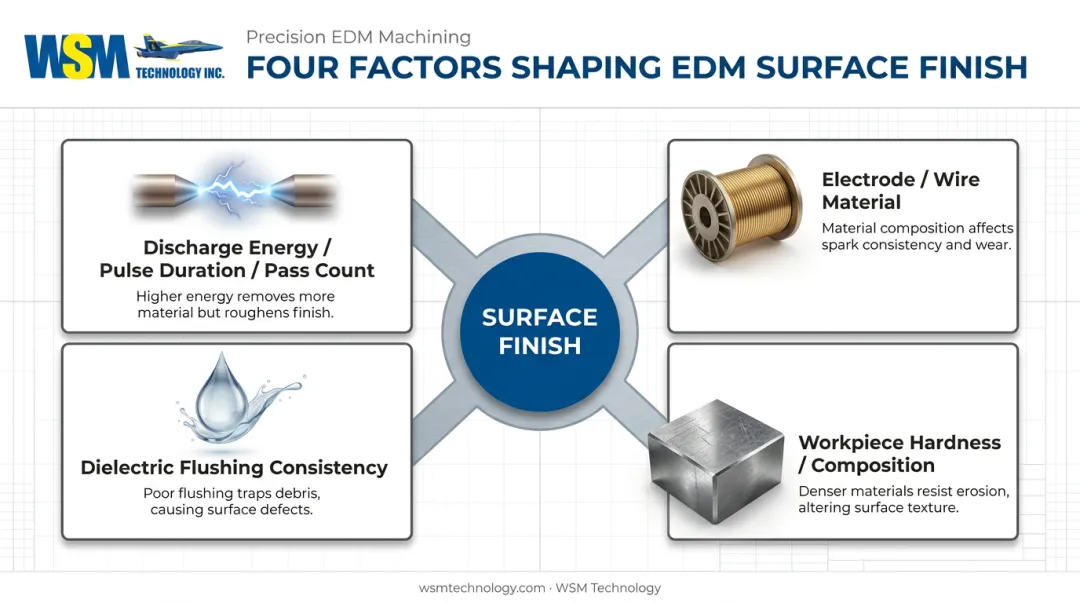

Factors That Influence EDM Surface Finish in Real-World Operation
Several variables interact to determine the texture on a finished part, and no single one tells the whole story.
- Discharge energy, pulse duration, and pass count: Higher energy removes material faster but leaves deeper craters. Lower voltage and shorter on-time settings produce smoother results. NASA recorded roughly 50% lower Ra across three nickel-base superalloys when switching from rough to finish-condition settings in its wire-EDM surface integrity study.
- Electrode or wire material: Copper, graphite, and coated wires all erode differently under the same pulse settings, and wear behavior shifts texture as a job runs.
- Workpiece hardness and composition: Denser, more homogeneous materials tend to erode more consistently, though hardness alone doesn't determine roughness. Alloy composition and microstructure matter too.
- Dielectric flushing consistency: Poor debris removal causes striations, localized re-strikes, and uneven texture, especially in deep or poorly accessed cavities.
Keep this in mind: published lab Ra values are usually best-case demonstrations run on clean, accessible test coupons. A deep cavity, restricted flushing, or an awkward electrode angle on your actual part can push real-world results rougher than the catalog number suggests.
The Range of EDM Surface Finish: Understanding Ra and the VDI 3400 Scale
Where your finish lands on the Ra scale depends on two things: what the drawing calls for, and what the machine and material can realistically deliver on that specific geometry.
Typical Ra Ranges by Process Condition
A single rough cut is enough for most non-cosmetic, geometry-only work, think internal features or ejector pin bosses that never touch a mating surface. Documented rough-cut results land in the low single-digit micron range:
- Sodick reported Ra 1.43 µm on a first wire-EDM cut
- Mitsubishi's optimized multi-cut steel tests reached Ra 0.12 µm
- Select sinker EDM mirror-finish tests hit Ra 0.06 µm
The table below shows how VDI 3400 grades are commonly referenced against approximate Ra values in the industry. This pairing is a widely used practical reference, not a word-for-word reproduction of an official published VDI conversion table. Confirm exact values against your machine builder's chart or a physical comparison plaque before finalizing a spec.
| VDI Grade | Approx. Ra (µm) | Typical Visual Effect |
|---|---|---|
| VDI 3 | 0.10-0.20 | Near-mirror, fine matte |
| VDI 12 | 0.35-0.50 | Fine matte, smooth to touch |
| VDI 24 | 1.0-2.0 | Medium texture |
| VDI 36 | 4.5-6.0 | Coarse, visible texture |
| VDI 45 | 9.0-12.0 | Heavy, rough texture |
Lower VDI numbers mean finer finishes; higher numbers mean coarser texture. Beyond a single rough cut, multiple skim passes at reduced pulse energy typically bring Ra down into the 0.1-0.5 µm range - the territory needed for injection mold cavities, aerospace splines, and medical components where release behavior or fatigue life matters.
Don't Over-Spec the Finish
Specifying a finer finish than the application needs adds skim passes, cycle time, and electrode wear without functional benefit. Under-specifying, on the other hand, risks poor mold release or fatigue cracking down the line. The safest approach sits right at the functional requirement, not comfortably above it "just in case."
Modern finish-generator technology keeps pushing the achievable range further, though capability varies widely by platform. Running an actual test cut on your material, on the machine you're evaluating, remains the most reliable way to confirm a target Ra before it goes on a drawing.

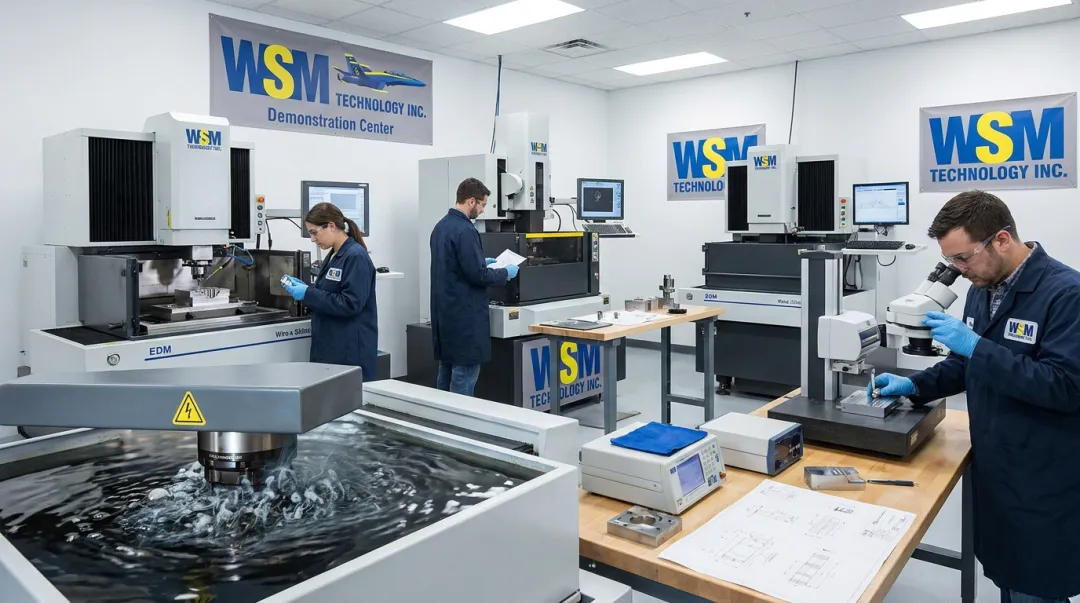

WSM Technology's Demonstration Center in Rootstown, Ohio, provides exactly that kind of validation. Shops evaluating Mitsubishi wire and sinker EDM platforms or Sarix micro EDM equipment can see real finish results on their own geometry before committing to a spec.
Key Technical Properties of EDM Surface Finish
A single Ra number never tells the full story. Stability across a production run, subsurface integrity, and the trade-offs finish creates elsewhere in the process all deserve equal attention.
Stability and Repeatability
Ra doesn't stay fixed for the life of a job. As electrodes wear, dielectric conditions shift, contamination builds, and temperature drifts, texture can drift right along with them.
For high-volume mold or tooling production, that matters. A part checked at hour one and a part checked at hour forty should carry the same finish, and repeatability checks throughout a run catch problems before a whole batch ships out of spec.
Recast (White) Layer and Surface Integrity
Every EDM cut leaves a thin, resolidified layer of material that melted and didn't fully clear the gap, commonly called the recast or white layer. It's a separate consideration from Ra entirely. A smooth surface can still carry a damaging recast layer underneath it.

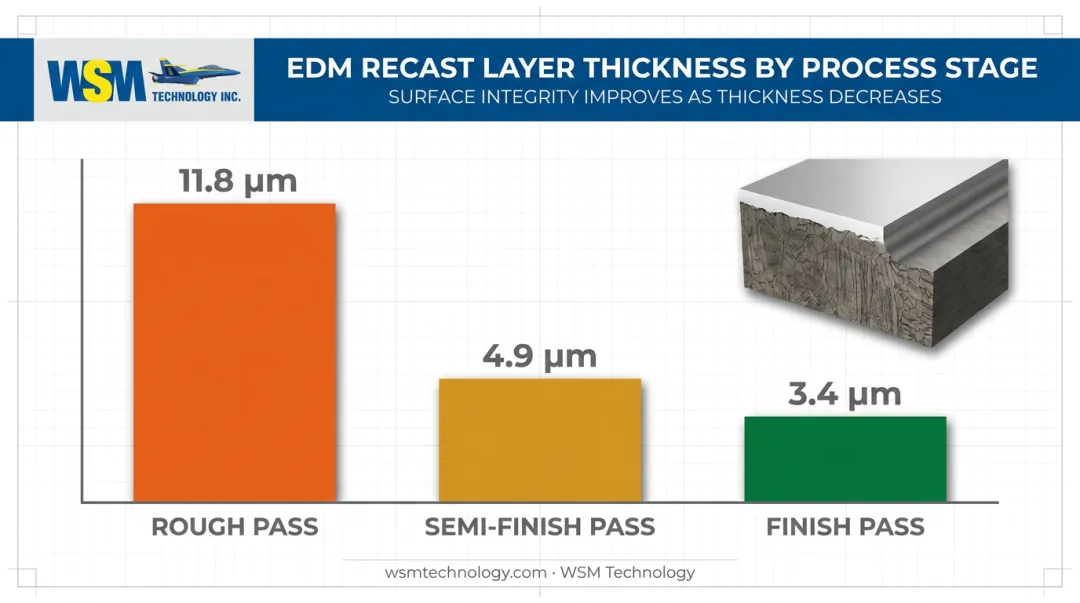

NASA's testing on Superalloy 718 measured mean recast thickness dropping from 11.8 µm on a rough pass to 4.9 µm at semi-finish and 3.4 µm at finish settings, with residual tensile stress depth following a similar pattern. Left uncontrolled, that layer can seed microcracks that shorten fatigue life, a real risk on aerospace or medical parts under cyclic load. Finishing passes, proper flushing, and secondary treatments like polishing address it directly.
Coupling with Cycle Time, Tolerance, and Cost
Finer finishes cost more machine time. Moving from a 3-cut to a 4-cut wire EDM pass improved Ra from 0.45 to 0.28 µm in Mitsubishi's test data, a concrete, measurable trade-off. Coarser VDI textures also demand more mold draft angle for clean part release, while finer textures release with less draft.
Micro and mirror EDM sit at the extreme end of this trade-off. Sarix's micro EDM generators are built for sub-micron finishes, down toward Ra 0.05 µm, for micro-molding, medical, and optical tooling work. They require specialized dielectric control and generator technology that standard sinker or wire platforms don't carry.
Specifying, Measuring, and Validating EDM Surface Finish
A complete finish specification needs two things, not one: the target parameter (Ra, Rz, or VDI grade) and the exact surface or location being measured. A drawing that just says "VDI 24 finish" without naming which face, or "Ra 0.4" without naming the governing standard, leaves too much open to interpretation.
Ra and visual VDI appearance aren't interchangeable either. A VDI plaque comparison tells you roughly how a surface looks and feels, not its exact numeric roughness value.
Measurement Methods
- Profilometers provide quantified Ra/Rz readings with a stylus tracing the actual surface profile, the method to use when a number needs to hold up under inspection
- Visual comparison against VDI reference plaques is faster and common on the shop floor for texture and appearance approval, though it carries more subjectivity than a profilometer reading
- Measurement should reference ISO 21920-2:2021, the current governing standard that replaced the withdrawn ISO 4287:1997, per ISO's current surface texture standard
Closing the Gap Between Catalog and Reality
Even the right measurement method can't fully predict how a part will finish in production. Catalog Ra values come from controlled lab conditions on accessible test coupons. Your part might have a deep pocket, a tight radius, or restricted flushing that the catalog test never encountered. That gap is what causes disputes after a part ships.
The fix is straightforward: request a physical test cut on your actual material and geometry before finalizing a quote or machine purchase. WSM Technology runs this kind of validation through its Demonstration Center and offers time studies alongside it, so engineers can see real finish and real cycle time on their own part rather than relying on a catalog spec sheet alone.
Risks and Misconceptions in EDM Surface Finish Specification
Getting finish specification wrong carries real consequences. Excessive roughness on a mold cavity causes poor release and accelerates wear on ejector systems. An uncontrolled recast layer, meanwhile, can seed microcracks that cut fatigue life short on aerospace or medical parts long before anyone expects a failure.
A few misconceptions keep showing up on drawings:
- "The catalog Ra number is guaranteed." Actual results shift with material hardness, part thickness, cavity depth, and geometry access, making catalog figures best-case demonstrations rather than guarantees.
- "A low Ra number proves surface integrity." White layer and microcracking are separate concerns from roughness, requiring their own inspection on fatigue-critical parts.
- "Finer finish everywhere is the safe choice." Over-specifying drives up cycle time and electrode wear without adding functional value on surfaces that don't need it.
EDM surface finish is a governing, specifiable parameter, not an incidental byproduct of burning metal. Getting it right depends as much on engineering judgment and machine capability as on the number printed on a spec sheet, which is exactly why a test cut on the real part beats a guess every time.
Frequently Asked Questions
What is an EDM finish?
An EDM finish is the textured surface left by thousands of overlapping micro-craters from electrical discharge erosion. It produces a uniform, non-directional texture rather than the directional tool marks left by milling or grinding.
What is the roughness of EDM?
Documented results range from roughly Ra 1.4 µm on a single rough cut down to Ra 0.05-0.12 µm with multiple fine skim passes, depending on the machine, material, and process settings used.
What is the VDI surface finish scale?
VDI 3400 is a German engineering standard covering spark-erosion definitions, processes, and applications. In shop-floor practice, lower VDI numbers correspond to finer, smoother textures and higher numbers to coarser ones.
What is considered a good surface finish for EDM parts?
It depends on the application. A rough cut works fine for internal, non-functional geometry, while mold cavities, aerospace, and medical parts typically need fine to ultra-fine finishes from multiple skim passes.
Does EDM leave a recast layer on every part?
Some recast layer is inherent to the thermal EDM process. Its thickness and impact can be minimized through low-energy finishing passes, consistent flushing, and secondary treatments like polishing when the application demands it.
How is EDM surface roughness measured?
Profilometers give quantified stylus readings for Ra and Rz values, while visual comparison against VDI reference plaques offers a faster approval method for texture and appearance, each with different accuracy expectations.
