Hard milling changes the equation. High-speed, rigid CNC mills now cut hardened steel directly, holding tight tolerances without a trip to the EDM tank. It's not a fit for every job, but for the right geometry, it collapses days of secondary work into a single setup.
This article covers what hard milling actually is, the challenges that trip up first-time adopters, starting-point cutting parameters, how it stacks up against EDM and turning, and what to look for in equipment and a machining partner.
Key Takeaways
- Hard milling cuts steel at 45+ HRC directly, often eliminating EDM and grinding steps entirely
- Success hinges on tool holder rigidity, correct speeds/feeds, and material-specific tooling choices
- Deep cavities and extreme aspect ratios still belong to EDM, not milling
- A rigid, thermally stable machine and a partner who'll run test cuts beat guesswork every time
What Is Hard Milling and Why It Matters
Hard milling is high-speed CNC machining of hardened steel (typically 45 to 65+ HRC) using rigid mills instead of the traditional rough-mill, heat-treat, grind/EDM sequence. Mold, die, and aerospace shops have shifted toward it because it produces near-net-shape parts in one setup, cutting lead times and reducing hand-finishing.
Not every "hardened steel" behaves the same way. Two common examples:
- D2 tool steel: Heat-treatable to 60-62 HRC, but its high chromium content (roughly 11.8%) makes it machine more like a 62-65 HRC material. That's toughness fighting you, not just hardness.
- 420 stainless: Typically heat-treated to 48-52 HRC, lower on paper than D2, but its sticky stainless chemistry makes it prone to built-up edge (BUE), a different problem entirely.

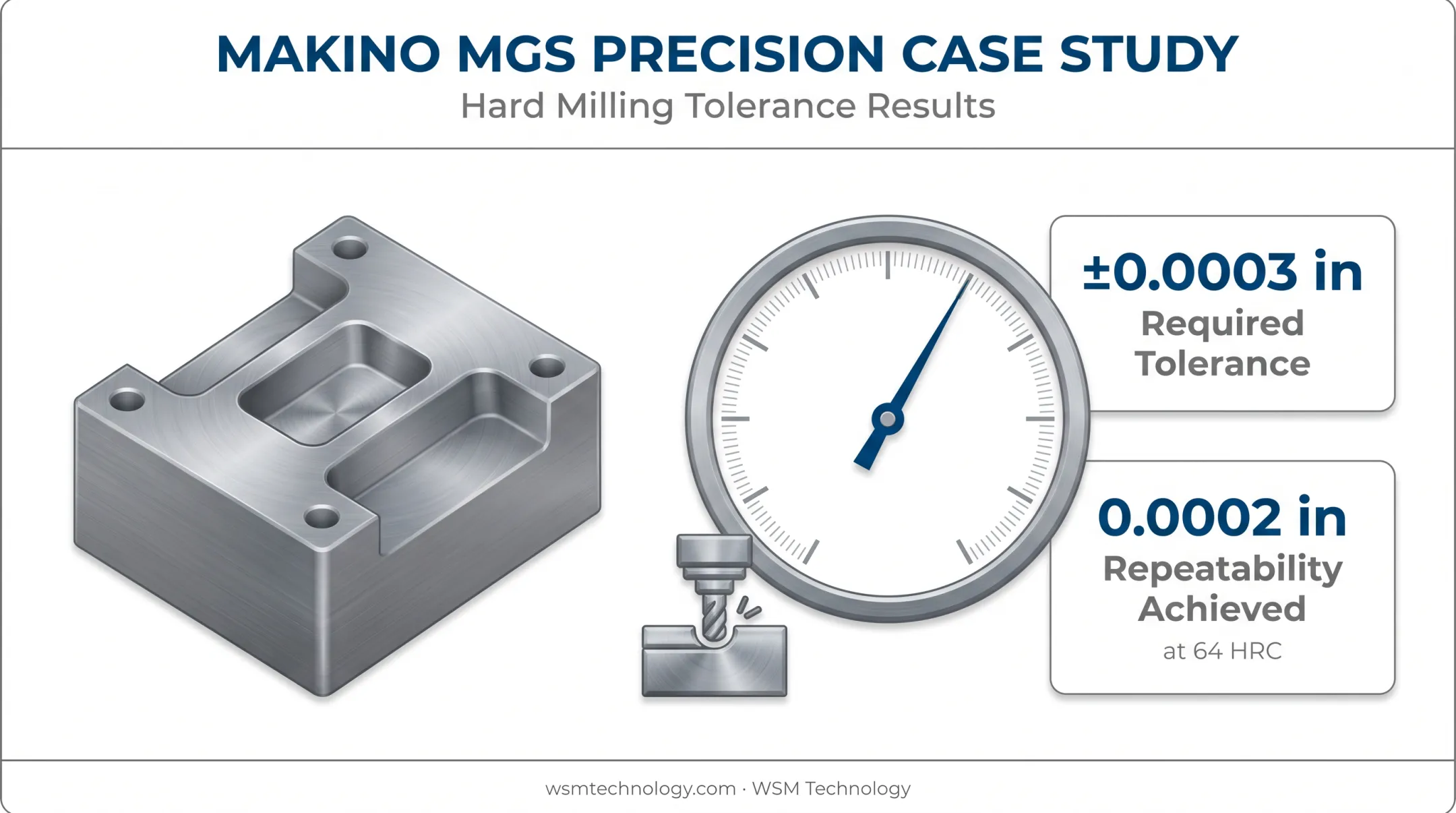

Hard milling delivers measurable tolerance capability. In a documented Makino case, a mold shop milled 64 HRC steel to ±0.0003 in required tolerance with 0.0002 in repeatability, according to Makino's MGS Mfg. case study. That's precision that used to require a finishing pass on EDM or a grinder.
Core Challenges and Tips for Successful Hard Milling
Rigid Tool Holding Is Non-Negotiable
Precision holders (shrink fit, milling chucks, high-precision collet chucks) need to keep total runout under 0.0004 inch. Seco's hard milling guidance ties this directly to tool life, dimensional accuracy, and surface finish. A loose holder doesn't just wear tools faster; it produces inconsistent results that pass on one part and fail on the next.
Material-Specific Considerations
Not all hardness numbers tell the whole story:
- Alloy content matters. D2's chromium content pushes its machinability closer to a harder grade than its HRC rating suggests.
- BUE risk on stainless. 420's sticky, ductile behavior at 48-52 HRC leads to built-up edge on the cutting tool. Air or oil mist coolant, applied at the correct SFM, helps break this cycle.
- Flood coolant can hurt more than help. Rapid cooling and reheating of the cutting edge causes thermal shock: microfractures in the coating and substrate. Air or mist coolant tends to perform better on hardened steels.

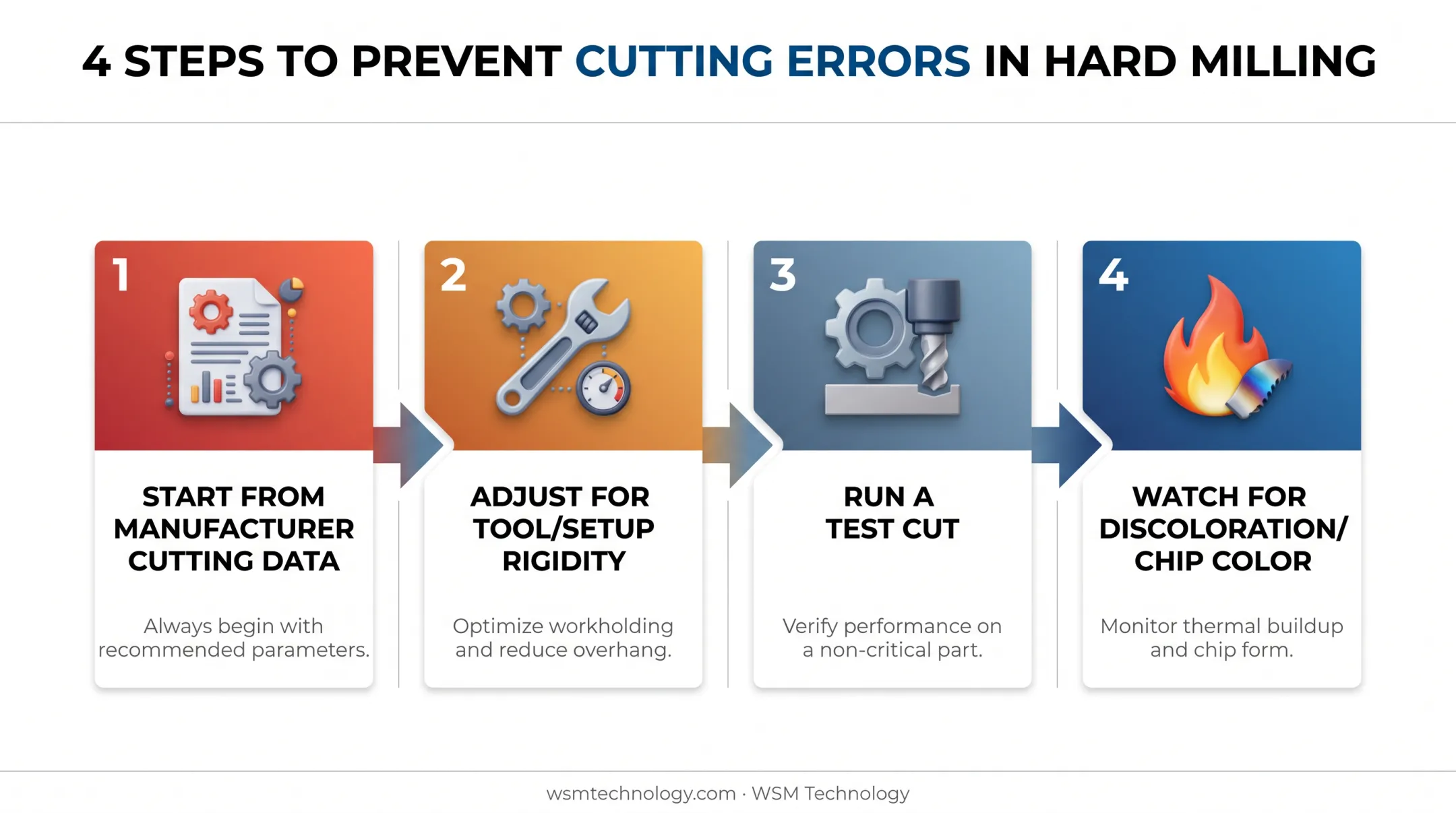

Preventing Common Cutting Errors
Cutting speeds that run too high build heat fast in hardened material. That heat breaks down the tool coating, then the substrate underneath. The result: premature wear, poor surface finish, and in worse cases, thermal cracking on the part itself.
The fix isn't complicated:
- Start from manufacturer-published cutting parameters for your specific tool and material grade
- Adjust for tool diameter, coating type, and how rigid your setup actually is
- Run a test cut before committing to a full production program
- Watch for discoloration or chip color changes as early signs of excess heat

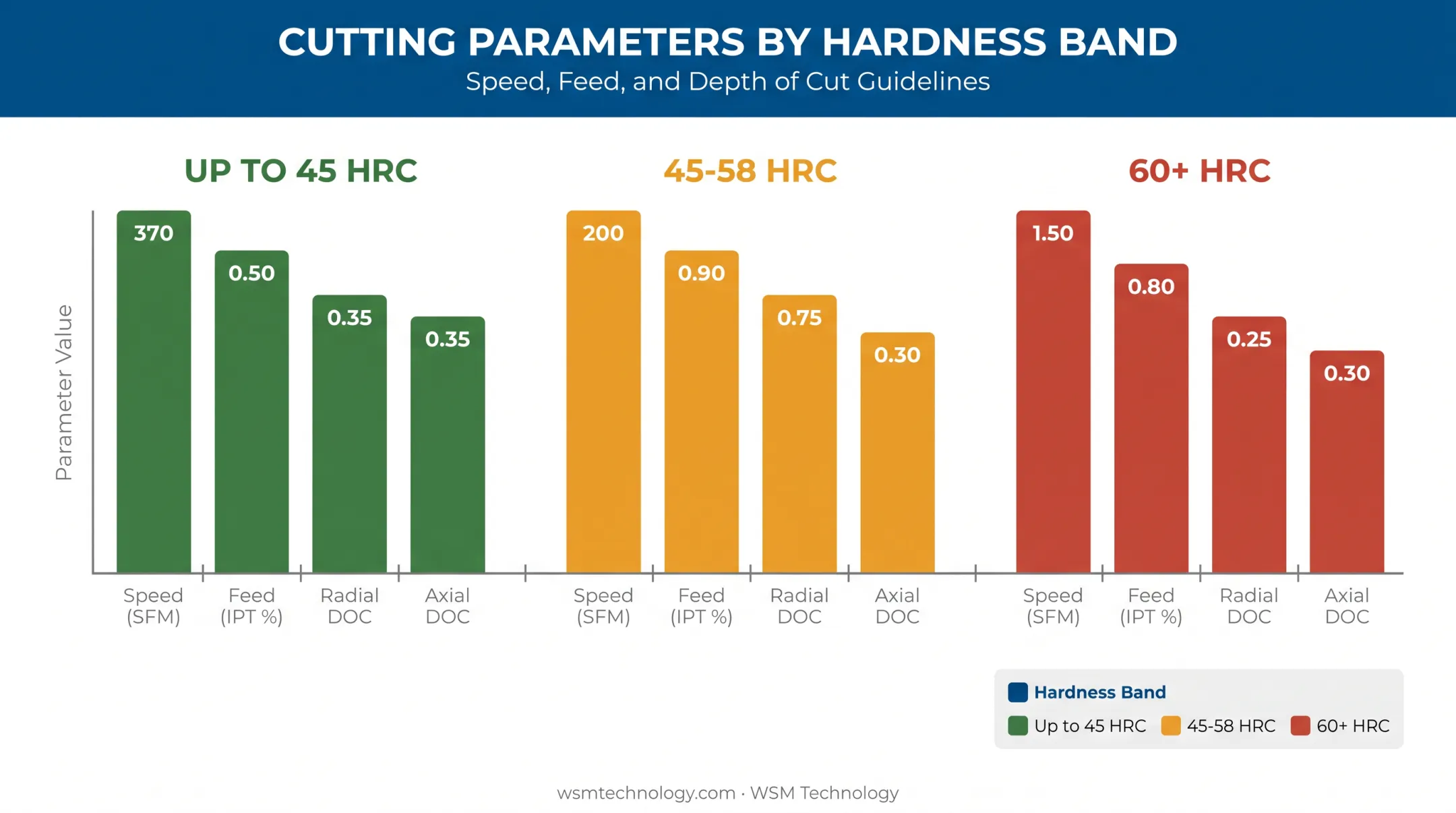

Recommended Cutting Parameters by Hardness
These are starting points, not gospel. Manufacturer tool data (OSG, Harvey, Mitsubishi, Kyocera) varies by product, but general industry rules of thumb, as published by Modern Machine Shop, look like this:
| Hardness | Speed (SFM) | Feed (IPT, % of diameter) | Radial DOC | Axial DOC |
|---|---|---|---|---|
| Up to 45 HRC | 600-1,000 | 3-4% | ~50% D | ~10% D |
| 45-58 HRC | 400-600 | 2-3% | ~45% D | ~7% D |
| 60+ HRC | 200-400 | 1-2% | ~45% D | ~5% D |
Keep these caveats in mind:
- Feed rate and depth of cut both shrink as hardness climbs (lower MRR in exchange for tool life)
- Surface finish needs may require a lighter radial depth than these hardness maximums allow
- Figures assume a high-performance machine and tooling setup, not a generic mill
Treat this table as a starting line. Real optimization needs tool manufacturer input, a test cut, and ideally a time study to confirm the numbers hold up in production. That validation is the kind of work WSM Technology runs with customers before they commit to a new part program.
Hard Milling vs. Other Machining Methods
Is Milling Harder Than Turning?
Milling is an interrupted cut: the tool enters and exits the workpiece repeatedly, and toolpaths run across multiple axes. Turning is a continuous rotational cut, typically with one insert engaged at a time.
That interruption creates fluctuating thermal and mechanical loads. Hard milling programs and holders therefore need more precision than a comparable hard turning setup.

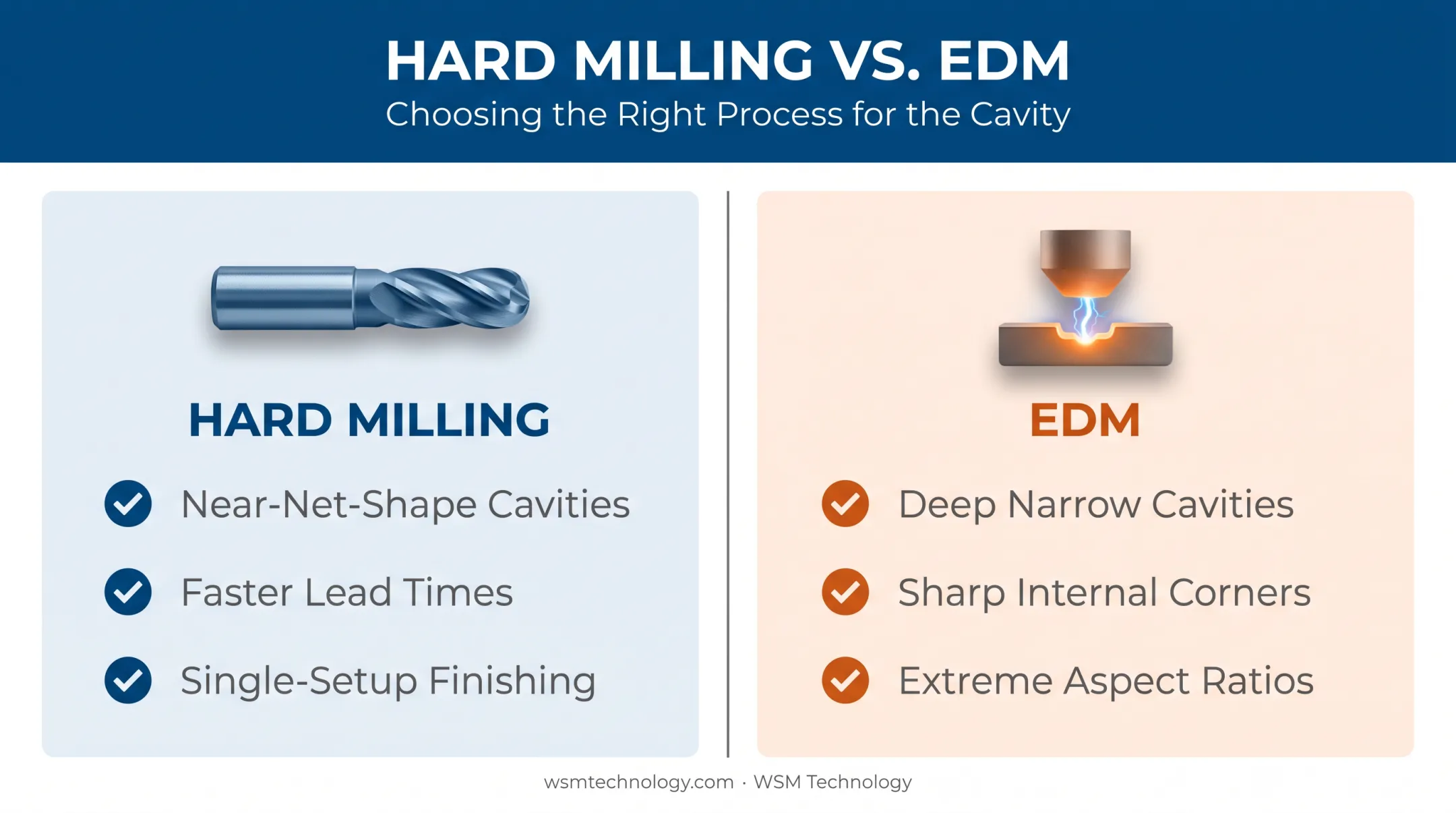

Hard Milling vs. EDM
Geometry and lead time often decide the next comparison. Hard milling now handles finishing and cavity work that once went straight to EDM, cutting steps and shortening lead time. EDM still wins in specific situations:
- Deep, narrow cavities where long, thin milling tools risk deflection and breakage
- Sharp internal corners, because milling tools leave a radius and EDM electrodes do not
- Extreme aspect ratios where tool rigidity cannot be maintained
What's the Hardest Steel to Machine?
Material choice still shapes which of those methods will hold up. There's no single official ranking, but high-carbon, high-chromium tool steels like D2 rank among the toughest to machine. Hardness plus toughness, not hardness alone, is what makes a steel brutal to cut.
Choose hard milling, hard turning, or EDM based on hardness, part geometry, toughness, and lead time together, not on HRC alone.
Choosing the Right Equipment and Partner for Hard Milling
Not every CNC mill is built for hardened steel. Before committing to a hard milling strategy, look for:
- Spindle range matched to the job — high RPM matters less than having the right torque and speed band for your material
- Structural rigidity — resistance to deflection under cutting load, often achieved through box ways or heavy castings
- Vibration control — a rigid frame reduces chatter, which directly affects tool life and finish
- Thermal stability — features like thermal-growth compensation and heat isolation keep accuracy consistent through long production runs
Test cuts and time studies are how you avoid an expensive guess. Running your actual part, in your actual material, on the machine you're considering tells you more than any spec sheet.
WSM Technology's Demonstration Center in Rootstown, Ohio gives mold/die, aerospace, and precision shops across Northern Ohio, Western Pennsylvania, and West Virginia a place to do exactly that. The lineup includes high-speed milling options alongside EDM and CNC turning equipment, so you can compare approaches side by side before you buy.

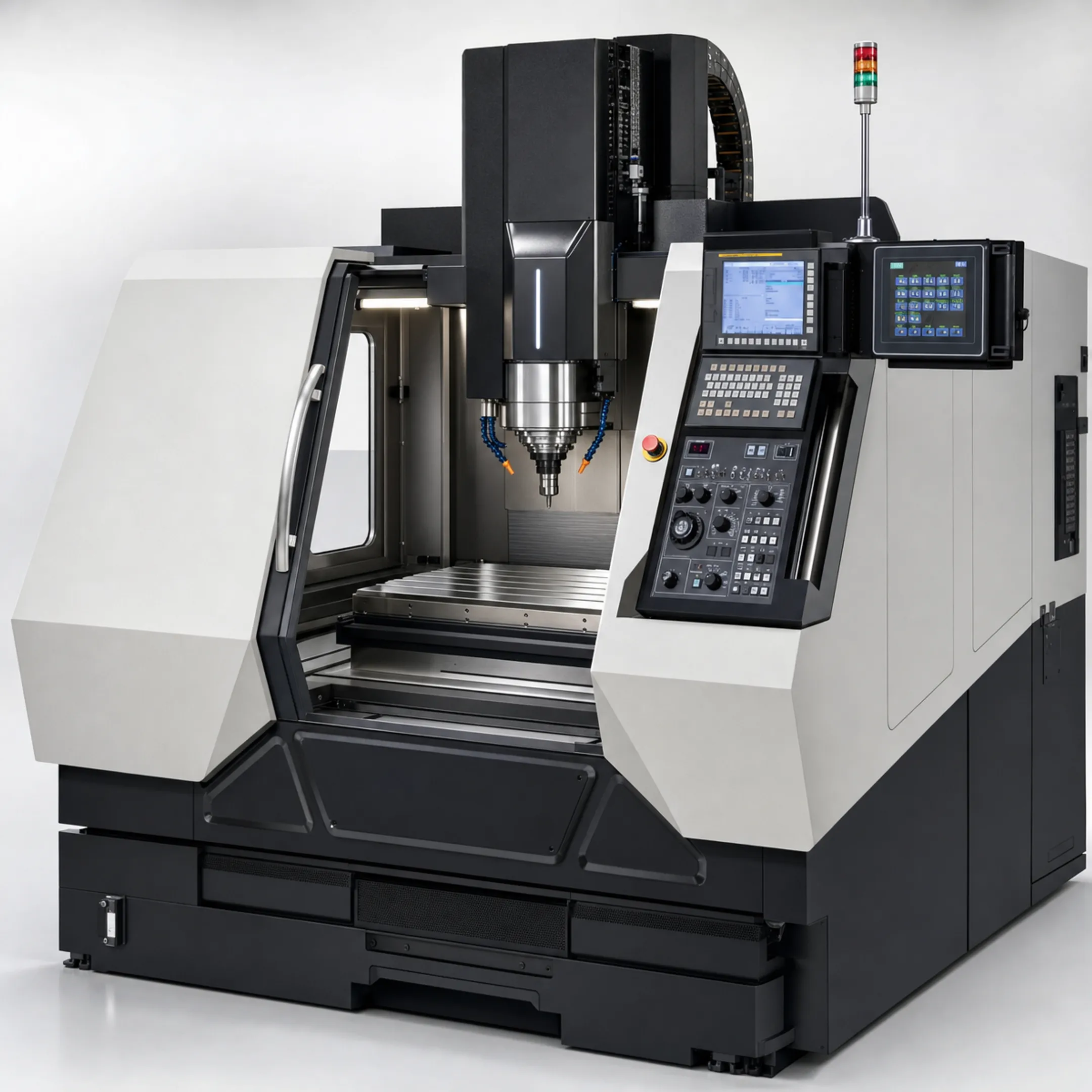

Machines like the ROKU-ROKU Android II pair a 60,000 RPM spindle with linear motor drives and active thermal compensation, holding ±1 micron machining accuracy. That level of stability is what hardened-steel work demands.
Hardware alone is not enough. Adopting hard milling also means planning for:
- Local training on the machine and its controls
- OEM parts support that keeps downtime low once you are in production
- Turnkey installation so the machine cuts parts quickly instead of sitting idle
Frequently Asked Questions
Is milling harder than turning on a lathe?
Milling uses multi-axis, often interrupted cutting; turning is a continuous rotational cut. That interruption makes milling harder to program and stabilize, especially in hardened materials.
What is the hardest steel to machine?
High-hardness tool steels above 60 HRC, and tough alloyed grades like D2, are among the most demanding materials to cut.
What happens if cutting speed is too high?
Excess heat builds rapidly, accelerating tool wear and degrading surface finish. In severe cases, the heat can cause thermal cracking or outright tool failure.
What hardness range is considered suitable for hard milling?
The general threshold starts around 45 HRC. Materials above 58-60 HRC need a different, more conservative set of cutting parameters.
Can hard milling fully replace EDM in mold and die work?
Hard milling replaces many EDM operations, but EDM remains preferred for deep, narrow cavities and sharp internal corners that milling tools can't safely reach.
How do I know if my shop is ready to invest in hard milling capability?
Run test cuts and time studies on your actual parts before buying. Consulting an equipment dealer offering hands-on demonstration, like WSM Technology's Rootstown demonstration center, removes most of the guesswork.
