This article breaks down what countersinking actually is, why 82 degrees became the US standard, which tools fit which jobs, and how to machine a precise countersink hole from start to finish. We'll also cover where the right equipment and partner make the difference between consistent results and constant rework.
Key Takeaways
- Countersinking cuts a conical recess so fastener heads sit flush with the surface
- 82° is standard for US inch fasteners; metric work typically uses 90°, aerospace rivets often 100°
- Combined drill-countersink tools cut pilot hole and countersink in one pass, saving cycle time
- Matching angle, tool material, and machine rigidity to the job prevents rework and preserves part strength
What Is Countersink and Drill Machining?
Countersinking enlarges the mouth of a drilled hole into a conical shape so a flat-head fastener seats flush with, or below, the surrounding surface. It's a finishing operation, not a standalone one: you drill first, then countersink.
The drilled pilot hole comes first. Its diameter is selected against the fastener's shank diameter and the fit class required, not a generic percentage rule. ASME B18.2.8 defines clearance-hole sizing across three fit classes (close, normal, and loose) for fasteners from #0 up through 1.5 inches and M1.6 through M100.
Countersink vs. Counterbore
These two operations get confused constantly, but the geometry is completely different:
- Countersink: Conical recess, matches flat-head screws
- Counterbore: Cylindrical, flat-bottom recess, matches socket-head or cap-head fasteners
A countersink is defined by three parameters: major diameter (at the surface), minor diameter (where it meets the pilot hole), and included angle (the full cone angle, not the half-angle).
Why Are Countersinks 82 Degrees?
The 82-degree angle isn't arbitrary. It matches the head geometry of US inch-series flat-head screws. Metric flat-head fasteners commonly use 90 degrees, while aerospace flush rivets (AN426, for example) typically call for 100 degrees, according to Severance Tools' countersink angle guide.
Using the wrong angle leaves the fastener head proud or creates an improper bearing surface. The FAA's AC 43.13-1B advisory circular confirms this specification for aerospace rivet work . The drawing and fastener spec always win over shop assumptions.
The Purpose and Benefits of Countersinking
Flush fit is the primary purpose. A flush fastener head clears thin materials, avoids snagging, and eliminates interference in assemblies where surfaces need to mate cleanly.
Beyond flushness, countersinking delivers:
- Cleaner assembly appearance with no protruding hardware
- Self-centering fastener placement, since the conical shape guides the screw head into position
- Reduced stress concentration around the fastener compared to a sharp-edged hole
- Aerodynamic, vibration-resistant surfaces for aerospace and automotive work, where flush rivets cut drag and stay tight under load
Even when a full countersink isn't the design goal, the tool itself often does double duty as a deburring pass, knocking down sharp edges left from drilling before the part moves to the next operation.
One caution: cutting too deep into thin material removes structural section and can weaken the part. There's no single industry-wide depth ratio that applies universally. The correct depth comes from the fastener head height and the governing drawing or specification, not a rule of thumb pulled from a forum post.
Types of Countersinks and Drill Bits
Tool selection depends on flute count, material, and whether you're deburring or forming a load-bearing seat.
By flute configuration:
| Type | Best For |
|---|---|
| Zero-flute | Deburring, fast countersinking without chatter |
| Single-flute | Small holes, chatter-prone setups |
| Multi-flute (3, 4, 6) | Machine work, faster shearing cuts, finishing |
Three-flute countersinks generally run at one-half to two-thirds of standard drilling speed. Six-flute tools are built for fast shearing cuts in hardened steels. Carbide-insert countersinks suit high-volume production and hardened materials when you need replaceable cutting edges instead of a solid body.
Combined drill-countersink tools cut the pilot hole and the countersink in one pass, with no tool change. Kennametal's aerospace HiPACS and piloted systems, plus PCD versions for CFRP rivet holes, show how this format scales in high-volume aerospace work.
By material:
- HSS — general-purpose, lower cost, shorter tool life in hard materials
- Cobalt — better heat resistance for stainless and tougher alloys
- Carbide — best for titanium, hardened steel, and high-volume production runs
Pair those choices with the right angle. Standard options are 60°, 82°, 90°, 100°, and 120° for center-drilling, deburring, screw seating, and shallow edge chamfers.

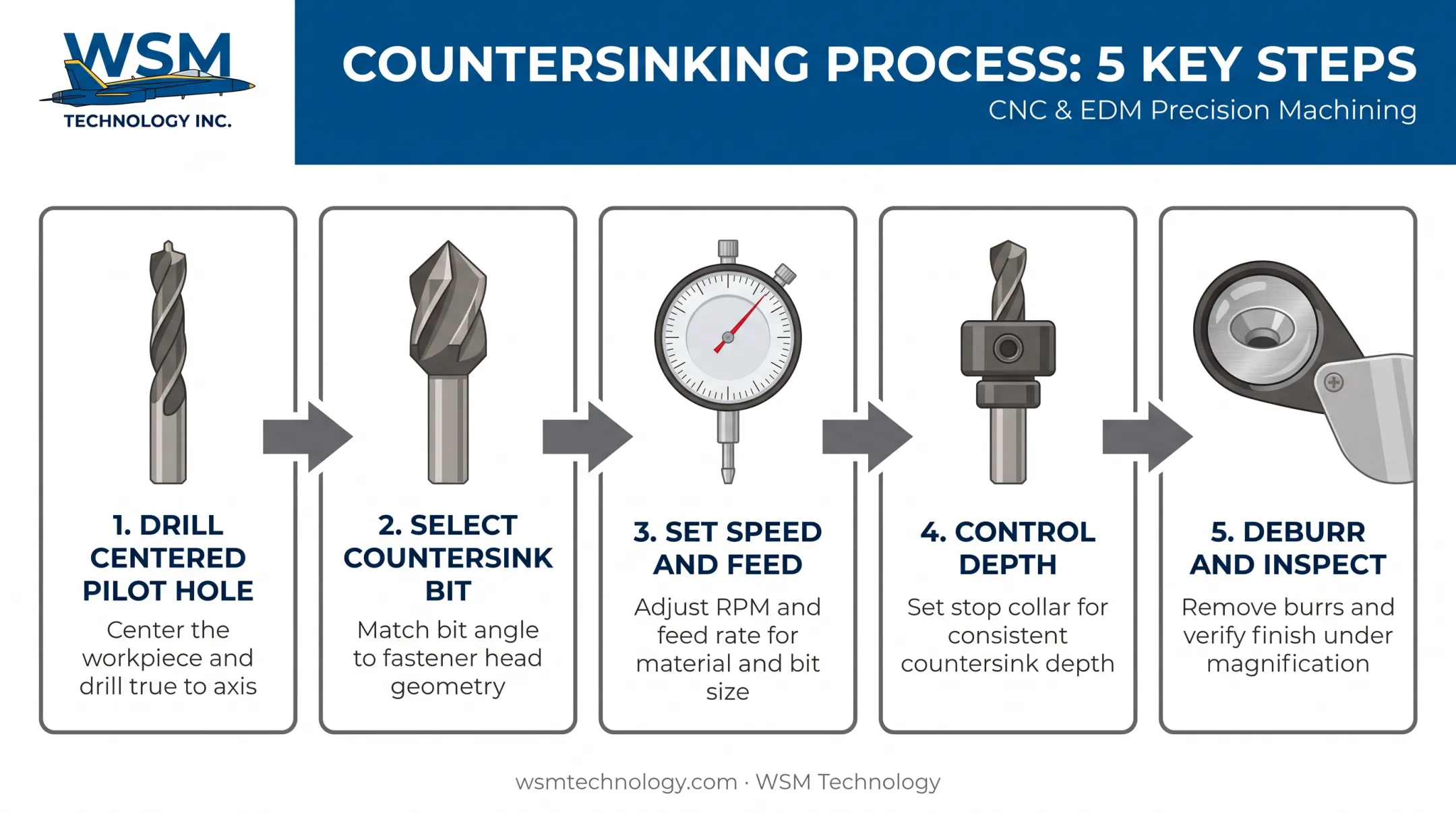

Machining a Precise Countersink Hole: Step-by-Step Process
**Drill an accurately centered pilot hole** sized to the fastener shank diameter and the required clearance class. Off-center starts here. Get it right before moving on.
Select the countersink bit matching the angle called out on the drawing and a major diameter that slightly exceeds the fastener head diameter.
Set spindle speed and feed for the material. Aluminum tolerates higher SFM than stainless or titanium. Titanium has a narrow window: excess speed causes flank wear and poor tolerance; too slow risks built-up edge and weak chip evacuation, according to Sandvik Coromant's drilling tips.
Control depth carefully. Use a depth stop or check fit against the actual fastener periodically rather than relying on a visual flush check alone.
Deburr and inspect every finished hole for flush fit and consistent geometry across the run. On production quantities, one bad setup can scrap dozens of parts.
Common Mistakes and How to Avoid Them
- Off-center pilot holes — caused by long tool overhang, poor runout, or unstable workholding. Fix with a center punch or spot drill and rigid, short tooling.
- Wrong angle selection — mixing a 90° tool with an 82° US flat-head screw leaves the head proud. Always confirm the fastener standard before cutting.
- Overheating and burrs — usually chip jamming or excessive speed. Cutting fluid and correct feed rates solve most of this.
Choosing the Right Machining Partner for Countersink and Drill Work
Manual countersinking gets inconsistent fast once you're running production quantities across multiple parts. Holding tight tolerance on angle, depth, and location at scale requires rigid, well-calibrated equipment, not a handheld tool and a steady hand.
Equipment selection matters as much as technique. WSM Technology supplies and services machines shops rely on for dependable hole-feature accuracy:
- CNC milling, EDM, and CNC turning from Mitsubishi, OPS Ingersoll, Roku-Roku, and other manufacturers
- Sarix Micro EDM and Titan EDM hole-drilling for micro-hole and specialized production work
- Fit for mold, die, aerospace, micro molding, and precision mechanics applications

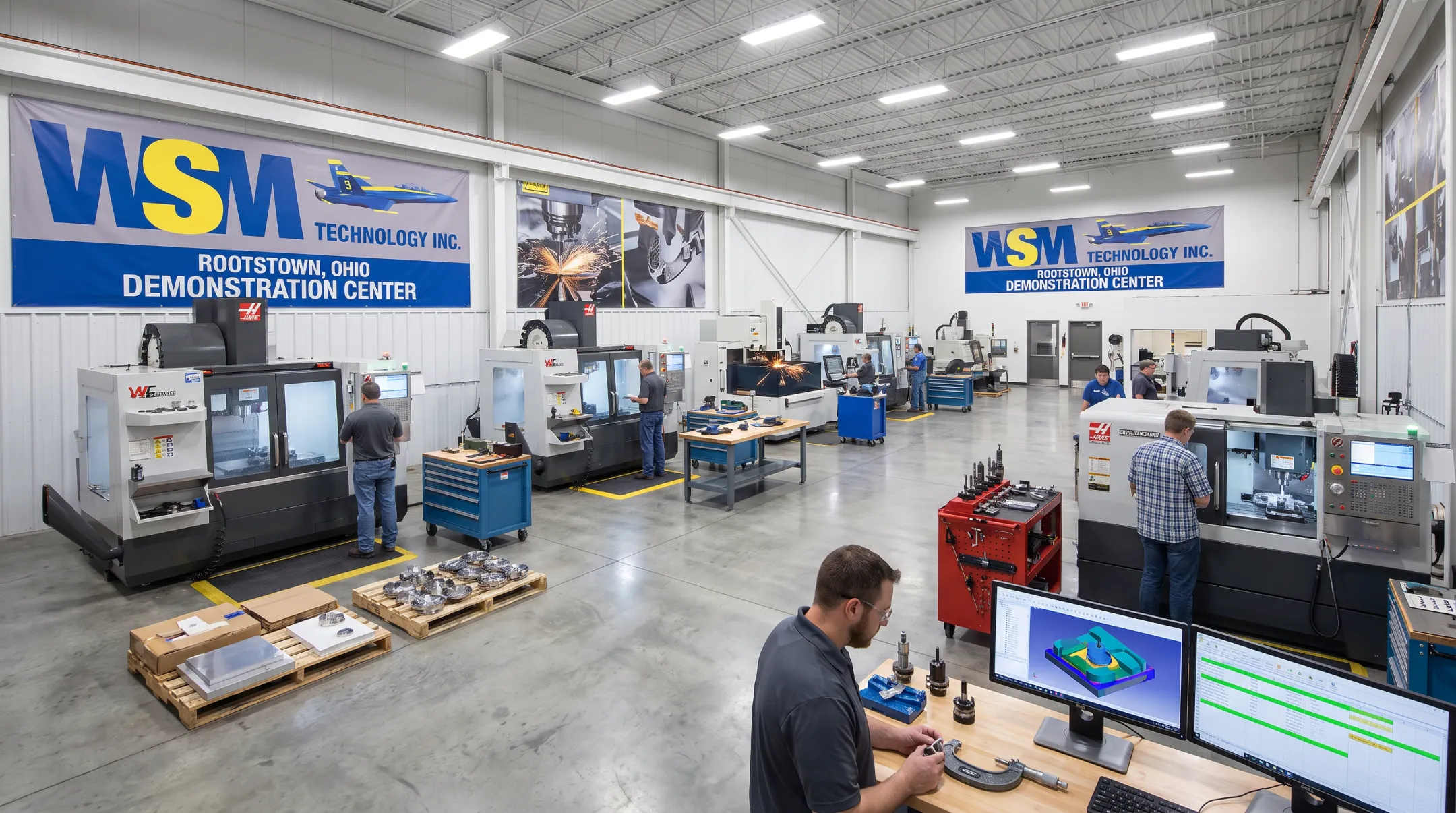

Before committing to a purchase, WSM's Demonstration Center in Rootstown, Ohio lets shops run test cuts and time studies on candidate machines. You can validate cycle times and part quality on your actual geometry before it hits the shop floor.
