Introduction
Achieving roundness deviation below 1 micron on a camshaft lobe is one of the hardest problems in production grinding. The numbers involved — nanometers of form error, milliseconds of thermal response, microns of machine drift — don't leave room for guesswork or marginal equipment.
The challenge runs deeper than simply buying a capable machine. Cutting Tool Engineering reports that modern camshaft tolerances have tightened steadily as fuel economy mandates and emissions standards push engine designers toward smaller, higher-pressure designs that leave no buffer for dimensional slop. A lobe geometry that cleared inspection two or three design cycles ago may now be the reason an engine fails emissions validation.
This guide covers the complete picture:
- Why cam lobe geometry makes sub-micron accuracy difficult to achieve
- What machine architecture and process controls are required
- How to select and dress the right grinding wheel
- How to verify results with instruments that can actually resolve what you're measuring
Key Takeaways
- Sub-micron roundness requires optimizing machine stiffness, wheel selection, thermal management, and measurement as a unified system.
- Linear motor X-axis drives eliminate backlash, making them the standard choice for accurate non-round profile grinding.
- Vitrified-bond CBN wheels are the production standard for hardened steel camshafts; carbon-fiber hubs reduce chatter further.
- Grinding burn is the primary quality risk — constant-temperature grinding outperforms both constant-MRR and constant-power strategies.
- Measurement requires skidless profilometers or dedicated roundness testers, not standard shopfloor gauges.
What Sub-Micron Roundness Means for Camshafts and Why It Matters
Defining the Tolerance
Sub-micron roundness means the total roundness deviation across the full cam lobe profile stays below 1 μm (1 micron). That's roughly 1/70th the diameter of a human hair — a regime where temperature, vibration, and machine wear all become measurement variables, not background noise.
Standard production camshafts are ground to tolerances in the 3–5 μm range or wider. The tightest requirements come from high-performance gasoline engines, modern diesel valve trains, and electrified-hybrid variable valve actuation systems, where lobe-to-lobe consistency and dimensional accuracy translate directly into combustion efficiency.
Functional Consequences of Roundness Error
Every micron of lobe irregularity has a downstream cost:
- Higher contact stress at the lobe-lifter interface, accelerating lobe and follower wear
- Inconsistent valve timing, which degrades combustion efficiency and increases emissions
- Increased valvetrain noise, particularly noticeable at cold start
- Fatigue life reduction from tensile residual stress concentrations at lobe irregularities
Bearing Area and Surface Contact
One of the clearest measures of grinding quality is bearing area — the percentage of lobe surface that actually contacts the follower during operation. Modern Machine Shop reports that Comp Cams improved roller-lifter camshaft bearing area from roughly 10–15% to 50–70% after refining their grinding and finishing process, with a 65% reduction in peak roughness. That shift directly reduces localized contact stress and extends component life.
Roller Followers Amplify Every Defect
Roller-follower camshafts are less forgiving than flat-tappet designs. A flat tappet distributes load over a broader contact patch; a roller follower concentrates force into a narrow line load. Any irregularity inconsequential on a flat-tappet cam creates a stress concentration the roller amplifies with every revolution.
In aggressive valve train applications, contact stresses at the lobe surface are substantial — which is why dimensional accuracy at this interface directly determines service life.
The Regulatory Push
That mechanical reality at the lobe interface isn't an isolated design concern — it's being amplified by broader industry shifts. Three converging pressures are driving tolerance requirements beyond what was acceptable even a decade ago:
- Emissions regulations requiring tighter combustion control across all load points
- Downsized turbocharged engines operating at elevated cylinder pressures with less margin for timing error
- Hybrid variable valve actuation systems demanding consistent lobe profiles across wider operating ranges
A tolerance that was sufficient for a naturally aspirated engine at moderate rpm is no longer viable when the same cam must perform reliably at higher loads and tighter timing windows.
Why Cam Grinding Is Uniquely Complex
The Non-Round Grinding Problem
Grinding a cylindrical shaft is straightforward: the wheel stays in one place and the workpiece spins. Cam lobe grinding works on an entirely different principle. The wheel must oscillate radially in and out while the workpiece rotates, tracing the lobe profile. As it does, the contact geometry between wheel and workpiece changes continuously.
Gardner Business Media explains that cam grinding uses an equivalent diameter (De) to represent the changing arc of contact between wheel and lobe. Because De changes throughout each revolution, so does every dependent variable: chip thickness, contact length, grinding forces, and heat generation.
MRR Surges and Thermal Damage
Those continuously shifting contact conditions have a direct consequence for heat. CIRP Annals confirms that with constant workpiece speed, instantaneous material removal rate, contact length, and grinding temperature all change sharply during one revolution. MRR spikes as the wheel transitions across the flank regions — the most geometrically aggressive portions of the lobe profile.
Heat spikes follow MRR spikes directly, and once surface temperatures exceed metallurgical thresholds, grinding burn occurs:
- Surface hardness drops as the martensitic case is tempered
- Residual tensile stresses develop, reducing fatigue life
- In severe cases, metallurgical phase changes occur that can lead to cracking in service
Why Conventional Control Strategies Fall Short

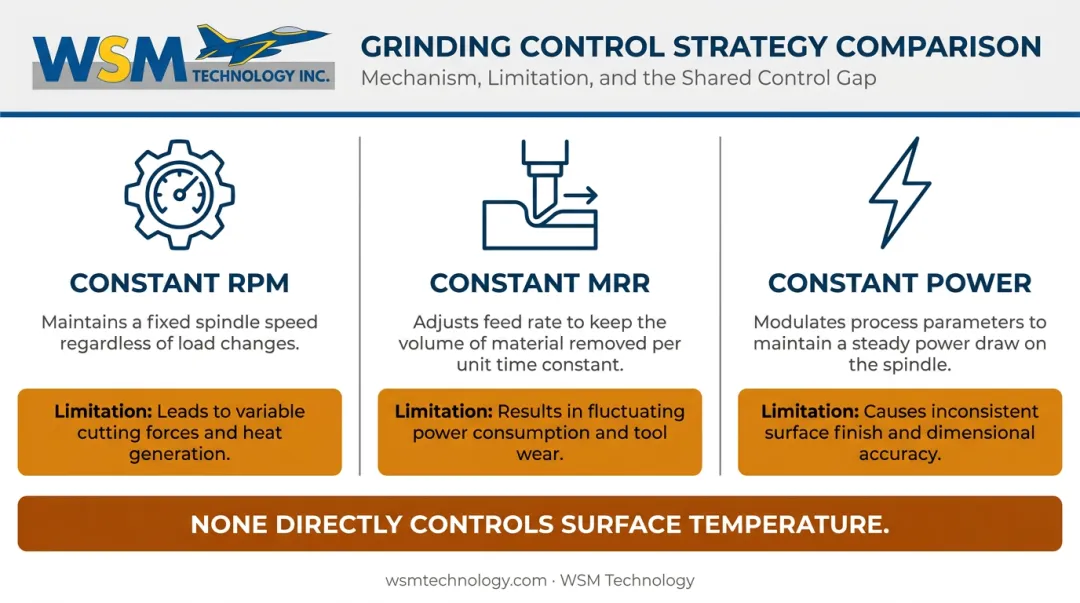

Three approaches are commonly used to manage MRR variation:
| Strategy | Mechanism | Core Limitation | |----------|-----------|-----------------|\n| Constant RPM | Fixed workpiece speed | MRR and heat vary uncontrolled through lobe revolution | | Constant MRR | Speed adjusted to hold removal rate | Slow workpiece speed on flanks increases grit dwell time; can raise temperature despite lower MRR | | Constant Power | Speed adjusted to hold spindle power | Same limitation; chip thickness can drop until grits rub rather than cut, generating more heat |
All three strategies control a proxy — removal rate, speed, or power — but none directly governs surface temperature. That gap is exactly what adaptive thermal control approaches are designed to close.
Machine Architecture Requirements for Sub-Micron Precision
Structural Stiffness and Control Bandwidth
Sub-micron roundness is impossible to achieve on a general-purpose cylindrical grinder. The machine must have sufficient structural stiffness to resist grinding forces without deflection, and its axes must respond fast enough to follow a cam profile without lag. A dedicated cam grinder — with architecture specifically designed around the non-round grinding problem — is the baseline requirement.
Linear Motor Drives: The Enabling Technology
Ball-screw X-axis drives have inherent backlash and mechanical compliance. At the reversal speeds required for cam lobe grinding, that backlash creates following error that shows up directly in lobe roundness. Linear motors eliminate the mechanical transmission entirely.
One manufacturer's published results illustrate what this enables: X-axis position deviation of approximately 0.35 μm, reversal error under 0.4 μm, and X-axis feed rates of 15,000 mm/min — the kinematic headroom needed for real-time profile compensation synchronized with C-axis workpiece rotation. Machines like the Landis LT2e use linear motors on all linear axes, paired with hydrostatic spindles and ways, specifically to support this requirement.
Cross-Slide Architecture and Geometric Stability
How axes are arranged mechanically affects long-term accuracy. Integrating the X and Z axes into a unified cross-slide establishes their geometric relationship once at assembly. That relationship doesn't drift the way it can on T-type base designs where separate axis carriages accumulate alignment error over time and across thermal cycles.
Thermal Stability
Thermal growth consistently causes more roundness error in production than most shops account for. Spindle bearing heat, coolant temperature variation, and ambient shop temperature shifts can each move dimensions by multiple microns across a single shift.

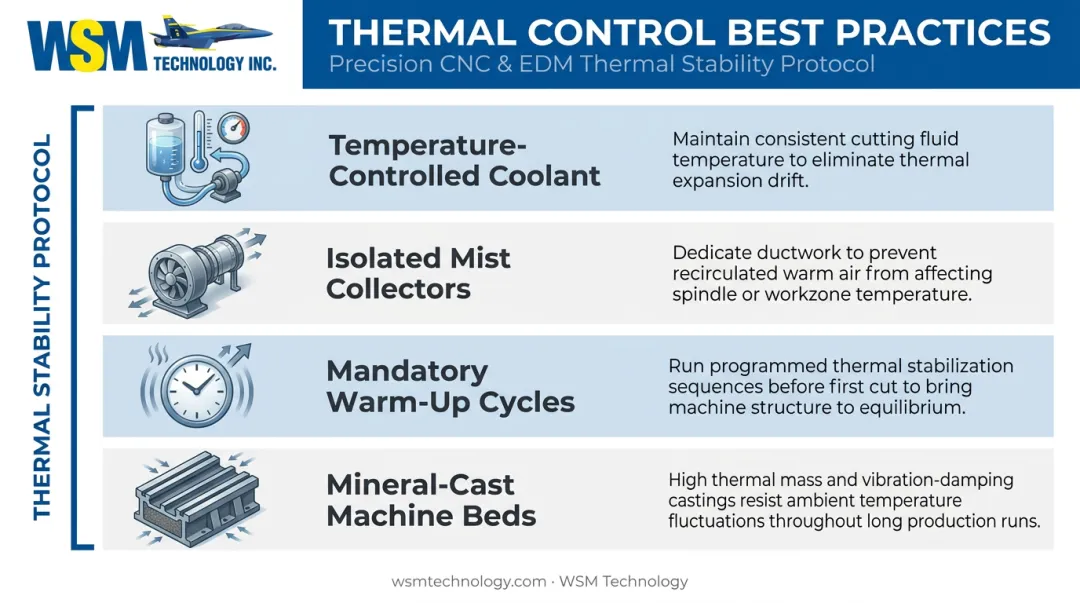

Best practices for thermal control include:
- Temperature-controlled coolant held within a degree or two throughout the entire cycle
- Physically isolated mist collectors — motor and fan vibration transmitted through ductwork is a genuine chatter source
- Mandatory warm-up cycles before production; thermal equilibrium isn't optional at sub-micron targets
- Mineral-cast machine beds, such as those used by Junker on the JUCAM platform, which provide inherent damping and lower thermal conductivity than cast iron
Manufacturers in Northern Ohio, Western Pennsylvania, and West Virginia evaluating precision CNC grinding platforms for camshaft work can contact WSM Technology in Rootstown, Ohio. Their team — led by founder Blaise Buholzer, who trained as a precision mechanic in Switzerland before spending decades as an application engineer and technical specialist — can help match grinding machine architecture to specific sub-micron requirements and discuss what evaluation options are available before purchase.
Grinding Process Optimization: Wheels, Parameters, and Thermal Control
Abrasive Selection: CBN vs. Ceramic Alumina
For hardened steel camshafts (≥55 HRC), vitrified-bond CBN is the production standard. 3M's powertrain grinding guide specifies vitrified CBN for hardened steels from 55–70 HRC, with camshaft lobes listed as a direct application and recommended grit concentrations of 150–200.
Why CBN outperforms conventional abrasives on hardened steel:
- Extreme hardness cuts cleanly without plowing or rubbing
- High thermal conductivity draws heat away from the workpiece surface
- Excellent form retention maintains lobe profile across long production runs
- Vitrified bond is dressable, porous (for chip clearance), and supports high MRR without sacrificing form
Ceramic alumina remains a cost-effective option for cast iron camshafts in lower-volume or job-shop settings. For high-production hardened steel, it's not competitive with CBN on quality or total cost per part.
Carbon-fiber hub wheels offer a measurable advantage over steel-hub designs. Junker and Comp Cams both use carbon-fiber-hub CBN wheels because the lower mass and higher damping reduce chatter — a direct contributor to roundness deviation.
Wheel Dressing Optimization
Dressing quality governs what the wheel can achieve. The dresser speed ratio — rotary diamond dresser speed relative to grinding wheel surface speed — controls how aggressively the wheel face is fractured and how sharp the resulting cutting edges are.
Norton's published guidelines recommend speed ratios of +0.5 to +0.85 for CNC dressing discs. Running near the lower end produces a sharper, more open wheel face; near the upper end, a smoother face better suited to fine surface finish.
Getting this right for a specific camshaft application requires testing:
- Check finished lobes for burn signs (nital etch testing is reliable)
- Inspect surface topography at set intervals
- Adjust transverse rate and speed ratio until both chatter and burn are absent
A glazed wheel burns from rubbing. An over-dressed wheel burns from aggressive chip loading. Nital etch results after each dress adjustment tell you which failure mode you're closer to — and which direction to move.
Coolant and Scrubbing
High-performance synthetic metalworking fluids reduce grinding temperatures and prevent wheel loading. The other critical element is scrubber jets — high-pressure coolant streams directed across the wheel face to clear swarf between the wheel and workpiece. Loaded wheels grind poorly and burn parts; scrubbing extends dress intervals and reduces grinding pressure.
Coolant addresses surface temperature reactively. For proactive thermal control at the cycle level, the more advanced approach is constant-temperature grinding.
Constant-Temperature Grinding
Constant-temperature grinding (CTG) is the most advanced cycle optimization method available for cam lobe grinding. Rather than targeting constant MRR or constant power, CTG uses the Jaeger moving heat-source model to calculate workpiece surface temperature at every point in the lobe profile. It then adjusts workpiece RPM to hold temperature below the burn threshold throughout the revolution.

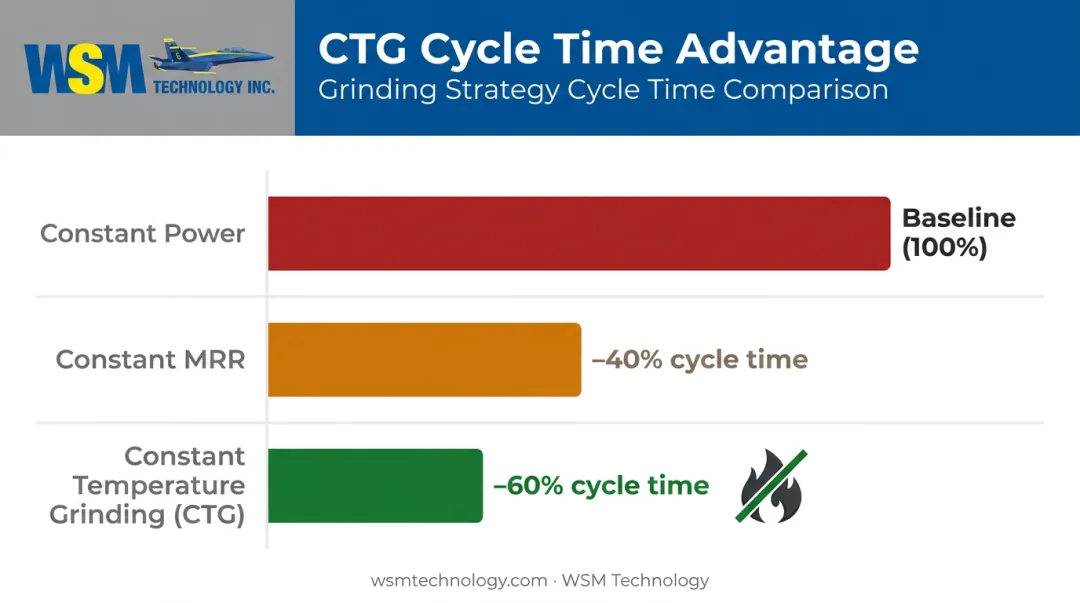

Cutting Tool Engineering reports that Scania's production implementation of CTG reduced cycle time by 20% versus constant-MRR and 40% versus constant-power, without thermal damage — a meaningful productivity gain at no quality cost.
CTG optimization must also account for machine jerk limits — the third derivative of position — which constrains how quickly wheel-spindle oscillation and workpiece rotation can accelerate. Any optimized cycle that ignores the machine's jerk characteristics will produce overshoot errors that degrade roundness, regardless of how well the thermal model is implemented.
Measuring and Verifying Sub-Micron Roundness
Why Standard Gauges Fail
Skidded profilometers and V-block indicator setups are adequate for process monitoring on loose-tolerance work. Neither can verify sub-micron roundness.
The skid averages over the surface, the V-block datum is itself a function of part geometry, and both instruments lack the resolution to distinguish roundness from waviness at this scale.
Production Machining reports that Comp Cams uses a Zeiss Surfcom Flex 50A skidless profilometer capable of resolving surface topography to 0.000002 inch (approximately 0.05 μm). That's the resolution floor needed for meaningful sub-micron measurement.
Required instrumentation:
- Skidless profilometers with straight-datum guide systems — not skidded; the datum must be independent of the part surface

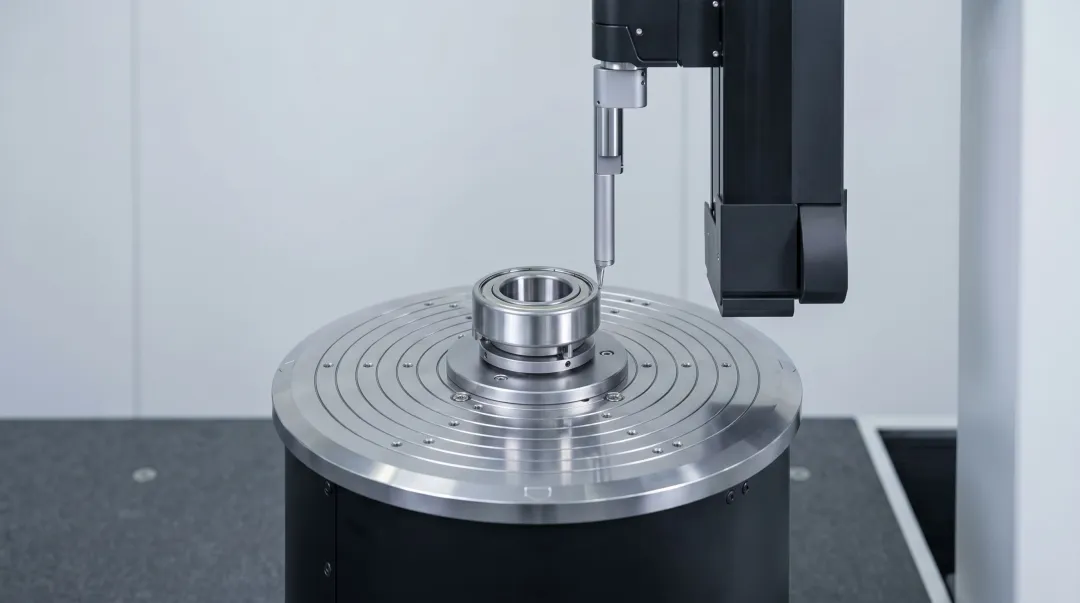

- Dedicated roundness testers such as the Talyrond 500 HS PRO, which supports harmonic analysis, roundness, roughness, and contour measurement
- CMM systems with appropriately qualified probes and thermal compensation for high-accuracy lobe profile work
What to Measure
Roundness alone doesn't tell the whole story. A complete lobe characterization includes:
- Lobe profile deviation — lift error across 360° at 0.1° increments
- Waviness — side-to-side variation across lobe width
- Surface roughness Ra — finish quality at the lobe surface
- Lobe crown — for roller-follower cams, Comp Cams targets approximately 0.0001 inch (2.54 μm) of convexity
- Bearing area ratio — the percentage of lobe surface available for follower contact
FFT analysis of the roundness trace directly diagnoses production problems. Harmonic content maps to specific error sources:
- Grinding chatter appears at the wheel-spindle frequency
- Workpiece-speed errors show up at the fundamental and harmonics of spindle rotation
Burn Detection
Stresstech's published guidance identifies camshafts as among the most common components analyzed by Barkhausen Noise testing, specifically because grinding burn at the lobe surface is a high-consequence quality risk that visual inspection cannot reliably detect.
Barkhausen Noise analysis detects:
- Softening of the hardened case
- Residual tensile stress development
- Microstructural phase changes
The method works non-destructively — no cutting or etching required — making it practical for high-volume lines targeting 100% inspection. Nital etch testing suits process development and periodic audits, but Barkhausen is the preferred method for production-line burn detection on camshaft lobes.
Frequently Asked Questions
What is considered sub-micron roundness in camshaft grinding?
Sub-micron roundness means total roundness deviation across the full cam lobe profile is below 1 μm (1 micron). Standard production tolerances are far looser; advanced non-round grinding machines with linear motor drives routinely target the 1–3 μm range in high-volume production.
What type of CNC grinding machine is needed to achieve sub-micron camshaft roundness?
You need a dedicated cam grinder with linear motor X-axis drives, high-resolution position feedback, a stiff cross-slide structure, and thermal stability provisions. General-purpose cylindrical grinders lack the axis control bandwidth and backlash elimination required for reliable non-round profile grinding at this tolerance level.
Why is grinding burn a concern for camshaft precision, and how is it detected?
Thermal damage during grinding softens the hardened lobe surface, creates residual tensile stress, and can cause in-service cracking. Barkhausen Noise testing detects softening, stress state, and microstructural changes non-destructively — no cutting or etching required.
What is the best grinding wheel for sub-micron camshaft precision?
Vitrified-bond CBN wheels are the standard for hardened steel camshafts, with carbon-fiber hubs preferred over steel-hub designs to reduce vibration. Match grit selection to your Ra target — coarser for roughing, finer for finishing — and target a concentration of 150–200 for hardened steel.
What causes roundness deviation in CNC camshaft grinding?
The most common causes are:
- Axis following error or backlash (eliminated by linear motors)
- Thermal growth over the production shift
- Wheel imbalance or improper dressing
- Grinding chatter (identifiable via FFT analysis of the roundness trace)
- Inaccurate workpiece support from out-of-tolerance journal grinding
How do you measure roundness on a camshaft to sub-micron accuracy?
Use a skidless profilometer with a straight-datum guide system, a dedicated roundness tester, or a CMM with qualified probes. The measurement must capture both roundness and waviness — roundness alone doesn't fully characterize lobe surface quality at sub-micron tolerances.
