This guide is written for machinists, toolmakers, and process engineers in mold and die, aerospace, automotive, and hydraulic manufacturing — industries where deep bores are common and tolerance failures are expensive. You'll find a clear explanation of the process, the engineering constraints that make long thin holes different, the factors that matter most, and an honest look at when internal grinding is the wrong tool for the job.
Key Takeaways
- Internal grinding finishes existing bore IDs to precise diameter, geometry, and surface finish using a small abrasive wheel on a rotating arbor
- The length-to-diameter (L:D) ratio drives every process decision — as it increases, arbor deflection, heat, and chip packing all compound
- Wheel-to-bore diameter ratio should stay between 66% and 75% of bore ID for proper clearance and spark-out
- Carbide arbors are required at L:D ratios of 5:1 or greater — steel quills deflect too much to hold tolerance at that depth
- Common failure modes (taper, rough surface, out-of-round) trace directly to deflection or thermal problems that worsen with depth
What Is Internal Grinding for Long Thin Holes?
Internal grinding is a finishing operation where a high-speed abrasive wheel, mounted on a precision arbor, rotates inside a bore while the workpiece also rotates, removing small amounts of material to achieve precise diameter, geometry, and surface finish. According to Norton Abrasives, internal grinding covers bores, holes, rings, and tubes, and is capable of producing sizes and concentricity measured in microns.
The "long thin hole" category starts where standard internal grinding assumptions break down. Fischer's documentation on classical internal cylindrical grinding describes diameter-to-length ratios up to 1:10, and peer-reviewed research on deep-hole internal grinding identifies depth-to-diameter ratios greater than 7 to 8 as the threshold where typical grinding shafts become problematic.
The real constraint isn't a fixed ratio — it's arbor stiffness relative to grinding force. No single universal threshold applies across all applications.
Understanding where internal grinding ends and related processes begin helps clarify when each approach applies.

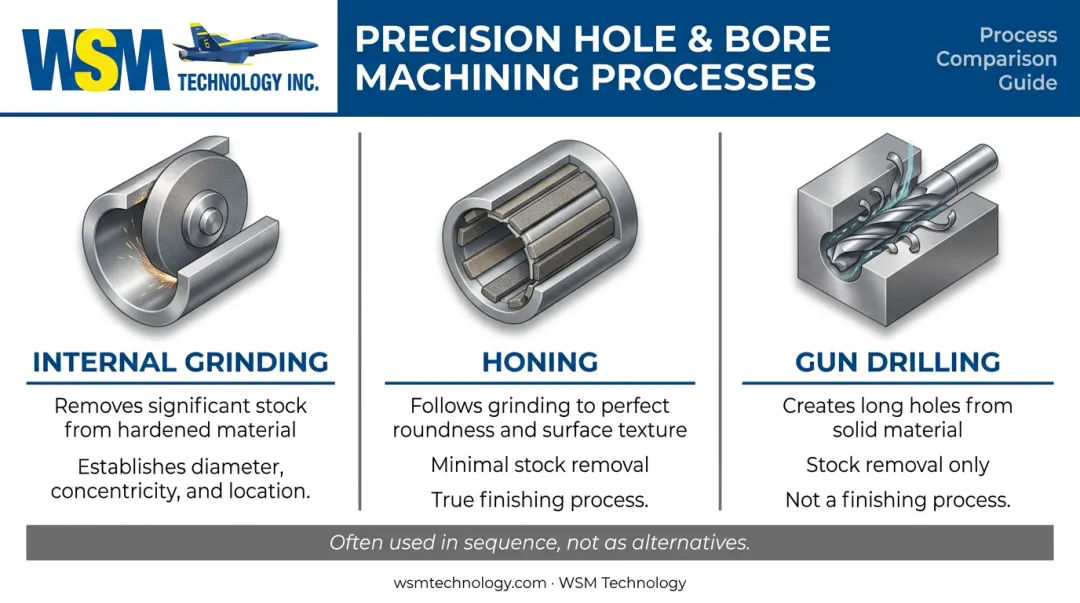

How It Differs from Honing and Gun Drilling
These three processes are often confused but solve different problems:
- Internal grinding — removes significant stock from hardened material; establishes diameter, concentricity, and location
- Honing — follows grinding when geometry is already correct; perfects roundness, straightness, and surface texture with minimal stock removal
- Gun drilling — creates long holes from solid material; is a stock removal process, not a finishing operation
For deep precision bores, these processes are often used in sequence, not as alternatives.
Why Long Thin Holes Require a Specialized Grinding Approach
In a short bore, the arbor is stiff and deflection under grinding force is negligible. Extend that same arbor to reach the bottom of a deep bore and the geometry changes completely. Grinding force applied at the far end of a slender shaft creates a lever effect: even a few thousandths of deflection produces taper, out-of-round geometry, or a flared bore entry.
The Arbor Stiffness Constraint
Quill overhang limits are well-documented by tooling manufacturers:
- Sopko recommends a 4:1 length-to-diameter ratio for steel straight-shank quills
- Okuma states steel quills are not recommended at 5:1 or greater, and lists tungsten carbide and carbon fiber/steel combinations as alternatives
Beyond these ratios, a steel arbor will deflect enough under normal grinding loads to produce bore taper or cylindricity error over the length of a deep hole.
Where These Geometries Appear in Practice
The components that demand long thin hole grinding are concentrated in a handful of industries:
- Fuel injector nozzles — very high L:D ratios with tiny wheels on disproportionately long quills, where quill deflection makes tight taper and cylindricity tolerances extremely difficult
- Hydraulic cylinders and valve bodies
- Spindle bores and deep die cavities
- Gun barrels and aerospace structural components
Heat and Chip Evacuation
Two problems compound as bore depth increases:
Thermal: The annular space between the wheel and bore wall restricts coolant flow. Heat concentrates at the cutting zone, causing thermal expansion of both workpiece and wheel during grinding, which directly affects final bore diameter after cooling.
Chip packing: Swarf that flushes out easily in a shallow bore has nowhere to go in a deep one. Debris packs into the wheel face, causing glazing and loading that raises grinding force sharply — amplifying deflection. Per Metalworking News, an oversized ID wheel can block the bore entirely, preventing swarf from escaping. The result: the wheel rubs without cutting and distorts the workpiece through accumulated heat.
How Internal Grinding Works on Long Thin Holes
The basic sequence: the workpiece is fixtured rigidly, a small grinding wheel on a precision arbor is inserted into the bore, and both the wheel and workpiece rotate in opposite directions while the arbor traverses the bore length. Multiple passes progressively remove stock until the bore reaches final size, geometry, and finish.
Setup and Workpiece Fixturing
Fixturing decisions have a direct impact on bore geometry:
- Thin-walled parts require fixtures that distribute clamping force evenly — three-jaw chucks with soft jaws or shoe-grinding fixtures prevent localized distortion
- Bore centerline must align with the machine spindle axis before grinding starts; angular misalignment amplifies into measurable taper over the length of a deep bore
- Workpiece rotation speed and axis runout both affect roundness — any bearing slop in the workpiece spindle shows up directly in the finished bore

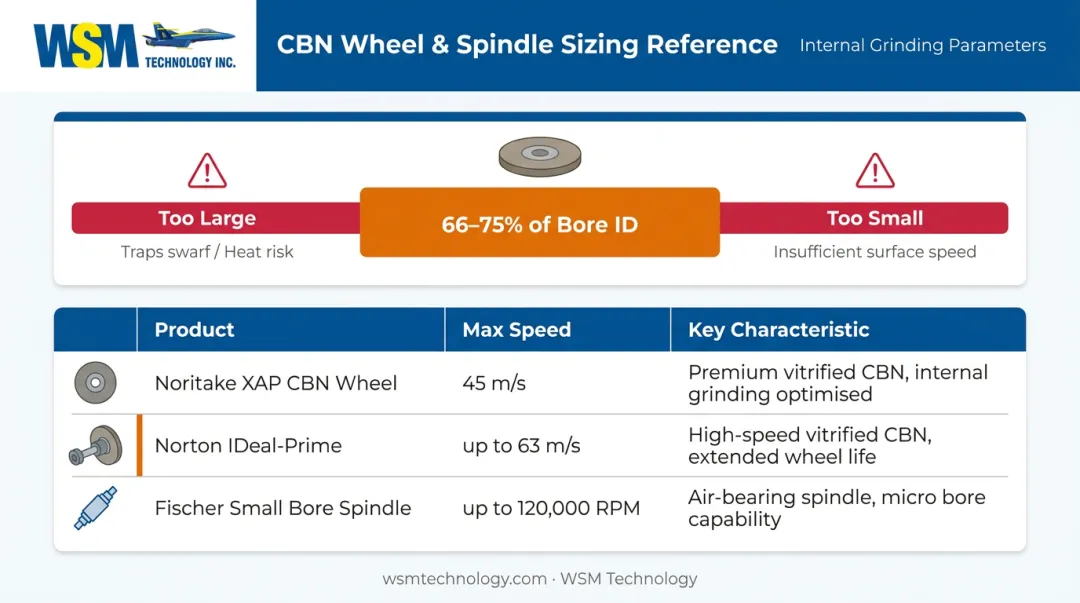

Grinding Wheel and Arbor Selection
Target a wheel diameter of 66–75% of bore ID. Going outside that range creates predictable problems:
- Too large: Increases contact arc, traps swarf, limits coolant access, and risks heat distortion
- Too small: Can't reach adequate surface speed for efficient cutting
- Arbor material: Carbide replaces steel once bore length exceeds the steel quill's L:D limit — carbide's higher stiffness directly reduces deflection-induced taper
- Narrower wheels: Cut grinding force and deflection but extend cycle time; use them when tolerance requirements outweigh throughput concerns
Wheel speed deserves separate attention. Small diameters in deep bores require very high spindle RPM to maintain adequate surface velocity:
| Wheel/Spindle | Rated Speed |
|---|---|
| Noritake XAP internal CBN wheel | 45 m/s |
| Norton IDeal-Prime ID wheel | up to 63 m/s |
| Fischer internal grinding spindle (small bore) | up to 120,000 RPM |
Grinding Pass Execution
Traverse (longitudinal) method: The wheel moves the full bore length in multiple passes with incremental in-feed. This distributes wear and heat along the bore, making it the preferred method for high L:D ratios.
Plunge method: The wheel feeds radially without traversing. Better suited to short bores — concentrated heat and force make it problematic for deep holes.
Spark-out passes: At the end of each grinding cycle, the arbor continues traversing with no new in-feed. This allows elastic deflection to recover — the arbor springs back and grinds areas it previously missed due to flex. Without spark-out, long thin holes typically come out larger at the entry and smaller at depth. As Meister notes, spark-out lets the deflected wheel recover and remove material in the tapered sections it skipped under load.

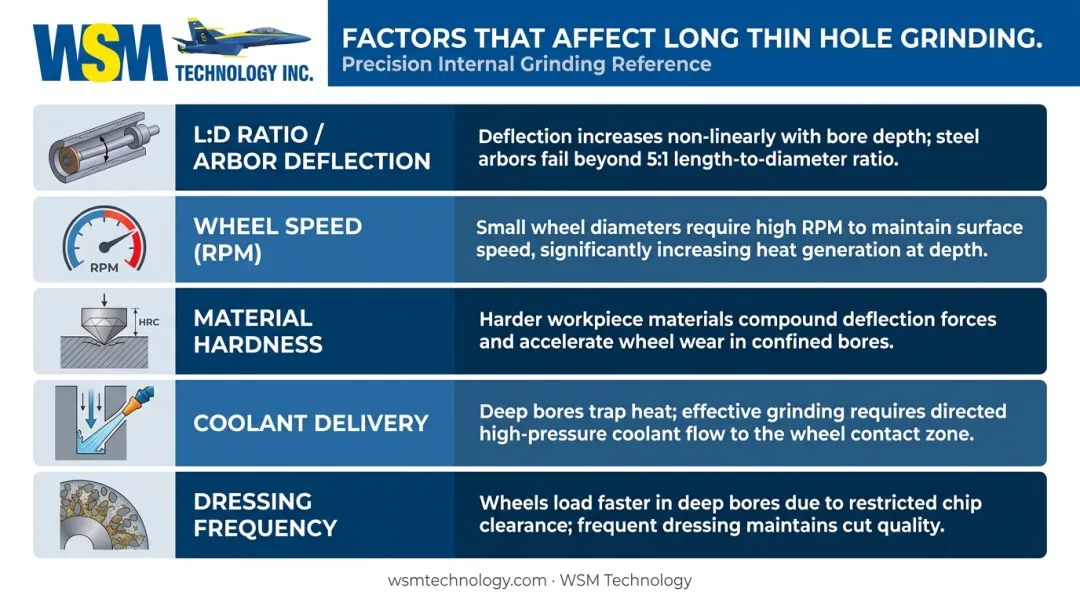

Key Factors That Affect Long Thin Hole Grinding
Each factor below interacts with the others — improving one without addressing the rest rarely solves the problem.
| Factor | Impact in Long Thin Holes |
|---|---|
| L:D ratio / arbor deflection | Deflection increases non-linearly with overhang; steel quills become unreliable at 5:1; produces taper that worsens toward bore depth |
| Wheel speed | Small wheel diameters require very high RPM to maintain surface velocity — but higher RPM generates more heat in an already thermally constrained environment |
| Workpiece material hardness | Hardened steels and carbide require CBN or diamond wheels; harder materials generate more grinding force, compounding deflection on a slender arbor |
| Coolant delivery | Deep bores require directed or through-spindle coolant; inadequate flow causes thermal bore expansion during grinding that results in undersized holes after cooling |
| Dressing frequency | Wheels load faster in deep bores due to restricted chip escape; shorter dressing intervals and correct diamond dresser alignment are more critical here than in standard ID grinding |
Two of the five factors above — coolant delivery and dressing frequency — deserve closer attention because their effects compound each other in deep bores.
Coolant delivery directly controls thermal deformation. Increasing coolant pressure improves flow into the grinding zone, reduces grinding force, and limits bore expansion during the cut. At significant bore depths, directed or through-spindle delivery isn't a refinement — it's required for consistent results.
Dressing frequency controls how much force reaches the arbor. A loaded wheel behaves like a blunt tool: grinding force rises, deflection increases, and surface finish degrades. In long thin holes, this cycle tightens because there's no easy way to flush the grinding zone between passes — a wheel that loads gradually in a standard ID bore will load fast here.
Common Failures and When to Consider Alternatives

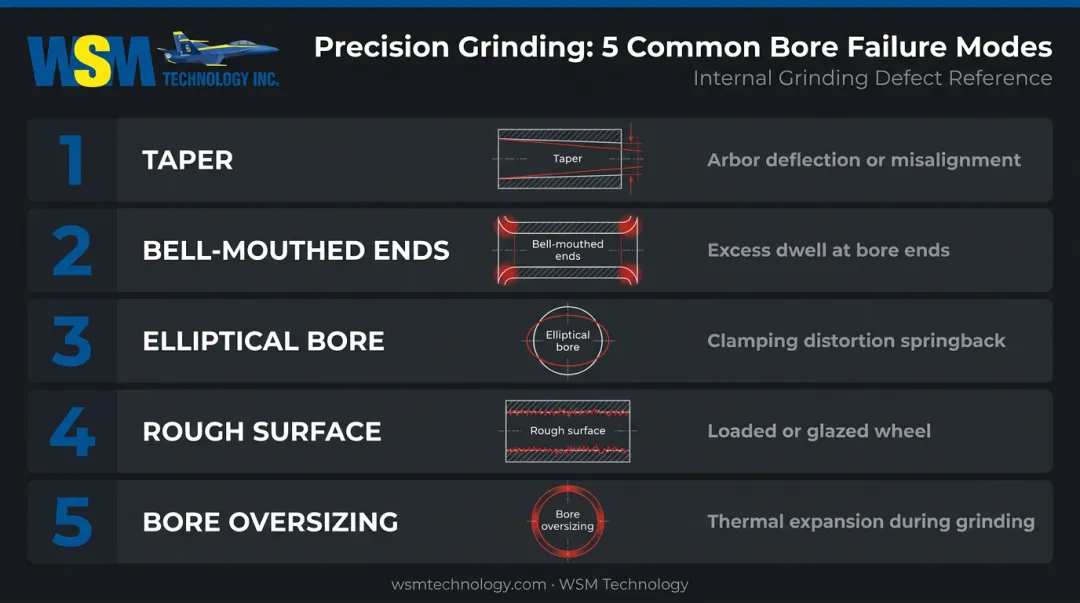

The Five Most Common Failure Modes
Taper — The most frequently documented bore grinding problem. Root cause: arbor deflection or workpiece/spindle misalignment. The bore grinds progressively larger or smaller from entry to depth.
Bell-mouthed or flared ends — The wheel dwells too long at bore entry or exit, removing more material at those points. Also caused by arbor spring-back at the reversal point.
Elliptical bore — Clamping distortion in thin-walled parts releases after the bore is ground, allowing the part to spring back to a non-round shape.
Rough surface — Loaded or poorly dressed wheel, worn spindle bearings, or excessive feed rate. Chips from a glazed wheel can scratch the bore surface directly.
Bore oversizing — Thermal expansion of the workpiece during grinding that isn't accounted for in the sizing strategy. The bore measures correct at grinding temperature and comes out oversized after cooling.
The Most Common Misconception
Slowing down the feed rate does not automatically fix long-thin-hole problems. Slower feeds increase dwell time inside the bore, which worsens thermal issues and wheel loading. The correct response is usually a combination: adjusted feed, improved coolant delivery, and more frequent dressing — not just one of the three.
When Internal Grinding Is Not the Right Process
UNISIG documents that dedicated gun drilling equipment is generally required at L:D ratios of 20:1 or greater, with dedicated machines capable of reaching 100:1 and specialized equipment beyond that.
When a bore is too deep for a rigid carbide arbor to span without deflecting beyond tolerance, or when the bore diameter is so small that no grinding wheel can reach adequate surface speed, gun drilling followed by honing is typically the correct process sequence.
Use internal grinding when:
- The bore requires significant stock removal from hardened material
- Positional accuracy (concentricity to an OD) is required
- The bore was damaged or distorted by heat treatment
Switch to honing when:
- Only a few thousandths of material remain
- Bore position is already correct
- Final geometric perfection or a specific cross-hatch surface finish is the goal
WSM Technology represents the Cheto 7-Axis Milling and Gun Drilling machine, a dedicated system for long-hole drilling applications where internal grinding reaches its practical limits. For bores that exceed what ID grinding can reliably achieve, contact WSM Technology to evaluate whether gun drilling, honing, or a combined process sequence fits your specific geometry and tolerance requirements.
Frequently Asked Questions
What is the process of internal grinding?
Internal grinding is a finishing operation where a high-speed abrasive wheel rotates inside a bore as the workpiece also rotates, removing small amounts of material to achieve precise diameter, geometry, and surface finish. It is used primarily on hardened components where tolerances and concentricity are measured in microns.
What is cylindrical grinding procedure?
Cylindrical grinding covers both external (OD) and internal (ID) features. The procedure involves chucking the workpiece, selecting wheel specifications, setting speeds, then making progressive passes — including spark-out passes — to reach final size and surface finish.
What is the process of creep grinding?
Creep-feed grinding uses a very slow workpiece feed rate combined with a deep single pass, removing large amounts of material in one stroke rather than many shallow passes. It is primarily a surface and profile grinding technique and is not used for internal bore grinding.
What is the maximum practical L:D ratio for internal grinding?
Steel quills become unreliable beyond 5:1; carbide alternatives extend this range to roughly 7–8:1. Beyond approximately 10:1, gun drilling followed by honing is typically more practical than internal grinding.
How do you prevent tool deflection when grinding long thin holes?
Use the largest-diameter, shortest-length carbide arbor that fits the bore, and reduce grinding force through lighter in-feed and appropriate wheel selection. Incorporate spark-out passes at the end of each cycle to allow elastic recovery — and select spindles with minimal bearing runout, since runout transfers directly to bore geometry.
What is the difference between internal grinding and gun drilling for long deep holes?
Gun drilling creates a long hole from solid material — it is a stock removal process. Internal grinding finishes an existing hole to tight tolerances. For very long holes, they are commonly used together: gun drilling to create the bore, followed by internal grinding or honing to achieve final size, geometry, and surface finish.
