Introduction
Precision manufacturers face a genuine squeeze: customers want tighter tolerances, better surface finishes, and faster delivery simultaneously. Conventional machining strategies, which rely on slower, heavier cuts, increasingly struggle to deliver on all three fronts.
The common assumption is that "high speed machining" simply means cranking up the spindle RPM. That's a costly misconception. Run a conventional toolpath at high RPM without the right machine construction, tooling, and CAM strategy, and you'll burn through tools faster than you can replace them.
True high speed machining (HSM) is a complete system-level approach — one that covers machine design, spindle technology, balanced tooling, workholding, and intelligent CAM toolpaths working in concert.
This guide breaks down exactly what HSM is, how it differs from conventional milling, what equipment it requires, and whether it makes sense for your shop.
Key Takeaways
- HSM replaces slow, heavy cuts with fast, lighter passes — maintaining material removal rates while reducing cutting forces, heat, and tool wear
- True HSM requires a matched system: rigid machine, high-speed spindle, look-ahead CNC control, and adaptive CAM toolpaths working together
- Constant tool engagement angle, not raw spindle speed, is the defining principle that separates true HSM from simply running faster
- HSM excels in mold and die, aerospace, and precision part applications, but is not always the right choice for heavy roughing or low-tolerance high-volume work
What Is High Speed Machining?
High speed machining is a milling strategy that replaces slow, heavy cuts with many fast, lighter passes. The goal is to maintain high material removal rates while simultaneously reducing cutting forces, heat generation, and tool wear. There is no single universal RPM threshold that defines it.
Academic sources describe HSM as using cutting speeds and feed rates 2 to 50 times higher than conventional machining, depending on the workpiece material and tooling. Spindle speeds typically range from 8,000 to 120,000 RPM across various applications, with some specialized micro-machining spindles designed for even higher speeds. Makino historically associates HSM with speeds above 10,000 RPM, though that marker varies by application and material.
The Parameters That Actually Define HSM
No single factor makes a process "high speed machining." The combination matters:
- High spindle speed — commonly above 10,000–15,000 RPM, up to 60,000+ RPM for micro-machining
- High feed rates — often above 10 m/min
- Low radial depth of cut — typically no more than 20% of cutter diameter in trochoidal applications
- Optimized tool engagement angle — maintained consistently throughout the cut
The Thermal Behavior Behind HSM
The counterintuitive physics of HSM trace back to Dr. Carl Salomon's 1931 German patent (No. 523594). His hypothesis: cutting temperature rises with speed up to a critical threshold, then begins to decrease at very high cutting speeds. This means properly executed HSM can actually reduce thermal damage to tools and workpieces compared to conventional speeds, not increase it.
That thermal behavior is one reason HSM works well on materials that are notoriously heat-sensitive, including aluminum alloys and hardened tool steels.
HSM Is Not Just a Faster RPM Setting
Managing heat is only part of the equation. Realizing HSM's full potential also depends on the control and toolpath intelligence driving the machine. CNC controls with look-ahead capability process complex motion data fast enough to maintain consistent feed rates through intricate geometry — the Haas HSM option, for example, processes up to 1,000 blocks per second. Without that processing speed, the control decelerates at every direction change, negating the throughput advantage entirely.
High Speed Machining vs. Conventional Milling
The real difference between HSM and conventional milling comes down to cutting strategy and how tool load is managed — not just spindle speed.
Conventional milling uses fewer, heavier passes with higher radial engagement. The tool spends more time in contact with the material per pass, which means more heat, higher cutting forces, and more wear per unit of time. HSM flips that model: many lighter, faster passes with lower radial engagement and shorter contact time per pass.
The "Tyranny of the Corner" Problem
Here's the specific failure mode that makes conventional toolpaths expensive. When a cutter moves through a straight slot at 50% stepover — a 90° tool engagement angle — it's manageable. But when that same cutter hits a 90° corner, research shows engagement can double to 180°, dramatically spiking cutting force, heat, and chip evacuation difficulty.
Programmers using conventional toolpaths compensate for this worst-case corner load by reducing speeds, feeds, and depth of cut across the entire program — not just at the corners. One bad corner penalizes every other cut in the job.
HSM toolpath strategies solve this by keeping engagement constant throughout. Constant engagement offsetting reduces maximum cutting forces by 19% compared to contour-parallel paths, while trochoidal slotting paths run 20% shorter than standard cycloid paths with 17% lower peak forces.

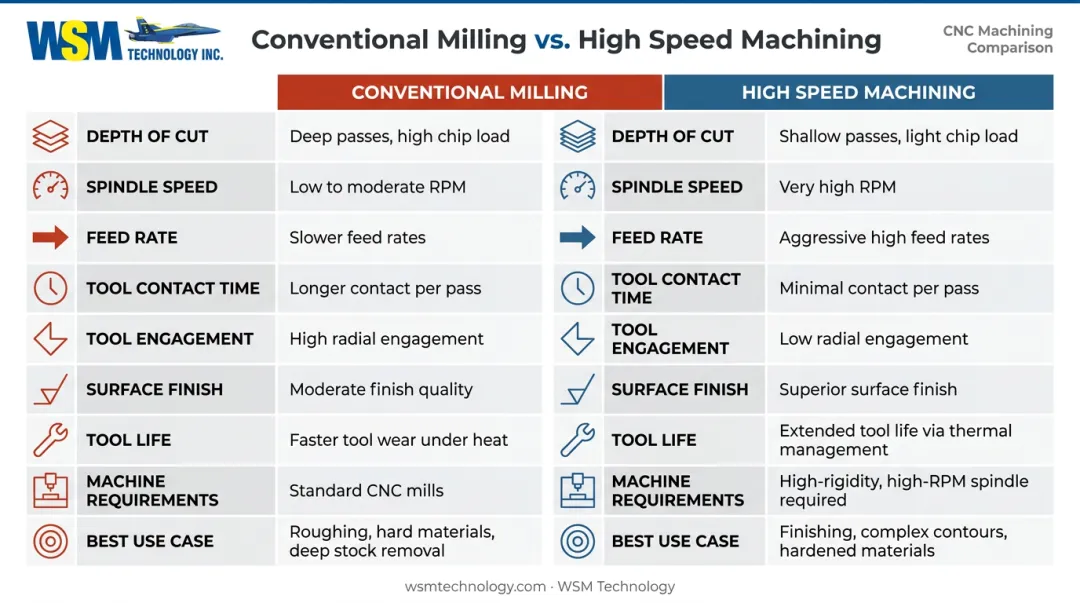

Side-by-Side Comparison
| Factor | Conventional Milling | High Speed Machining |
|---|---|---|
| Depth of cut | Heavy (high radial engagement) | Light (low radial engagement) |
| Spindle speed | Lower | Higher (often 2–10x) |
| Feed rate | Slower | Faster |
| Tool contact time | Longer per pass | Shorter per pass |
| Tool engagement | Variable — spikes in corners | Constant throughout |
| Surface finish | Adequate for most work | Finer, often eliminates polishing |
| Tool life | Reduced by load spikes | Extended when process is dialed in |
| Machine requirements | Standard CNC | High-speed spindle, look-ahead control |
| Best use case | Heavy roughing, large steel | Complex geometry, hard milling, precision work |

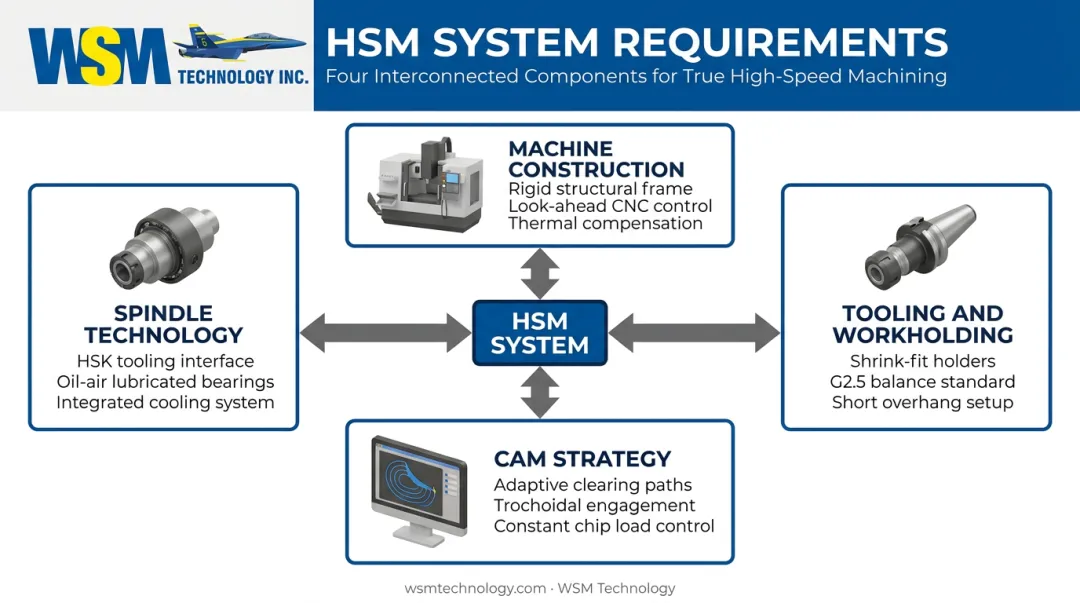

What Makes High Speed Machining Possible?
HSM is a system requirement, not a single machine spec. Every element has to be matched to the others.
Machine Construction
HSM demands stiff yet lightweight machine structures that minimize vibration and thermal distortion. High-acceleration linear guides and ball screws enable rapid tool positioning between passes.
The CNC control must also have look-ahead capability. This means processing toolpath data ahead of the current position so the machine maintains feed rate through complex geometry without decelerating at every direction change.
FANUC HSM control options, for example, add enhanced acceleration/deceleration control and automatic feed rate control specifically for this purpose.
Spindle Technology
HSM spindles require:
- Minimal runout — high-speed toolholders with runout below 1 micron for precision applications
- High-speed bearings (oil-air lubricated or ceramic hybrid) to handle sustained thermal loads
- Integrated cooling to maintain consistent performance over long cycles
- HSK or equivalent tool retention: HSK's dual taper/flange contact maintains clamping force as the spindle expands at speed, unlike CAT/BT steep-taper systems
BIG DAISHOWA reports HSK 63A withstands 5 times the radial deflection of CAT 40, and HSK 100A is 7 times stiffer than CAT 50 equivalents.
Tooling and Workholding
Balance tolerances become critical at HSM spindle speeds. Sandvik references ISO 1940-1 balance grades and cites G2.5 at 20,000 RPM as a standard example. Haimer specifies fine balancing to G2.5 at 25,000 RPM for shrink-fit holders, with TIR of 0.003 mm at 3x diameter.
Key tooling requirements for HSM:
- Shrink-fit or hydraulic tool holders to minimize runout
- Short, rigid tool overhangs to reduce deflection
- Dedicated roughing and finishing tools — running the same tool for both accelerates wear
- Heat-resistant coatings (TiAlN and similar) matched to the workpiece material
CAM Software and Toolpath Strategy
Adaptive clearing, trochoidal milling, and constant tool engagement angle toolpaths are what allow HSM to deliver its full potential. These strategies continuously steer the cutter away from over-engagement, maintaining consistent chip load throughout the cut.
The payoff is measurable: Autodesk reports Adaptive Clearing can deliver 40% faster material removal compared to conventional approaches.
Purpose-built HSM platforms integrate all of these system requirements — machine construction, spindle, tooling, and CAM strategy — into a single solution. WSM Technology's JINGDIAO High Speed Mill, available in 3-axis and 5-axis configurations, is one such platform. Shops in Northern Ohio, Western PA, and West Virginia can evaluate it at WSM Technology's Rootstown, Ohio demonstration center.
Core High Speed Machining Techniques
Trochoidal Milling and Constant Engagement Strategies
Trochoidal milling has the tool follow a series of circular looping paths to cut a slot or pocket wider than the tool diameter. The result: low radial depth of cut and a controlled engagement angle maintained throughout, even in confined areas where corners would otherwise cause load spikes.
Sandvik reports trochoidal milling allows cutting speeds up to 10 times higher than conventional methods, with axial depth of cut up to 2x cutter diameter — and recommends radial engagement no greater than 20% of cutter diameter.
Constant tool engagement angle (CTEA) toolpaths — called Adaptive Clearing in Fusion 360, Dynamic Motion in Mastercam, and similar names across other CAM platforms — take this further by generating optimized looping paths that actively steer the cutter away from over-engagement throughout the entire cut. The paths aren't simply faster routes — they actively manage cutting forces across the entire operation.
Radial Chip Thinning
When radial engagement falls below 50% of cutter diameter — as it commonly does in HSM — chips become thinner than at full engagement. If the programmer doesn't compensate by increasing feed rate, the result is rubbing rather than cutting.
Rubbing carries three direct consequences:
- Generates heat without removing material efficiently
- Accelerates tool wear beyond normal HSM expectations
- Degrades surface finish on the finished part
Sandvik's chip thinning guidance provides feed modification factors to correct for this — for example, a factor of 1.4 for a 45° entering angle. Programmers must account for chip thinning when calculating HSM feeds and speeds, not apply conventional feed rate numbers directly.
Benefits and Applications of High Speed Machining

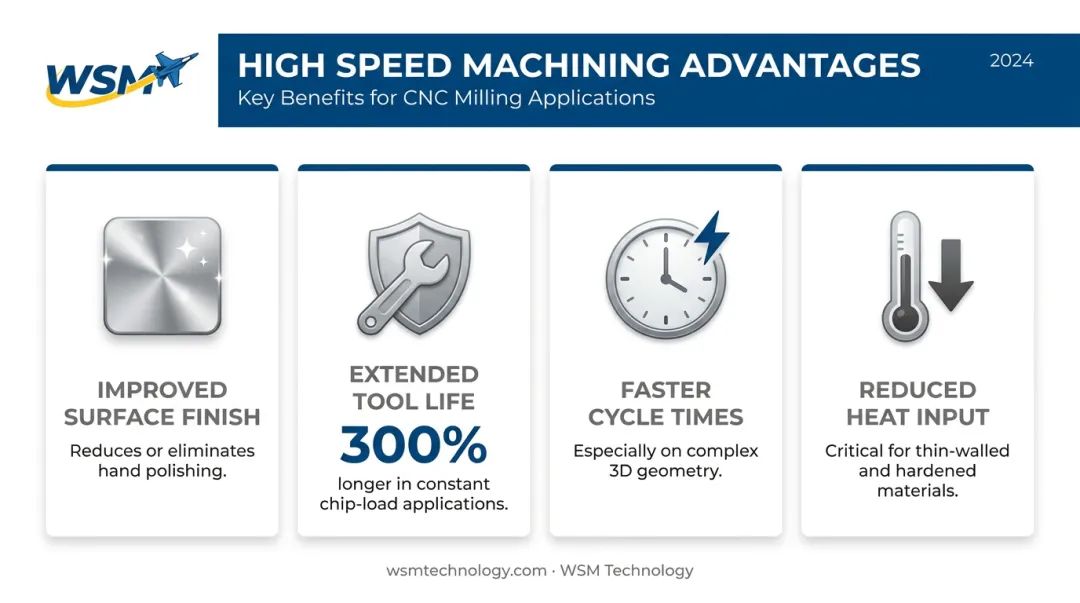

Core Benefits
- Improved surface finish — HSM can reduce or eliminate hand polishing operations, particularly in mold work
- Extended tool life — constant chip load eliminates the load spikes that cause premature tool failure; dynamic roughing can extend tool life by up to 300% in constant chip-load applications
- Faster cycle times — especially on complex 3D geometry where conventional toolpaths run conservative parameters everywhere
- Reduced heat input — critical for thin-walled parts and hardened materials where thermal distortion is a real risk
Those benefits don't apply equally across all work types. Where HSM truly separates itself from conventional approaches depends on the material, geometry, and industry.
Where HSM Excels
Mold and die: Direct hard milling of hardened tool steel at 48–65 HRC can reduce or eliminate EDM operations. One documented case reduced a seating adjustment punch from one week by EDM to one hour by hard milling, cutting lead times by 55% and improving manual labor efficiency by over 40%.

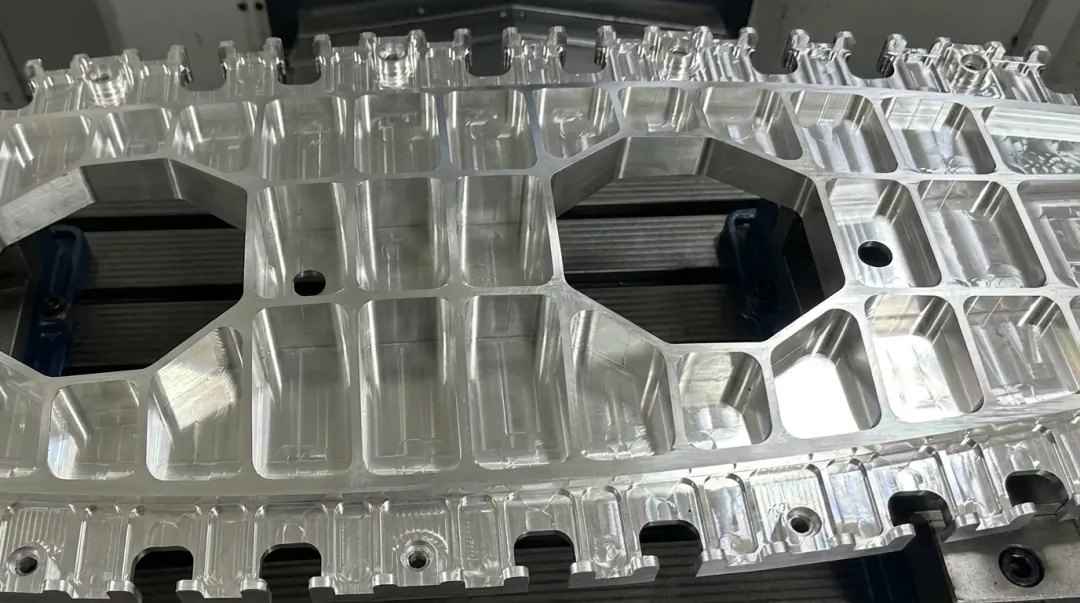

Aerospace: The numbers here are hard to ignore. HSM enabled aircraft rib wall thickness reduction from 0.050 inch to 0.013 inch at McDonnell Douglas. Separately, Modig reported material removal of 1,001 cubic inches per minute in 7075 aluminum — wing stringer production time dropped from 384 minutes to 74 minutes.
Automotive and precision components: Aluminum and non-ferrous alloys are natural fits for HSM — high throughput, mirror-quality finishes, and minimal post-processing make it a straightforward productivity gain.
Medical and implant work: Complex 3D geometries with tight tolerances and fine surface finish requirements, where low cutting forces prevent distortion of delicate features.
Material Fit
| Material | HSM Suitability |
|---|---|
| Aluminum and non-ferrous alloys | Exceptional — highest throughput, best finish results |
| Hardened tool steel (48–65 HRC) | Strong — with correct tooling and light engagement |
| Titanium and Inconel | Good — controlled engagement reduces heat and surface damage |
| Large steel blocks (roughing) | Limited — conventional indexable tooling often more efficient |
Is High Speed Machining Right for Your Shop?
Where HSM Delivers the Most Value
- Complex 3D geometries: molds, electrodes, impellers, orthopedic implants
- Parts requiring excellent surface finish with minimal post-processing
- Thin-walled or delicate components where low cutting forces prevent distortion
- Hard milling in tool steels where you want to reduce EDM or polishing time
- High-mix/low-volume production where faster first-part delivery matters
Where Conventional Machining Remains the Better Choice
Not every job benefits from HSM. Conventional approaches hold the advantage when:
- **Heavy roughing of large steel blocks** — indexable tooling removes bulk material more efficiently, and torque matters more than speed. Makino cites titanium/hard-metal machines optimized at 4,000 RPM and 737 ft-lb torque for exactly this reason
- Machines lacking the capability — shops with spindles below HSM-suitable speeds, insufficient rigidity, or controls without look-ahead capability won't see HSM benefits and may see worse results
- Simple low-tolerance parts in high quantity — setup complexity of HSM toolpaths isn't justified when the geometry and finish requirements don't demand it
Evaluating HSM for Your Application
Test cuts on your actual parts and materials tell you more than any spreadsheet calculation. WSM Technology's Demonstration Center in Rootstown, Ohio offers hands-on machine evaluations, test cuts, and time studies for manufacturers across Northern Ohio, Western PA, and West Virginia. Their team can help determine whether the JINGDIAO High Speed Mill or another platform fits your specific application.
Frequently Asked Questions
What spindle speed defines high speed machining?
There is no single universal threshold. HSM is historically associated with speeds above 10,000 RPM, with specialized micro-machining centers reaching 50,000–120,000+ RPM. Speed alone doesn't define HSM — without matched machine rigidity, balanced tooling, and adaptive CAM toolpaths, higher RPM produces faster tool wear, not better results.
How is high speed machining different from conventional CNC milling?
HSM uses many light, fast passes with low radial engagement and constant tool engagement angle toolpaths, while conventional milling uses slower, heavier cuts. The practical difference: HSM avoids the corner over-engagement problem that forces conventional toolpaths to run conservative parameters throughout the entire program.
What materials are best suited for high speed machining?
Aluminum and non-ferrous alloys respond exceptionally well — high throughput, excellent finish. Hardened steels (48–65 HRC) and difficult alloys like titanium and Inconel also benefit when HSM is applied with properly matched tooling and low engagement strategies that control heat input.
Do I need special tooling to run high speed machining?
Yes. HSM requires balanced, short-overhang tool assemblies with shrink-fit or hydraulic holders to minimize runout, plus heat-resistant coatings matched to the workpiece material. Dedicated tools for roughing and finishing — balanced to G2.5 at operating RPM — are the standard for maximizing tool life and process consistency.
Can high speed machining replace EDM in mold making?
HSM can reduce or eliminate certain EDM operations by directly milling hardened tool steel to a fine surface finish. EDM remains the better choice for very deep narrow cavities or geometry that cutters physically cannot reach, so the two processes are most often complementary.
What CAM features are needed to take advantage of high speed machining?
Effective HSM requires CAM software that generates adaptive clearing, trochoidal, or constant tool engagement angle toolpaths. The CNC control also needs look-ahead capability to process complex motion data at speed, and many controls require a dedicated HSM mode to prevent deceleration at every direction change.
